| Product Type | Direct View LED Display |
| Model | LSAB-V294GV |
| Family | MAGNIT Series |
| Series | LSAB Series |
| Form Factor | 12x6 Cabinet Array (Modular Tile Design) |
| Display Diagonal Size | 294.5 Inch |
| Resolution | 7680 x 2160 (4K UHD) |
| Pixel Pitch | 0.94 x 0.94 mm |
| Display Technology | MicroLED with Chip-on-Board (COB) |
| Aspect Ratio | 32:9 |
| Brightness | 600 nits |
| View Angle (H x V) | 160° x 160° |
| Power Consumption (Typical) | 4,005 W (Total for 72 cabinets) |
| Power Consumption (Max) | 7,776 W (Total for 72 cabinets) |
| Power Supply | 100-240V AC, 50/60 Hz |
| Cabinet Setup | 12 (horizontal) x 6 (vertical) |

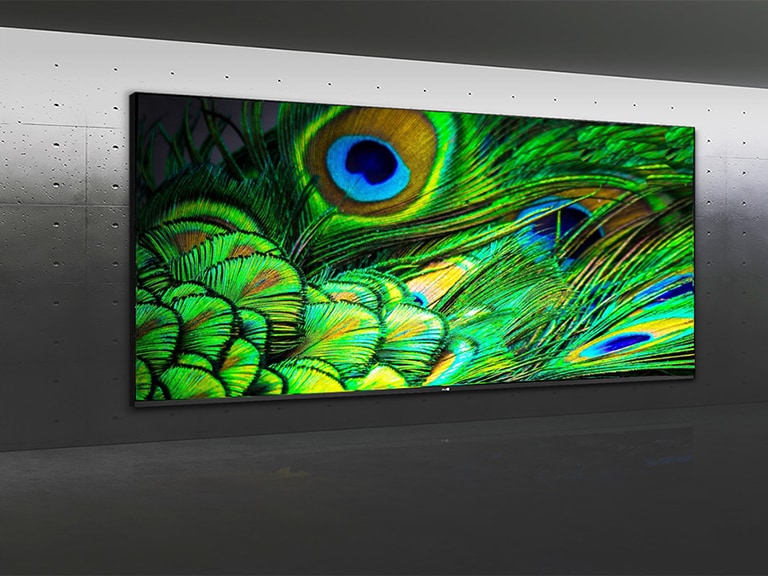

LG LSAB-V294GV 294.5" MAGNIT TAA LED Business Display, 4K UHD, 600 nits
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,048,863.00
Regular price
Sale price
$1,048,863.00
Unit price
per
MSRP: $1,342,680.00
Shipping calculated at checkout.
Couldn't load pickup availability
- • 294.5-inch LED panel with ultra-wide 32:9 aspect ratio
- • 4K UHD resolution of 7680 x 2160 for high detail and clarity
- • Fine 0.94mm pixel pitch for close-up visual accuracy
- • 600 nits brightness optimized for indoor environments
- • TAA-compliant, suitable for federal and government facilities
- • Includes 3-year TotalCare and ConnectedCare support services
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- • TAA-compliant design ensures eligibility for government and institutional procurement.
- • Ultra-large 294.5" display with 4K resolution delivers impactful presentations and seamless multi-window applications.
- • Backed by 3 years of comprehensive service and monitoring, ensuring long-term reliability and support.
Product Overview
TAA Series, 294.5Inch Dia., 283.5 x 79.7 x 1.8, TAA Compliant LSAB Series, MAGNIT Family, 4K (7680x2160), Ultimate Business Display, Standard COB, P0.94, 600 nits, 12x6 Array; Basic Wall Mount Included , Trim Kit Not Included; also includes the following services: Standard 3 Yrs Limited Warranty Coverage 3Yrs TotalCare, 3Yrs ConnectedCare License, and Up to 3 consecutive FESS day(s)Specifications
Product Overview
Physical & Environmental
| Cabinet Dimensions (W x H x D) | 283.5 x 79.7 x 1.8 in |
| Weight (Total) | Approx. 1,150 kg / 2,535 lbs |
| Mounting Type | Basic Wall Mount Included |
| Trim Kit | Not Included |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 10% - 80% RH (non-condensing) |
| Storage Conditions | -20°C to 60°C, 10% - 90% RH |
| Environment | Indoor Use |
Cloud Management & Licensing
| Remote Monitoring | ConnectedCare (3 Years Included) |
| Software Platform | LG ConnectedCare & TotalCare |
| Licensing Included | 3 Years ConnectedCare License |
| Warranty Coverage | Standard 3 Years Limited Warranty |
| Onsite Support | Up to 3 Consecutive FESS Days Included |
Interfaces
| Input Interface | HDMI, DisplayPort, USB (type unspecified) |
| Control Interface | RJ45 (LAN) / RS232C |
| Signal Transmission | Digital based (via LED Controller) |
| LED Controller Compatibility | Included with LG LED Signage Software |
Compliance & Origin
| Country of Origin | Republic of Korea |
| TAA Compliant | Yes |
| Certifications | FCC Class A, CE, cUL, CB |
Advanced Security Features
| Security Protocol Support | Controlled Network Access via LAN/RS232C |
| Physical Access Control | Lockable Panels, Service Access Protected |
