| Product Type | DV LED Display Panel |
| Model Name | LSAC025-MK |
| Manufacturer | LG |
| Pixel Pitch | 2.5 mm |
| Brightness | 600 nit |
| Contrast Ratio | 5000:1 (typical); 9000:1 (peak) |
| Form Factor | Modular Panel |
| Panel Technology | Direct View LED (DVLED) |
| Power Consumption (Typical) | 153 W |
| Power Consumption (Max) | 437 W |
| Power Supply | 100-240V AC, 50/60Hz |

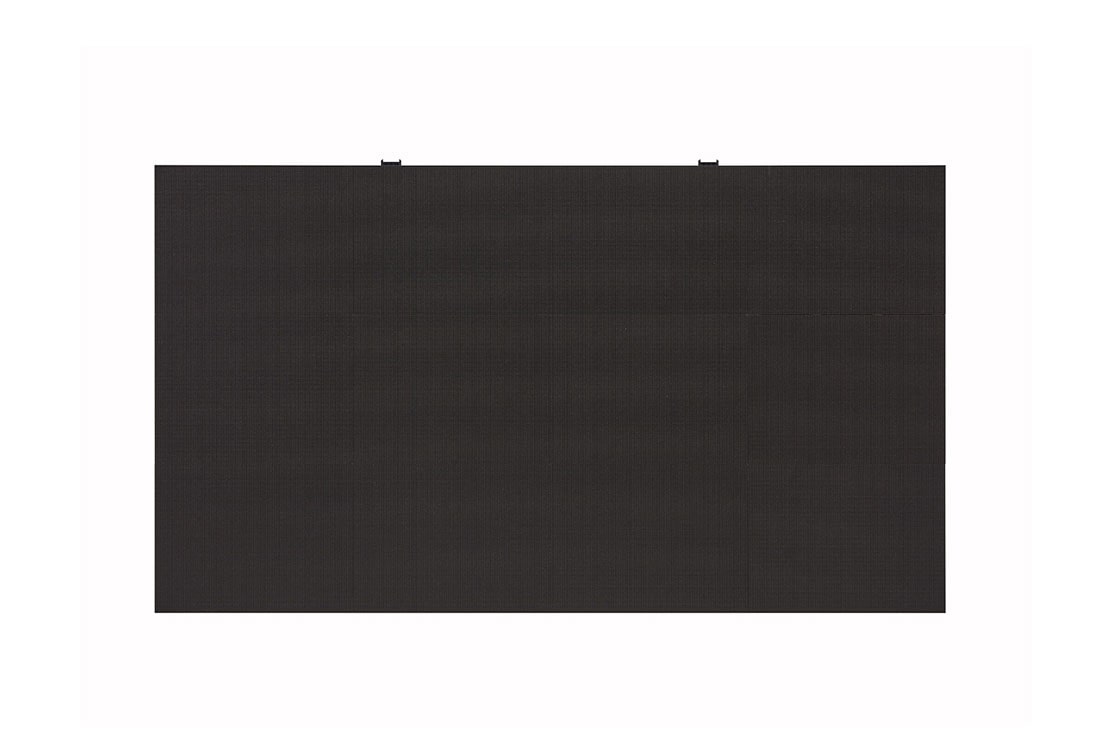

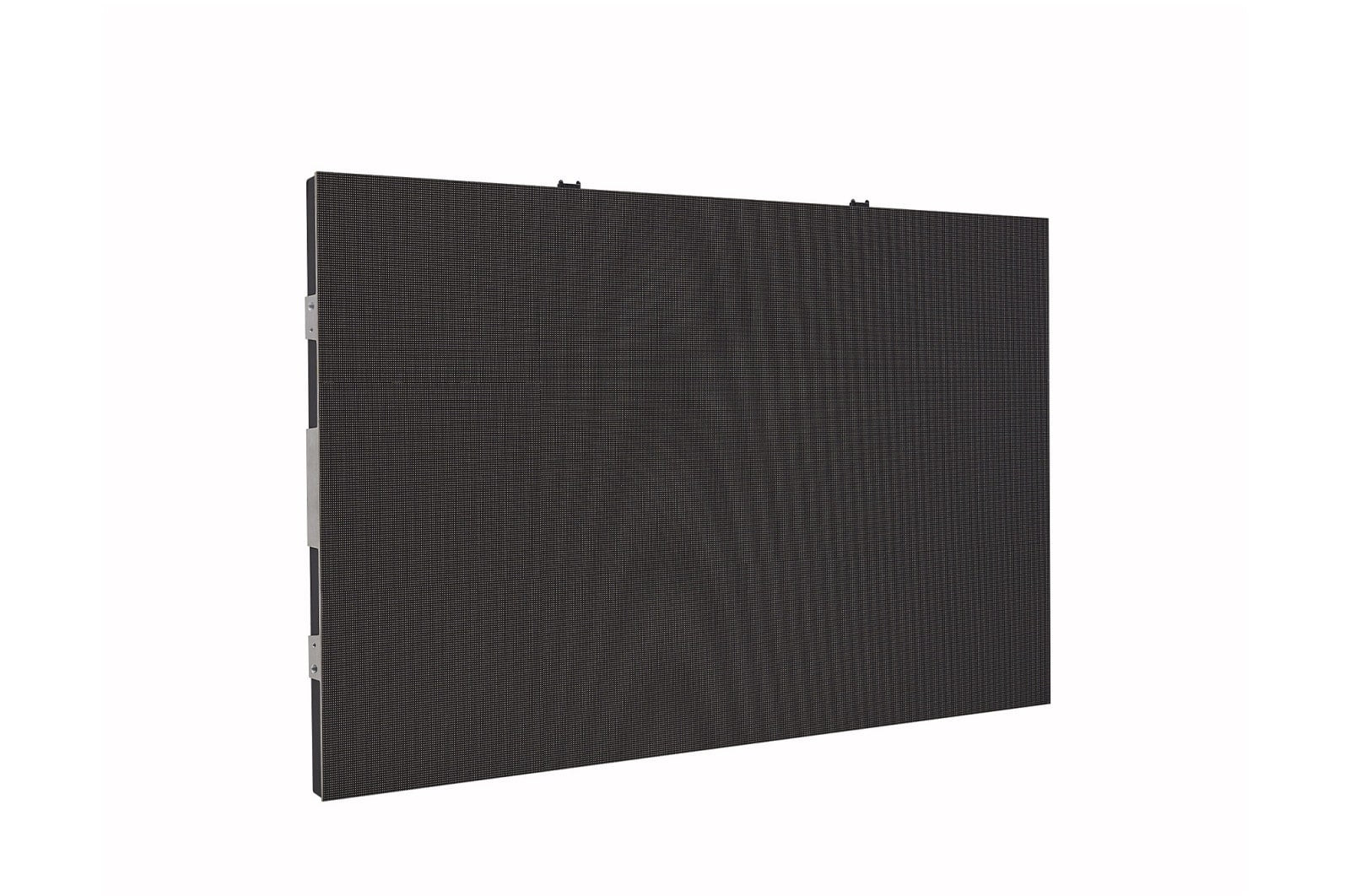

LG LSAC025-MK 2.5mm 600nit LED Display Panel
Photo is for illustration purposes only. Actual product may be different.
Regular price
$5,434.00
Regular price
Sale price
$5,434.00
Unit price
per
MSRP: $6,791.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Display type: LCD Monitor
- Pixel pitch: 2.5 mm for detailed imaging
- Brightness: 600 nits for moderate ambient lighting
- Dynamic contrast ratio: Typ. 5000:1 / Peak 9000:1
- Dimensions: 1200 mm (W) x 675 mm (H) x 51 mm (D)
- RoHS and TAA compliant
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Fine 2.5 mm pixel pitch allows for high-resolution visuals ideal for close-viewing video walls.
- Complies with TAA and RoHS standards, suitable for government and enterprise deployment.
- High contrast ratio and 600 nit brightness provide clear image reproduction in professional environments.
Product Overview
The LG LSAC025-MK is a large-format LED panel with 2.5mm pixel pitch and 600 nit brightness, ideal for professional display solutions. It boasts an impressive 5000:1 to 9000:1 contrast ratio for vivid image quality in ambient-lit spaces. With dimensions of 1200 x 675 x 51 mm, the panel supports space-efficient wall installations. The LSAC025-MK is TAA compliant and RoHS certified, ensuring suitability for government and enterprise standards. Designed in South Korea, it provides reliable performance for a range of demanding applications.
Specifications
Product Overview
Wireless Features
| Wireless Capability |
Compliance & Origin
| TAA Compliant | Yes |
| RoHS Compliant | Yes |
| Country of Origin | South Korea |
| EMC Certification | FCC Class A, CE |
| Safety Certification | ETL, CB |
| Environment Standards | RoHS, REACH |
Advanced Security Features
| Access Control | Password Protected Configuration and Settings Interface |
| Secure Firmware Updates | Yes via LG Software Suite |
Interfaces
| Video Input | HDMI (via external controller) |
| Control Interface | RS232C / RJ45 (via external controller) |
| Module Interface | Coaxial PIN cable (internal module connection) |
Physical & Environmental
| Width | 1200 mm |
| Height | 675 mm |
| Depth | 51 mm |
| Panel Weight | 19.3 kg |
| Bezel Width | 1.2 mm (bezel-less visual) |
| Operating Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Operating Humidity | 10% to 80% RH (non-condensing) |
| Storage Humidity | 10% to 85% RH (non-condensing) |
| LED Lifetime | 100,000 hours |
| IP Rating (Front) | IP30 |
| Mounting Type | Wall Mount Compatible |
Cloud Management & Licensing
| Remote Management Capability | Supported via LG LED Assistant & SuperSign CMS |
| Cloud-based Management | Yes, via LG ConnectedCare (optional) |
| Software Included | LG LED Assistant, SuperSign CMS (optional) |
| Control Protocols | RS232C / LAN over controller |
| Monitoring Features | Real-time diagnostics and alerts |
