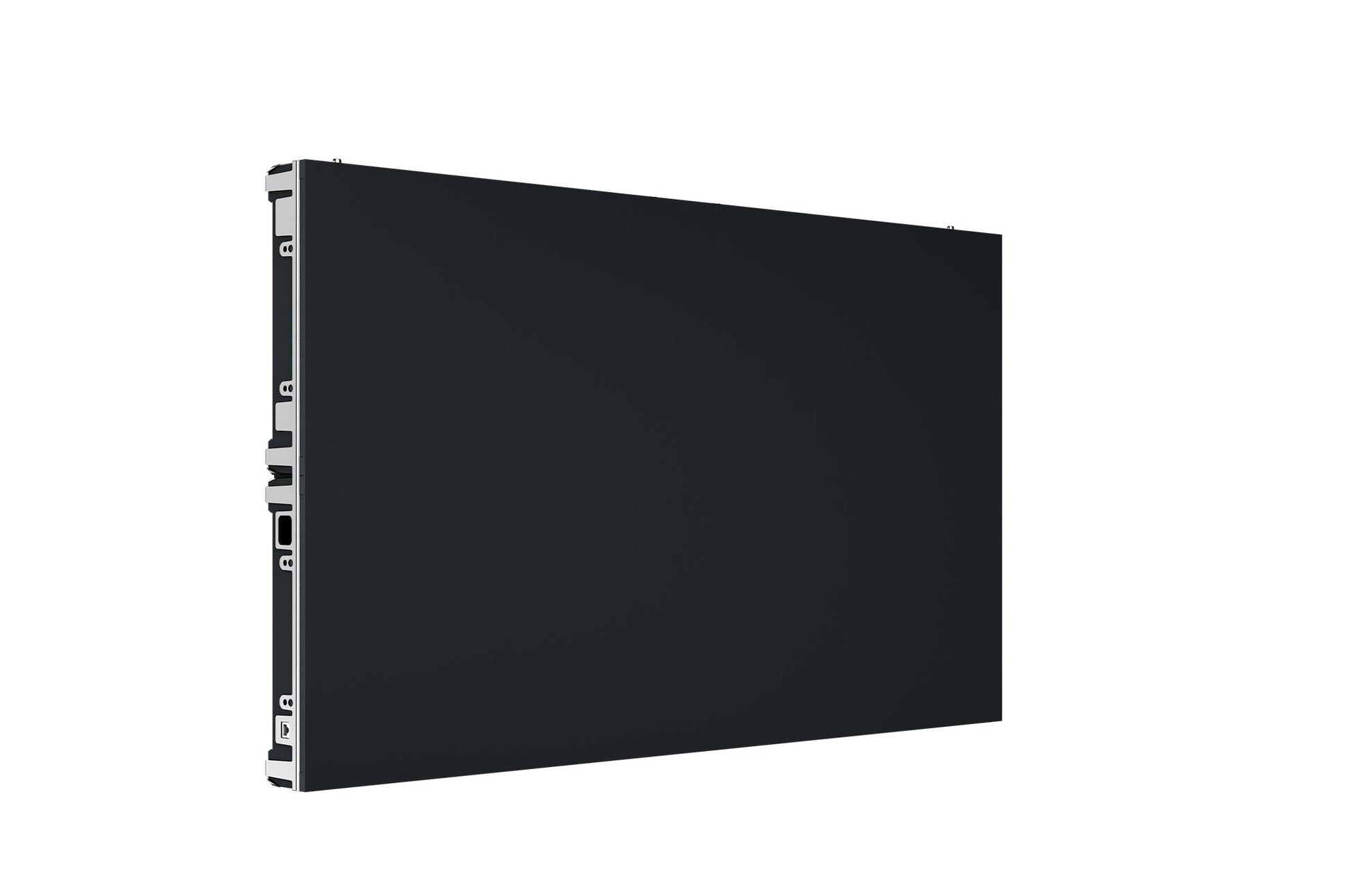

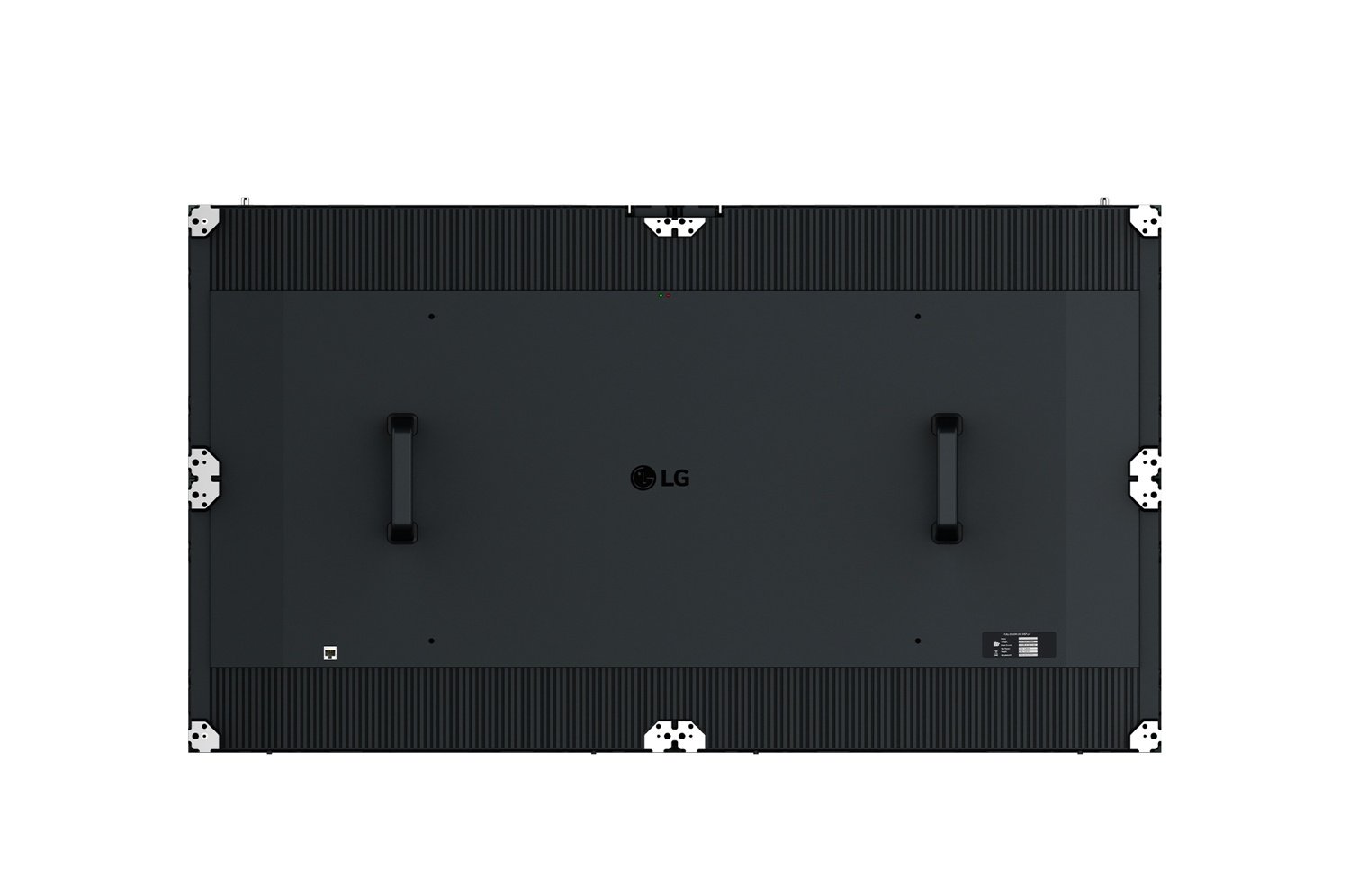

LG LSBF012 DVLED Essential 1 TAA Series Display, 960x540, 1.25mm Pixel Pitch

VENDOR: LG Mfg Part#: LSBF012-GD UPC#: 195174079140
1 4
Photo is for illustration purposes only. Actual product may be different.
$9,061.00
$9,061.00
Sale Sold out
MSRP: $11,325.00
Shipping calculated at checkout.
  • 1.25 mm pixel pitch for high-definition detail
  • 960 x 540 resolution optimized for close-viewing distances
  • 3840 Hz refresh rate for smooth, flicker-free motion
  • LED backlight and 600-nit calibrated brightness
  • 5000:1 contrast ratio for deep image clarity
  • TAA compliant and manufactured in Slovakia

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government and regulated environments with full TAA compliance
  • Delivers sharp, flicker-free video with fine pixel pitch and high refresh rate
  • Withstands diverse conditions with wide operating temperatures and low power usage

Product Overview

LSBE, DVLED, P1.25, 960X540 RESOLUTION, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Product Overview
Manufacturer LG
Model LSBF012-GD
Product Name LG LSBF012 DVLED Essential 1 TAA Series Display
Type Direct View LED (DVLED) Display
Display Class Essential 1 TAA Series
Form Factor Modular Panel
Weight 23 kg
Power Requirements 100 to 240 V AC
Power Consumption (Max) 445 W per cabinet
Refresh Rate 3840 Hz

Wireless Features
Wireless Capability

Compliance & Origin
TAA Compliant Yes
Country of Origin Slovakia
Certifications CE, FCC Class A, ETL
RoHS Compliant Yes
WEEE Compliance Yes

Advanced Security Features
Security Features Physical control access; network-dependent security features via controller

Interfaces
Input Connector Type Proprietary DVLED Controller Input
Data Interface Display Interface via DVLED Controller (sold separately)

Physical & Environmental
Width 1200 mm
Height 675 mm
Depth 72 mm
Pixel Pitch 1.25 mm
Brightness (Calibrated) 600 nits
Contrast Ratio 5000:1
Surface Type Flat
LED Package Type Single SMD
Cabinet Material Aluminum Die-cast
Operating Temperature (Min) -20°C
Operating Temperature (Max) 40°C
Operating Humidity Range 10% to 80% RH
Ingress Protection Rating (Front / Rear) IP5X / IP2X

Cloud Management & Licensing
Remote Monitoring Support Yes, via LG ConnectedCare (optional)
Control Software Compatibility LG SuperSign, third-party DVLED controllers
Cloud-Based Management Optional with LG ConnectedCare
Licensing Requirement None for basic operation, advanced features may require LG software license
