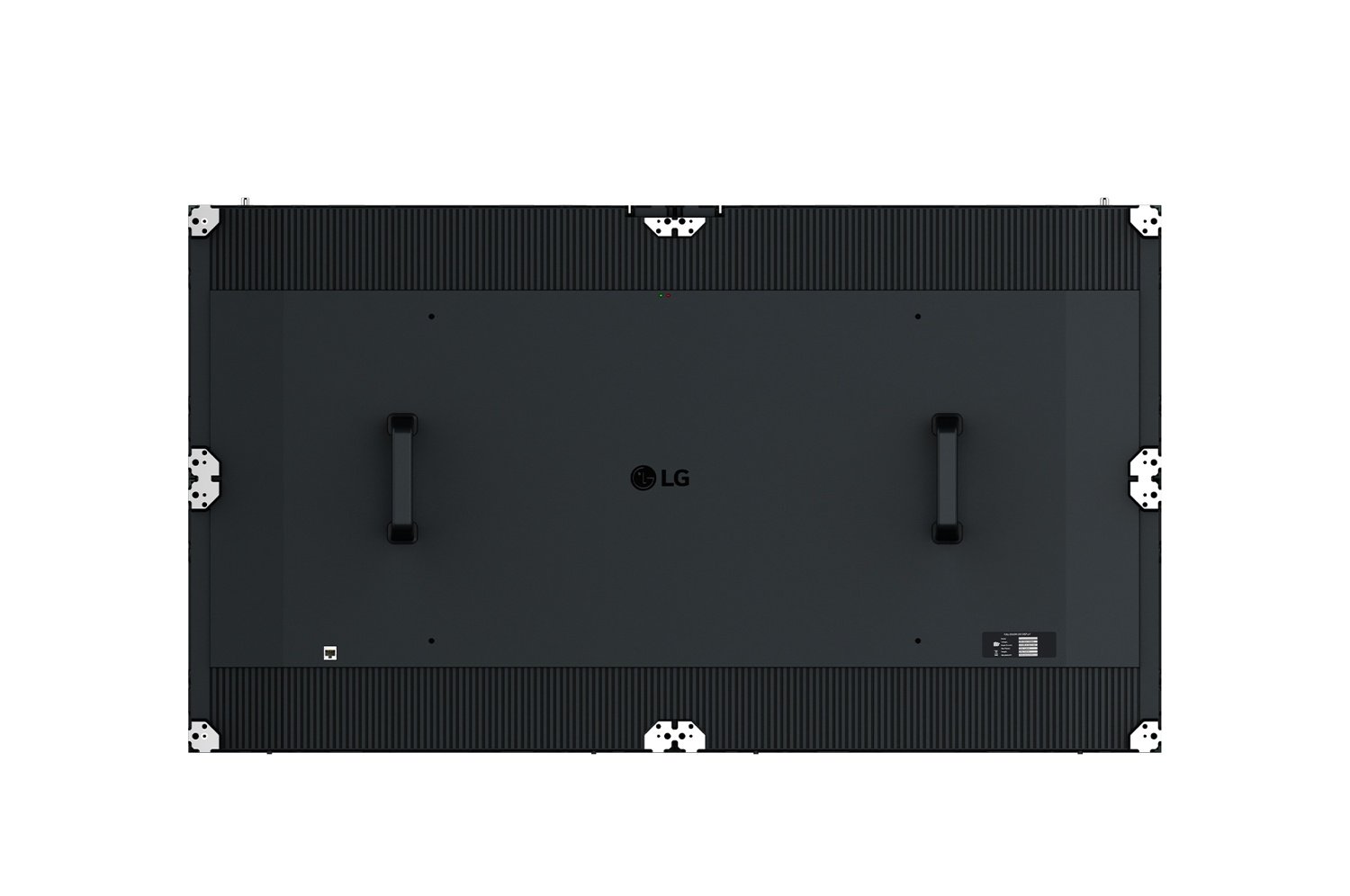

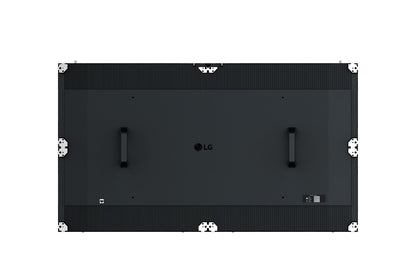

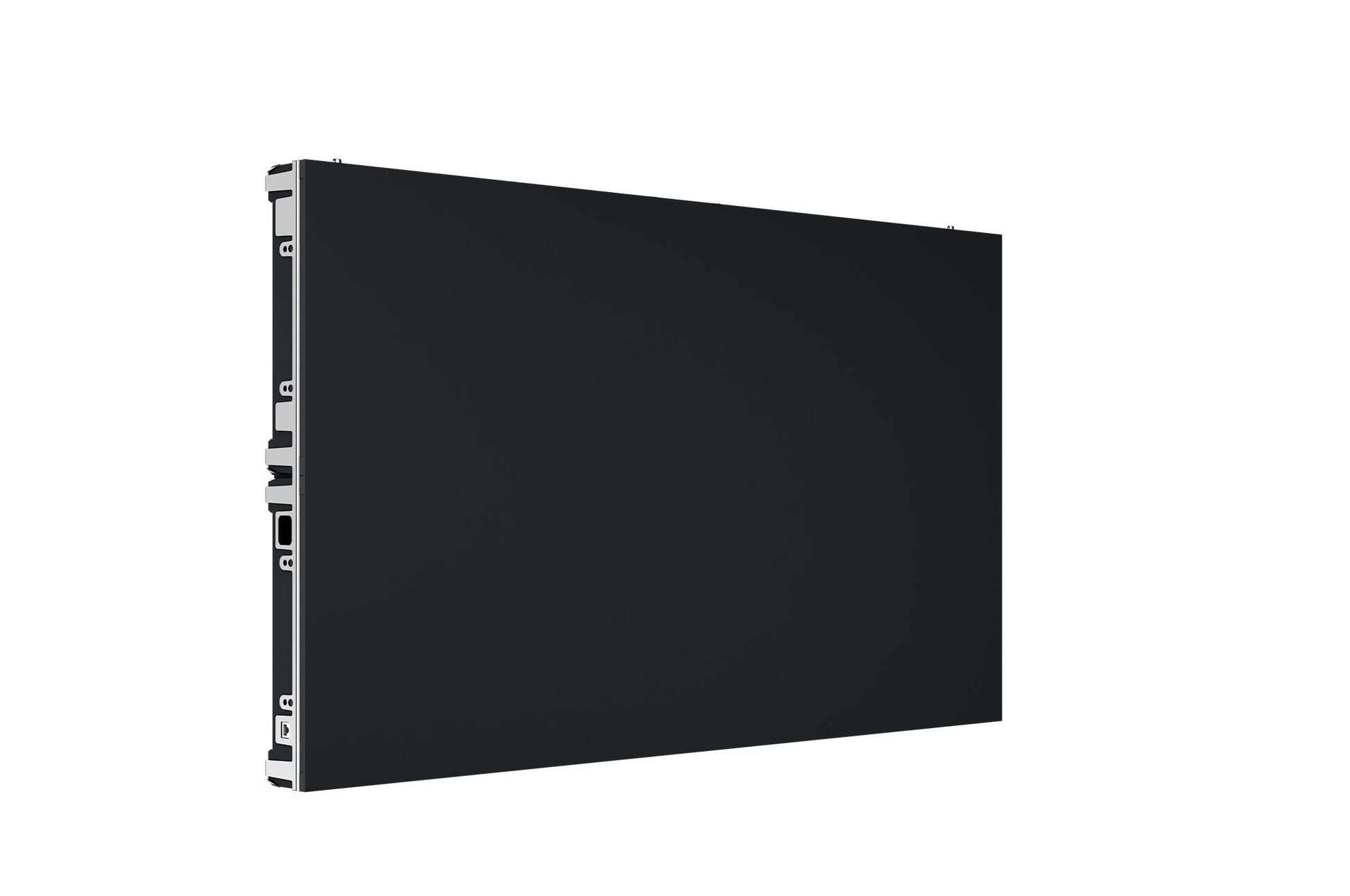

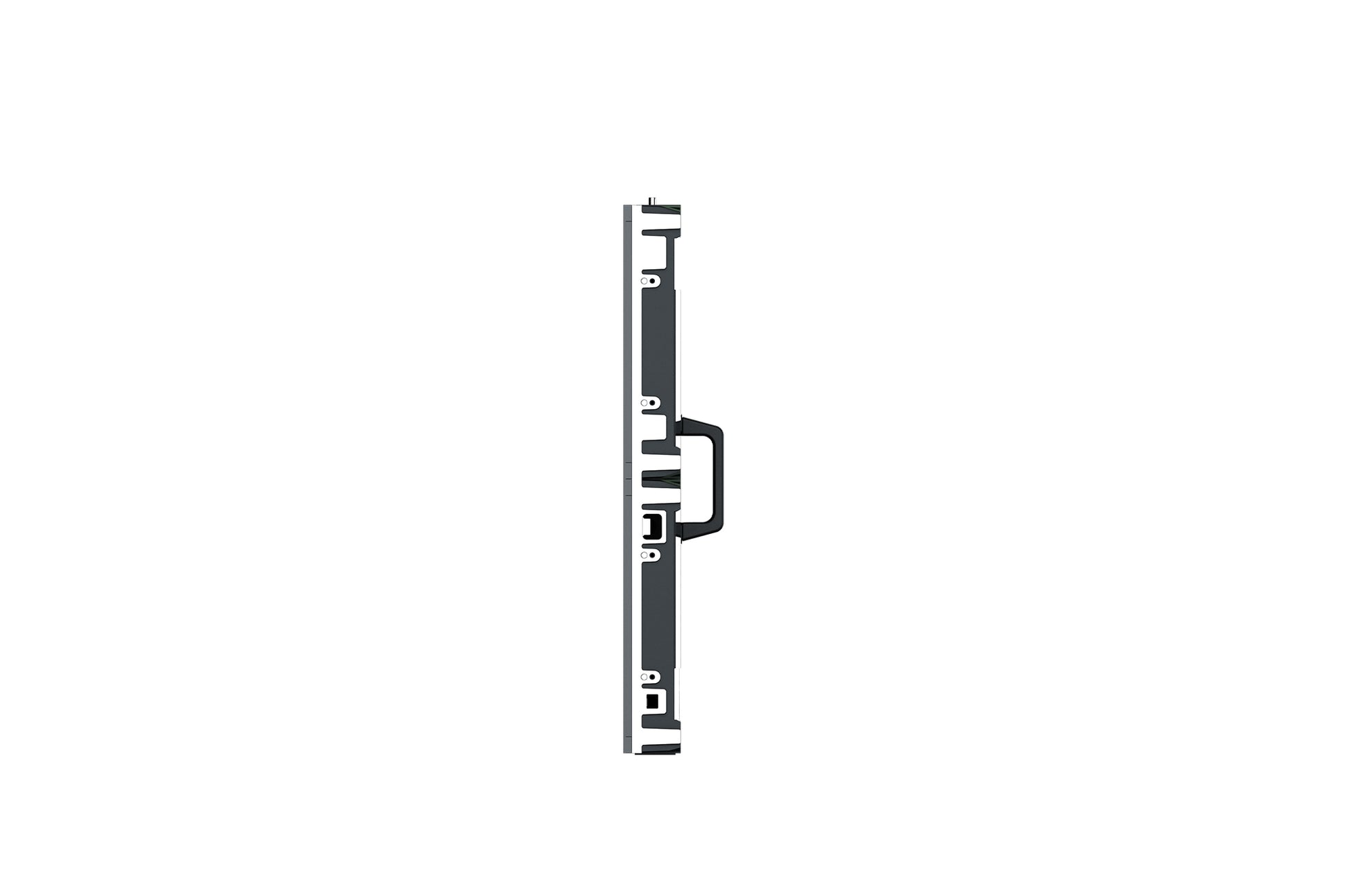

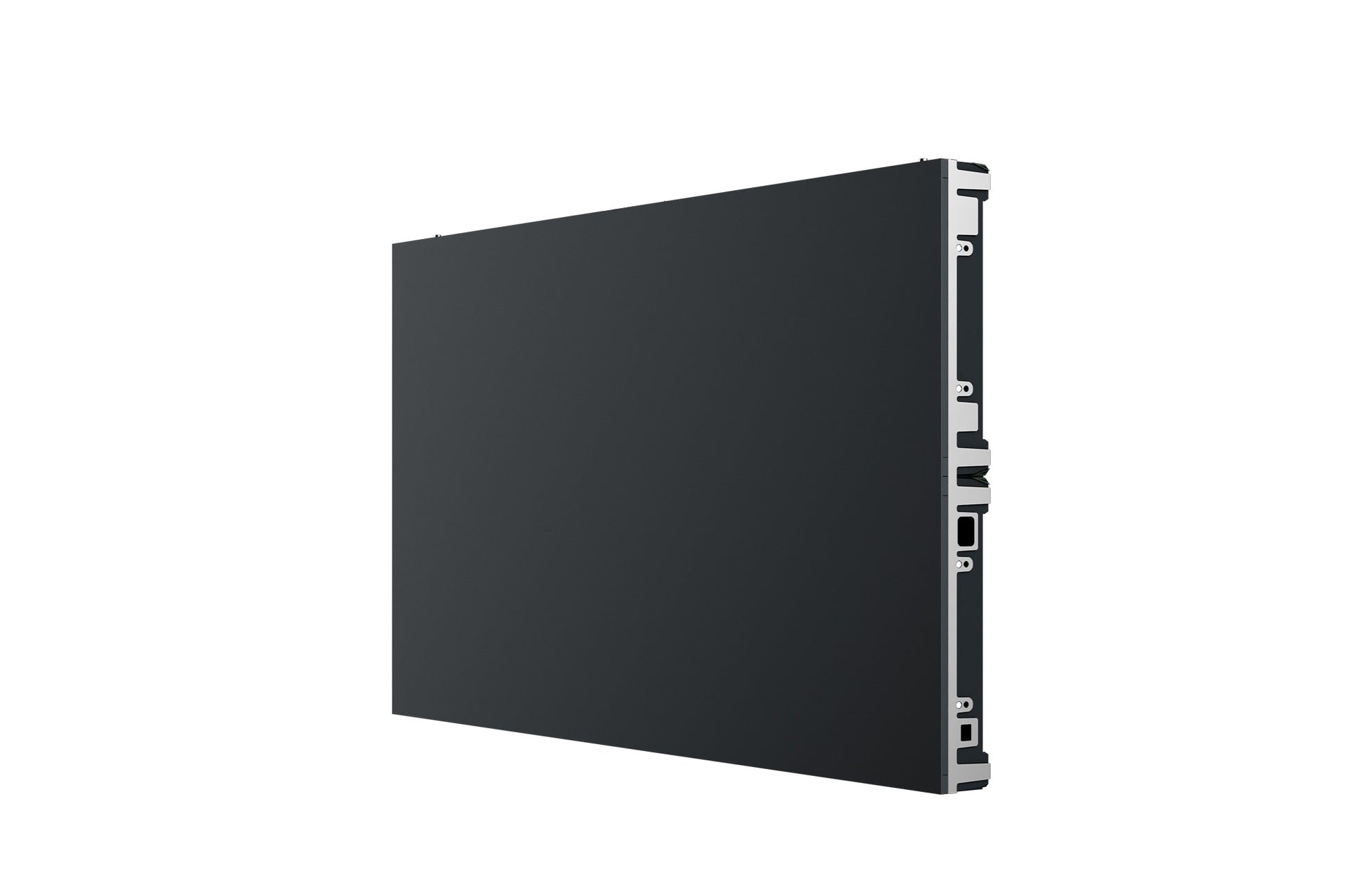

LG LSBF015 DVLED Display, 1.56mm Pixel, 600nit, TAA, 1200x675 mm

VENDOR: LG Mfg Part#: LSBF015-GDR UPC#: 195174076095
1 5
Photo is for illustration purposes only. Actual product may be different.
$8,106.00
$8,106.00
Sale Sold out
MSRP: $10,131.00
Shipping calculated at checkout.
  • 1.56 mm pixel pitch for ultra-fine image resolution
  • 600 nits max brightness (after calibration)
  • 3840 Hz refresh rate for smooth visual playback
  • 5000:1 image contrast ratio for deep blacks and vivid colors
  • TAA compliant and manufactured in Slovakia
  • Power range: 100–240V, max cabinet power 428W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government and enterprise use with full TAA compliance.
  • Supports modular and custom installations with 45° right-cut miter design.
  • Delivers exceptional visual clarity and performance with 1.56 mm pixel pitch and 3840 Hz refresh.

Product Overview

LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH RIGHT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Product Overview
Manufacturer LG
Model LSBF015
Manufacturer Part Number LSBF015-GDR
UPC 195174076095
Product Type Direct View LED Display (DVLED)
Series Essential 1 Class, TAA Series
Form Factor Panel Module
Display Configuration Right Cut 45 Degree Miter
Weight 23 kg
Power Requirements 100 to 240 VAC
Power Consumption (Max) 428 W per cabinet

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Slovakia
TAA Compliance Yes
RoHS Compliance Yes
Certifications FCC Class A, CE, cULus, CB

Advanced Security Features
Access Control Password-protected software management
Security Protocols Controlled through external DVLED system; secure access recommended

Interfaces
Display Interface Proprietary modular connection (via controller, not direct input)
Control Interface Ethernet / RS-232C (via DVLED controller)

Physical & Environmental
Display Dimensions (W x H x D) 1200 mm x 675 mm x 72 mm
Mount Type Wall/Frame Mountable (custom DVLED framing system)
Cabinet Material Die-cast aluminum
Pixel Pitch 1.56 mm
Contrast Ratio 5000:1
Refresh Rate 3840 Hz
Maximum Brightness (Calibrated) 600 nits
Flat / Curved Flat
Operating Temperature Range -20°C to 40°C
Operating Humidity Range 10% to 80% RH (non-condensing)
Ingress Protection IP5X (Front), IP2X (Rear)
Pixel Configuration SMD (Single SMD package)
Resolution (per cabinet) 768 x 432 pixels

Cloud Management & Licensing
Remote Management Supported via LG DVLED Controller
Monitoring Software Compatibility LG ConnectedCare, SuperSign Control+
Cloud-Based Control Support Yes (with supported platform integration)
Licensing Model Included with controller software where applicable
