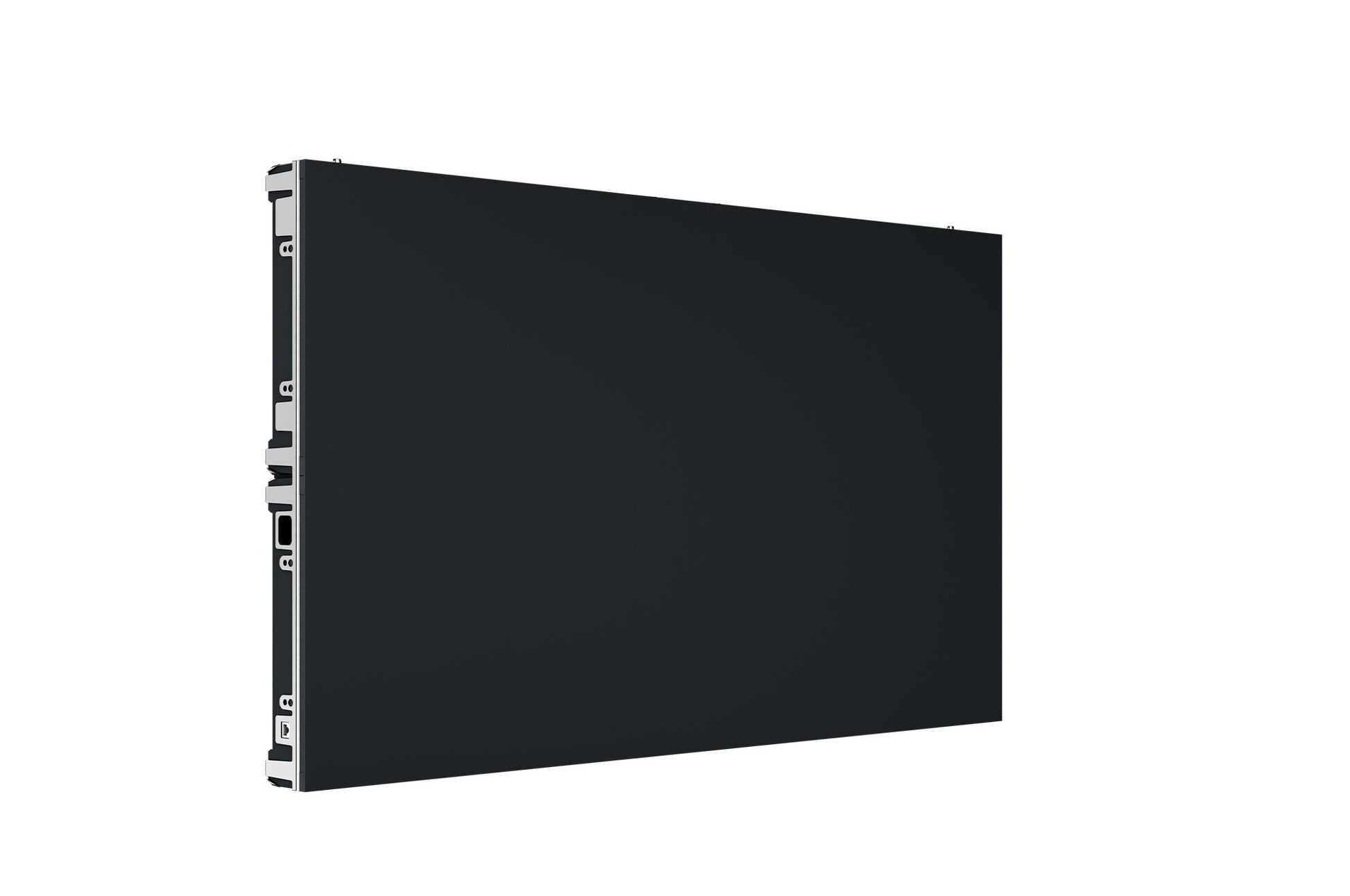

LG LSBF015 DVLED Display, 1.56mm Pixel Pitch, 600 Nit, 1200x675mm

VENDOR: LG Mfg Part#: LSBF015-GDL UPC#: 195174076057
1 2
Photo is for illustration purposes only. Actual product may be different.
$8,157.00
$8,157.00
Sale Sold out
MSRP: $10,196.00
Shipping calculated at checkout.
  • 1. 1.56mm pixel pitch and 768x432 resolution for high-definition image clarity
  • 2. LED backlight technology with calibrated brightness of 600 nits
  • 3. High 3840 Hz refresh rate for smooth and flicker-free visuals
  • 4. 5000:1 contrast ratio for deep blacks and rich color reproduction
  • 5. TAA compliant and manufactured in Slovakia for regulated industry needs
  • 6. Left cut 45-degree miter for flexible, modular installation layouts

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for professional digital signage applications requiring sharp image detail due to the 1.56mm pixel pitch.
  • TAA compliance and Slovakian origin make it suitable for government and enterprise installations.
  • Supports flexible layout configurations with 45-degree miter cutting, enhancing creative video wall design.

Product Overview

LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH LEFT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Product Overview
Manufacturer LG
Model LSBF015-GDL
Product Type DVLED Display Module
Pixel Pitch 1.56 mm
Resolution (per cabinet) 768 x 432
Brightness (After Calibration) 600 nits
Contrast Ratio 5000:1
Refresh Rate 3840 Hz
Form Factor Modular Panel
Mount Type Wall-Mount or Cabinet Structure
Weight 23 kg
Power Consumption (Max) 428 W per cabinet
Power Requirements 100–240 V AC, 50/60 Hz

Wireless Features
Wireless Capability

Compliance & Origin
TAA Compliant Yes
Country of Origin Slovakia
Certification FCC Class A, CE, KC, RoHS
EMC Classification Class A

Advanced Security Features
Physical Security Features Cabinet Locking System

Interfaces
Signal Input Compatible with LG controller via HDMI / DVI / DP input
Control Interface Ethernet / RS232 (via external controller)
Module Connection Type Cable-less Rear Signal Connector

Physical & Environmental
Cabinet Width 1200 mm
Cabinet Height 675 mm
Cabinet Thickness 72 mm
Bezel (Edge) 1.2 mm
Operating Temperature Range -20°C to 40°C
Operating Humidity 10% to 80% RH
LED Type Single SMD
Cabinet Material Die-cast Aluminum
Viewing Angle (H/V) 160° / 160°
Serviceability Front Serviceable for Module, PSU & Hub
IP Rating (Front/Rear) IP30 / IP20
Convenience Feature 45° Left Miter Cut

Cloud Management & Licensing
Management Platform Compatibility LG SuperSign, LED Assistant
Remote Monitoring Support Yes, via LG Controller
Software Included LG LED Assistant
