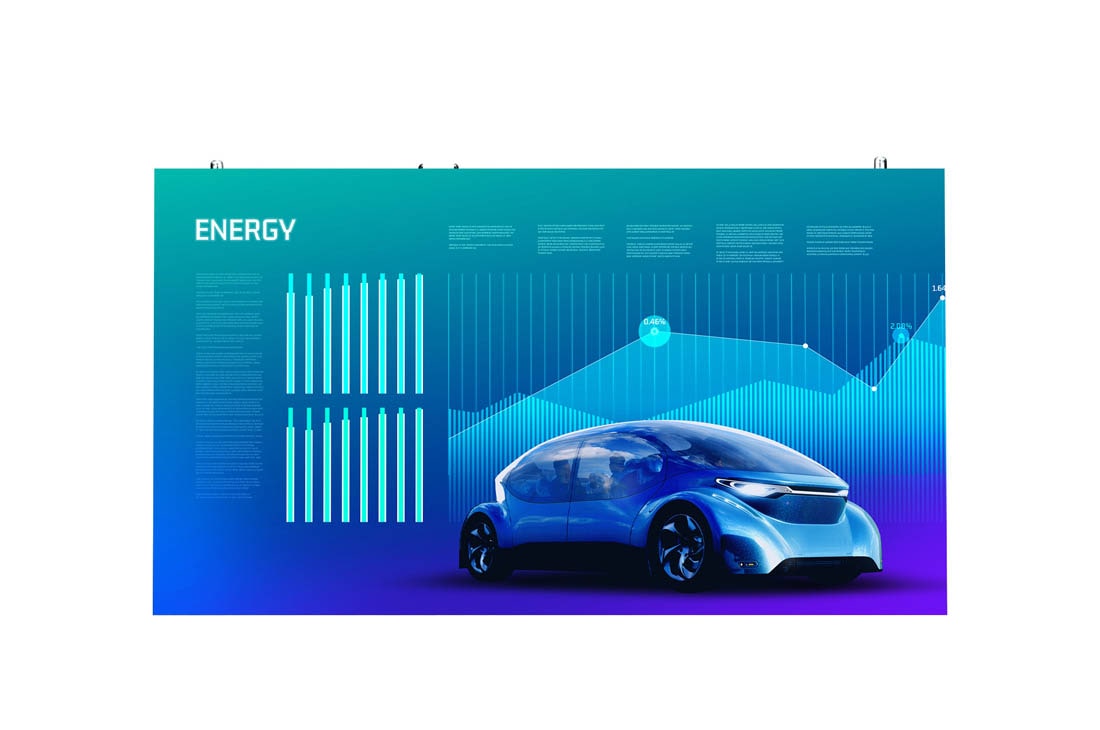

LG MAGNIT LSAP Series DVLED Panel Accessory, P0.94, 640x360, COB, 600 nit

VENDOR: LG Mfg Part#: LSAP009-T5 UPC#: 195174090213
1 3
Photo is for illustration purposes only. Actual product may be different.
$13,257.00
$13,257.00
Sale Sold out
MSRP: $16,019.00
Shipping calculated at checkout.
  • • 640 x 360 screen resolution with fine P0.94 pixel pitch
  • • COB (Chip-On-Board) LED technology for enhanced durability and clarity
  • • 600 nit brightness suitable for high-visibility indoor environments
  • • Signal and power redundancy for operational reliability
  • • Secure DP docking panel with premium cabinet construction
  • • TAA compliant, made in the Republic of Korea

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • • Delivers dependable performance in mission-critical environments with signal + power redundancy
  • • High-definition P0.94 pixel pitch and COB LED ensure crisp visuals and panel durability
  • • TAA compliance and secure docking make it ideal for government and enterprise deployment

Product Overview

MAGNIT LSAP Series DVLED, P0.94, 640x360 resolution, Signal+Power Redundancy, Secondary, Secure DP Docking Panel/Cabinet Premium others class, Fused COB, 600 nit, 600x337.5x44.9

Specifications

Product Overview
Product Type Accessory
Display Technology Direct View LED (DVLED)
Pixel Pitch 0.94 mm
Resolution 640 x 360
Brightness 600 nits
Form Factor Panel Module for Video Wall
Display Surface Chip-on-Board (COB)
Power Redundancy Yes
Signal Redundancy Yes
Mounting Type Secure DP Docking Panel
Typical Power Consumption 70 W
Maximum Power Consumption 140 W
Weight 5.5 kg

Physical & Environmental
Dimensions (W x H x D) 600 x 337.5 x 44.9 mm
Humidity Range (Operation) 10% - 80% (non-condensing)
Operating Temperature 0°C to 40°C
Storage Temperature -20°C to 60°C
Front Protection Rating IP50
Rear Protection Rating IP20
Cabinet Material Aluminum Alloy
Cooling Method Fanless (Natural Convection)

Cloud Management & Licensing
Remote Monitoring Capable Yes (via optional LG ConnectedCare)
Management Software Compatibility LG SuperSign, LED Assistant
Firmware Upgrade Method Over-the-Air (OTA) via Controller
Cloud Compatibility LG ConnectedCare (Optional License)
Device Group Control Yes via Controller

Interfaces
Main Interface Type DisplayPort (DP)
Power Connector Type Proprietary Connector for Redundant Power
Signal Connector Type Proprietary Signal Input (Dock)**

Compliance & Origin
Country of Origin Korea, Republic of
TAA Compliant Yes
Certifications FCC Class A, CE, UL
RoHS Compliant Yes
EMC Standard EN55032, EN55024

Advanced Security Features
Secure Panel/Module Locking Yes (Docking Mechanism)
Fail-Safe Mode Yes (Redundant Architecture)
