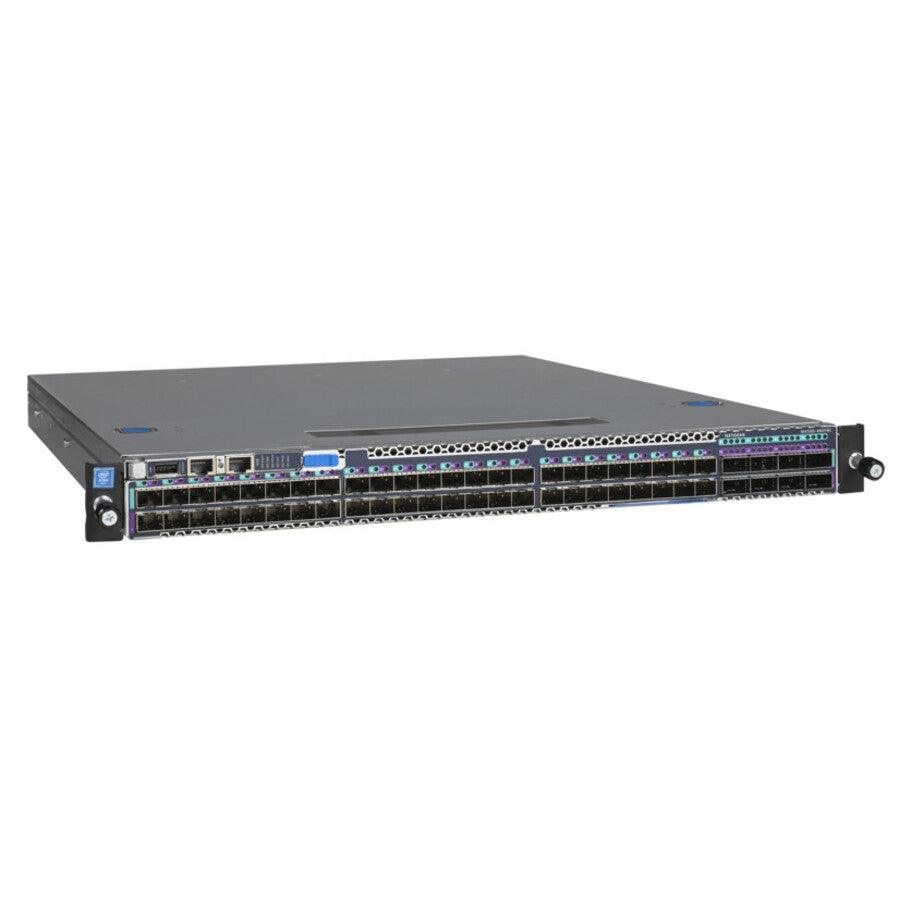

NETGEAR M4500-48XF8C 48-Port SFP28 Switch with 8 QSFP28 Uplinks

VENDOR: NETGEAR Mfg Part#: XSM4556-100NAS UPC#: 606449145700
1 5
Photo is for illustration purposes only. Actual product may be different.
$23,962.00
$23,962.00
Sale Sold out
MSRP: $34,758.00
Shipping calculated at checkout.
  • 48 SFP28 ports supporting 1G/10G/25G and 8 QSFP28 uplinks for 40G/50G/100G connectivity
  • 4Tbps non-blocking switching fabric and 2Bpps forwarding rate
  • Layer 2 and Layer 3 support with static routing capabilities
  • Built-in SNMP, IPv4/IPv6 management, and enterprise security via RADIUS and TACACS+
  • 8GB RAM with Atom processor and 32K MAC address table
  • Compact 1RU form factor with jumbo frame support and 394W power capacity

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed fiber connectivity and 100G aggregation ideal for AV-over-IP and enterprise networking
  • Redundant spine and leaf topology support ensures scalable architecture and future-ready deployment
  • Backed by NETGEAR's Lifetime ProSAFE Warranty and 33 years MTBF for reduced downtime and peace of mind

Product Overview

The M4500-48XF8C switch provides 48-port SFP28 (1G, 10G and 25G fiber) and 8-port QSFP28 (40G, 50G and 100G fiber) With 4Tbps non-blocking fabric and 2Bpps forwarding rate - Cost effective 100G aggregation and 10G access layer for AV deployments and redundant spine & leaf topologies - Lifetime ProSAFE Hardware Warranty

Specifications

Product Overview
Product Type Managed Network Switch
Model XSM4556-100NAS
Form Factor 1RU
Processor Type Intel Atom
RAM Installed 8 GB
MAC Address Table Size 32K MAC
Features Cost effective 100G aggregation and 10G access layer for AV deployments and redundant spine & leaf topologies
Power Supply Internal AC Power Supply
Max Power Consumption 394 Watt
Mean Time Between Failures (MTBF) 289052 hours (33.0 years)
Weight 21.4 lbs.

Cloud Management & Licensing
Remote Management Protocols SNMP, IPv4, IPv6
Routing Protocol Support Static Routing
Management Interface Web GUI, Command Line Interface (CLI)

Physical & Environmental
Width 17.32 Inch
Depth 20 Inch
Height 1.7 Inch
Min Operating Temperature 0 Celsius
Max Operating Temperature 50 Celsius
Min Storage Temperature -20 Celsius
Max Storage Temperature 70 Celsius

Interfaces
Total Ports 59
SFP28 Ports 48
QSFP28 Ports 8
10/100/1000BASE-T Ports 1
Console Port 1 x RJ45 Serial (RS-232)
USB Ports 1 x USB
Interfaces SFP28, QSFP28, Serial RS232 RJ45, 1 x RJ45 10/100/1000BASE-T, 1 x USB
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet
Media Layer Supported Layer 2, Layer 3
Jumbo Frame Support 9KB
Data Transfer Rate 100 Gbps

Advanced Security Features
Authentication Methods RADIUS, TACACS+
Access Control 802.1X Authentication

Compliance & Origin
Country of Origin United States
TAA Compliant Yes
Certifications RoHS, WEEE, REACH
Warranty Lifetime ProSAFE Hardware Warranty
