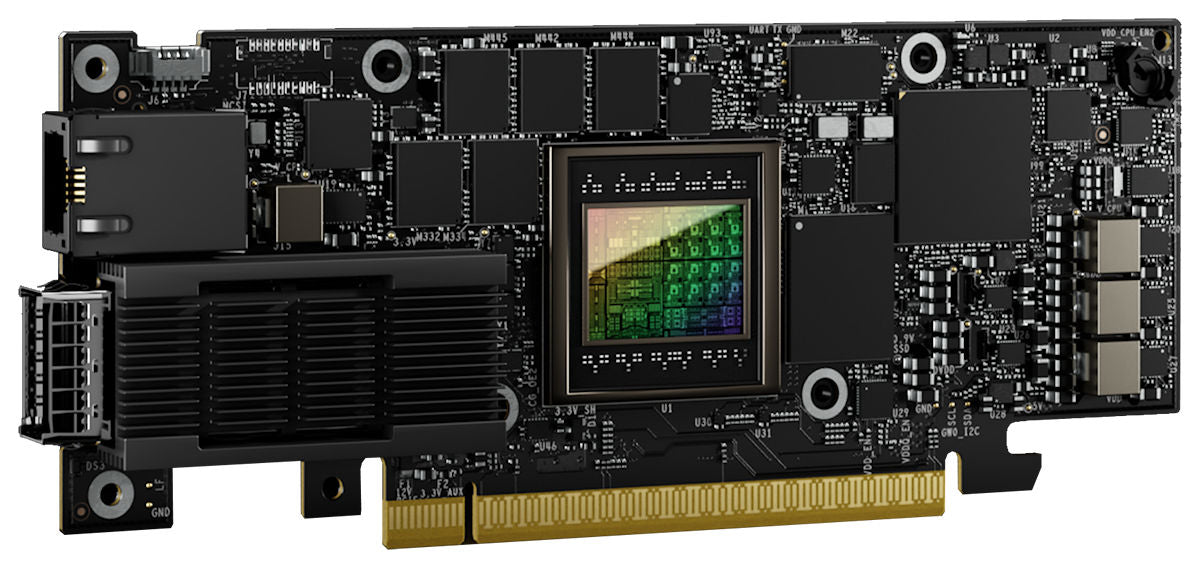

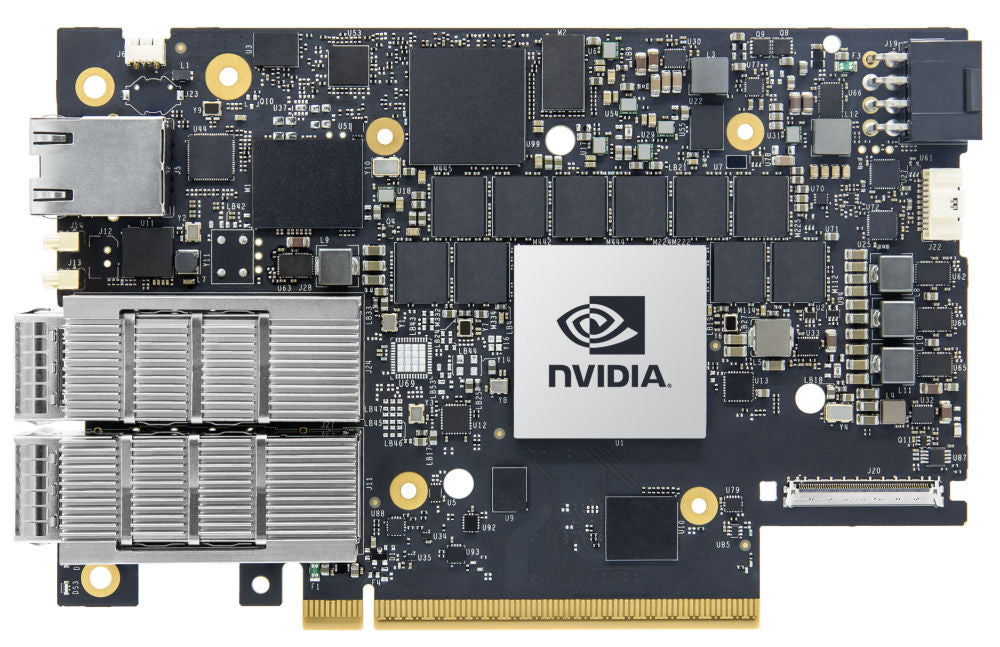

NVIDIA BlueField-3 B3220L E-Series FHHL SuperNIC, Dual QSFP112, PCIe 5.0

VENDOR: NVIDIA Mfg Part#: 900-9D3B4-00CV-EA0 UPC#: 7290110495626
1 2
Photo is for illustration purposes only. Actual product may be different.
$4,787.00
$4,787.00
Sale Sold out
MSRP: $7,738.00
Shipping calculated at checkout.
  • Supports PCI Express 5.0 x16 interface for ultra-fast data transfer
  • Dual QSFP112 ports with support for 200 Gigabit Ethernet and NDR200 InfiniBand
  • Includes 8 Arm cores for offload compute processing
  • Equipped with 16GB of onboard memory to handle complex workloads
  • TAA compliant, suitable for government procurement and regulated industries
  • Compact FHHL form factor (92.7mm x 139.6mm x 10.2mm) for server compatibility

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast 200GbE and NDR200 IB speeds to meet demanding data center throughput requirements
  • Offloads compute workload from main CPU via 8 Arm cores and 16GB memory, boosting overall performance
  • TAA compliance and international manufacturing (Israel/Vietnam) ensure suitability for global enterprise and government projects

Product Overview

The NVIDIA BlueField-3 B3220L E-Series FHHL SuperNIC is a state-of-the-art networking solution built for high-bandwidth data center infrastructures. Supporting both 200 Gigabit Ethernet and NDR200 InfiniBand modes via dual QSFP112 ports, this advanced network adapter offers powerful throughput and low-latency transport. Engineered with PCI Express 5.0 x16 interface, it ensures rapid data exchange for bandwidth-intensive workloads.

Integrated with 8 Arm processor cores and 16GB of onboard memory, the BlueField-3 SuperNIC enables offloading of networking, storage, and security workloads from the host system, which reduces CPU load and improves application performance. Its compact FHHL form factor allows it to fit into a broad range of server configurations. This card is also TAA compliant and manufactured in Israel or Vietnam, aligning with regulatory procurement requirements.

Ideal for high-performance computing, AI processing, storage disaggregation, and scalable cloud environments, the BlueField-3 B3220L delivers the power, versatility, and acceleration demanded by next-generation enterprise applications.

Specifications

Product Overview
Product Type Network Adapter
Model BlueField-3 B3220L E-Series
Form Factor Full Height Half Length (FHHL)
Processor 8-core Arm A78AE
Onboard Memory 16 GB DDR4
Memory Type ECC DDR4
Power Consumption Up to 75W
Typical Applications High-performance computing, AI, Cloud, Storage Disaggregation

Advanced Security Features
Hardware Root of Trust Yes
Secure Boot Yes
IPsec/TLS Acceleration Yes
Inline DPI & Packet Inspection Yes
Encrypted Traffic Monitoring Yes
Programmable Firewall Capabilities Yes

Physical & Environmental
Width 92.7 mm
Depth 139.6 mm
Height 10.2 mm
Cooling Passive heatsink
Operating Temperature 0°C to 55°C
Storage Temperature -40°C to 70°C
Operating Humidity 5% to 85% non-condensing
Storage Humidity 5% to 95% non-condensing

Interfaces
Host Interface PCI Express 5.0 x16
Number of Ports 2
Port Type QSFP112
Supported Network Protocols InfiniBand NDR200, Ethernet 200 GbE
Data Transfer Rate 200 Gbps
Transport Offload Support RDMA, RoCE, NVMeoF
Connectivity Options Copper and Optical via QSFP112

Cloud Management & Licensing
Supported Management Platforms NVIDIA DOCA SDK, DPU Manager
Cloud Integration DOCA Telemetry, Cloud-Native APIs
Licensing Model Free DOCA SDK; advanced features may require license
Telemetry Support Yes

Compliance & Origin
TAA Compliant Yes
Country of Origin Israel / Vietnam
RoHS Compliance Yes
Certifications FCC, CE, UL, CB, VCCI
Safety Standards IEC/EN/UL 62368-1
