NVIDIA ConnectX-6 VPI Adapter Card, 200Gb/s, PCIe 4.0 x16, QSFP56

VENDOR: NVIDIA Mfg Part#: MCX653435M-HDAI
1 3

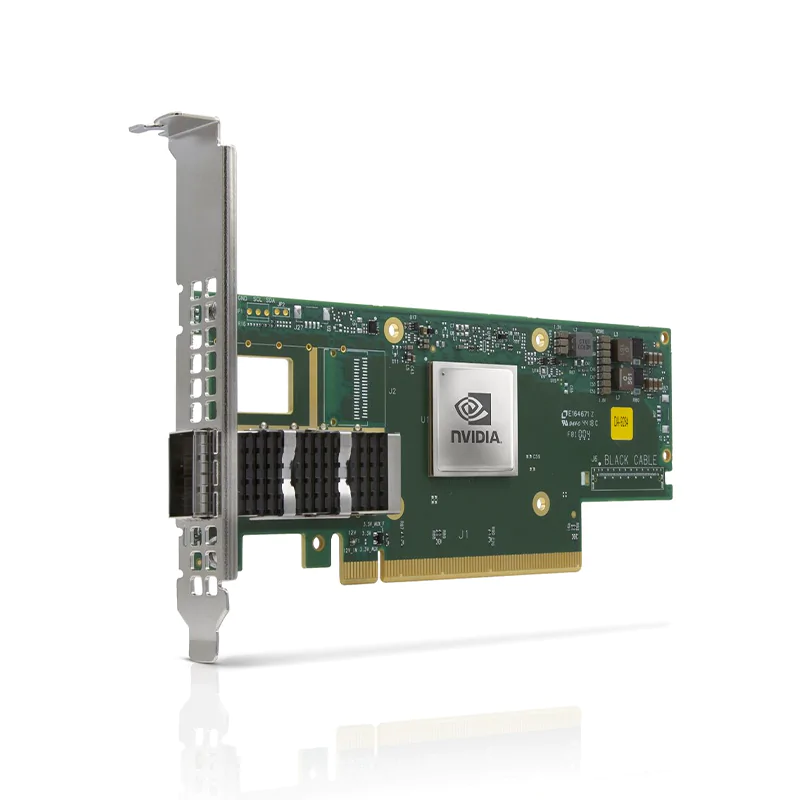

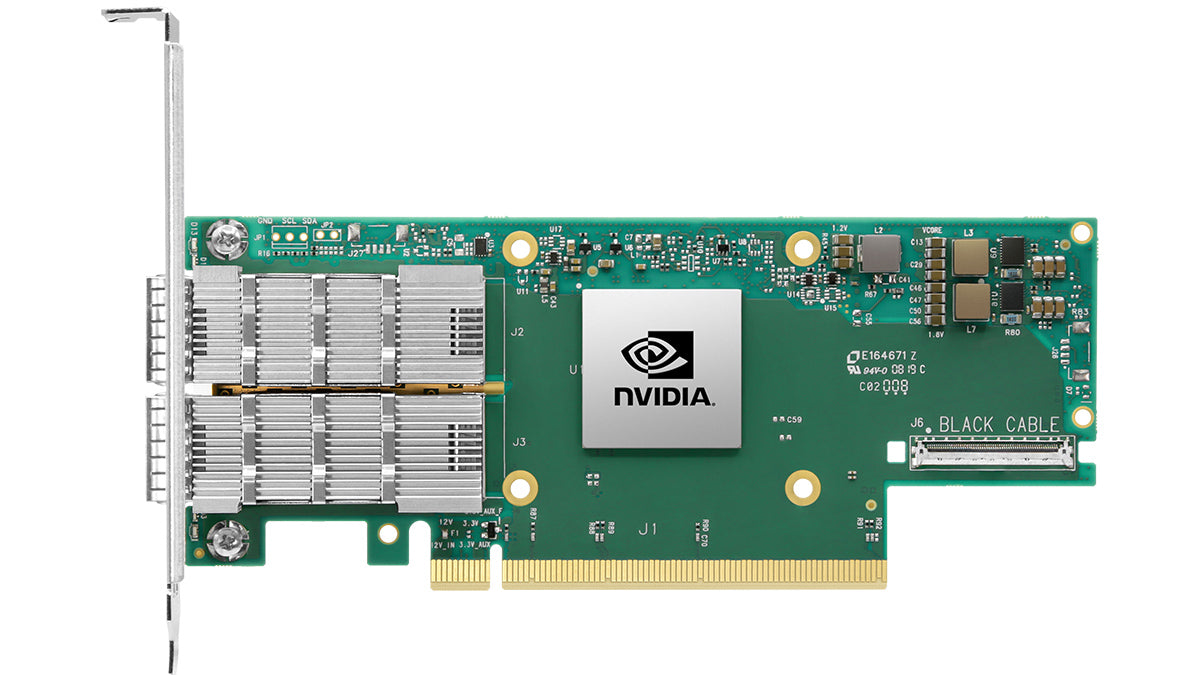

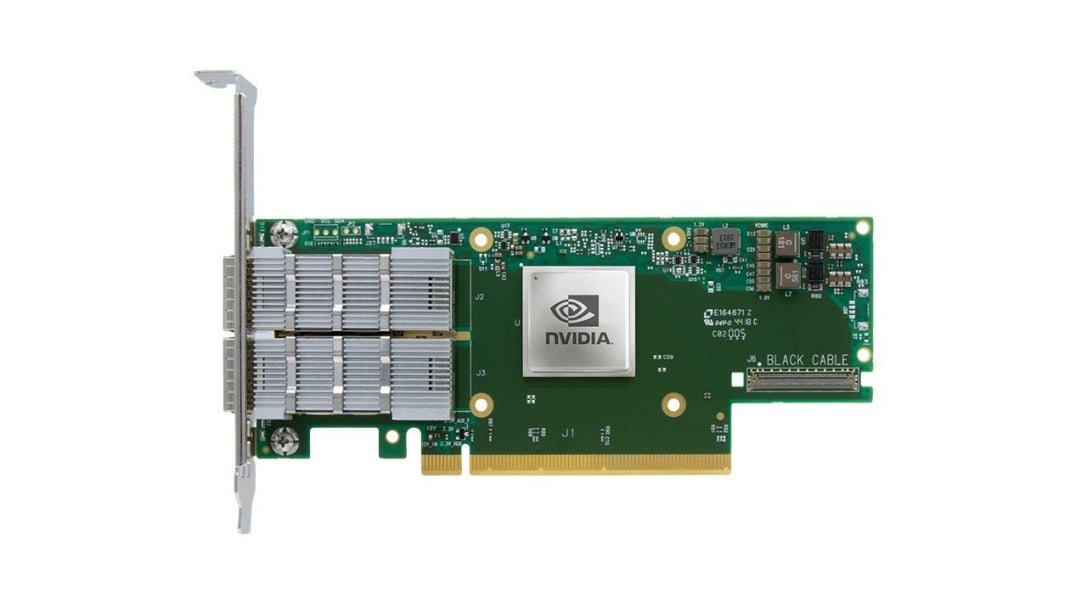

Photo is for illustration purposes only. Actual product may be different.
$2,151.00
$2,151.00
Sale Sold out
MSRP: $2,516.00
Shipping calculated at checkout.
  • 200Gb/s data transfer via HDR InfiniBand and 200GbE
  • PCI Express 4.0 x16 interface for high-speed data throughput
  • Single-port QSFP56 connection for efficient cabling
  • Supports Multi Host and Socket Direct configurations
  • Compliant with OCP 3.0 and TAA regulations
  • Wired connectivity for dependable network performance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers extreme 200Gb/s throughput, ideal for high-performance computing and data centers.
  • Supports versatile deployment with both HDR InfiniBand and 200GbE via VPI.
  • Meets enterprise and government standards with OCP 3.0 compatibility and TAA compliance.

Product Overview

The NVIDIA ConnectX-6 VPI Adapter Card, model MCX653435M-HDAI, provides 200Gb/s data transfer using HDR InfiniBand and 200Gb Ethernet. Its PCIe 4.0 x16 interface ensures top-speed host connectivity, while the QSFP56 single-port design supports flexible cable deployments. Supporting Multi Host and Socket Direct, it's ideal for large-scale computing environments. Built to the OCP 3.0 standard and TAA compliant, it's suitable for government and enterprise networks requiring high throughput and robust management features.

Specifications

Product Overview
Product Type Adapter Card
Form Factor Plug-In Card
Model MCX653435M-HDAI
Supported Network Protocols 200GbE, HDR InfiniBand
Processor ConnectX-6
Host Interface PCIe 4.0 x16
Memory 4 GB onboard memory
Power Consumption Up to 25W
Cooling Passive heat sink, airflow dependent

Advanced Features
Multi-Host Support Yes
Socket Direct Support Yes
RDMA Support Yes
Virtualization Support SR-IOV, VirtIO
NVMe over Fabrics Yes
GPU Direct RDMA Yes

Physical & Environmental
Dimensions (W x D) 3.6 in x 6.6 in (approx. 91 mm x 167 mm)
Operating Temperature 0°C to 55°C
Storage Temperature -40°C to 70°C
Humidity (Operating) 10% to 85% non-condensing

Interfaces
Interface Type PCI Express 4.0 x16
Port Type QSFP56
Port Speed 200Gb/s
Number of Ports 1
Supported Cabling Passive Copper, Active Copper, Active Optical Cable (AOC), Fiber
Connectivity Technology Wired
Data Link Protocol Gigabit Ethernet, InfiniBand

Cloud Management & Licensing
OCP Standard 3.0
Form Factor Standard OCP 3.0 SFF (Small Form Factor)
Out-of-band Management Supported via SMBus
Firmware Update Secure firmware update supported

Compliance & Origin
Country of Origin Israel
TAA Compliant Yes
Certifications FCC, CE, RoHS, UL, EMI Class A
MTBF (Mean Time Between Failures) 1,000,000 hours
