NVIDIA Mellanox Skyway IB to Ethernet Gateway Appliance, 2U, 200GbE

VENDOR: NVIDIA Mfg Part#: MGA100-HS2
1 3

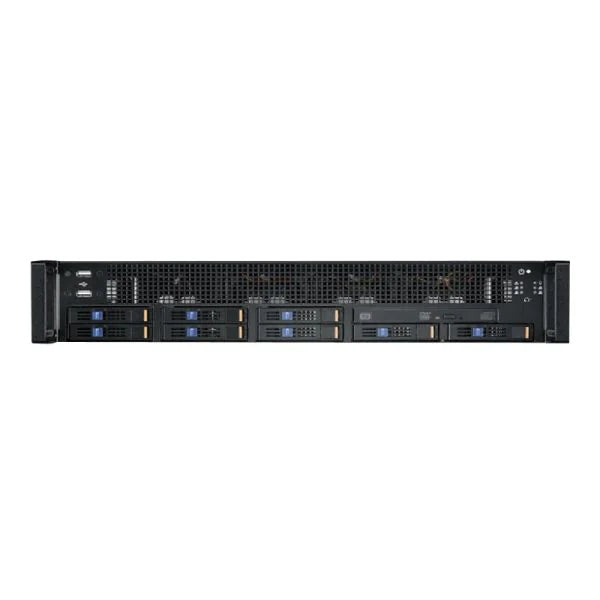

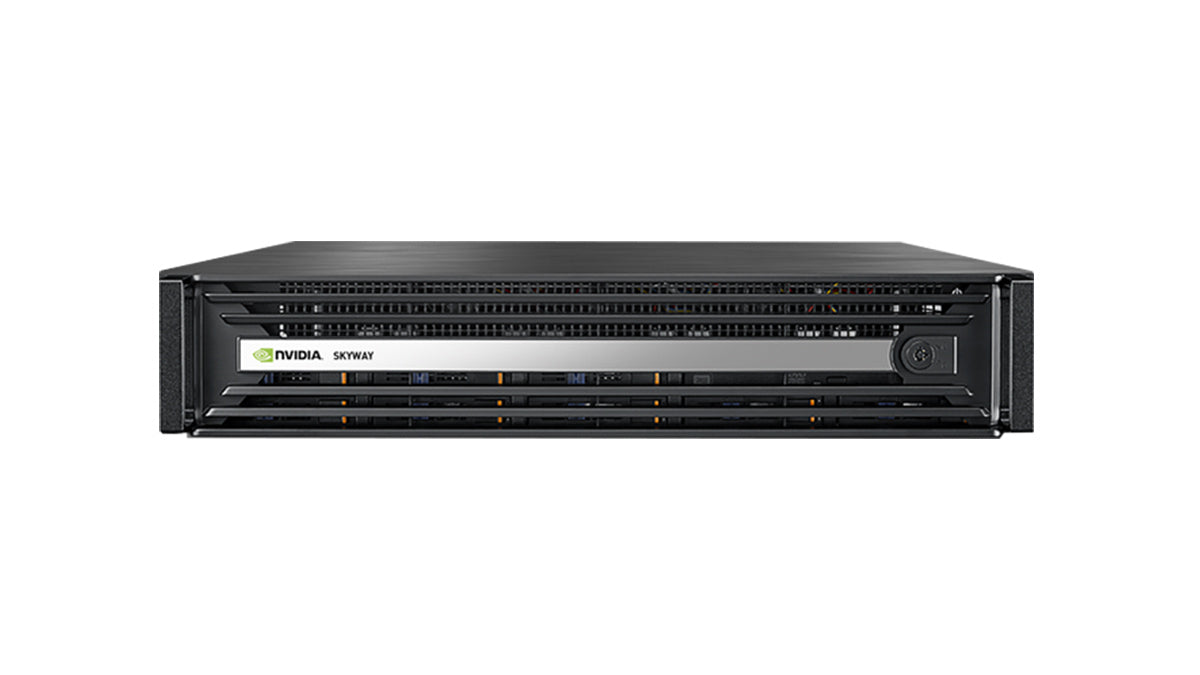

Photo is for illustration purposes only. Actual product may be different.
$45,764.00
$45,764.00
Sale Sold out
MSRP: $58,799.00
Shipping calculated at checkout.
  • 200 Gbps data transfer rate with Gigabit Ethernet protocols
  • 8x Infiniband and 8x Ethernet ports provide versatile connectivity
  • Powered by Intel Xeon processor for robust performance
  • Integrates 8x ConnectX-6 VPI dual-port HDR/200GbE adapters
  • Standard 2U form factor for rack mount installation
  • Dual AC power supplies for redundancy and availability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for high-performance computing environments requiring both Infiniband and Ethernet interfaces
  • Ideal for enterprise and government networks with TAA compliance and manufacturing origin in Israel
  • Delivers exceptional throughput and uptime with dual power supplies and ConnectX-6 adapter architecture

Product Overview

The NVIDIA Mellanox Skyway IB to Ethernet Gateway Appliance is engineered for seamless interoperability between Infiniband and Ethernet environments. This 2U appliance hosts eight Infiniband and eight Ethernet ports, enabling high-throughput, low-latency data transmission suited for advanced data center and enterprise networking needs. Powered by an Intel Xeon processor and equipped with eight ConnectX-6 VPI dual-port HDR/200GbE adapters, it ensures maximum performance for demanding networking applications.

Engineered for robust deployment, the Skyway Gateway offers a 200 Gbps data transfer rate using Gigabit Ethernet protocols. Its standard 2U form factor (17.2" W x 29.9" D x 3.4" H) fits seamlessly into existing server racks, facilitating integration without additional custom configuration. Additionally, dual redundant AC power supplies ensure continuous uptime, enhancing operational reliability. As a TAA-compliant device made in Israel, it is suitable for government and enterprise deployments requiring stringent compliance specifications.

Specifications

Product Overview
Product Type Gateway Appliance
Model MGA100-HS2
Form Factor 2U
Rack Height 2U
Weight 50 lbs (approximate)
Power Supply Dual redundant AC power supplies
Processor Type Xeon
Processor Manufacturer Intel
Included Networking Adapters 8x ConnectX-6 VPI dual-port HDR/200GbE adapters

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Israel
TAA Compliance Yes
Certifications CE, FCC Class A, UL, RoHS
Environmental Standards RoHS, REACH

Advanced Security Features
Firmware Security Secure Boot, Signed Firmware
Data Protection MACsec on Ethernet ports
Access Control Role-based access control (RBAC)
Monitoring & Logging Syslog, SNMP traps, audit logs

Interfaces
Number of Infiniband Ports 8
Number of Ethernet Ports 8
Data Rate per Port 200 Gbps
Network Protocols Supported Gigabit Ethernet, Infiniband HDR
Interface Type HDR InfiniBand and 200Gb Ethernet
Total Network Bandwidth Up to 3.2 Tbps
Connector Type QSFP56
Port Configuration Dual-port per adapter card
Expansion Slots 8 PCIe Gen4 x16 slots

Physical & Environmental
Width 17.2 inch
Depth 29.9 inch
Height 3.4 inch
Cooling Hot-swappable redundant fans
Mounting Rack-mountable
Operating Temperature Range 10°C to 35°C (50°F to 95°F)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity 8% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface NVIDIA Unified Fabric Manager (UFM)
Remote Management Redfish, CLI, SNMP
Cloud Monitoring Capabilities Yes, via UFM Enterprise Edition
Included Software UFM Telemetry, UFM Enterprise
Licensing Model Subscription-based for UFM Enterprise
