PHILIPS LED Display Controller Novastar VX600

VENDOR: PHILIPS Mfg Part#: CRD20097/00 UPC#: 685417592685
1 4

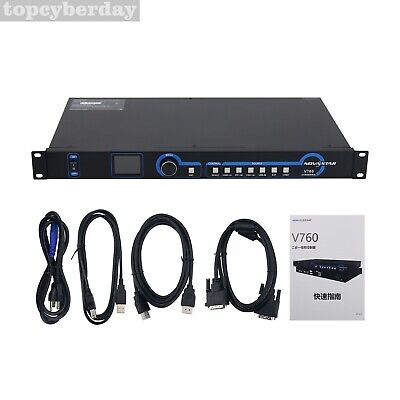

Photo is for illustration purposes only. Actual product may be different.
$3,690.00
$3,690.00
Sale Sold out
MSRP: $5,527.00
Shipping calculated at checkout.
  • Manufactured under part number CRD20097/00
  • Country of origin: China
  • Non-TAA compliant device
  • Compatible with Novastar LED systems (based on name)
  • UPC: 685417592685 enables validated distribution

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed by PHILIPS, a trusted name in professional AV hardware
  • Ideal for large-format LED display control in commercial and private sectors
  • Compatible with Novastar systems, facilitating ecosystem integration

Product Overview

The PHILIPS LED Display Controller Novastar VX600 is a professional-grade control solution for large-format LED displays, offering reliable operation in demanding environments. Designed and manufactured in China under part number CRD20097/00, it facilitates seamless video control and integrates with Novastar ecosystems. Although it does not provide TAA compliance, this model is suitable for private sector and international deployments where government compatibility is not required. With a valid EAN-13 code (685417592685), its distribution is easily traceable and supported by a reputable manufacturer. Its engineering makes it an efficient solution for control rooms, signage systems, and event displays.

Specifications

Product Overview
Product Type LED Display Controller
Model Name Novastar VX600
Manufacturer PHILIPS
Manufacturer Part Number CRD20097/00
Form Factor Rack-mountable
Weight 4.5 kg
Power Supply AC 100–240V, 50/60Hz
Power Consumption 60 W

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin China
Compliance Certifications CE, FCC, RoHS
TAA Compliance No
UPC 685417592685
EAN 685417592685

Advanced Security Features
User Access Control Admin and user level permissions
Firmware Encryption Yes
Secure Remote Management Yes (via network)

Interfaces
HDMI Input 1 x HDMI 1.3
SDI Input 1 x 3G-SDI
DVI Input 1 x DVI
HDMI Loop Output 1 x HDMI 1.3 Loop
SDI Loop Output 1 x 3G-SDI Loop
Audio Input 1 x 3.5 mm
USB 2 x USB 2.0
Network Ports 6 x Ethernet Outputs
Control Interface 1 x USB (Type A), 1 x RJ45 (LAN)
Light Sensors 1 x Sensor Port
RS232 1 x RS232

Physical & Environmental
Dimensions (W x D x H) 482.6 mm × 301 mm × 89.2 mm
Operating Temperature -20°C to +60°C
Storage Temperature -40°C to +80°C
Operating Humidity 10%–90% RH, non-condensing
Cooling Built-in fan cooling
Mounting Type Standard 2U rackmount

Cloud Management & Licensing
Cloud Management Via Novastar SmartLCT software
Included Software NovaLCT, SmartLCT
Licensing Required No licensing required for standard use
