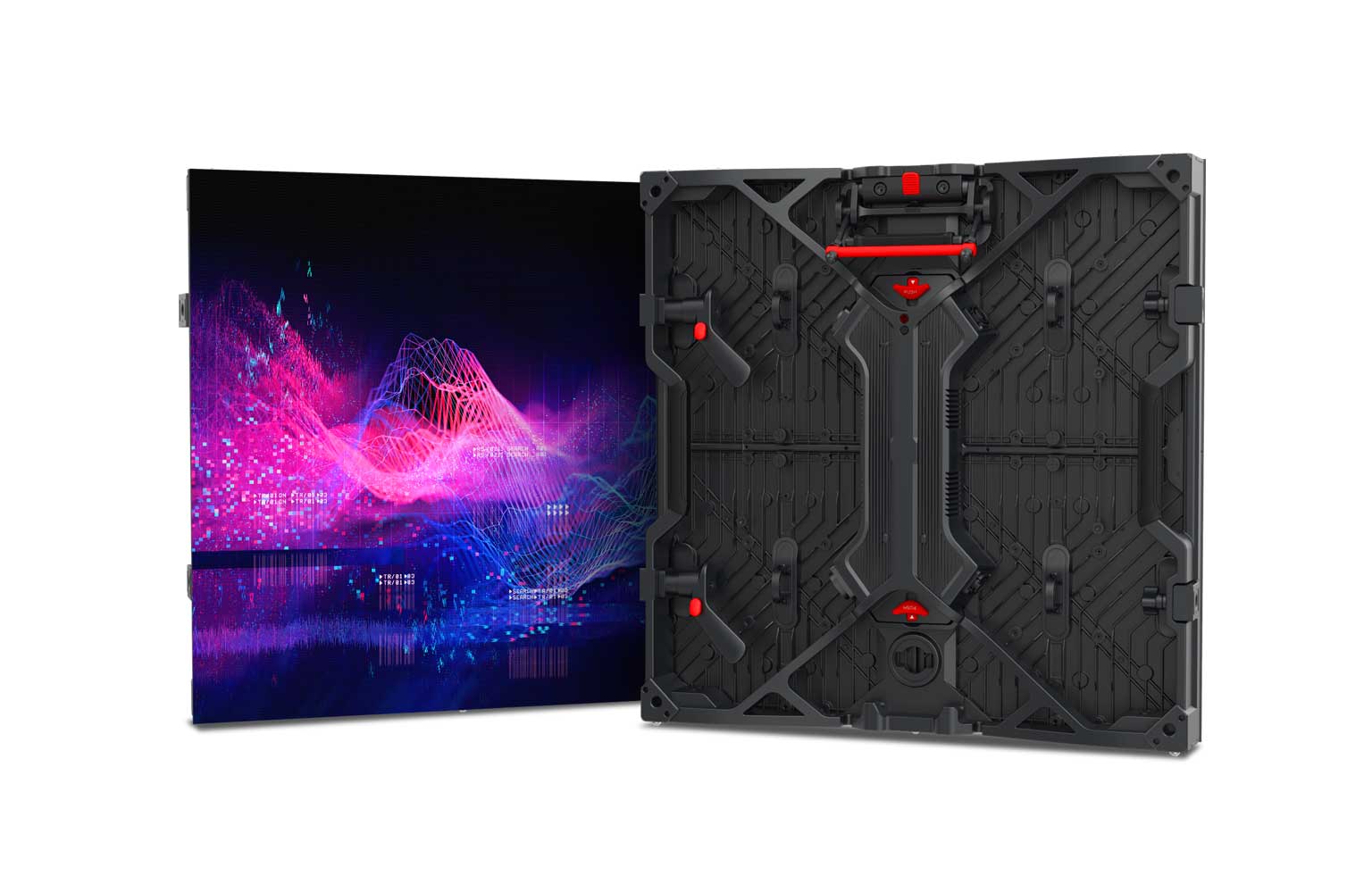

PHILIPS LED Display Kit UHD 330" 1.9 mm Pixel Pitch

VENDOR: PHILIPS Mfg Part#: 330BDL9119L/00 UPC#: 685417566280
1 5
Photo is for illustration purposes only. Actual product may be different.
$407,227.00
$407,227.00
Sale Sold out
MSRP: $555,438.00
Shipping calculated at checkout.
  • Display type: LED technology
  • Massive 330-inch diagonal size
  • Fine 1.9 mm pixel pitch for close viewing
  • Ultra High Definition (UHD) support
  • Commercial-grade display ideal for large venues

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers impressive scale and clarity with 330-inch UHD screen—ideal for visibility in large public or corporate spaces.
  • High-resolution 1.9 mm pixel pitch ensures fine detail reproduction even at close range—suitable for high-precision content.
  • Professional LED display from a trusted manufacturer, Philips—optimized for durability and visual performance.

Product Overview

The PHILIPS LED Display Kit UHD 330BDL9119L/00 offers an ultra-expansive visual solution with a 330-inch diagonal size and a 1.9 mm pixel pitch. Designed for impactful visual communication, it supports UHD resolution for detailed imagery across its large format. The fine pixel pitch ensures up-close clarity, making it ideal for corporate environments, public venues, or digital signage walls. Although precise installation specs and compliance details are unavailable, it is built with performance and scale in mind for professional-grade applications.

Specifications

Product Overview
Type LED Display Kit
Form Factor Modular Video Wall
Display Diagonal Size 330 Inch
Pixel Pitch 1.9 mm
Resolution 3840 x 2160 (UHD)
Brightness 800 cd/m²
Contrast Ratio 3000:1
Refresh Rate 3840 Hz
View Angle (Horizontal/Vertical) 160° / 160°
Power Consumption (Typical) 1300 W (per panel configuration)
Max Power Consumption 3900 W (per panel configuration)
Input Voltage 100 – 240 VAC, 50/60 Hz
Lifetime (typ.) 100,000 hrs
Operating Mode 24/7 Operation

Physical & Environmental
Dimensions (W x H x D) 7296 x 4104 x 85 mm (total assembly)
Net Weight Approx. 550 kg (total)
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -20°C to 60°C
Operating Humidity 10% to 80% RH (non-condensing)
Storage Humidity 10% to 85% RH
Cooling System Active (fans)
Mounting Type Wall-mount / Floor-stand (custom frame required)

Cloud Management & Licensing
Remote Management Platform Philips CMND (Content, Control, Configuration)
Control Application CMND & Control
Display Management CMND & Manage
Included Licensing CMND basic license included
Software Update Method Over-the-Air (OTA) Updates via LAN

Interfaces
Input Interface HDMI 2.0, DVI-D, VGA, Loop Through RJ45
Output Interface HDMI (loop-through), RJ45
USB Ports USB 2.0 (Service only)
Control Interface RJ45, RS232

Compliance & Origin
Country of Origin
TAA Compliant
Certifications CE, FCC Class A, CB, RoHS
Safety Compliance IEC/EN 60950-1, IEC/EN 62368-1
EMC Compliance EN55032, EN55024

Advanced Security Features
Access Control Admin password protected CMND access
Secure Networking HTTPS, SNMP v3
