| Product Type | LED Video Wall System |
| Form Factor | Wall-mounted |
| Display Configuration | 3x3 (9 displays plus 2 spares) |
| Included Display Model | PLANAR LX55M-L |
| Diagonal Screen Size | 165 inches (overall) |
| Brightness | 500 nits |
| Bezel Width | 3.5 mm combined bezel (1.8 mm top/left, 1.7 mm bottom/right) |
| Native Resolution | 1920 x 1080 per display |
| Total Resolution | 5760 x 3240 (3x3 configuration) |
| Power Supply Type | Remote power supply electronics with redundancy option |
| Power Redundancy | Yes |
| Orientation | Landscape only |
| Included Accessories | Trim kit, wall mounts, video controller, power & video cables (200 ft) |

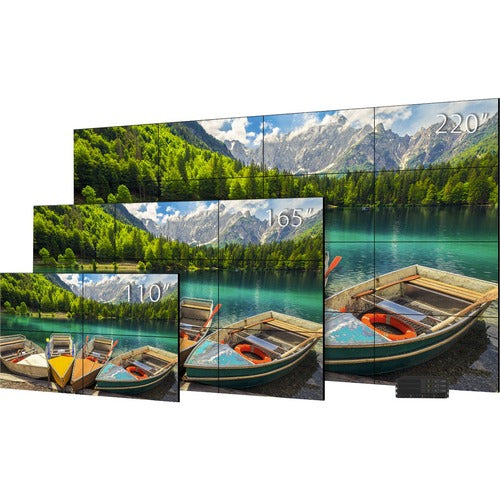

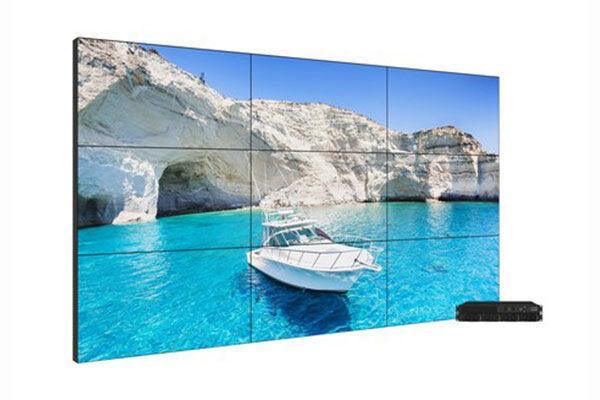

PLANAR MATRIX COMPLETE 3x3 Video Wall LX55M - 165" 500-nit Display
Photo is for illustration purposes only. Actual product may be different.
Regular price
$96,180.00
Regular price
Sale price
$96,180.00
Unit price
per
MSRP: $110,466.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 165-inch diagonal display area formed by 3x3 video wall of 55" panels
- 500-nit brightness for vivid image quality in lit environments
- Includes 9 displays + 2 spares, EasyAxis mounts, video controller
- Remote power supply with redundancy and 200 ft. video/power cables
- Landscape-only configuration with trim kit included
- Country of Origin: UNITED STATES
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Comprehensive package includes everything needed for deployment, reducing installation time and cost.
- Redundant power supply and spare displays ensure high availability and minimize downtime.
- 500-nit brightness and large viewing area provide excellent visibility for demanding commercial applications.
Product Overview
MATRIX COMPLETE 3X3 VIDEO WALL - 500-NIT, 165Inch DIAGONAL. INCLUDES (9+2 SPARE) LX55M-L DISPLAYS,EASYAXIS WALL MOUNTS,VIDEO CONTROLLER AND REMOTE POWER SUPPLY ELECTRONICS, POWER REDUNDANCY OPTION, TRIM KIT AND 200 FT. POWER AND VIDEO CABLES.LANDSCAPE ONLYSpecifications
Product Overview
Physical & Environmental
| Individual Display Dimensions (W x H x D) | 47.7 x 26.9 x 3.5 inches (each display) |
| Combined Wall Dimensions | Approximately 143 x 81 inches without trim |
| Unit Weight (Each Display) | Approx. 55.1 lbs (25 kg) |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Mounting Options | EasyAxis wall mounts (included) |
| Depth with Mount | Approx. 4.6 inches |
Cloud Management & Licensing
| Remote Management Capabilities | Available via external controller and RS-232/LAN |
| Included Software | Video wall controller software |
| Licensing Requirements | None (hardware bundled solution) |
Interfaces
| Video Input Interfaces | HDMI, DVI, DisplayPort |
| Loop-through Support | Yes |
| Included Video Controller | Yes |
| Control Interface | RS-232, IR, LAN |
| DisplayPort Input | DisplayPort 1.2 |
| HDMI Input | HDMI 1.4 |
| DVI Input | DVI-D |
Compliance & Origin
| Country of Origin | United States |
| Certifications | FCC Class A, CE, RoHS, WEEE |
| Safety Approvals | UL, cUL |
Advanced Security Features
| Signal Encryption | No native encryption; depends on source equipment |
