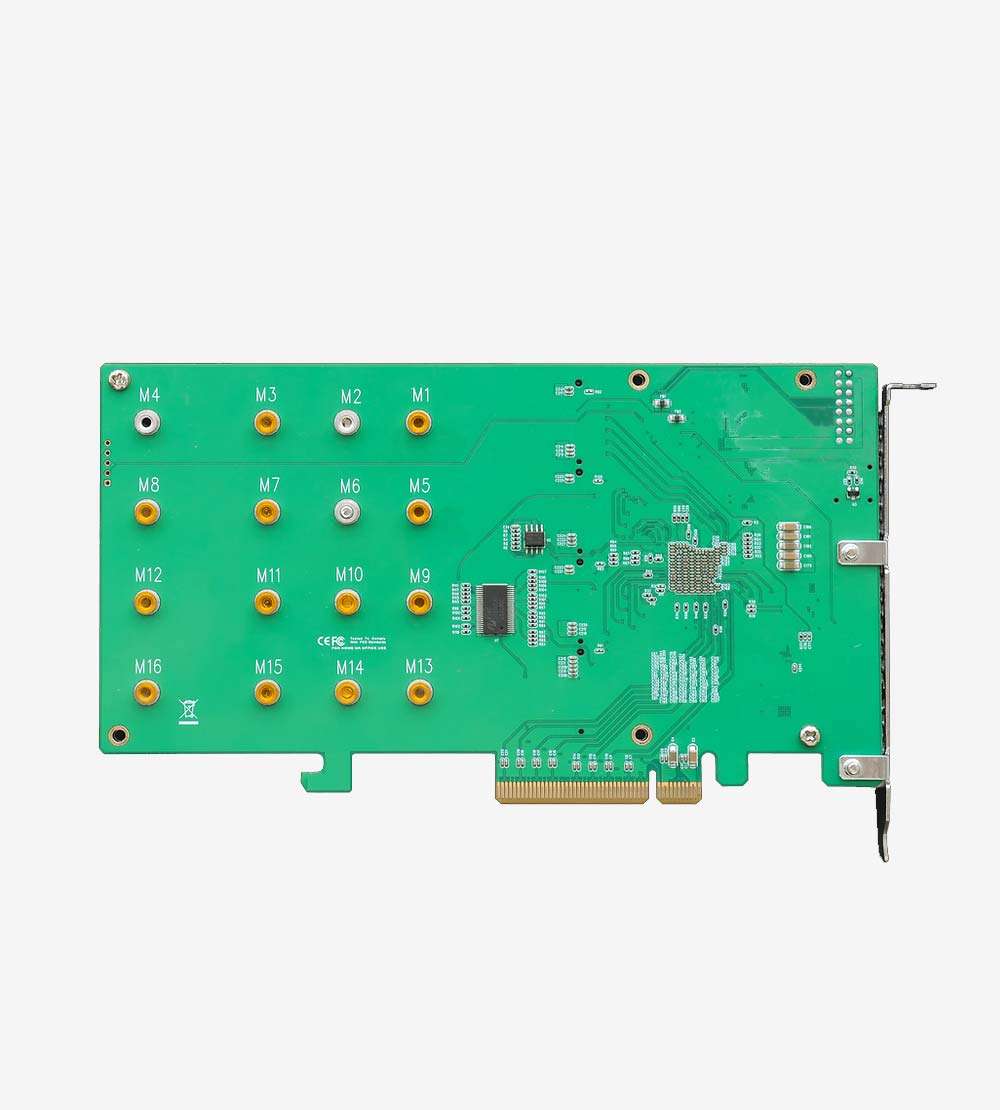

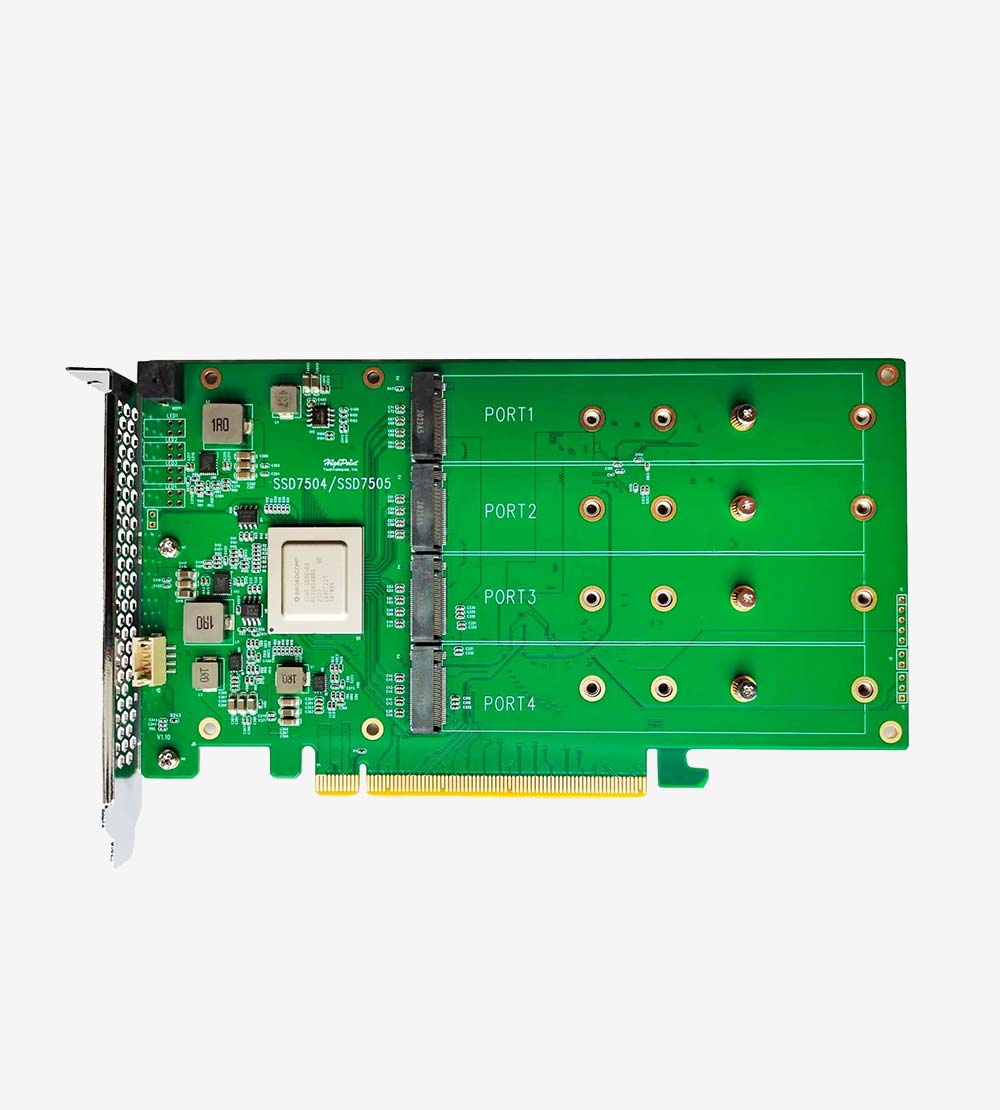

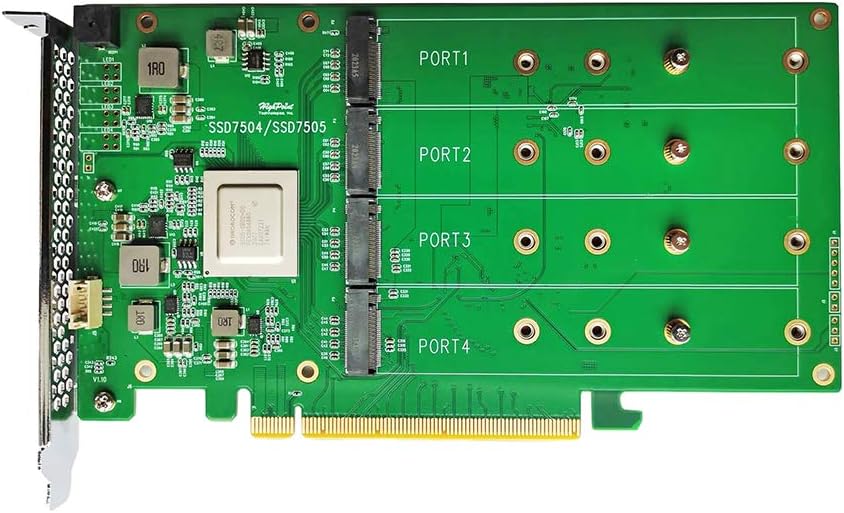

RocketAIC 7505HM-A04T0-0D 4TB PCIe 4.0 x16 NVMe AIC SSD

VENDOR: HIGHPOINT TECHNOLOGIES, INC. Mfg Part#: RA7505HM-A04T0-0D UPC#: 643653750078
1 4
Photo is for illustration purposes only. Actual product may be different.
$2,843.00
$2,843.00
Sale Sold out
Shipping calculated at checkout.
  • - 4TB NVMe storage capacity on a PCIe Gen4 x16 interface
  • - Peak data transfer speed up to 27,000MB/s for professional workloads
  • - High endurance with 2 million hours MTBF
  • - Operational power consumption of 47.64 watts
  • - Supports thermal range from -20°C to 80°C
  • - Covered by 3 years of manufacturer support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Designed for maximum performance with PCIe 4.0 x16 connectivity, ideal for bandwidth-intensive tasks
  • - Engineered with long-term reliability in mind, featuring an MTBF of 2 million hours and a 3-year warranty
  • - Compact AIC format provides easy, plug-and-play integration into compatible high-performance systems

Product Overview

The HIGHPOINT TECHNOLOGIES RocketAIC 7505HM-A04T0-0D is a cutting-edge 4TB NVMe SSD optimized for PCIe Gen4 x16 slots—perfect for 2023 M2 Mac Pro platforms and high-end workstations. It enables extreme data transfer speeds of up to 27,000MB/s, making it ideal for intensive applications like video production and 3D modeling. With an MTBF of 2 million hours and a wide operating temperature range, it combines endurance with thermal stability. Compact in size and backed by a 3-year warranty, this AIC SSD balances performance with reliability for mission-critical tasks.

Specifications

Product Overview
Manufacturer HIGHPOINT TECHNOLOGIES, INC.
Product Name RocketAIC 7505HM-A04T0-0D
Manufacturer Part Number RA7505HM-A04T0-0D
Product Type Add-in Card Solid State Drive (AIC SSD)
Form Factor Full Height, Half Length (FHHL)
Storage Capacity 4 TB
Weight 1.4 lbs.
Power Consumption (Operational) 47.64 Watt
Mean Time Between Failures (MTBF) 2 million hours
Warranty 3 Years Limited

Wireless Features

Compliance & Origin
Country of Origin CHINA
RoHS Compliance Yes
FCC Certification Yes
CE Certification Yes

Advanced Security Features
Data Protection End-to-End Data Protection
Encryption Support AES 256-bit (Controller-Dependent)
Secure Erase Support Yes
Drive Health Monitoring Yes (SMART Monitoring)

Interfaces
Interface Type PCI Express 4.0 x16
Bus Type PCIe Gen4
Internal Interface NVMe
Data Transfer Rate Up to 27,000 MB/s
NVMe Version NVMe 1.4
Supported Drive Form Factor M.2 2280
Number of M.2 Slots 4
RAID Support Yes (RAID 0, 1, 10)
Connector Type PCIe Edge Connector

Physical & Environmental
Width 7.68 Inch
Depth 0.85 Inch
Height 4.37 Inch
Minimum Operating Temperature -20°C
Maximum Operating Temperature 80°C
Cooling Method Integrated High Efficiency Heat Sink
Humidity (Operating) 5% – 95% (non-condensing)

Cloud Management & Licensing
Management Interface HighPoint WebGUI & CLI Management Suite
Remote Monitoring Support Yes
Cloud Backup Integration
Licensing Requirements None (included)
