Samsung XHB-SP6L-TYPE4X3 LED Display, 6.16mm Pixel Pitch, 8000 nits

VENDOR: SAMSUNG Mfg Part#: LH060XHBTLS UPC#: 8806094710113

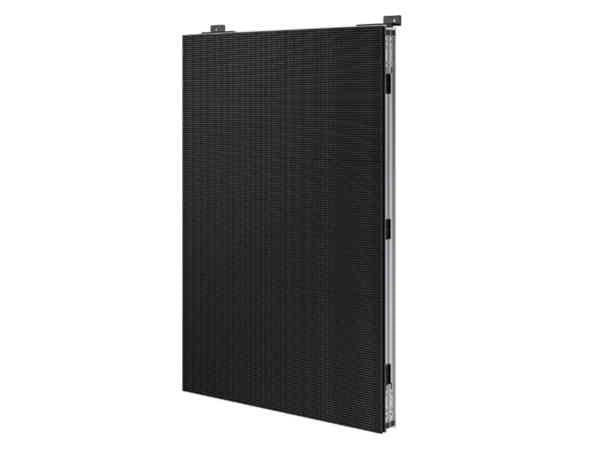

  • The Samsung XHB-SP6L-TYPE4X3 is a powerful outdoor LED display featuring ultra-high brightness and robustness for harsh environments. Designed for clear, brilliant visuals in extreme weather, this unit delivers stellar performance with 281 trillion colors and resilient build quality. Ideal for large-scale digital signage requiring high visibility and wide operating temperatures.
1 1
Photo is for illustration purposes only. Actual product may be different.
$8,805.00
$8,805.00
Sale Sold out
MSRP: $11,815.00
Shipping calculated at checkout.
  • LED display with 6.16 mm pixel pitch for clear outdoor visual performance
  • Ultra-high 8000 nits brightness with 8000:1 contrast ratio
  • Displays up to 281 trillion colors for rich, vibrant imagery
  • 7680 Hz refresh rate ensures smooth video playback
  • Wide 160°/130° viewing angles for broad audience visibility
  • Operates reliably in extreme temperatures from -40°C to 55°C
View full details

Key Benefits

Eye-Insights
  • Ideal for high-visibility outdoor signage due to 8000 nits brightness and wide viewing angles
  • TAA-compliant and made in Mexico, suitable for government and enterprise procurement
  • Withstands extreme environments, from -40°C to 55°C, supporting continuous outdoor operation

Product Overview

The Samsung XHB-SP6L-TYPE4X3 outdoor LED display is engineered for demanding professional environments where maximum visibility and durability are critical. With a pixel pitch of 6.16 mm and a resolution of 112 x 168, it offers detailed imagery for medium-range viewing. Displaying up to 281 trillion colors and boasting an 8000 nits brightness and 8000:1 contrast ratio, it ensures clear content even under direct sunlight. The 7680 Hz refresh rate delivers smooth playback suitable for active public spaces.

The screen supports extreme operating temperatures from -40°C to 55°C and accepts 100–240V input, making it deployment-ready in diverse climates. Its dimensions (690 mm width/depth, 1035 mm height) and modular structure accommodate various signage needs. TAA compliance and professional-grade construction support deployment across government and enterprise use cases. Built in Mexico, this display is a high-ROI signage solution for mission-critical applications.

Specifications

Primary Information
Model LH060XHBTLS
Display Type LED Display
Flat / Curved Flat
Max Resolution 112 x 168
Display Diagonal Size Not Included
Display / Color Support 281 Trillion
Display / Response Time Not Included
Display / Refresh Rate 7680 Hz
Dot Pitch / Pixel Pitch 6.16 Mm
Image Contrast Ratio 8000:1
Brightness 8000 nits
Viewing Angle 160/130
HDR Capable None
Picture Enhancements None
Power Consumption Operational 320 Watt
Power / Voltage Required 100-240 VAC, 50/60 Hz
Stand None
Width 690 Mm
Depth 690 Mm
Height 1035 Mm
Weight 42.7 Kg
Features Introducing Samsung XHB series: a reliable, attention-grabbing outdoor display designed to perform in any scenario. With consistently high brightness, XHB is the ideal solution to deliver clear and brilliant visuals day and night, whether its sunny or stormy.
Min Operating Temperature -40 Celsius
Max Operating Temperature 55 Celsius

Power
Power / Voltage Required 100-240 VAC, 50/60 Hz
Power Consumption Operational 320 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness 8000 nits
Display / Color Support 281 Trillion
Display Type LED Display
Dot Pitch / Pixel Pitch 6.16 Mm
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable None
Picture Enhancements None
Flat / Curved Flat

Special Feature
COO MEXICO
TAA compliance Yes
