| Product Type | Outdoor LED Digital Signage Display |
| Model Name | XPR-B 16mm Outdoor LED Single Face |
| Manufacturer | Samsung |
| Part Number | LHX16TTB480 |
| Pixel Pitch | 16 mm |
| Panel Configuration | 4H x 8W |
| Resolution | 120 x 60 pixels |
| Brightness | 7,000 nits |
| Contrast Ratio | 5,000:1 |
| Viewing Angle (H/V) | 160° / 140° |
| Refresh Rate | 3,840 Hz |
| Lifetime to Half Brightness | 100,000 hours |
| Power Consumption (Max) | 750 W per panel |
| Power Consumption (Avg) | 250 W per panel |
| Power Supply | 100–240V AC, 50/60 Hz |
| Form Factor | Modular Panel System |

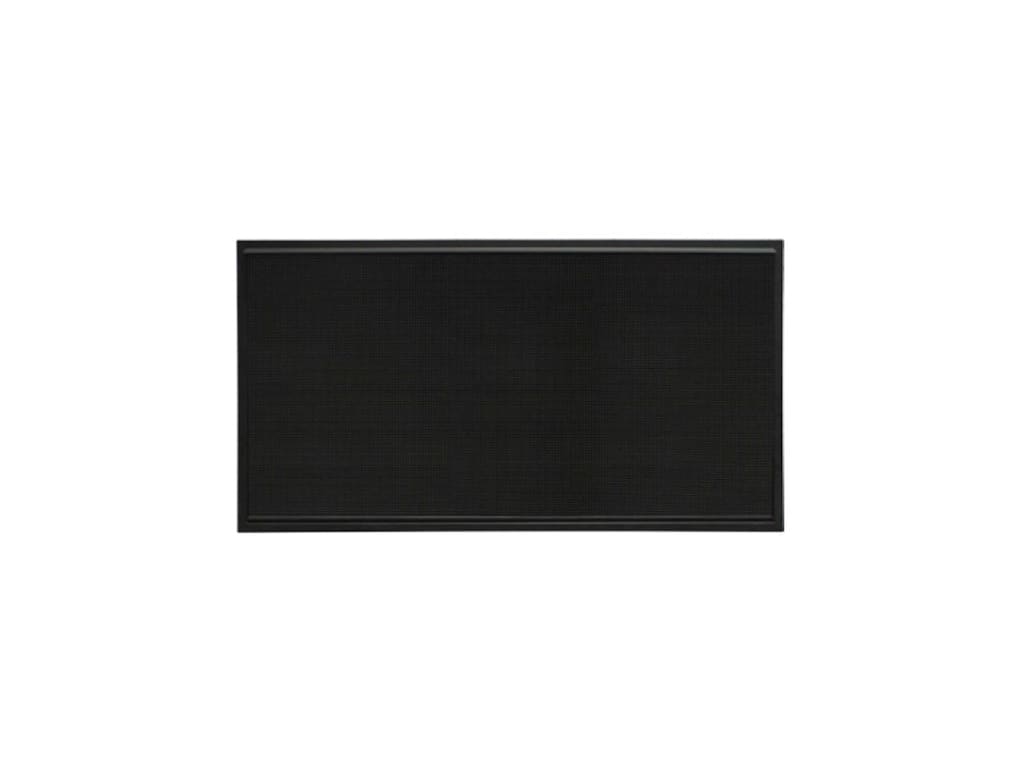

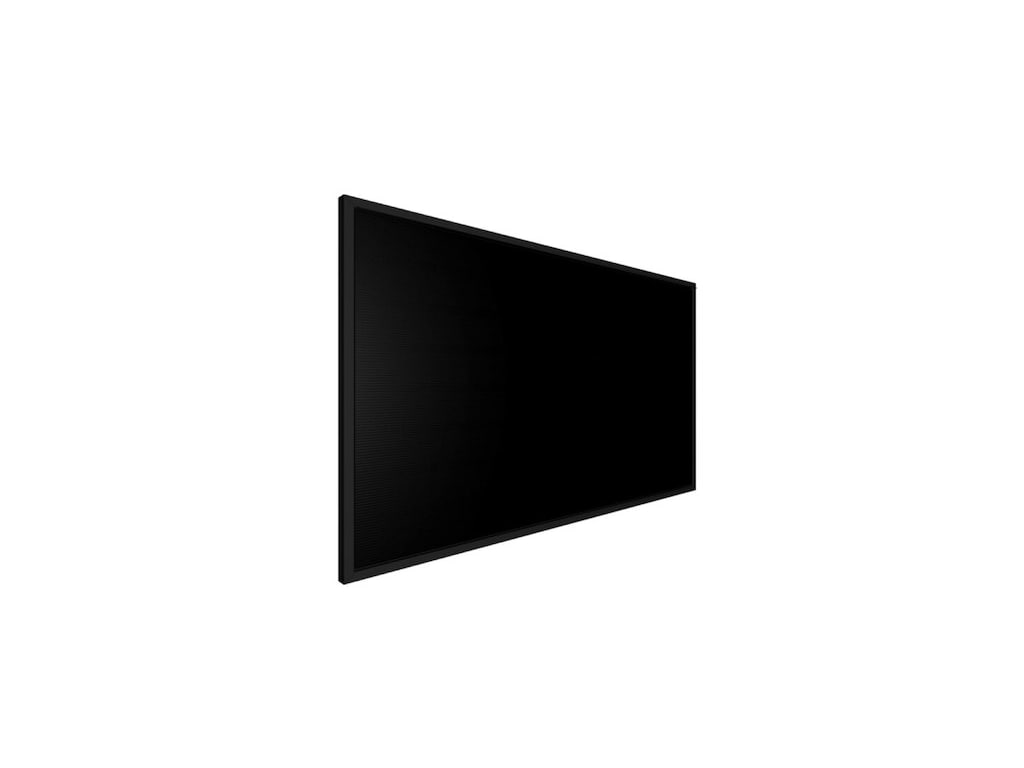

SAMSUNG XPR-B 16mm Outdoor LED Single Face Display, 4Hx8W
Photo is for illustration purposes only. Actual product may be different.
Regular price
$15,275.00
Regular price
Sale price
$15,275.00
Unit price
per
MSRP: $20,410.00
Shipping calculated at checkout.
Couldn't load pickup availability
- LED Display for high visibility in outdoor environments
- 120x60 resolution across 4Hx8W panel layout
- 16mm pixel pitch for clear long-distance viewing
- Manufactured in Mexico for quality assurance
- TAA compliant for government and institutional use
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Purpose-built for outdoor digital signage with a 16mm LED pitch for strong visual impact from distance.
- TAA compliance ensures it’s ready for public sector and government procurement requirements.
- Manufactured in Mexico, offering a blend of quality control and supply chain responsiveness.
Product Overview
The SAMSUNG XPR-B 16mm Outdoor LED Single Face display offers a reliable 120x60 resolution across a 4Hx8W panel layout, ideal for outdoor digital signage. Built with LED technology, it provides clear visibility from long distances and is TAA compliant, making it suitable for government and commercial use. Manufactured in Mexico, this display meets regulatory demands and ensures consistent performance for extended deployments.
Specifications
Product Overview
Wireless Features
| Wireless Control Support | Optional via Samsung MagicInfo platform |
Compliance & Origin
| TAA Compliant | Yes |
| Country of Origin | Mexico |
| Certifications | FCC, CE, UL, RoHS |
Advanced Security Features
| Access Control | Software-based access via MagicInfo |
| Encrypted Content Delivery | Supported via MagicInfo platform |
Interfaces
| Signal Input | DVI-D, HDMI, DisplayPort via Control Box |
| Control Interface | RJ45 Ethernet, Serial RS-232 (via control module) |
| Video Processing | Samsung S-Box or XHB Controller (optional) |
| Module Connectivity | Proprietary Interconnect Cabling |
Physical & Environmental
| Panel Dimensions (Single Module) | 1,280 x 1,280 x 150 mm |
| Total Display Dimensions | Approx. 5.12 m x 2.56 m |
| Panel Weight | 77 kg per cabinet |
| Operating Temperature | -30°C to 50°C |
| Storage Temperature | -40°C to 60°C |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Ingress Protection Rating | IP65 (front), IP54 (rear) |
| Cooling Method | Forced Air Ventilation |
| Mounting Options | Wall Mounting, Frame Structure |
Cloud Management & Licensing
| Cloud Management Platform | Samsung MagicInfo (optional) |
| Licensing Model | Separate License for MagicInfo Pro |
| Remote Diagnostics | Supported via MagicInfo Server |
