SONICWALL 10GB-LR SFP+ SMF Transceiver, 10Gbps, 10Km Range

VENDOR: SONICWALL Mfg Part#: 01-SSC-9786 UPC#: 758479097860
1 2

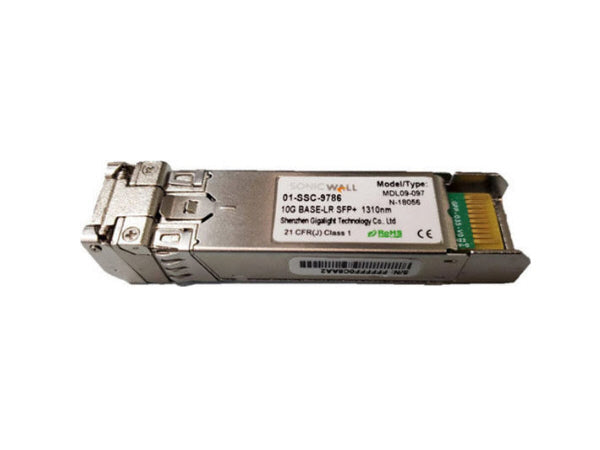

Photo is for illustration purposes only. Actual product may be different.
$303.00
$303.00
Sale Sold out
MSRP: $343.00
Shipping calculated at checkout.
  • Supports 10 Gbps data transfer rate
  • SFP+ form factor for easy integration
  • Single-Mode Fiber (SMF) cabling with 10Km range
  • Wavelength of 1310nm for long-distance optical transmission
  • Wired Gigabit Ethernet support
  • TAA compliant; manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables high-performance 10 Gbps links over single-mode fiber for efficient long-distance data transmission.
  • SFP+ modularity ensures compatibility with existing network devices and scalable architecture.
  • Compliant with TAA regulations, making it suitable for secure and government-grade deployments.

Product Overview

The SONICWALL 10GB-LR SFP+ transceiver (01-SSC-9786) delivers 10 Gbps high-speed data transfer over single-mode fiber (SMF) for up to 10 kilometers. Featuring an SFP+ form factor, it seamlessly integrates into existing network infrastructures. With a 1310nm wavelength and TAA compliance, it's ideal for secure, long-distance enterprise or government networking. Cabling is not included, offering deployment flexibility for varied environments.

Specifications

Product Overview
Product Type Optical Transceiver Module
Form Factor SFP+
Transceiver Type 10GBASE-LR
Cabling Type Single-Mode Fiber (SMF)
Wavelength 1310nm
Max Transfer Distance 10 km
Data Transfer Rate 10 Gbps
Connectivity Technology Wired
Power Consumption ≤1.5W
Hot Swappable Yes

Physical & Environmental
Dimensions (H x W x D) 0.33 x 0.53 x 2.22 in (8.5 x 13.7 x 56.5 mm)
Weight ≤18 g
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 85% non-condensing

Compatibility & Mechanical
Compatible Brands SonicWall
Digital Diagnostics Monitoring (DDM) Yes
Connector Type LC Duplex
Laser Type DFB Laser
Receiver Type PIN Photodiode
Transmitter Output Power -8.2 to 0.5 dBm
Receiver Sensitivity -14.4 dBm
Minimum Fiber Cable Distance 2 meters

Advanced Security Features
Security Capabilities Not applicable

Interfaces
Interface Type SFP+
Port Count 1
Compatible Interfaces 10 Gigabit Ethernet
Data Link Protocol 10 Gigabit Ethernet

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certification Standards IEEE 802.3ae 10GBASE-LR
EMI Compliance FCC Class A, CE
MTBF Over 1,000,000 hours

Cloud Management & Licensing
Cloud Management Not applicable
Software Licensing Not required
