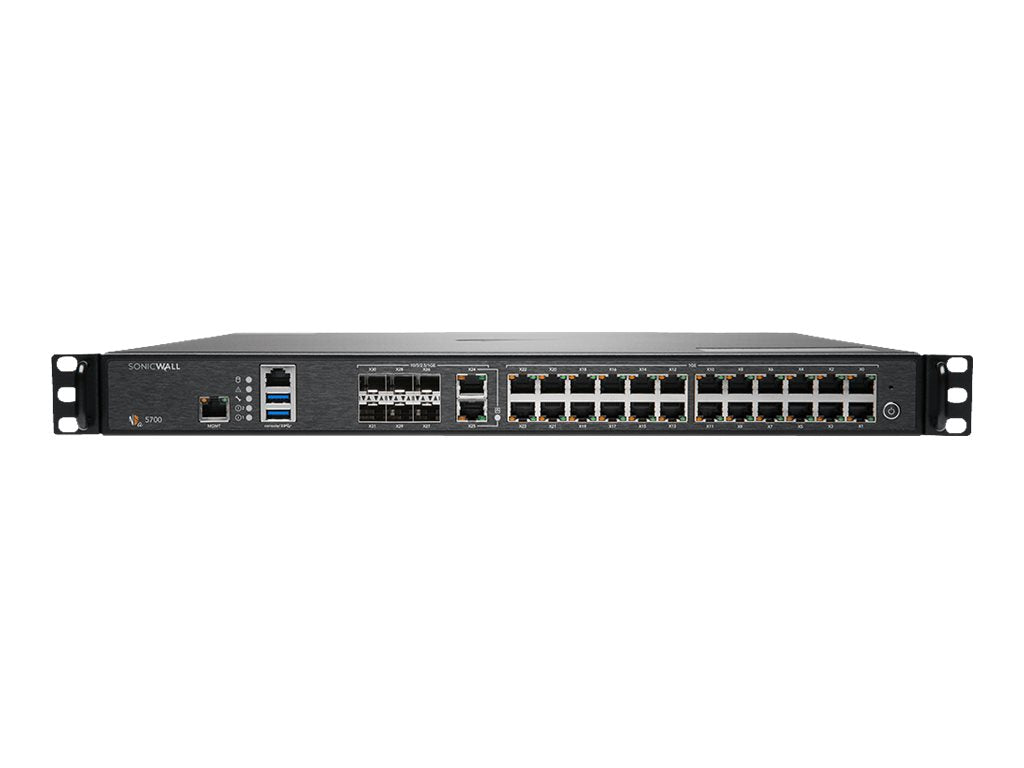

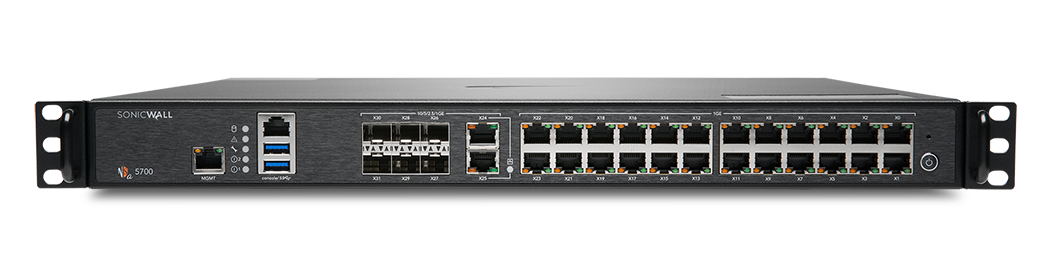

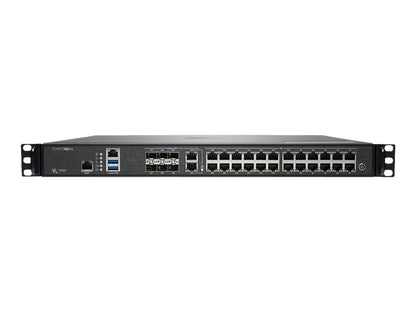

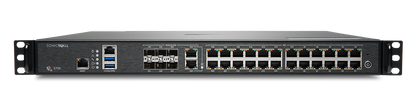

SONICWALL NSA 5700 H/A Security Appliance

VENDOR: SONICWALL Mfg Part#: 02-SSC-1715 UPC#: 758479217152
1 3
Photo is for illustration purposes only. Actual product may be different.
$12,348.00
$12,348.00
Sale Sold out
MSRP: $13,980.00
Shipping calculated at checkout.
  • - 6 x SFP+ ports supporting 10G/5G/2.5G/1G speeds
  • - 2 x copper ports supporting 10G/5G/2.5G/1G connections
  • - 16 x 1GbE copper Ethernet ports for LAN connectivity
  • - 2 USB 3.0 ports, 1 Console port, 1 Management port
  • - Storage Expansion Slot supporting up to 1TB
  • - TAA compliant; manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Flexible port configurations including high-speed 10GbE SFP+ and copper connections support scale-out networks.

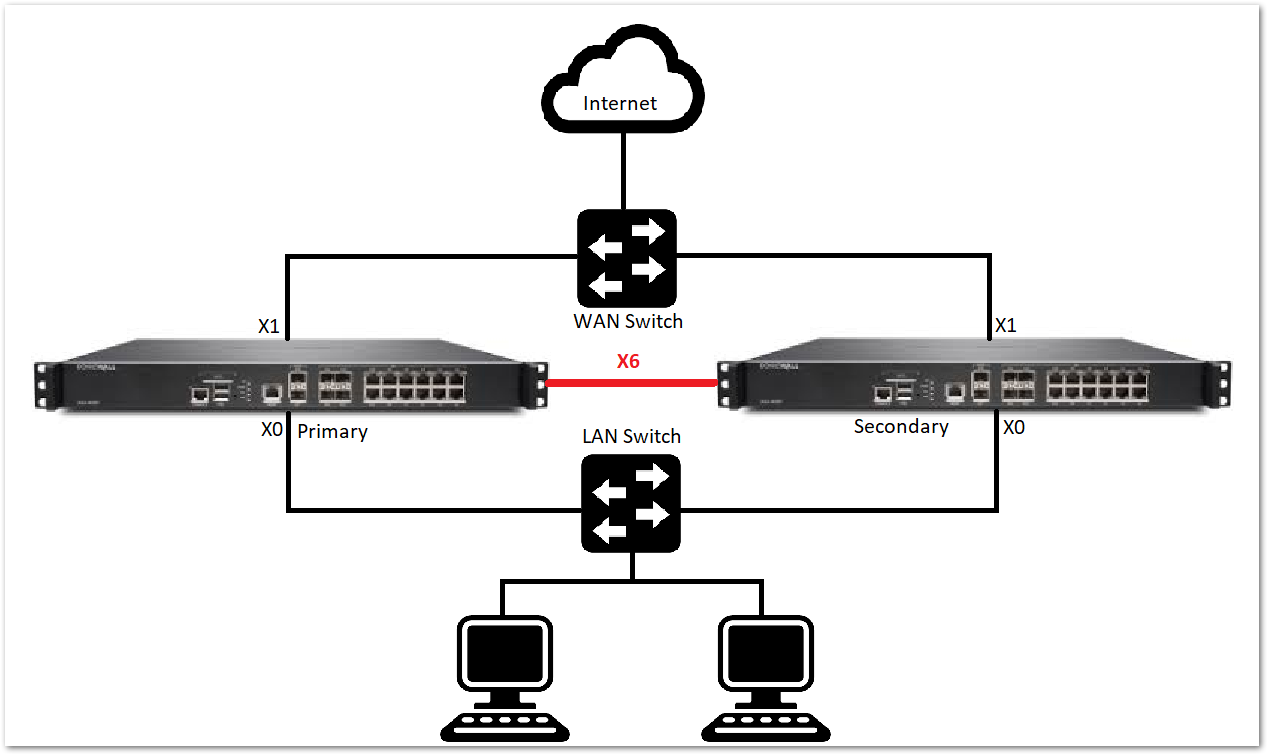

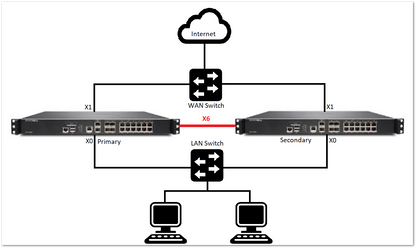

  • High availability design minimizes downtime, ideal for mission-critical deployments.
  • TAA compliance ensures eligibility for U.S. government contracts and secure projects.

Product Overview

The SONICWALL NSA 5700 H/A is a high-availability next-generation security appliance designed for mid-size to large enterprises. It features 6 SFP+ ports supporting 10G to 1G speeds and 2 copper 10GbE ports for flexible, high-speed connections. An additional 16 x 1GbE (Cu) network interfaces provide ample LAN scalability. The unit supports USB 3.0, a console port, and a management interface, while the storage expansion slot offers capacity up to 1TB. TAA compliance and Taiwanese origin ensure government procurement compatibility. This model targets mission-critical environments requiring redundancy and continuous uptime.

Specifications

Product Overview
Product Type Next-Generation Security Appliance
Model NSA 5700 H/A
Form Factor Rack-mountable
High Availability Support Yes
Power Supply Dual redundant power supplies
Power Input 100–240V AC, 50–60Hz
Maximum Power Consumption 114W
Rack Units 1U
Storage Expansion 1TB max internal storage slot

Advanced Security Features
Firewall Inspection Methods Deep Packet Inspection (DPI), Stateful Packet Inspection
Intrusion Prevention System (IPS) Yes
Gateway Anti-Virus Yes
Anti-Spyware Yes
Content Filtering Yes
Application Control Yes
Malware Protection Yes
SSL/TLS Decryption Yes
Botnet Filtering Yes

Physical & Environmental
Dimensions (W x D x H) 17.0 x 14.5 x 1.75 in (432 x 368 x 44 mm)
Weight 14.3 lbs (6.5 kg)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Humidity (Non-Condensing) 10% to 90%

Interfaces
10G SFP+ Ports 6
10GBASE-T Copper Ports 2
1GbE Copper Ports 16
Management Port 1 x 1GbE
Console Port 1 x RJ-45
USB Ports 1 x USB 3.0
Expansion Slot Yes (storage module slot)
Total Ethernet Ports 25
Maximum Throughput 16 Gbps
IPSec VPN Throughput 6.3 Gbps
Concurrent SPI Connections 3,000,000
New Connections per Second 40,000

Cloud Management & Licensing
Cloud Management SonicWall Capture Security Center
Policy Management Granular Unified Policy
Reporting Dashboard Integrated or Cloud via Capture Security Center
Subscription Services Required Yes (for full feature set)
Included Licensing Base firewall license included; subscriptions sold separately

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications FCC Class A, CE, VCCI, UL, RoHS
Regulatory Standards IPv6 Ready, FIPS 140-2 (with appropriate license)
