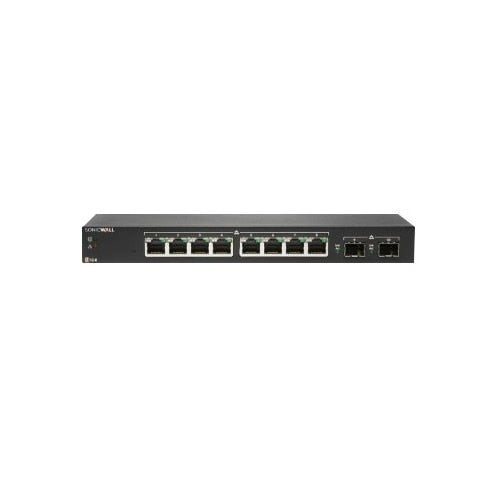

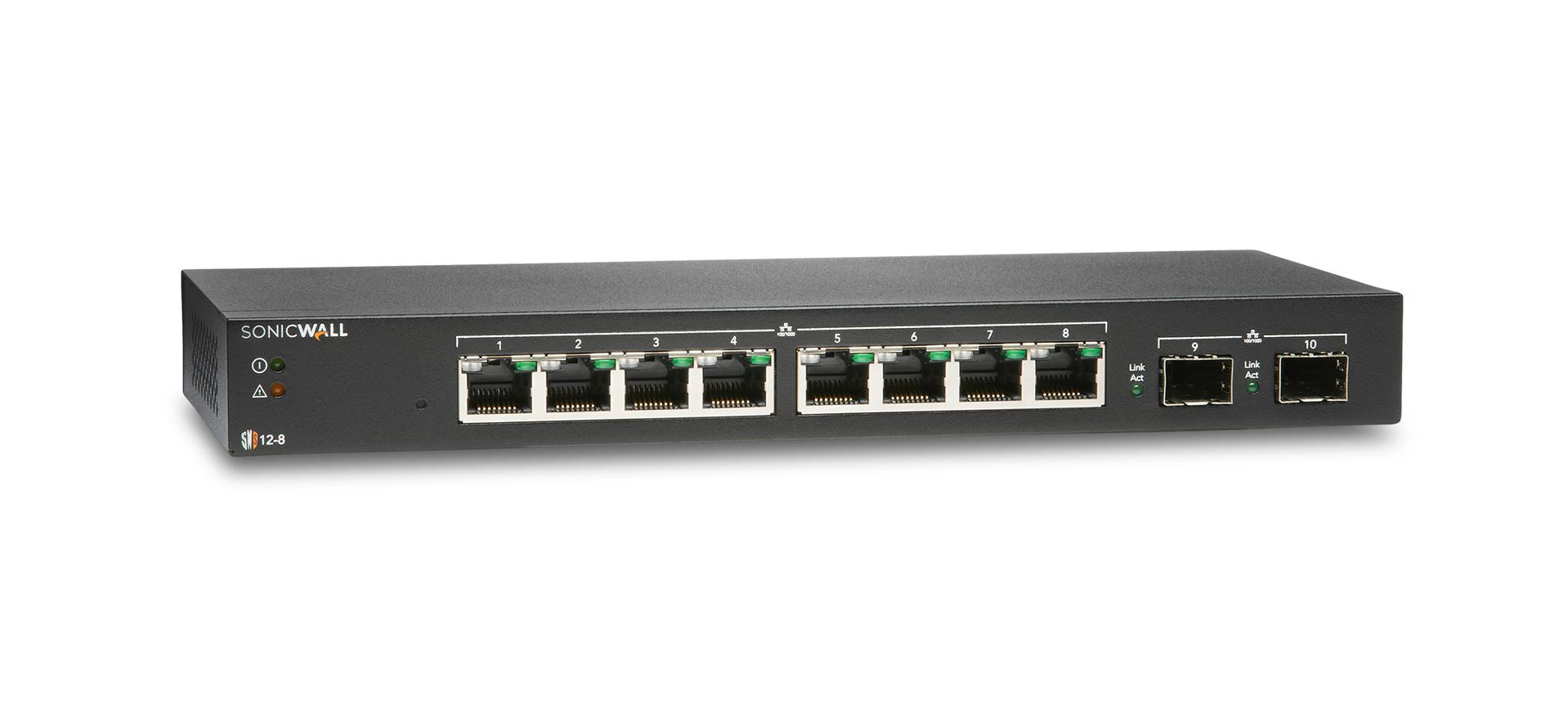

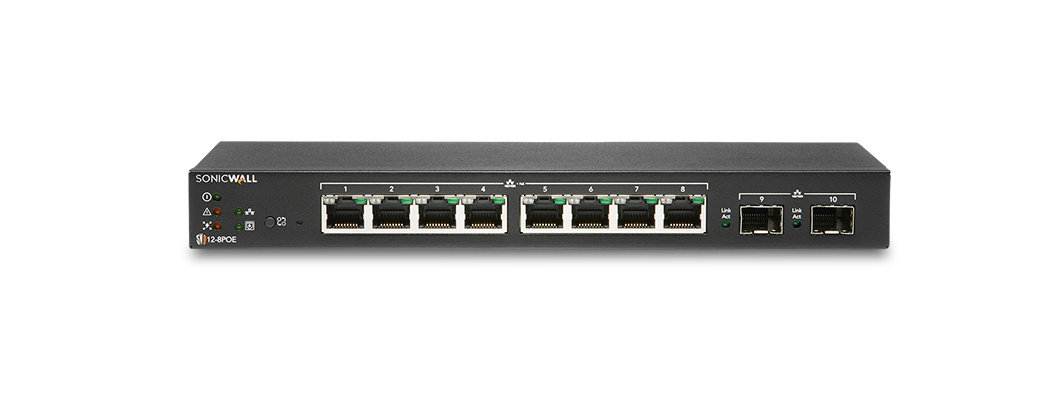

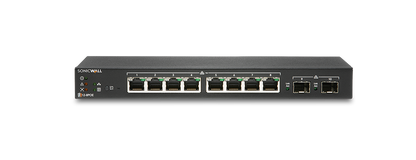

SonicWall SWCH SWS12-8 Desktop Gigabit Switch, 10-Port

VENDOR: SONICWALL Mfg Part#: 02-SSC-2462 UPC#: 758479224624
1 3
Photo is for illustration purposes only. Actual product may be different.
$327.00
$327.00
Sale Sold out
MSRP: $370.00
Shipping calculated at checkout.
  • 10-port desktop switch: 8 x RJ45 LAN, 2 x SFP
  • Supports 1 Gbps data transfer rate with jumbo frame support
  • Managed capabilities via SNMP, SSH, and CLI protocols
  • Built-in 256MB RAM and 32MB Flash for stable operation
  • Power-efficient with max consumption of 5.7W at 12VDC
  • MTBF rated at 1,387,712 hours for high reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for small-to-mid-size enterprise setups requiring quiet, reliable, Gigabit switching in a desktop form factor
  • Advanced security and management features like 802.1x authentication and static routing boost network control
  • TAA compliant and RoHS certified, aligning with government and environmental standards

Product Overview

The SonicWall SWCH SWS12-8 is a wired desktop Layer 2 switch featuring 8 RJ45 LAN ports and 2 SFP uplinks for enhanced connectivity. Supporting 1 Gbps data rates, it includes jumbo frame support, 256MB RAM, and 32MB Flash, alongside remote management via SNMP, SSH, and CLI. Designed for silent, efficient operation, the switch boasts a mean time between failure (MTBF) of over 1.3 million hours and low power consumption (max 5.7W). With TAA compliance and RoHS certification, it is ideal for secure enterprise and government networks.

Specifications

Product Overview
Manufacturer SONICWALL
Product Name SonicWall SWCH SWS12-8 Desktop Gigabit Switch, 10-Port
Manufacturer Part Number 02-SSC-2462
Product Type Unmanaged Layer 2 Gigabit Ethernet Switch
Form Factor Desktop
Power Supply Type External Power Adapter
Power Consumption (Maximum) 5.7 Watt
Voltage Required 12VDC
RAM Installed 256 MB
Flash Memory Installed 32 MB
MTBF 1,387,712 hours
Weight 0.62 kg

Cloud Management & Licensing
Management Protocols SNMP, SSH, CLI

Physical & Environmental
Width 240 mm
Depth 105 mm
Height 27 mm
Operating Temperature (Min) 0 °C
Operating Temperature (Max) 40 °C
Storage Temperature (Min) -40 °C
Storage Temperature (Max) 70 °C

Interfaces
Total Ports 10
Copper Ports 8 x RJ45 Gigabit Ethernet
SFP Ports 2 x SFP
Port Type Gigabit Ethernet (10/100/1000 Mbps)
Data Transfer Rate 1 Gbps
MAC Address Table Size 8K
Jumbo Frame Support Yes
Status Indicators LED for link/activity
Media Type Supported Twisted Pair and Fiber (via SFP)
Layer Support Layer 2
Routing Protocols Static Routing

Advanced Security Features
Authentication Method 802.1x

Compliance & Origin
RoHS Compliance Yes
TAA Compliance Yes
Country of Origin Taiwan
UPC 758479224624
