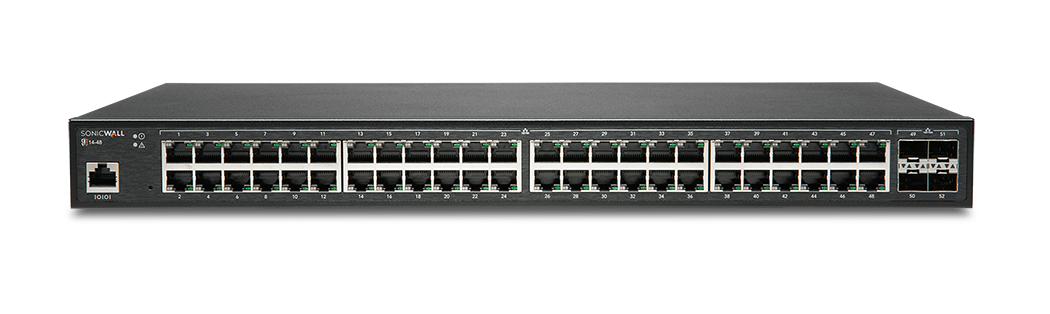

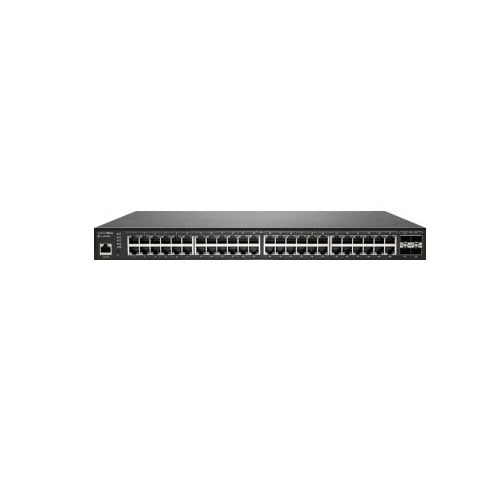

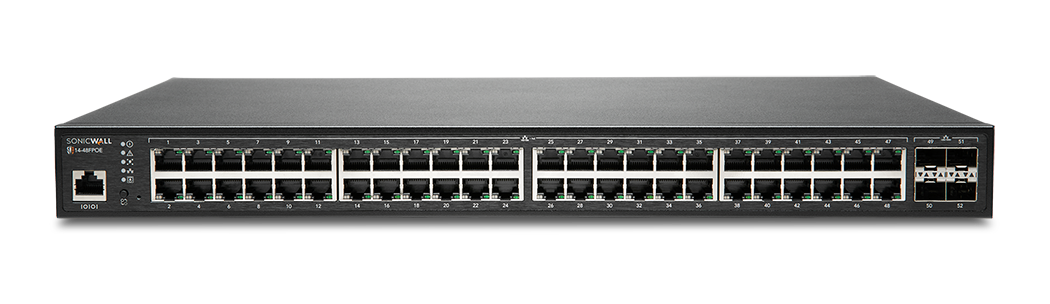

SONICWALL SWCH SWS14-48FPOE 48-Port PoE+ Switch with 10Gbps Uplink

VENDOR: SONICWALL Mfg Part#: 02-SSC-2466 UPC#: 758479224662
  • The SONICWALL SWCH SWS14-48FPOE is a high-performance, 48-port PoE+ switch engineered for secure and scalable networking. Featuring 10Gbps uplink speeds, advanced management options including SNMP and CLI, and 730W PoE support, it meets the demands of SD-Branch ready environments and enterprise deployments.
1 1
Photo is for illustration purposes only. Actual product may be different.
$2,256.00
$2,256.00
Sale Sold out
MSRP: $2,558.00
Shipping calculated at checkout.
  • 48 Gigabit Ethernet RJ45 ports with PoE+ support and 4 SFP+ 10Gbps uplink ports
  • 730W PoE budget with maximum power consumption of 885W and 900W power provided
  • Supports Layer 2 switching with static routing and jumbo frame capability
  • Managed remotely via SNMP, DHCP, Syslog, CLI, and StandAlone UI
  • Memory configuration includes 512MB RAM and 128MB flash for stable operations
  • Compact 1U form factor; TAA compliant and SD-Branch ready
View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-class performance with 10Gbps uplinks and 48-port PoE for dense network environments.
  • Built for flexible management and integration with SNMP, CLI, Syslog, and SD-Branch support.
  • Backed by robust hardware design, including 100K+ hour MTBF and TAA compliance for reliable, long-term deployment.

Product Overview

The SONICWALL SWCH SWS14-48FPOE is a Layer 2, rack-mountable switch with 48 Gigabit RJ45 ports and 4 SFP+ 10Gbps uplink ports, ideal for high-performance enterprise and SD-Branch deployments. Offering 730W of PoE and a robust MAC address table of 32K, it can power a dense array of network devices while maintaining traffic efficiency. The device includes SNMP, Syslog, DHCP, and CLI for versatile management, while its 512MB RAM and 128MB flash memory provide solid operational stability. Engineered with TAA compliance and excellent thermal range and reliability, it meets stringent enterprise deployment needs.

Specifications

Primary Information
Network Device Type Switch
Model SWS14-48FPOE
Form Factor 1U
Connectivity Technology Wired
Data Transfer Rate 10 Gbps
Networking / Ports Qty 53
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 512 MB
Flash Memory / Installed Size 128 MB
Networking Compliant Standards IEEE 802.1x, IEEE 802.1p
Power / Device Type Power Supply
Media Layer Supported Layer 2
Power / Provided (W) 900 Watt
Max Power Consumption 885 Watt
Power / Voltage Required 100-240 VAC
MTBF 100645 hours
Features SD-Branch ready. Firewall, WNM, StandAlone UI, and CLI management. SNMP monitoring. Backup and restore Switch configurations.

Interfaces / Ports
Interfaces RJ45, SFP+
SFP+ Ports 4

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO TAIWAN
TAA compliance Yes

Network
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption 730W
MAC Address Table Size 32k
Jumbo Frame Support Yes
Remote Management Protocol DHCP; Syslog; SNMP
Routing Protocol Static routing
SFP+ Ports 4
Interfaces RJ45, SFP+

Dimensions&Miscellaneous
Width 440 Mm
Depth 310 Mm
Height 44 Mm
Weight 4.8 Kg

UNSPSC Code
UNSPSC Code 43222612
