SonicWall Switch SWS14-24 Managed 28-Port 10GbE Rackmount with 3YR Support

VENDOR: SONICWALL Mfg Part#: 02-SSC-8374 UPC#: 758479283744
  • Reliable and versatile, the SonicWall Switch SWS14-24 offers 24 RJ-45 Gigabit Ethernet ports and four 10GbE SFP+ uplinks in a space-saving 1U rack-mountable form factor. It features advanced Layer 2 management, zero-touch configuration, and wireless network integration, with 3 years of 24/7 support. Designed for scalable, secure deployments.
1 1

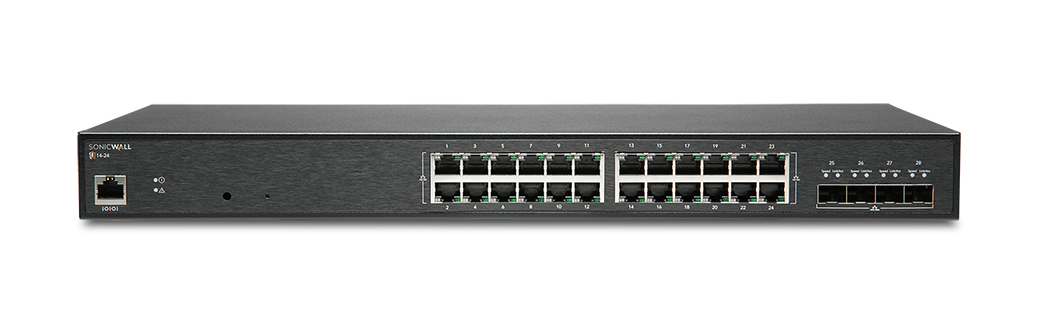

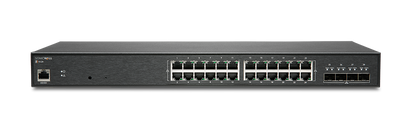

Photo is for illustration purposes only. Actual product may be different.
$945.00
$945.00
Sale Sold out
MSRP: $1,071.00
Shipping calculated at checkout.
  • 28-port managed Layer 2 switch with 24 x 1GbE RJ-45 ports and 4 x 10GbE SFP+ uplinks
  • 128 Gbps switching capacity with 32K MAC address table and 1.5MB packet buffer
  • Layer 2 features: VLAN tagging, QoS, RADIUS support, ACLs, MSTP, IGMP snooping
  • Zero-touch configuration and remote management via SNMP, SSH, HTTPS, CLI
  • Fanless 1U rack-mountable design with internal PSU and 36W power draw
  • 3-year 24x7 support included; TAA compliant, high MTBF (1,273,866 hrs)
View full details

Key Benefits

Eye-Insights
  • Delivers robust enterprise-grade performance with 128 Gbps switching and 10GbE uplinks, ensuring high throughput and scalability.
  • Comprehensive Layer 2 feature set and management protocols allow advanced traffic control and secure network segmentation.
  • Bundled 3-year 24x7 support and TAA compliance make it suitable for mission-critical and regulated environments.

Product Overview

The SonicWall Switch SWS14-24 is a managed, high-performance Layer 2 switch offering 24 Gigabit RJ-45 ports and 4 10GbE SFP+ ports in a 1U rack-mountable design. Featuring advanced traffic control, VLANs, QoS, and security protocols, it supports a 128 Gbps switching capacity and 32K MAC address entries. Remote management includes SNMP, HTTPS, and CLI with zero-touch configuration. Designed for silent operation and government-grade reliability with TAA compliance, it includes 3 years of 24x7 support and >1.2 million hour MTBF. This switch is an ideal choice for growing networks that require scalable and secure wired infrastructure.

Specifications

Primary Information
Network Device Type Switch
Model SWS14-24
Form Factor 1RU
Connectivity Technology Wireless
Data Transfer Rate 10 Gbps
Networking / Ports Qty 29
Data Link Protocol Gigabit Ethernet
RAM / Total Installed Size 512 MB
Flash Memory / Installed Size 128 MB
Networking Compliant Standards 802.1x,802.1p
Power / Device Type Power Supply
Media Layer Supported Layer 2
Power / Provided (W) 25 Watt
Max Power Consumption 24.4 Watt
Power / Voltage Required 100-240VAC 50-60Hz
MTBF 1273866 Hours, 145 Years
Features SD-Branch Ready: Integrates seamlessly with the SonicWall ecosystem to provide unified security posture. 10 Gigabit Connectivity: Attain significant boost in your overall switching performance as network demands grow. Flexible Management: Whether through the firewall or Wireless Network Manager, with our single-pane-of-glass view, managing your security is easy. Zero-Touch Deployment.
Status Indicators LED Indicators

Interfaces / Ports
Interfaces 24 x RJ45 LAN Ports, 4 x SFP+Ports, 1 x RJ-45 Serial Console Port
SFP+ Ports 4
10/100/1000BASE-T Ports 24

Service&Support
Service & Support Type WIRELESS NETWORK MANAGEMENT ESSENTIAL AND SUPPORT 3YR

UNSPSC Code
UNSPSC Code 43222612

Network
Power Over Ethernet (PoE) Support NONE
PoE Power Consumption NONE
MAC Address Table Size 32K
Remote Management Protocol DHCP; IPv4; TFTP; SSH; SNMP
SFP+ Ports 4
Interfaces 24 x RJ45 LAN Ports, 4 x SFP+Ports, 1 x RJ-45 Serial Console Port
10/100/1000BASE-T Ports 24

Dimensions&Miscellaneous
Width 440 Mm
Depth 200 Mm
Height 44 Mm
Weight 1.8 Kg

Special Feature
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius
COO TAIWAN
TAA compliance Yes
