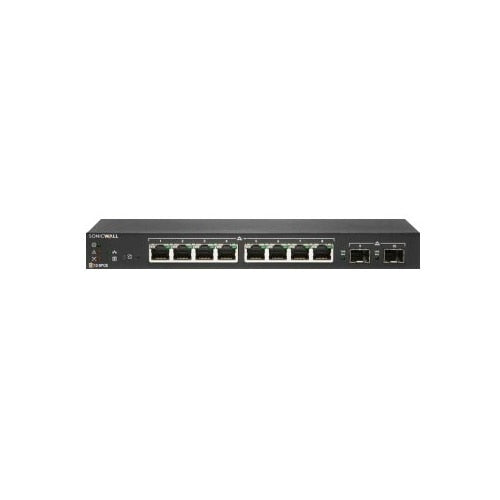

SONICWALL SWS12-8 Switch with 1YR Support, 10-Port GbE, SFP+, Desktop

VENDOR: SONICWALL Mfg Part#: 02-SSC-8364 UPC#: 758479283645
1 3
Photo is for illustration purposes only. Actual product may be different.
$364.00
$364.00
Sale Sold out
MSRP: $413.00
Shipping calculated at checkout.
  • 10-port desktop switch with 8x RJ45 LAN and 2x SFP+ interface options
  • Gigabit Ethernet support with 1 Gbps data transfer rate
  • 256MB RAM and 32MB flash memory for reliable performance
  • Remote management protocols: SNMP, SSH, TFTP, Syslog, DHCP
  • Supports IEEE 802.1p, 802.1x standards and Layer 2 switching
  • Includes 1 year wireless network management and support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for SD-Branch-ready deployments with centralized management capabilities
  • Energy-efficient operation with low 5.7W max power consumption and 1.3M-hour MTBF
  • TAA compliance and compact form factor meet requirements for secure, regulated environments

Product Overview

The SONICWALL SWS12-8 is a high-performance desktop switch built to support wired Ethernet connectivity in professional environments. It offers 10 physical network interfaces, comprising 8 x 10/100/1000BASE-T RJ45 LAN ports and 2 x SFP+ ports, delivering a full 1 Gbps data transfer rate. The unit supports Layer 2 switching and is backed by compliance with IEEE 802.1p and 802.1x standards. A MAC address table size of 8K enables efficient frame forwarding, and LED indicators provide diagnostic feedback. With a 24W, 12VDC adapter and low max consumption of just 5.7W, it is energy-efficient for long-term use.

Remote management capabilities—including SNMP, SSH, TFTP, Syslog, and DHCP—make this switch ideal for managed network environments. It includes 1 year of wireless network management and support, supporting SD-Branch deployments requiring integrated control of infrastructure. Built with 256MB RAM, 32MB flash, and designed to operate between 0–40°C, the unit achieves a MTBF over 1.3 million hours, establishing confidence in long-term operation. Compact and weighing only 0.62 kg, it is a TAA-compliant solution for secure deployments where performance and footprint are both critical.

Specifications

Product Overview
Manufacturer SONICWALL
Product Name SONICWALL SWS12-8 Switch with 1YR Support
Manufacturer Part Number 02-SSC-8364
UPC 758479283645
Type Switch
Form Factor Desktop
Weight 0.62 Kg
Power Requirements 12VDC, 24W
Max Power Consumption 5.7 Watt
Installed RAM 256 MB
Installed Flash Memory 32 MB
Mean Time Between Failures (MTBF) 1387712 hrs @ 25°C
Layer Support Layer 2

Wireless Features
Wi-Fi Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Standards Compliance IEEE 802.1p, IEEE 802.1x

Advanced Security Features
Authentication Method IEEE 802.1x

Interfaces
Total Ports 10
10/100/1000BASE-T Ports 8
SFP+ Ports 2
Interface Types 8x RJ45, 2x SFP+
Data Transfer Rate 1 Gbps
Connectivity Technology Wired
MAC Address Table Size 8K
Status Indicators LED Indicators

Physical & Environmental
Width 240 mm
Depth 105 mm
Height 27 mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature 40°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C

Cloud Management & Licensing
Remote Management Protocols SNMP, SSH, TFTP, Syslog, DHCP
Service & Support Included 1 Year Wireless Network Management and Support
Features SD-Branch Ready
