| Power / Device Type | Power Adapter |
| Power / Voltage Required | 54VDC |
| Network Device Type | Switch |
| Model | SWS12-8POE |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Networking / Ports Qty | 10 |
| Data Link Protocol | Gigabit Ethernet |
| Status Indicators | LED |
| RAM / Total Installed Size | 256 MB |
| Flash Memory / Installed Size | 32 MB |
| Media Layer Supported | Layer 2 |
| Power / Provided (W) | 65 Watt |
| Max Power Consumption | 63.2 Watt |
| MTBF | 548553 hours |

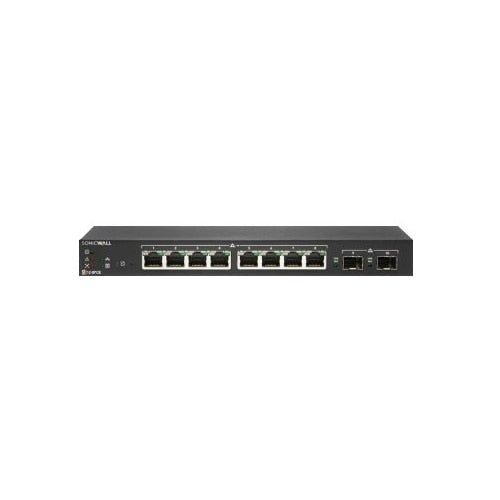

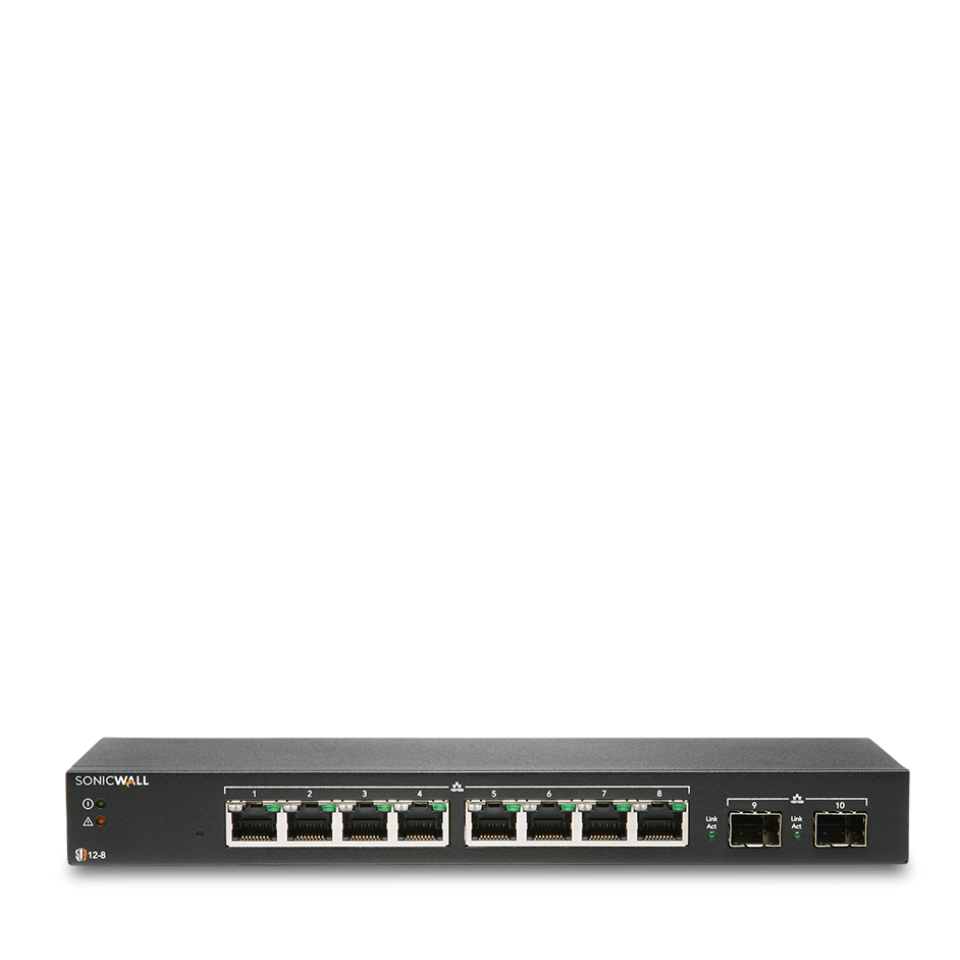

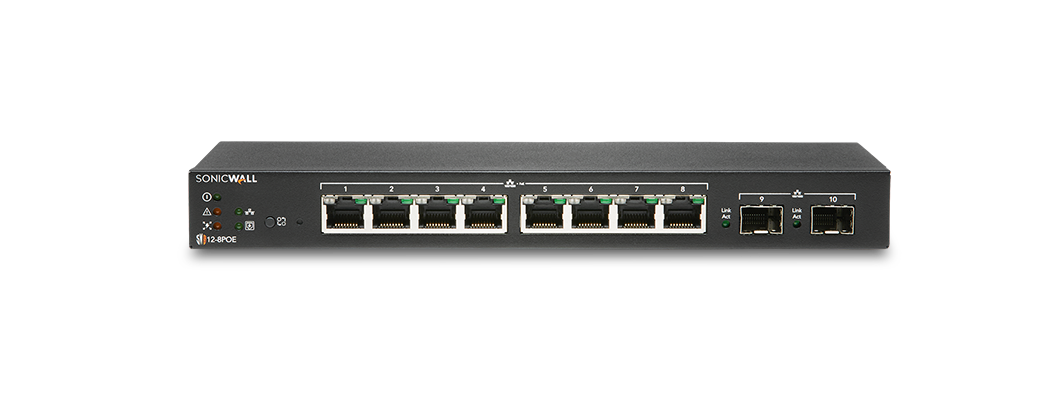

SONICWALL SWS12-8POE Desktop Gigabit PoE Switch, 10-Port
Photo is for illustration purposes only. Actual product may be different.
Regular price
$471.00
Regular price
Sale price
$471.00
Unit price
per
MSRP: $534.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 10 total ports: 8 x RJ45 LAN (PoE) + 2 x SFP uplink
- Supports 1 Gbps data transfer rate and Gigabit Ethernet protocol
- Power over Ethernet with up to 55W consumption and 65W power capacity
- Managed access via SNMP, CLI, and SSH; supports 802.1x authentication
- 256MB RAM and 32MB flash memory for efficient traffic handling
- MTBF of 548,553 hours and wide operating temperature range (0°C to 40°C)
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers robust power and connectivity through 8 PoE ports and 2 SFP uplinks for enterprise-class flexibility
- Compact, desktop form factor with high MTBF ensures long-term reliability in space-constrained environments
- Complies with TAA and RoHS standards, making it suitable for government and regulated sector deployments
Product Overview
The SONICWALL SWS12-8POE is a reliable 10-port desktop Gigabit Ethernet switch designed to deliver high-performance, secure, and energy-efficient network connectivity for small business, retail, or branch offices. With 8 Power over Ethernet (PoE) enabled RJ45 LAN ports and 2 additional SFP uplink ports, it provides flexible deployment for Ethernet-powered devices such as VoIP phones, wireless access points, or IP cameras while supporting fiber backbone connections for extended reach.
Operating at a data rate of 1 Gbps and built on Layer 2 architecture, the switch supports key functionalities such as static routing, jumbo frame support, and SNMP-managed remote access via CLI, SSH, or 802.1x authentication. A generous 8K MAC address table, 256MB RAM, and 32MB flash memory ensure responsive performance for growing networks. Its rugged design, coupled with a 548,553-hour MTBF and temperature tolerance from 0° to 40°C, provides dependable uptime.
Certified for RoHS and TAA compliance, the SWS12-8POE is ideal for government, commercial, or industrial deployments. The unit operates on 54VDC with a power budget of 65 watts, accommodating up to 55W across connected PoE devices.
Specifications
Primary Information
UNSPSC Code
| UNSPSC Code | 43222612 |
Network
| Power Over Ethernet (PoE) Support | Y |
| PoE Power Consumption | 55 Watts |
| MAC Address Table Size | 8K |
| Jumbo Frame Support | Y |
| Remote Management Protocol | CLI; SSH; SNMP |
| Routing Protocol | Static routing |
| Authentication Method | 802.1x |
| SFP Ports | 2 |
| Interfaces | 8 x RJ45 LAN, 2 x SFP |
Special Feature
| COO | TAIWAN |
| TAA compliance | Yes |
| Min Operating Temperature | 0 Celsius |
| Max Operating Temperature | 40 Celsius |
| Min Storage Temperature | -40 Celsius |
| Max Storage Temperature | 70 Celsius |
| RoHS | Y |
Dimensions&Miscellaneous
| Width | 240 Mm |
| Depth | 105 Mm |
| Height | 27 Mm |
| Weight | 0.64 Kg |
Interfaces / Ports
| Interfaces | 8 x RJ45 LAN, 2 x SFP |
| SFP Ports | 2 |
