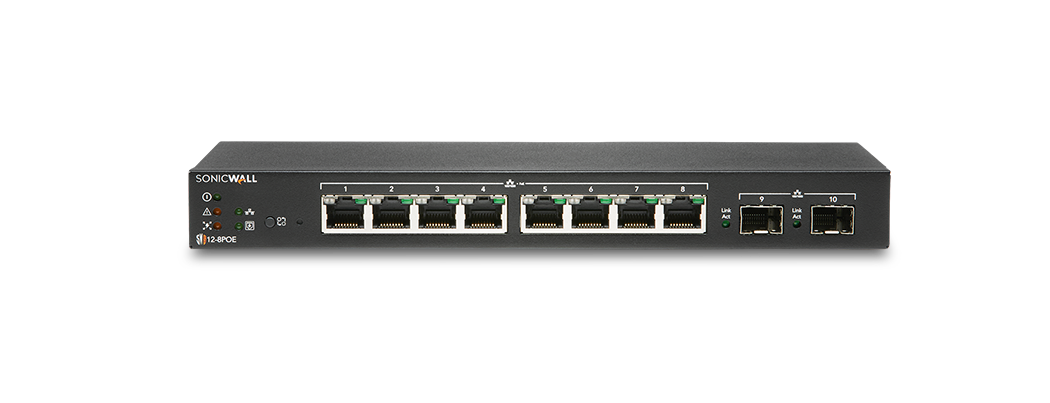

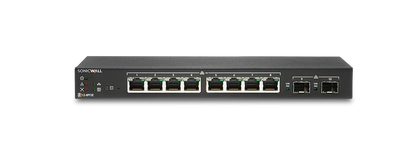

SONICWALL SWS12-8POE Switch with 3YR WNM & Support

VENDOR: SONICWALL Mfg Part#: 02-SSC-8368 UPC#: 758479283683
  • Compact and feature-rich, the SONICWALL SWS12-8POE switch delivers enterprise-class connectivity in a desktop form factor. With 10 Gigabit Ethernet ports, PoE support, and a broad range of management options including SNMP and CLI, it’s ideal for secure SD-branch deployments. This model includes 3 years of Wireless Network Management Essential and Support, ensuring long-term reliability and performance monitoring.
1 1
Photo is for illustration purposes only. Actual product may be different.
$601.00
$601.00
Sale Sold out
MSRP: $681.00
Shipping calculated at checkout.
  • 10-port Gigabit Ethernet switch with 2 SFP uplinks
  • Power over Ethernet (PoE) support with a power budget of 55W
  • Remote management via SNMP, CLI, and standalone UI
  • 256MB RAM with 32MB flash memory for reliable performance
  • Supports Layer 2 switching, jumbo frames, and static routing
  • Includes 3-year Wireless Network Management and support
View full details

Key Benefits

Eye-Insights
  • Enterprise-grade features in a compact desktop form factor make it ideal for branch deployments.
  • Included 3-year Wireless Network Management and support reduces total cost of ownership and simplifies IT administration.
  • High MTBF of over 548,000 hours ensures long-term reliability in demanding environments.

Product Overview

The SONICWALL SWS12-8POE is a compact, desktop-managed switch designed for small to mid-sized enterprise or branch deployments. It features 10 total Gigabit Ethernet ports including 2 SFP uplinks and supports Power over Ethernet (PoE) for up to 55W. Built with 256MB RAM and 32MB flash, it ensures smooth operation. Advanced capabilities include Layer 2 switching, static routing, SNMP monitoring, and compatibility with Wireless Network Management (WNM). The switch is SD-Branch ready, TAA compliant, and offers centralized management and configuration backup, all within a durable housing with a MTBF over 548,000 hours.

Specifications

Primary Information
Form Factor Desktop
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Connectivity Technology Wired
Model SWS12-8POE
Features SD-Branch ready. Firewall, WNM, StandAlone UI, and CLI management. SNMP monitoring. Backup and restore Switch configurations.
Network Device Type Switch
Networking / Ports Qty 10
RAM / Total Installed Size 256 MB
Flash Memory / Installed Size 32 MB
Networking Compliant Standards IEEE 802.1x, IEEE 802.1p
Power / Device Type Power Adapter
Media Layer Supported Layer 2
Power / Provided (W) 65 Watt
Max Power Consumption 63.2 Watt
Power / Voltage Required 54VDC
MTBF 548553 hours

Service&Support
Service & Support Type WIRELESS NETWORK MANAGEMENT AND SUPPORT 3YR

UNSPSC Code
UNSPSC Code 43222612

Interfaces / Ports
Interfaces 1G Cu, SFP
SFP Ports 2

Dimensions&Miscellaneous
Width 240 Mm
Depth 105 Mm
Height 27 Mm
Weight 0.64 Kg

Special Feature
COO TAIWAN
TAA compliance Yes
Min Operating Temperature 0 Celsius
Max Operating Temperature 40 Celsius
Min Storage Temperature -40 Celsius
Max Storage Temperature 70 Celsius

Network
Power Over Ethernet (PoE) Support Yes
PoE Power Consumption 55W
MAC Address Table Size 8k
Jumbo Frame Support Yes
Remote Management Protocol DHCP; Syslog; SNMP
Routing Protocol Static routing
SFP Ports 2
Interfaces 1G Cu, SFP
