Products Network Stuff SONICWALL TZ570 TotalSecure...

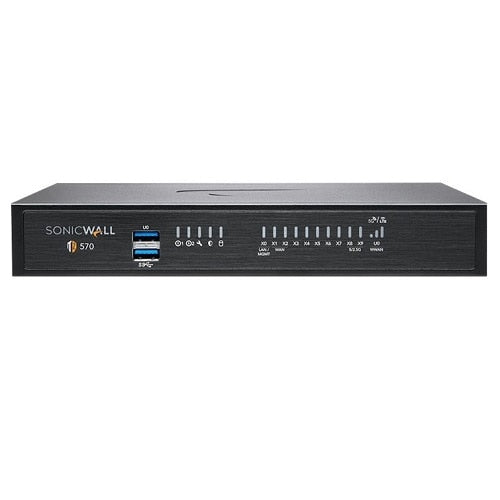

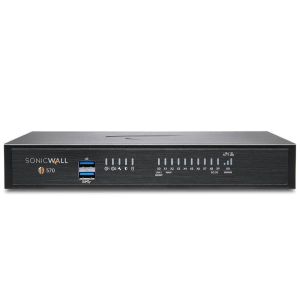

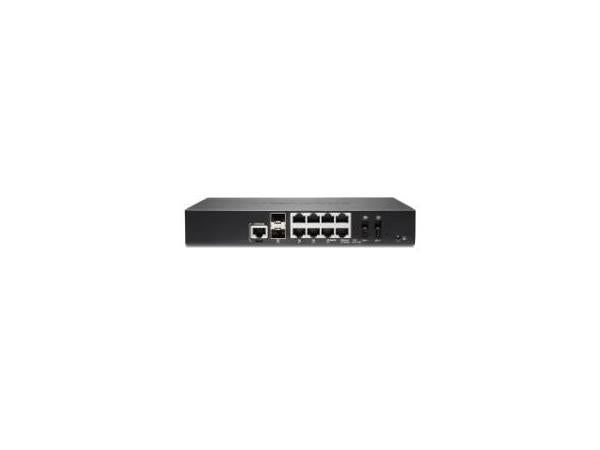

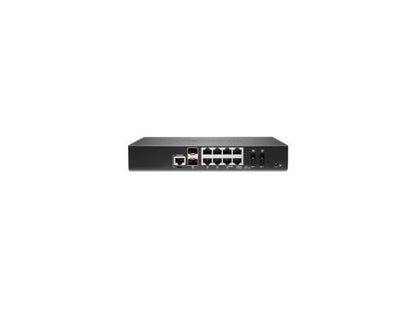

SONICWALL TZ570 TotalSecure Advanced Edition Firewall, 1YR

VENDOR: SONICWALL Mfg Part#: 02-SSC-5676 UPC#: 758479256762
1 3
Photo is for illustration purposes only. Actual product may be different.
$3,728.00
$3,728.00
Sale Sold out
MSRP: $4,220.00
Shipping calculated at checkout.
  • - Firewall appliance with up to 5 Gbps data transfer rate
  • - Supports 1.8 Gbps VPN IPSec and 2.5 Gbps IPS throughput
  • - Includes 14 physical ports: 8x1GbE, 2x5G SFP+, USB, and console options
  • - Runs on SonicOS 7 with support for DHCP, SNMP, SSH management
  • - Desktop form factor, compact size (5.91" x 8.85" x 1.38")
  • - TAA compliant, low power consumption at 13.4W

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Delivers high-speed protection with advanced IPS and VPN performance for scalable network security
  • - Includes 1-year TotalSecure Advanced licensing, reducing total cost of ownership and simplifying compliance
  • - TAA compliance and rich interface set make it ideal for public sector and enterprise deployment

Product Overview

The SONICWALL TZ570 TotalSecure Advanced Edition (1YR) is a high-performance security appliance featuring 5 Gbps throughput, integrated support for VPN (1.8 Gbps IPSec), and 2.5 Gbps IPS capability. It offers flexible wired connectivity with 14 ports including 8x1GbE, 2x5G SFP+, and USB/console interfaces, all managed via SonicOS 7. Designed for desktop deployments, it provides TAA compliance, 13.4W power efficiency, and is ideal for government, branch, or enterprise use cases. Bundled with 1-year TotalSecure Advanced support, it ensures strong protection and cost-effective security operations.

Specifications

Product Overview
Product Type Firewall
Model TZ570
Form Factor Desktop
Connectivity Technology Wired
Networking Type Ethernet
Operating System SonicOS 7
Max Power Consumption 13.4 Watt
Power / Voltage Required 100-240 VAC, 50-60Hz
Power / Device Type Power Supply

Wireless Features
Wireless LAN Support No

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
Certifications FCC Class A, CE, VCCI Class A, C-Tick, UL, cUL, RoHS

Advanced Security Features
Firewall Throughput 5 Gbps
Threat Protection Throughput 2.5 Gbps
IPSec VPN Throughput 1.8 Gbps
SSL VPN Users (Max) 500
Concurrent DPI Connections 750,000
New Connections Per Second 15,000
Max Concurrent Connections 1,500,000
Application Control Yes
Intrusion Prevention System (IPS) Yes
Content Filtering Yes
Malware Protection Yes
Deep Packet Inspection Yes

Interfaces
Networking / Ports Qty 14
Interfaces 8x1GbE, 2x5G SFP+, 2 USB 3.0, 1 Console, Micro-USB Console Port
Data Link Protocol Gigabit Ethernet
Transport Protocol Gigabit Ethernet
Data Transfer Rate 5 Gbps

Physical & Environmental
Width 5.91 Inch
Depth 8.85 Inch
Height 1.38 Inch
Mounting Type Desktop
Product Weight 2.52 lbs
Cooling Type Fanless
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -40°C to 70°C
Operating Humidity Range 10% to 90%, non-condensing
Storage Humidity Range 10% to 95%, non-condensing

Cloud Management & Licensing
Remote Management Protocol SNMP
Remote Management Protocol SSH
Remote Management Protocol DHCP
Cloud Management Platform SonicWall Capture Security Center
Licensing Included 1-Year TotalSecure Advanced Edition
Included Features Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, Application Intelligence & Control, Content Filtering, 24x7 Support, Cloud-based Management
