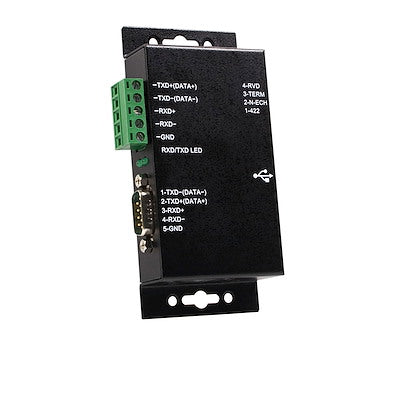

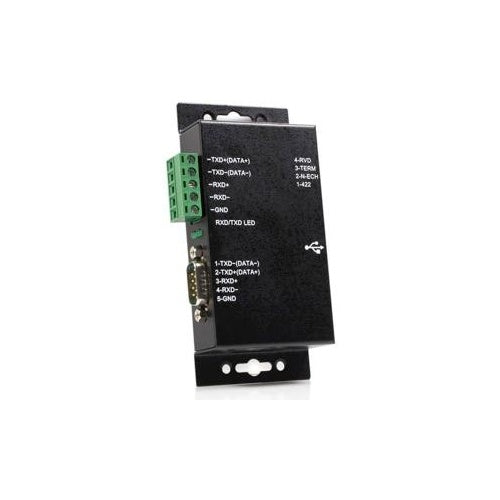

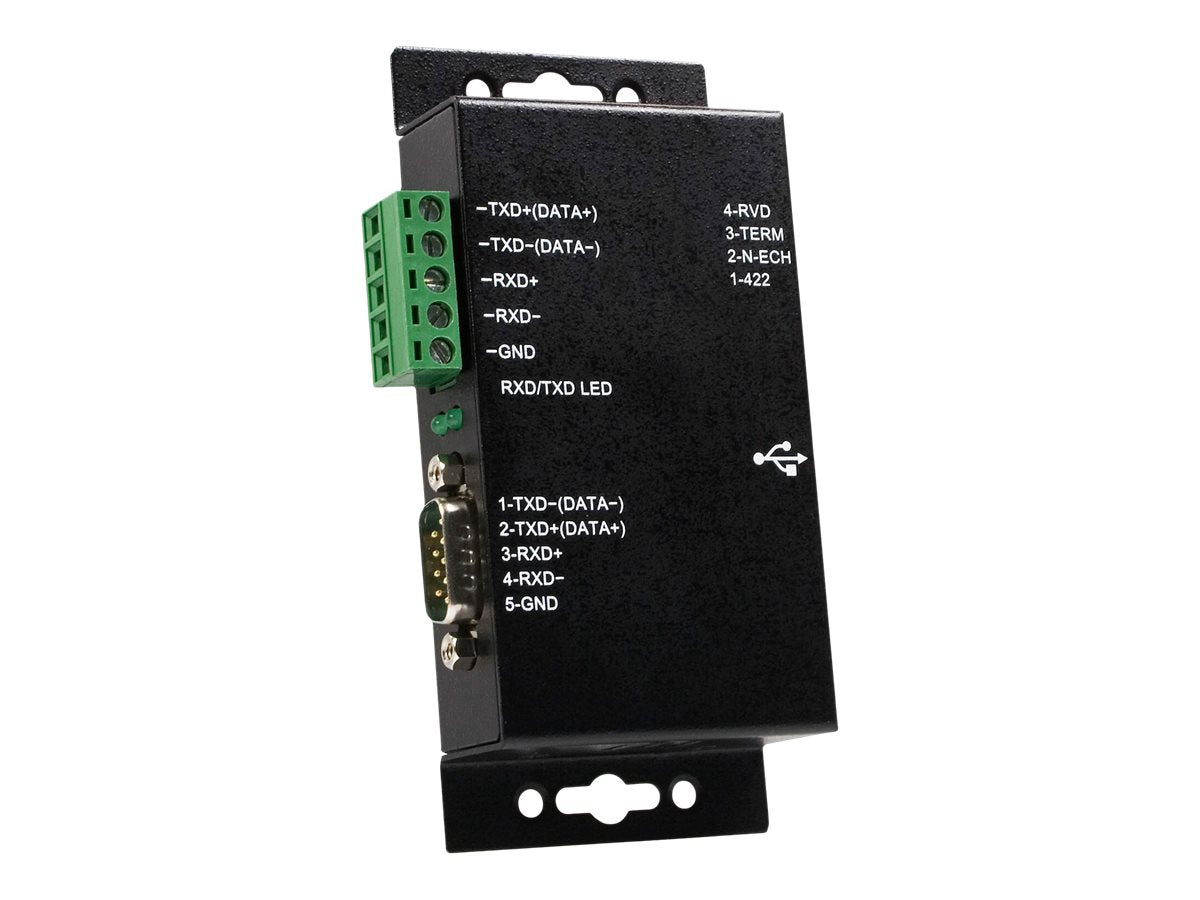

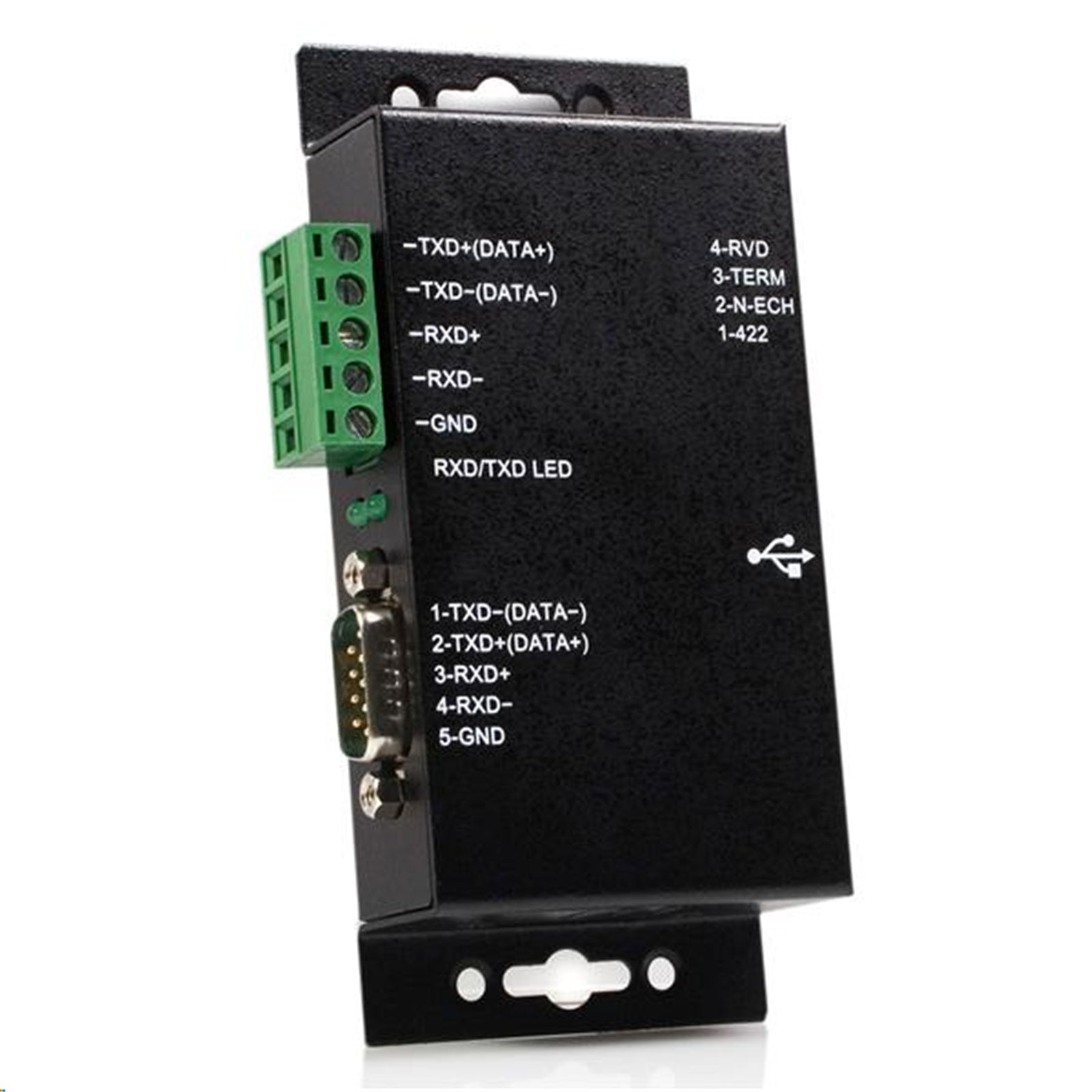

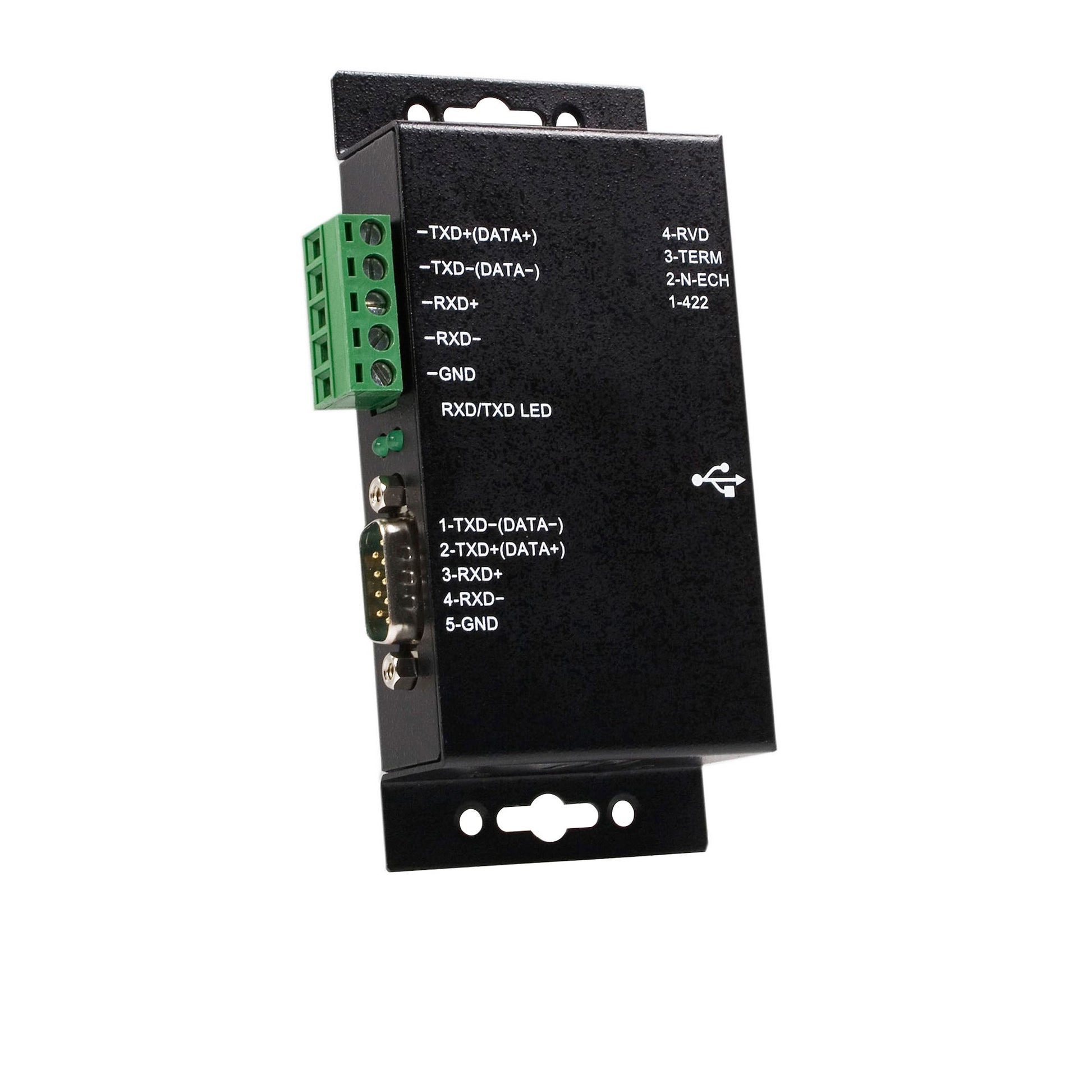

StarTech 1-Port USB to Serial RS422/485 Adapter, DB9, ICUSB422IS

VENDOR: STARTECH Mfg Part#: ICUSB422IS UPC#: 065030830683
1 5
Photo is for illustration purposes only. Actual product may be different.
$210.00
$210.00
Sale Sold out
MSRP: $212.00
Shipping calculated at checkout.
  • Supports a single RS422/485 serial port via USB connection
  • DB9 (9-pin D-Sub) connector with wired connectivity
  • High data transfer rate of up to 921.6 Kbps
  • External black enclosure with compact dimensions (2.5" W x 4.6" D x 0.9" H)
  • Operating temperature range: 0°C to 55°C (32°F to 131°F)
  • TAA and RoHS compliant with 2-year manufacturer support

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enables integration of legacy RS422/485 serial equipment with modern USB-enabled systems
  • Supports industrial-grade performance and durability with wide operating temperature range
  • Backed by robust compliance (RoHS, TAA) and a 2-year warranty for reliability and procurement assurance

Product Overview

Add an R422/485 serial port to your laptop or desktop computer through USB - USB to Serial - usb to rs485 - USB to DB9 - usb to rs422 - USB to serial Adapter

Specifications

Product Overview
Product Type Adapter
Form Factor External
Enclosure Color Black
Power Source USB-powered
Weight 164 g
Power Requirements 5V via USB
Chipset FTDI - FT232RL

Wireless Features

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin TAIWAN
Certifications CE, FCC, RoHS, TAA
Environmental Standards WEEE, RoHS

Advanced Security Features
Surge Protection 15kV ESD Protection for RS-422/485 Lines
Isolation 3500V DC Isolation between USB and Serial Interface

Interfaces
Interface Type USB to Serial (RS422/RS485)
Port Type DB-9 (9-pin D-Sub)
Number of Ports 1
Data Transfer Rate 921.6 Kbps
Connectivity Technology Wired
USB Interface USB Type-A
Serial Protocol Support RS-422, RS-485 (2-wire and 4-wire)
Serial Signal Type Differential
Flow Control Software or Hardware
Max Cable Length 15 m

Physical & Environmental
Width 2.5 Inch
Depth 4.6 Inch
Height 0.9 Inch
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity Range Operating 5% to 95% RH (non-condensing)
Housing Material Aluminum
LED Indicators Activity, Power
Mount Type DIN Rail or Surface Mountable

Cloud Management & Licensing
Management Interface
