| Product Type | WDM Fiber Media Converter Kit |
| Form Factor | Desktop |
| Included Units | Local and Remote Media Converter Units |
| Enclosure Color | Black |
| Power Requirements | Universal Power Adapter (Included) |
| Max Transfer Distance | 20 km (12.4 miles) |
| Wavelength | 1310 nm TX / 1550 nm RX |
| Connectivity Technology | Wired |
| Data Link Protocol | 10/100Base-TX, 100Base-FX |
| Cabling Type | Single-Mode Fiber (SMF) |
| Forwarding Rate | 148,800 pps (100 Mbps), 14,880 pps (10 Mbps) |
| Weight (Per Unit) | 200 g |
| Service & Support Type | 2-Year Manufacturer Warranty |

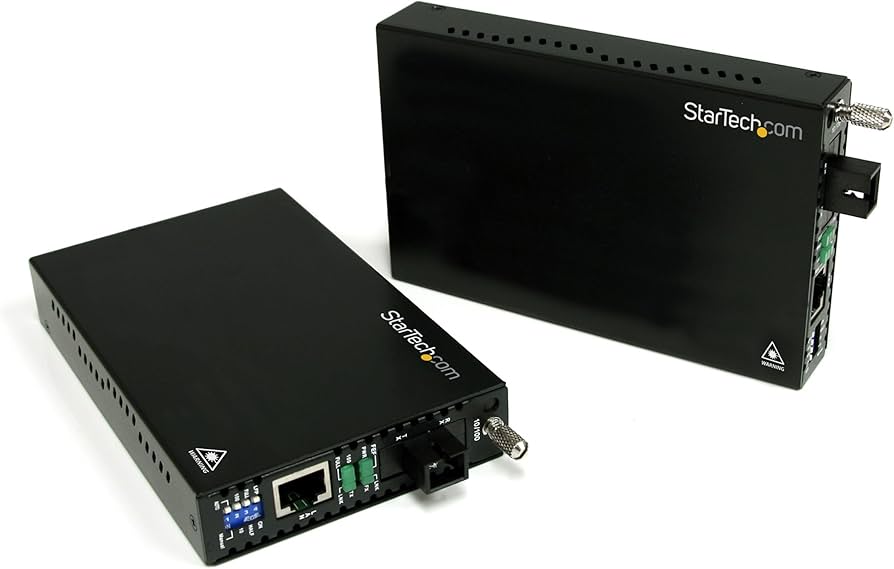

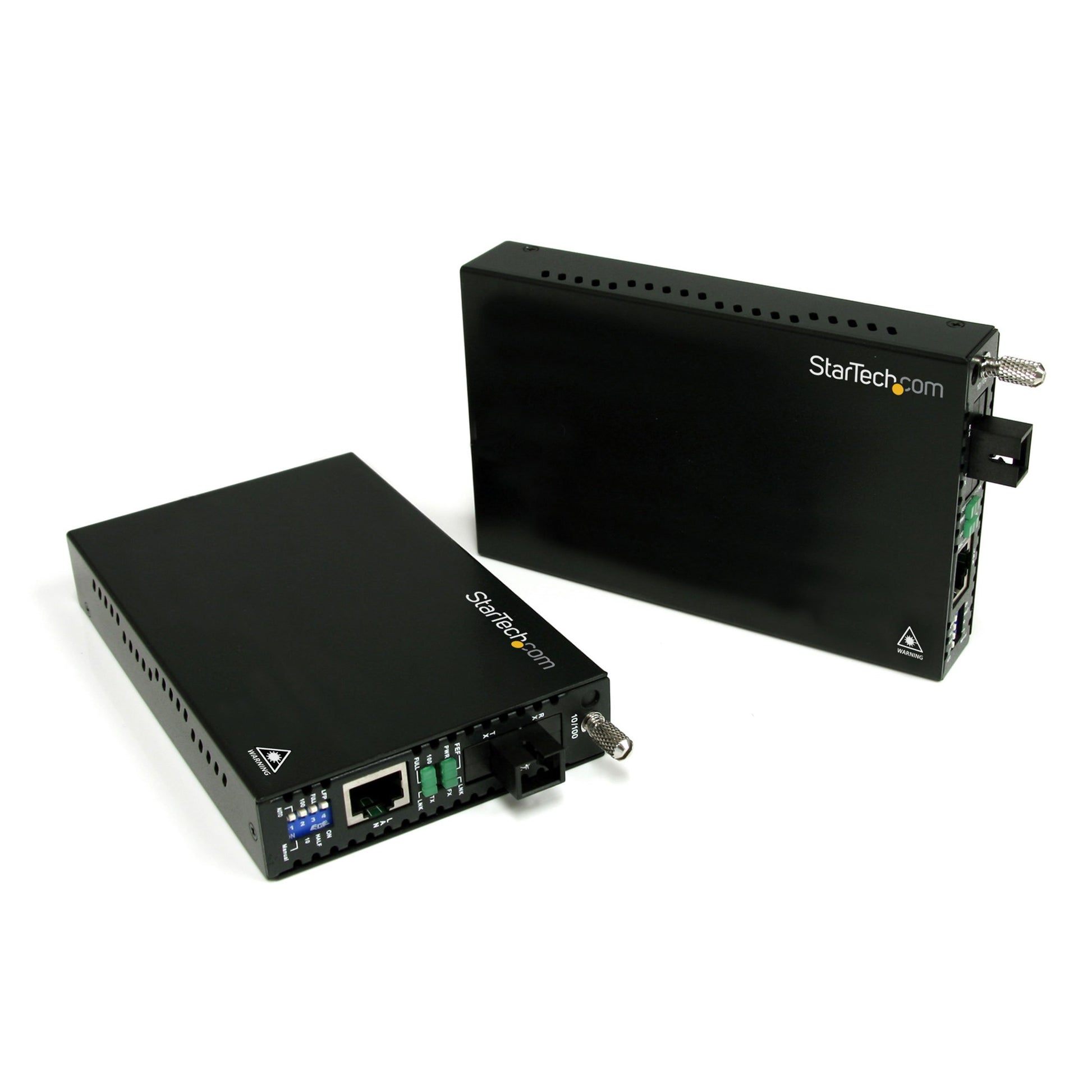

StarTech 10/100 WDM Fiber Media Converter Kit SC, 20km SMF
Photo is for illustration purposes only. Actual product may be different.
Regular price
$575.00
Regular price
Sale price
$575.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Supports 10/100 Mbps Ethernet transmission over single-mode fiber
- Extends network connectivity up to 20 km using WDM SC interfaces
- Operates at a 1310nm wavelength on a single fiber strand
- Includes both local and remote media converter units with power supplies
- Compact 3.5" x 6.3" x 1.0" black enclosure for space-saving installation
- TAA compliant and backed by a 2-year warranty
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Reduces infrastructure complexity by using a single fiber strand for full-duplex communication at up to 20 km
- Ensures centralized control and secure deployment with TAA compliance and country-of-origin in Taiwan

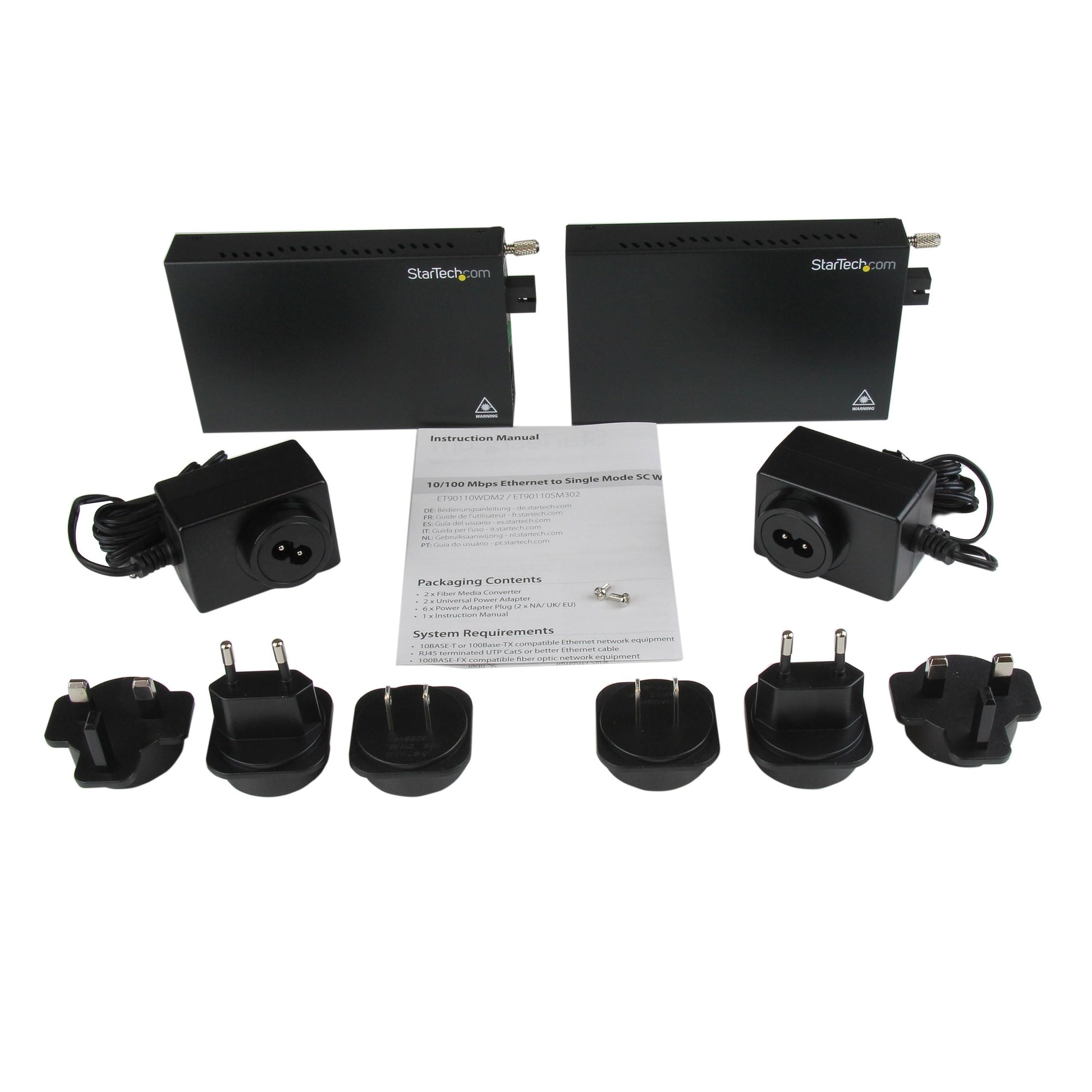

- Comes fully equipped with both local and remote units, universal power adapters, and installation materials for immediate deployment
Product Overview
Convert and extend a 10/100 Mbps Ethernet connection up to 12.4 miles/20 km over a single mode SC fiber cable - fiber converter - ethernet media converter - fibre converter - 10/100 media converter - utp to fiberSpecifications
Product Overview
Physical & Environmental
| Width | 3.5 in (90 mm) |
| Depth | 6.3 in (160 mm) |
| Height | 1.0 in (25 mm) |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity (Operating) | 10% to 90% (Non-Condensing) |
| Humidity (Storage) | 5% to 95% (Non-Condensing) |
Cloud Management & Licensing
| SNMP Management | No |
| Web Management Interface | No |
| Management Type | Unmanaged |
Interfaces
| Network Ports (Each Unit) | 1 x RJ45 (10/100Base-TX), 1 x SC Single-Mode Fiber |
| Number of Ports | 2 (Per Unit) |
| Data Transfer Rate | 10/100 Mbps |
| Connector Type (Fiber) | SC Duplex |
| Connector Type (Copper) | RJ45 |
| Medium Supported | UTP / STP (Copper), SMF (Fiber) |
| Max Frame Size | 2046 Bytes |
| Auto MDI/MDI-X | Yes |
| Full Duplex Support | Yes |
| Flow Control | IEEE 802.3x Pause Frame Support |
Compliance & Origin
| TAA Compliant | Yes |
| Country of Origin | Taiwan |
| Certifications | CE, FCC, REACH |
| RoHS Compliant | Yes |
Advanced Security Features
| Security Features | Isolation through Fiber Transmission; No firmware, no attack surface |
