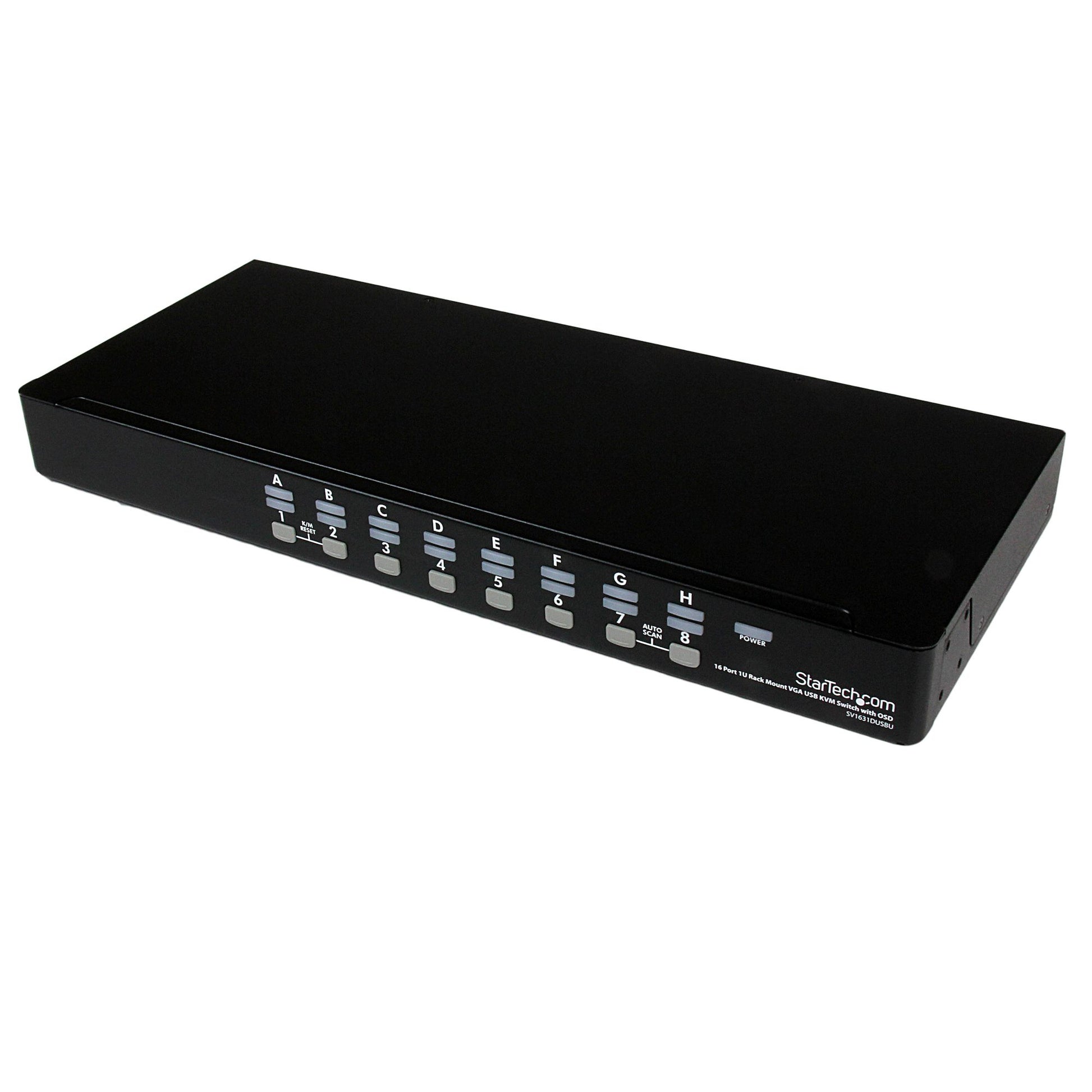

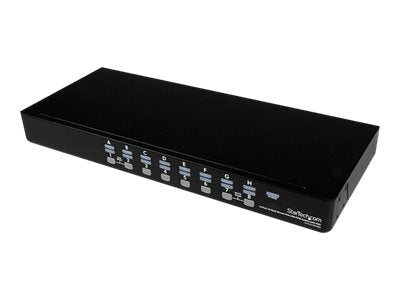

StarTech 16-Port 1U Rack Mount USB KVM Switch, VGA, SV1631DUSBU

VENDOR: STARTECH Mfg Part#: SV1631DUSBU UPC#: 065030837224
1 5
Photo is for illustration purposes only. Actual product may be different.
$847.00
$847.00
Sale Sold out
Shipping calculated at checkout.
  • 16-port USB KVM switch supports control of multiple systems from one console
  • External form factor with 1U rack mount design for optimized server room use
  • VGA video support with max resolution of 1920x1440 @ 60Hz (1920x1200 widescreen)
  • Wired connectivity ensures stable and secure system communication
  • TAA compliant and made in Taiwan for government and enterprise usage
  • Backed by a 3-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Consolidates control of up to 16 computers, streamlining IT management in busy environments
  • Supports high-resolution VGA output, ideal for graphical monitoring and legacy systems
  • Space-saving 1U rack-mount design fits easily into standard server racks, maximizing infrastructure efficiency

Product Overview

Control up to 16 USB computers from a single keyboard, mouse and monitor - usb kvm switch - 16 port kvm switch - vga kvm switch -rack mount kvm

Specifications

Product Overview
Product Type 16-Port USB VGA Rackmount KVM Switch
Form Factor 1U Rack Mountable
Device Type KVM Switch
Enclosure Color Black
Weight 2.5 kg
Power Requirements 100 - 240V AC, 50/60Hz
Power Consumption 13W (Max)
Keyboard & Mouse Ports 2 x USB Type-A

Physical & Environmental
Width 21.3 in (54.1 cm)
Depth 7.1 in (18 cm)
Height 1.8 in (4.4 cm)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% to 80% RH (non-condensing)
Storage Humidity 0% to 90% RH (non-condensing)
Housing Material Steel

Cloud Management & Licensing
Remote Management No (local console access only)
Software Included None required (plug-and-play compatible)
KVM Cascade Capability Yes, using StarTech SV1631DUSBU units

Service & Support
Warranty 3 Years
Technical Support Lifetime free technical support

Interfaces
KVM Computer Ports 16 x SPHD-15 (Keyboard/Mouse/Video)
Console Ports 1 x VGA (HD-15), 2 x USB Type-A
Interface Type USB and VGA
Max Video Resolution 1920 x 1440 @ 60Hz
Wide Screen Support Yes, up to 1920 x 1200 @ 60Hz
Daisy-Chain Support Yes, up to 136 computers (using additional compatible KVMs)
Supported OS Windows, Linux, Mac OS, Sun Solaris

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, RoHS

Advanced Security Features
User Authentication Hotkey command access only (no password protection)
Physical Security Kensington Security Slot
