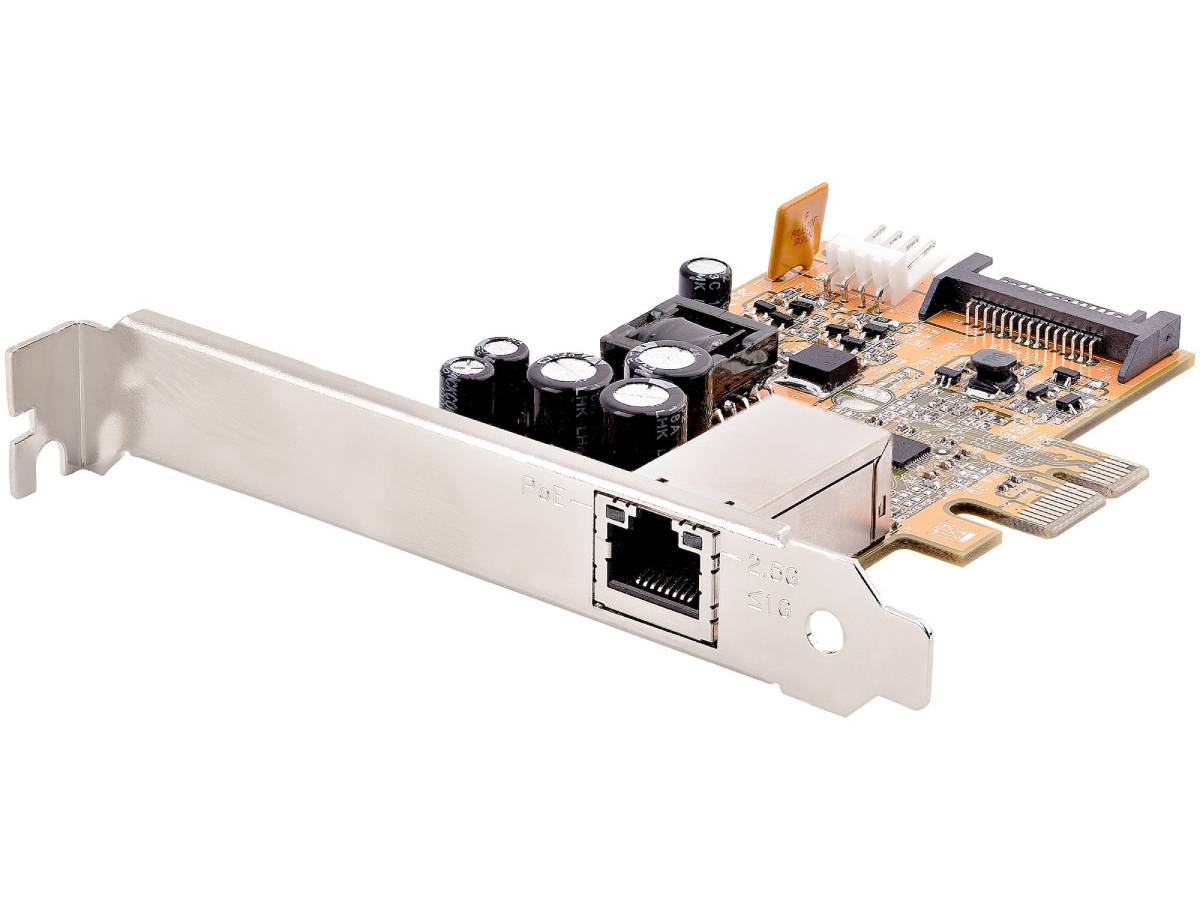

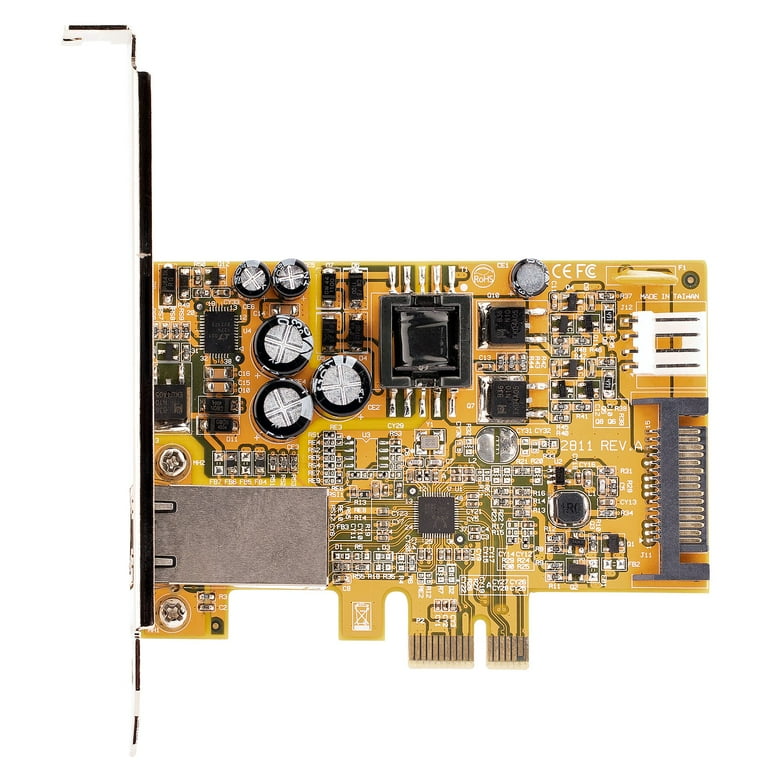

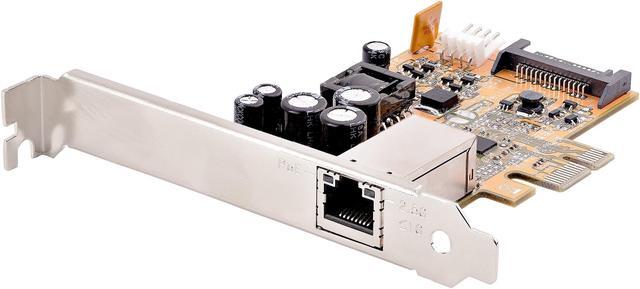

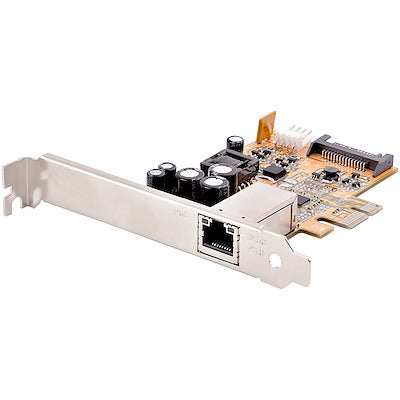

StarTech 2.5Gbps PCIe PoE+ Network Card with 1 RJ45 Port – ST1000PEXPSE

VENDOR: STARTECH Mfg Part#: ST1000PEXPSE UPC#: 065030893107
1 5
Photo is for illustration purposes only. Actual product may be different.
$150.00
$150.00
Sale Sold out
MSRP: $161.00
Shipping calculated at checkout.
  • • 2.5Gbps data rate with NBASE-T support over existing Cat5e or better cables
  • • IEEE 802.3af/at PoE+ compliant, delivers up to 30W for powering devices
  • • Low-profile PCI Express x1 form factor with included bracket
  • • Compatible with both Windows and Linux OS environments
  • • Includes SATA and SP4 power connectors for flexible integration
  • • Covered by a 2-year manufacturer's warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • • Power PoE devices without additional injectors or switches, saving space and installation complexity
  • • Upgrade to 2.5Gbps networking using existing cabling, improving performance cost-effectively
  • • TAA-compliant and made in Taiwan, ideal for government and regulated industry procurement

Product Overview

PCI Express x1 PoE Network Card supports 2.5Gbps and supplies 30W PSE/25.5W PD at 48V DC; Use existing copper cables without a PoE injector; PCIe NIC supports 802.3af/at (PoE+) and NBASE-T; SATA/SP4 power connectors; Windows/Linux; LP Bracket incl

Specifications

Product Overview
Product Type Network Card
Form Factor Low-profile PCIe card
Chipset Realtek RTL8125B
Bus Type PCI Express 2.0 x1

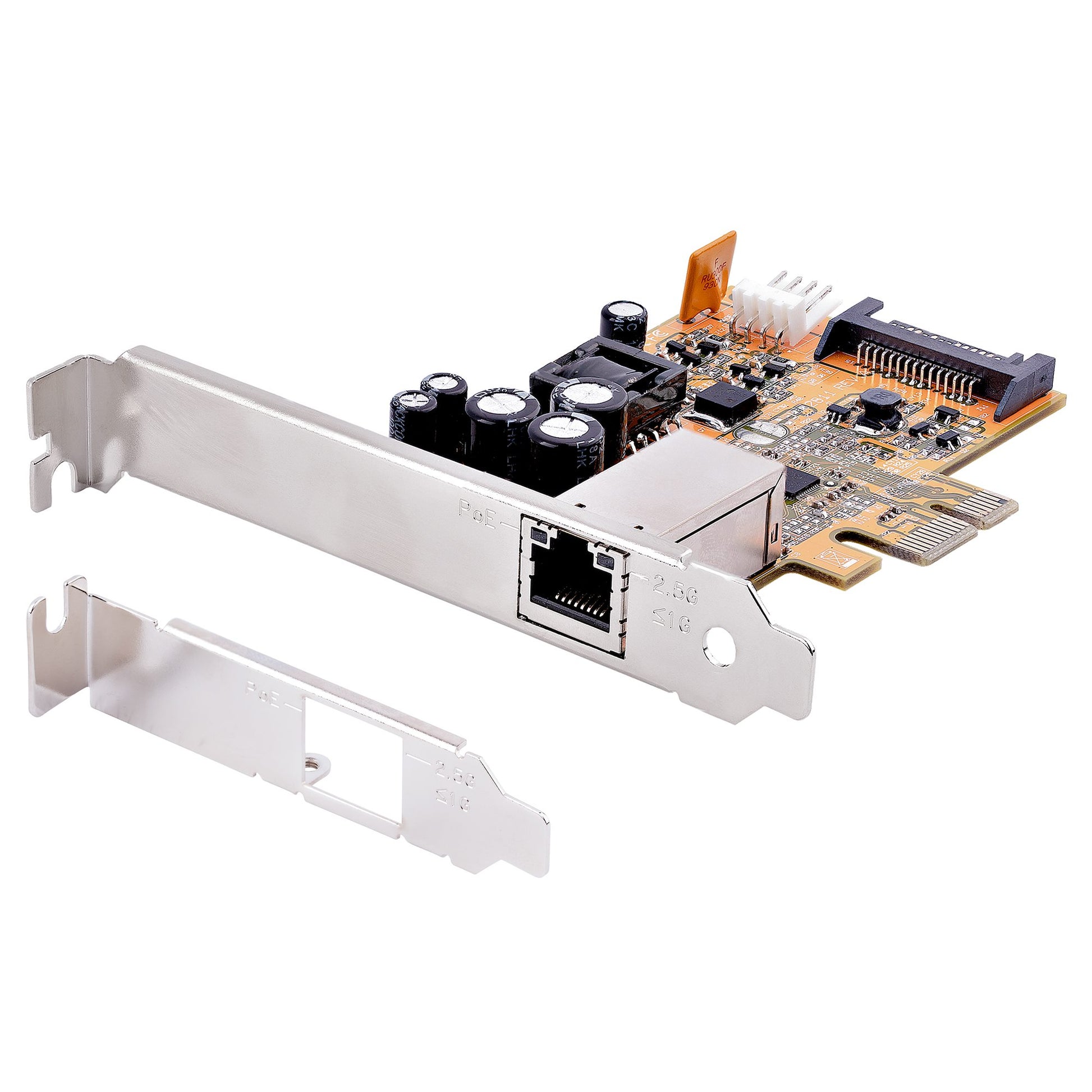

Bracket Type Low profile and full-height brackets included
Power Requirements 12V DC via SATA or SP4 (LP4) power connector
PoE Output Power Up to 30W (PoE+)
PoE Standards IEEE 802.3af (15.4W), IEEE 802.3at (30W)
Weight 60 g [2.1 oz]

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, REACH, RoHS
Environmental Compliance RoHS, WEEE
Warranty 2 Years

Advanced Security Features
PXE Boot Support Yes
Jumbo Frame Support Yes, up to 9K
VLAN Tagging IEEE 802.1Q
MAC Address Filtering Yes

Interfaces
Interface Type PCI Express x1
LAN Ports 1 x RJ-45
Data Transfer Rate 2.5 Gbps
Data Link Protocol 2.5GBASE-T, 1000BASE-T, 100BASE-TX, 10BASE-T
Cable Type Cat 5e or higher
Auto-Negotiation Yes
Full Duplex Support Yes
Flow Control IEEE 802.3x
Wake on LAN Yes

Physical & Environmental
Width 2.5 Inch
Depth 3.7 Inch
Height 0.6 Inch
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Relative Humidity 20% to 80% RH (non‑condensing)
