StarTech 2-Port Dual VGA USB 2.0 KVM Switch with Audio Support

VENDOR: STARTECH Mfg Part#: SV231DVGAU2A UPC#: 065030860635
1 5
Photo is for illustration purposes only. Actual product may be different.
$167.00
$167.00
Sale Sold out
MSRP: $179.00
Shipping calculated at checkout.
  • Supports two dual-VGA computers with resolutions up to 1920 x 1200
  • USB 2.0 support allows sharing of peripherals between systems
  • External form factor with wired connectivity for stable performance
  • Integrated 3.5mm audio support for each connected system
  • Compact design: 4.1" width, 5.1" depth, 2.2" height
  • TAA compliant and made in Taiwan with 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Enhances workspace efficiency by enabling dual-display KVM access for two systems
  • Built-in USB 2.0 and audio support consolidates multiple device functions into one unit
  • TAA compliance and solid warranty coverage make it suitable for professional and government deployments

Product Overview

Access two dual-video computers and two shared USB peripherals from a single workstation - Compatible with dual VGA computers and VGA monitors televisions - 2-port VGA KVM - Dual VGA Video - USB 2.0 - KVM switch - dual display - 3.5mm audio support

Specifications

Product Overview
Type KVM Switch
Form Factor External
Number of Computers Supported 2
Max Supported Monitors 2
Max Resolution 1920 x 1200
Enclosure Color Black
Power Requirements 5V DC, 2.6A (via included external power adapter)
Weight 0.8 kg (1.8 lbs)

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC
Warranty 2 Years

Advanced Security Features
Keyboard/Mouse Emulation Yes
DDC Support DDC, DDC2
Hotkey Function Support Yes
Auto-Scan Function Yes
OS Compatibility Windows, macOS, Linux
Security Features No network access—air-gapped

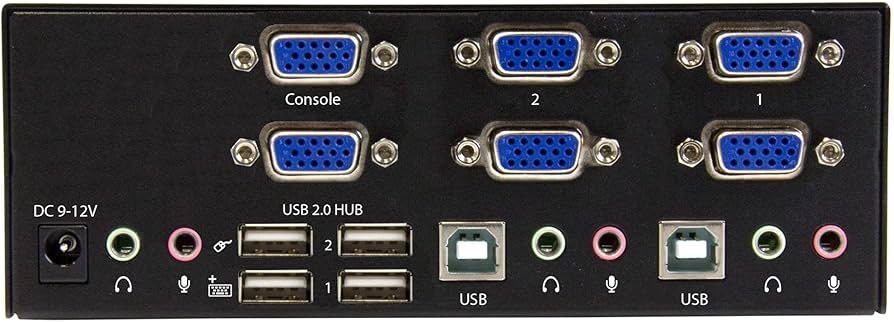

Interfaces
Computer Port Interface USB B + VGA + 3.5mm Audio
Console Ports 2 x VGA (HD15), 2 x USB A, 2 x 3.5 mm Audio
Keyboard/Mouse Interface USB 2.0
USB Hub Ports 2 x USB 2.0 Type-A
Number of VGA Ports 4 (2 per computer, 2 outputs)
Audio Ports 2 x 3.5 mm audio (microphone and speaker)
KVM Connections USB, VGA, 3.5 mm audio
Host Connectors 2 x USB Type-B, 2 x VGA (15 pin D-sub), 2 x 3.5 mm audio

Physical & Environmental
Width 104 mm (4.1 in)
Depth 130 mm (5.1 in)
Height 56 mm (2.2 in)
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Humidity (Operating) 0% ~ 80% RH (non-condensing)
Storage Humidity 10% ~ 90% RH
Material Steel and Plastic Housing

Cloud Management & Licensing
Cloud Management No
Licensing Requirements None
