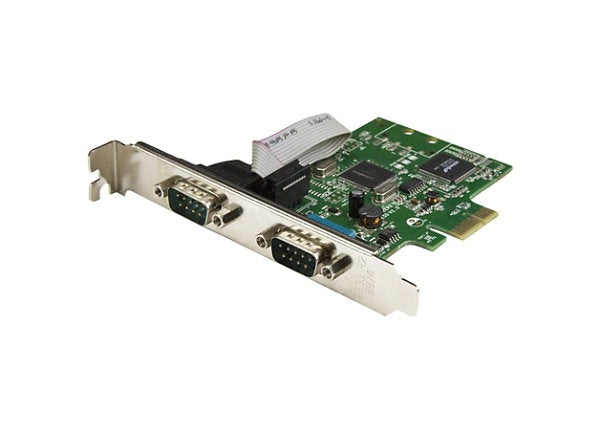

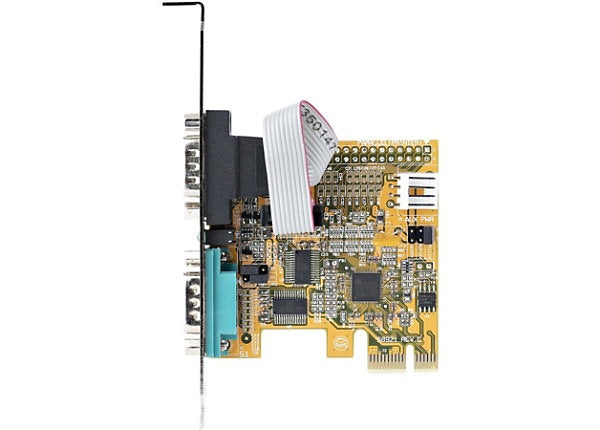

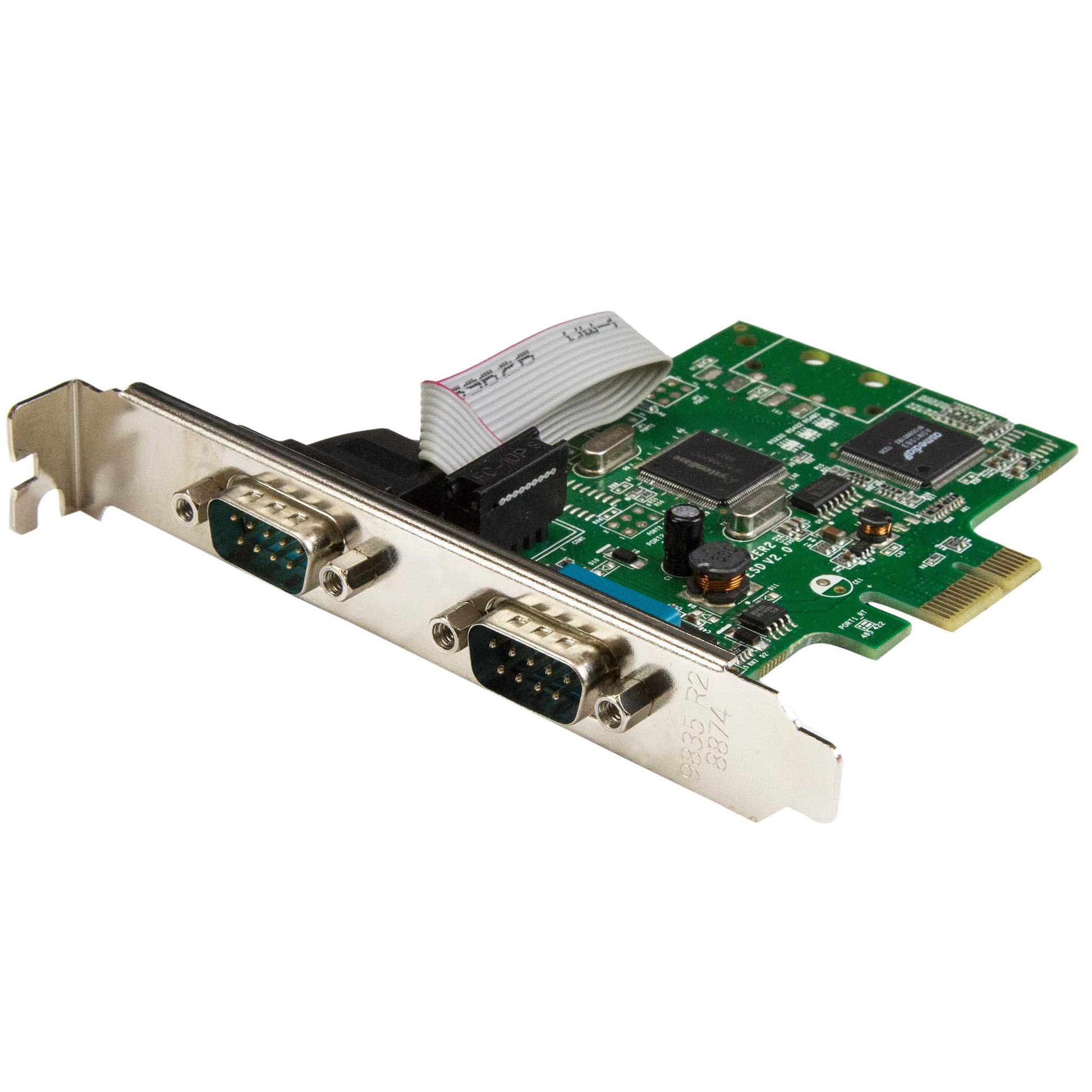

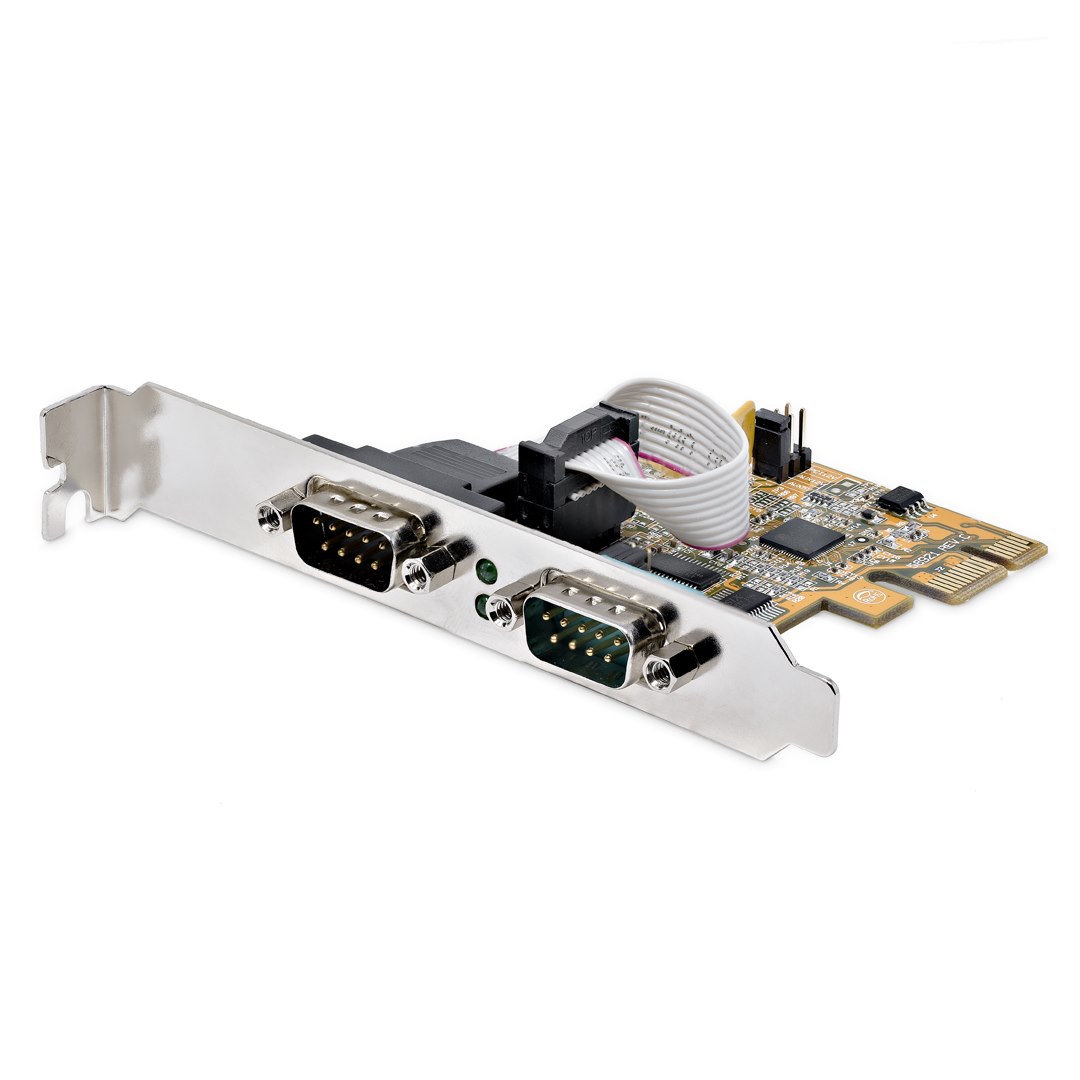

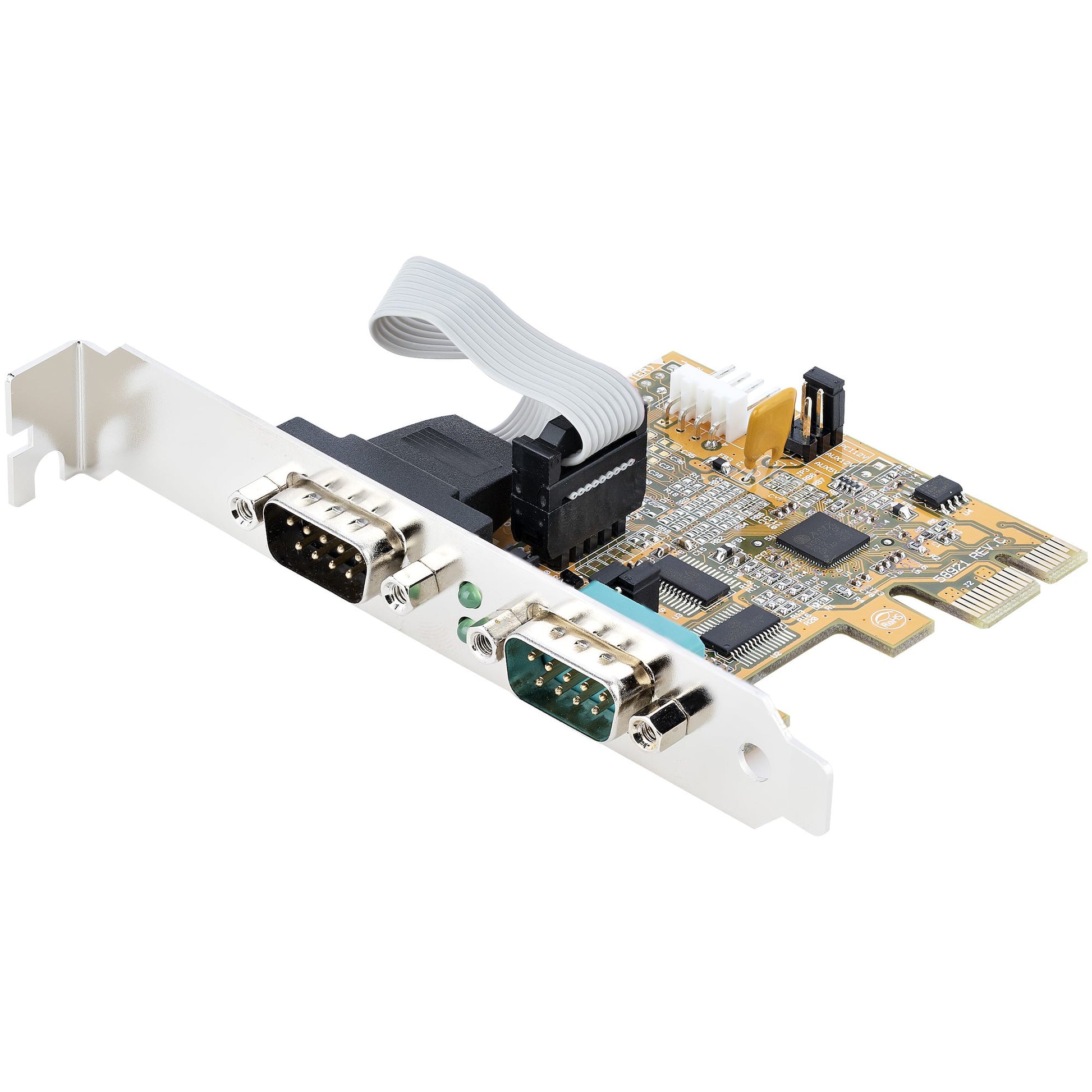

StarTech 2-Port PCIe RS232 Serial Card with 16C1050 UART

VENDOR: STARTECH Mfg Part#: PEX2S1050 UPC#: 065030868297
1 5
Photo is for illustration purposes only. Actual product may be different.
$76.00
$76.00
Sale Sold out
MSRP: $95.00
Shipping calculated at checkout.
  • Provides 2 RS232 (DB9) serial ports using PCI Express x1 interface
  • Equipped with dual-channel 16C1050 UART chipset for enhanced performance
  • Supports Windows 95 through Windows 11 operating systems
  • Compact 10.3 cm design with 61 g weight
  • RoHS and TAA compliant for regulatory assurance
  • Includes 2-year warranty for quality assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Expand legacy device support in industrial or POS systems with dual RS232 ports.
  • Ensure compatibility across a broad range of Windows OS versions from 95 to 11.
  • Meet regulatory and government standards with TAA and RoHS compliance.

Product Overview

Add two RS232 serial ports (DB9) to your low or full-profile computer, through a PCI Express slot - 2-Port PCIe Serial Card with 16C1050 UART - RS232 - Dual Channel UART supports 16C1050 devices - 2-port PCIe RS232 serial card / PCI serial adapter

Specifications

Product Overview
Product Type 2-Port PCIe RS232 Serial Card
Form Factor Low Profile and Full Profile
Chipset Exar XR17V352 (16C1050 UART compatible)
Bus Type PCI Express (PCIe) x1
Weight 61 g
Power Requirements 12V DC
MTBF 195,831 hours
Operating System Compatibility Windows 95/98SE/ME/XP/Vista/7/8/8.1/10/11
Bracket Profile Standard and Low-Profile Brackets Included

Physical & Environmental
Product Length 4.1 in [10.3 cm]
Product Width 2.0 in [5.0 cm]
Product Height 0.7 in [1.8 cm]
Enclosure Color Green
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 5% to 95% RH (non-condensing)

Cloud Management & Licensing
Software Included Driver and utility software (CD or downloadable)
Management Interface OS-level configuration with included utility
License Type No license required

Interfaces
Interface Type PCI Express x1
Serial Ports 2 x RS-232 (DB9)
UART Compatibility 16C1050 Dual Channel UART
Max Baud Rate 921.6 Kbps
FIFO 256-byte FIFO per transmitter and receiver
Flow Control Hardware and Software
Parity Modes Odd, Even, Mark, Space, None
Stop Bits 1, 1.5, 2
Data Bits 5, 6, 7, 8

Compliance & Origin
Country of Origin Taiwan
RoHS Compliance Yes
TAA Compliance Yes
Certifications CE, FCC, RoHS

Advanced Security Features
Interrupt Sharing Yes
IRQ Configuration Fully Programmable
ESD Protection 15kV Electrostatic Discharge Protection
