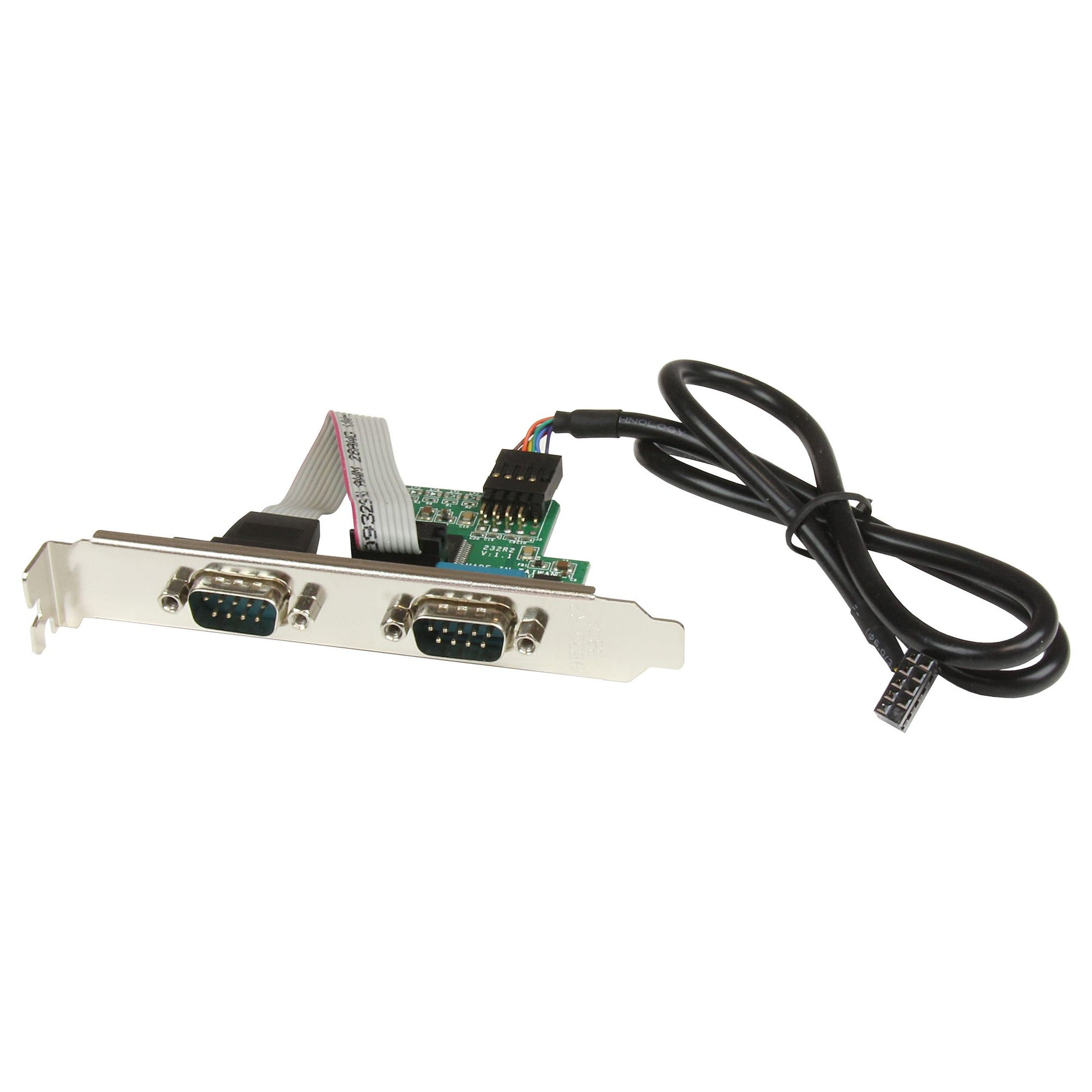

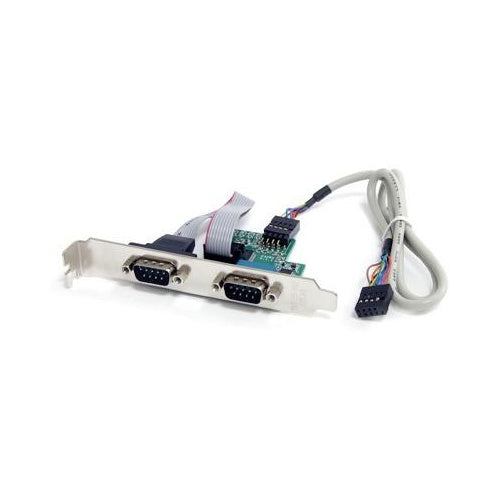

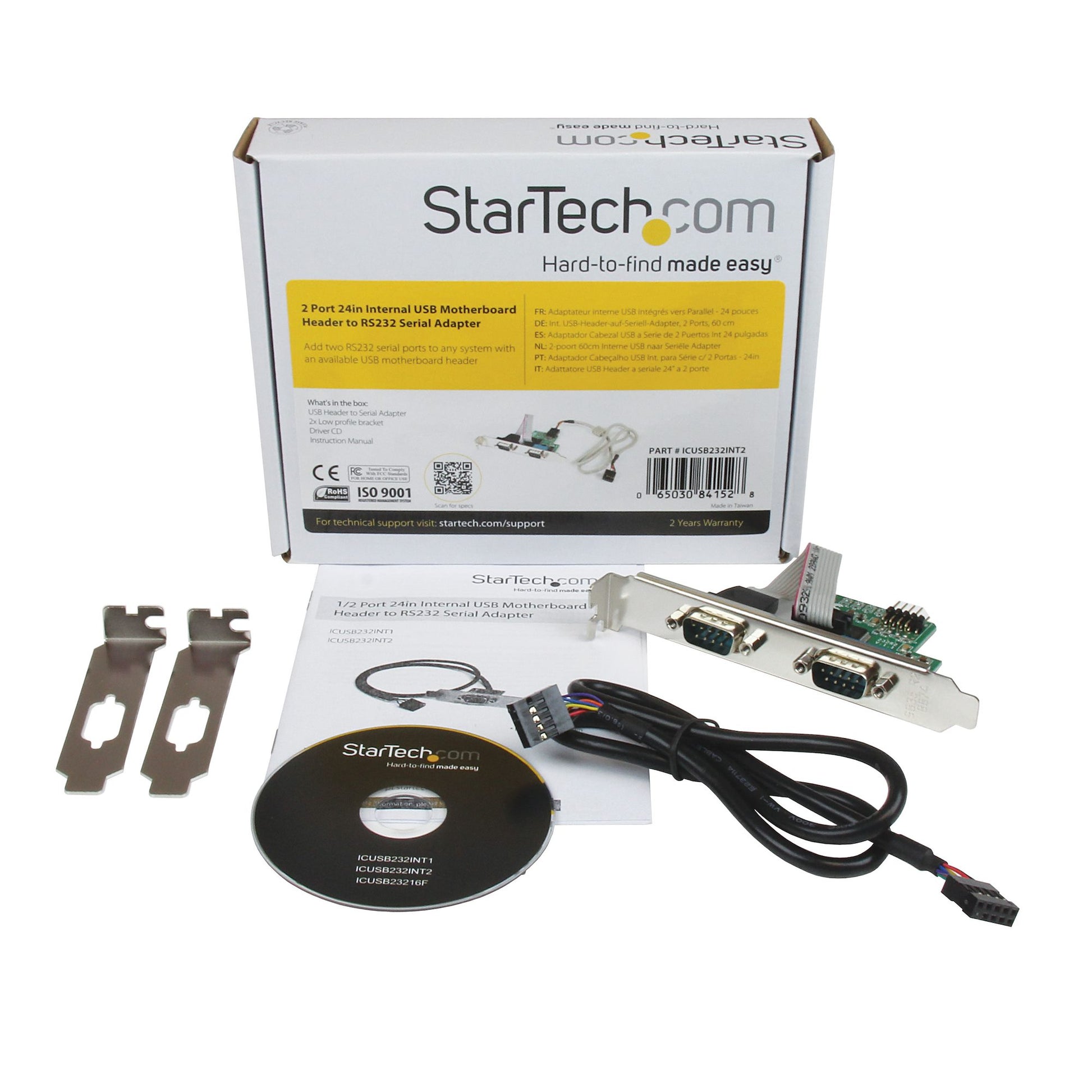

StarTech 24in USB Header to Dual RS232 Serial Adapter, DB9, ICUSB232INT2

VENDOR: STARTECH Mfg Part#: ICUSB232INT2 UPC#: 065030841528
1 4
Photo is for illustration purposes only. Actual product may be different.
$102.00
$102.00
Sale Sold out
MSRP: $109.00
Shipping calculated at checkout.
  • Adds 2 x RS-232 DB9 serial ports via internal USB header
  • Supports data transfer rates up to 115.2 Kbps
  • Compact external form factor (4.7 x 2.7 x 0.7 inches)
  • Green housing; RoHS and TAA compliant
  • Wired connectivity for stable serial communication
  • Includes 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal solution for adding legacy RS-232 ports to internal system builds without consuming rear I/O slots
  • TAA compliance and RoHS certification make it suitable for government and enterprise procurement
  • Compact size and 24in internal cable allow flexible installation even in space-limited setups

Product Overview

Add two RS232 serial ports to any system with an available USB motherboard header - USB to Serial - USB to RS232 - USB to DB9 - USB to serial Adapter - USB to serial port

Specifications

Product Overview
Product Type Adapter
Form Factor External
Family Networking
Subcategory Serial
Category Network Adapter
Manufacturer Part Number ICUSB232INT2
UPC 065030841528
Power Source USB-powered
Color Green
Weight 92 g
Service & Support Type 2 Years

Wireless Features

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC
Environmental Standards RoHS

Advanced Security Features
Integrated Security Features

Interfaces
Interface Type RS-232
Ports Quantity 2
Connector Type DB-9 (9 pin, D-Sub)
Ports Details 2 x RS-232 Serial DB9 Male
Host Interface USB 2.0 Motherboard Header (9-pin IDC)
Data Transfer Rate 115.2 Kbps
Chipset FTDI - FT232RL
Connectivity Technology Wired
Data Link Protocol RS-232

Physical & Environmental
Width 4.7 in
Depth 2.7 in
Height 0.7 in
Cable Length 24 in
Enclosure Type Plastic
Minimum Operating Temperature 0°C
Maximum Operating Temperature 55°C
Humidity Range Operating 5% - 95% RH (non-condensing)
Storage Temperature Range -20°C to 85°C
