Products Network Stuff STARTECH 2S1P PCIe Parallel...

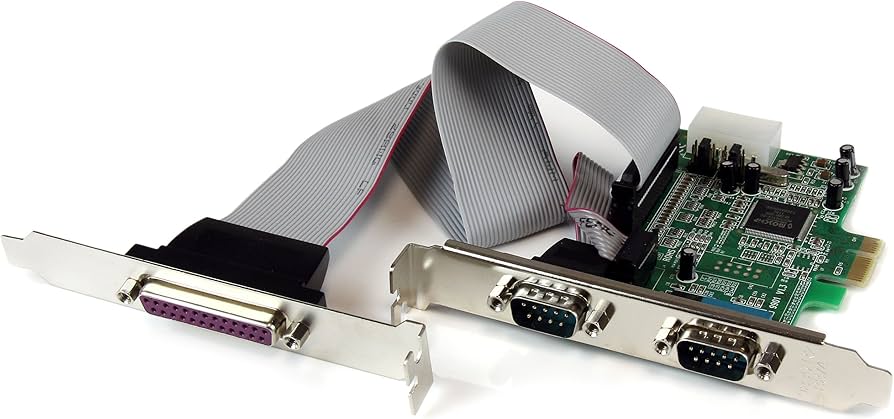

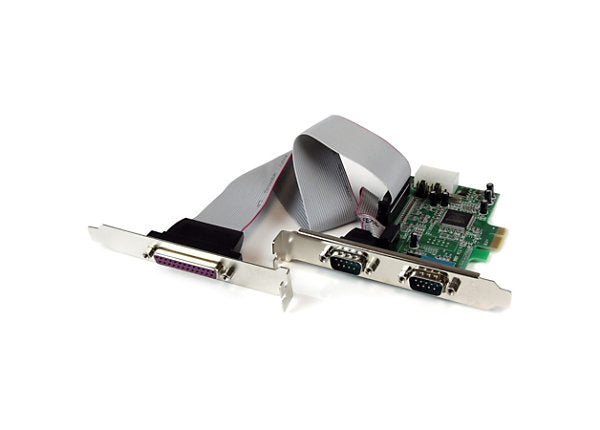

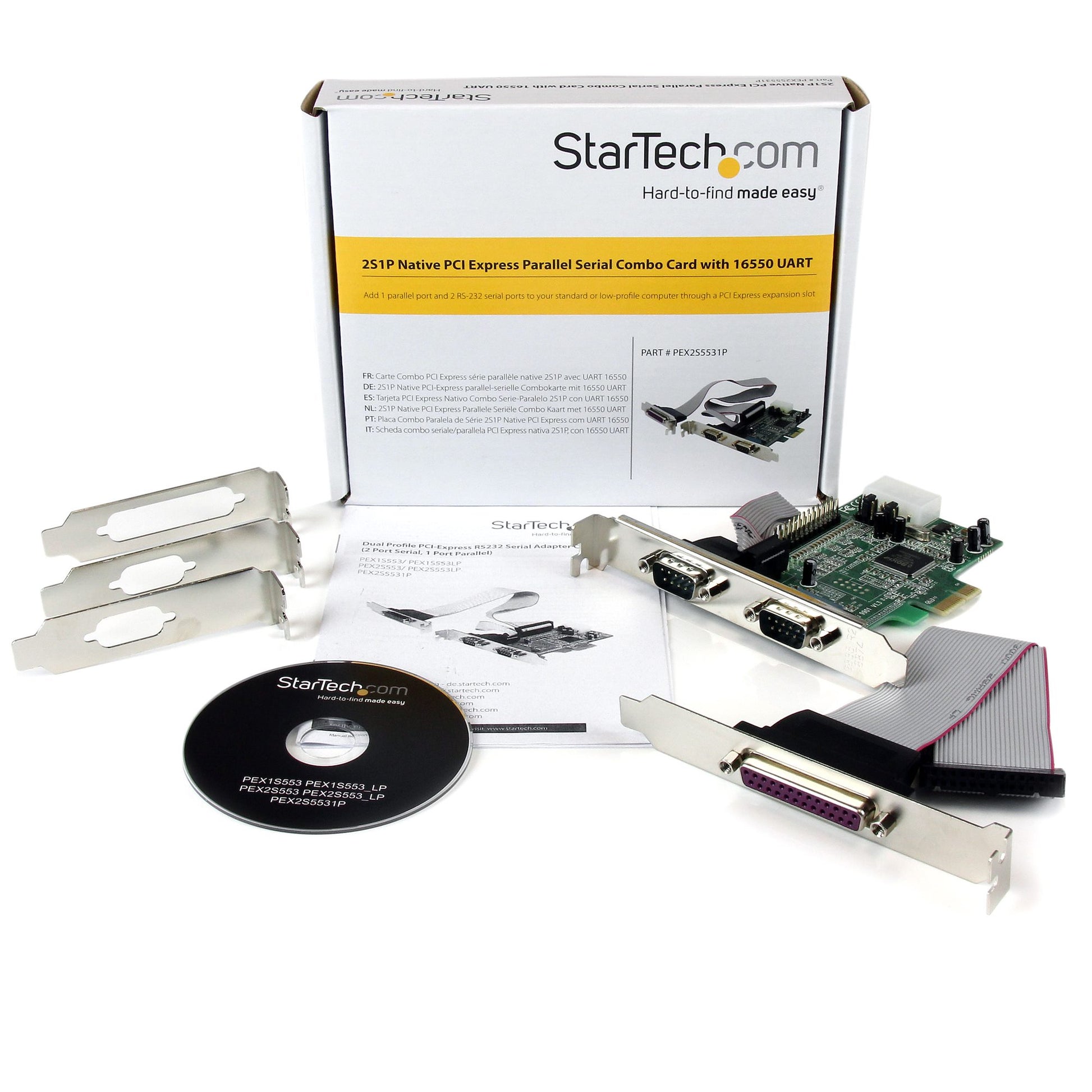

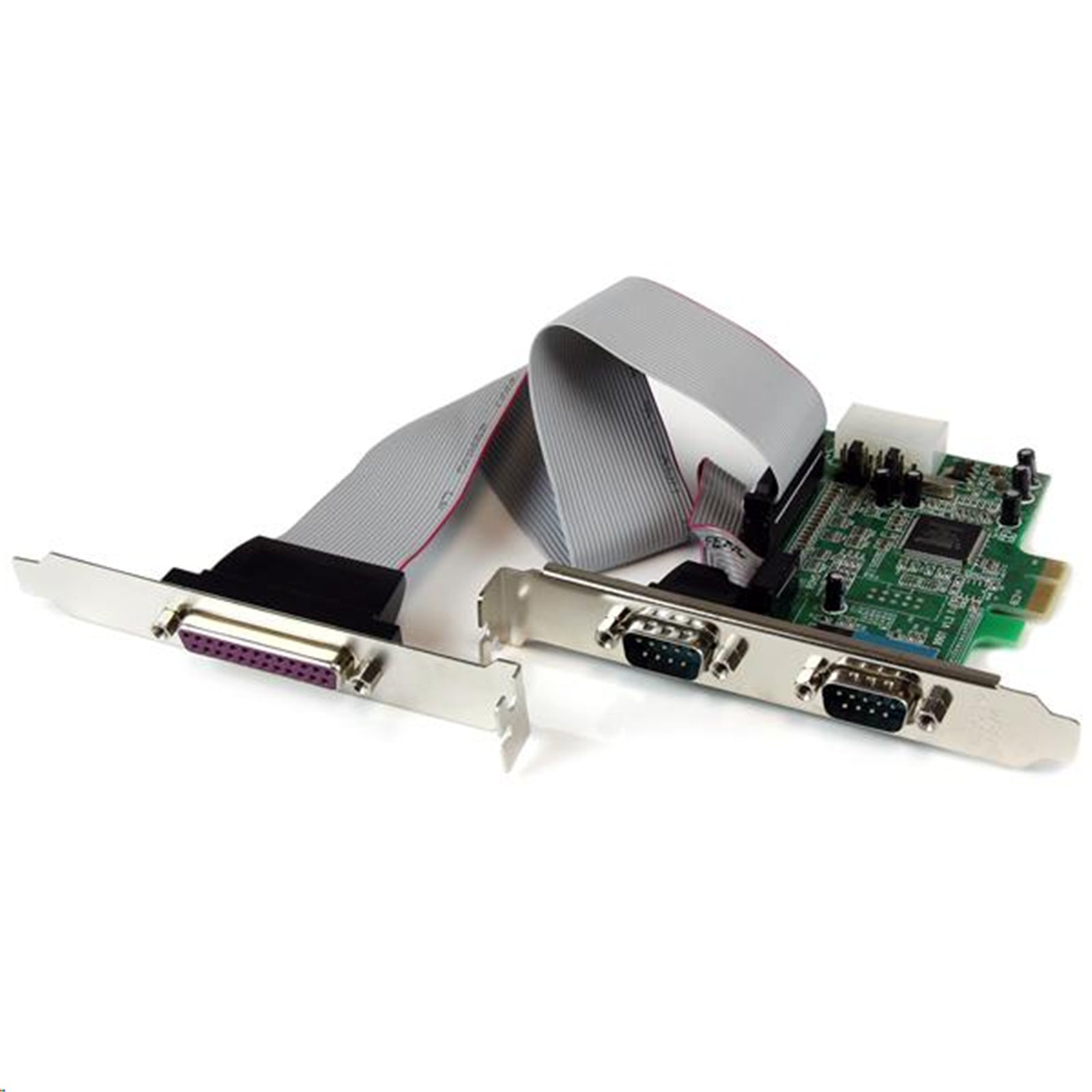

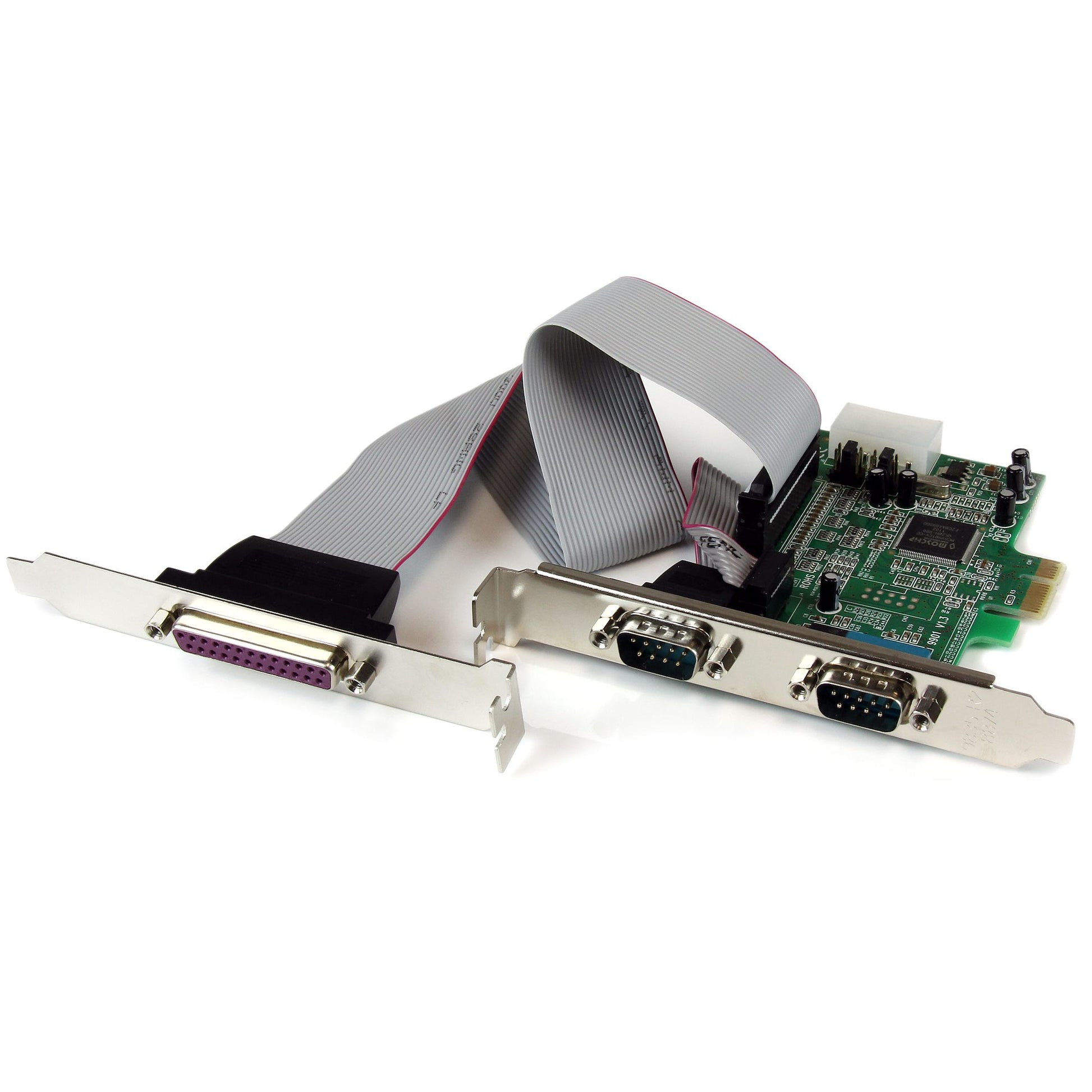

STARTECH 2S1P PCIe Parallel Serial Combo Card - PEX2S5531P

VENDOR: STARTECH Mfg Part#: PEX2S5531P UPC#: 065030841764
1 5
Photo is for illustration purposes only. Actual product may be different.
$66.00
$66.00
Sale Sold out
MSRP: $71.00
Shipping calculated at checkout.
  • Two RS-232 serial ports and one parallel port for versatile legacy connectivity
  • Supports data transfer rates up to 460.8 Kbps across RS-232 interface
  • PCI Express x1 interface for modern PC compatibility
  • External form factor with low-profile support
  • TAA and RoHS compliant for government and eco-sensitive deployments
  • Backed by a 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for adding legacy serial and parallel ports to modern desktops lacking native support
  • TAA compliance makes it suitable for government and federally regulated installations
  • Includes both standard and low-profile brackets for flexible system integration

Product Overview

Add 1 parallel port and 2 RS-232 serial ports to your standard or low-profile computer through a PCI Express expansion slot - pci express serial parallel card - pci express serial card - pci express parallel card - pcie serial parallel - pci express RS232

Specifications

Product Overview
Product Type Adapter Card
Form Factor Low Profile / Standard Profile
Chipset ASIX MCS9901CV-AA
Enclosure Color Green
Power Requirements From PCI Express slot
MTBF 198,558 Hours
Warranty 2 Years

Physical & Environmental
Width 4.7 in (120 mm)
Depth 4.1 in (105 mm)
Height 0.8 in (20 mm)
Weight 85 g (0.19 lb)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -20°C to 70°C (-4°F to 158°F)
Humidity 5% to 85% RH non-condensing

Cloud Management & Licensing
Management Interface
License Included

Interfaces
Interface Type PCI Express x1
Serial Ports 2 x RS-232 (DB-9)
Parallel Ports 1 x IEEE 1284 (DB-25)
Data Transfer Rate 460.8 Kbps (Serial)
Parallel Port Mode SPP, EPP, ECP
Connector Types 1 x DB-25 (F), 2 x DB-9 (M)
Host Interface PCI Express x1
Connectivity Technology Wired

Compliance & Origin
Country of Origin Taiwan
RoHS Compliant Yes
TAA Compliant Yes
Certifications CE, FCC, RoHS, REACH
Green Compliance Yes

Advanced Security Features
Hardware Security Features
ESD Protection 15KV Air and Contact
