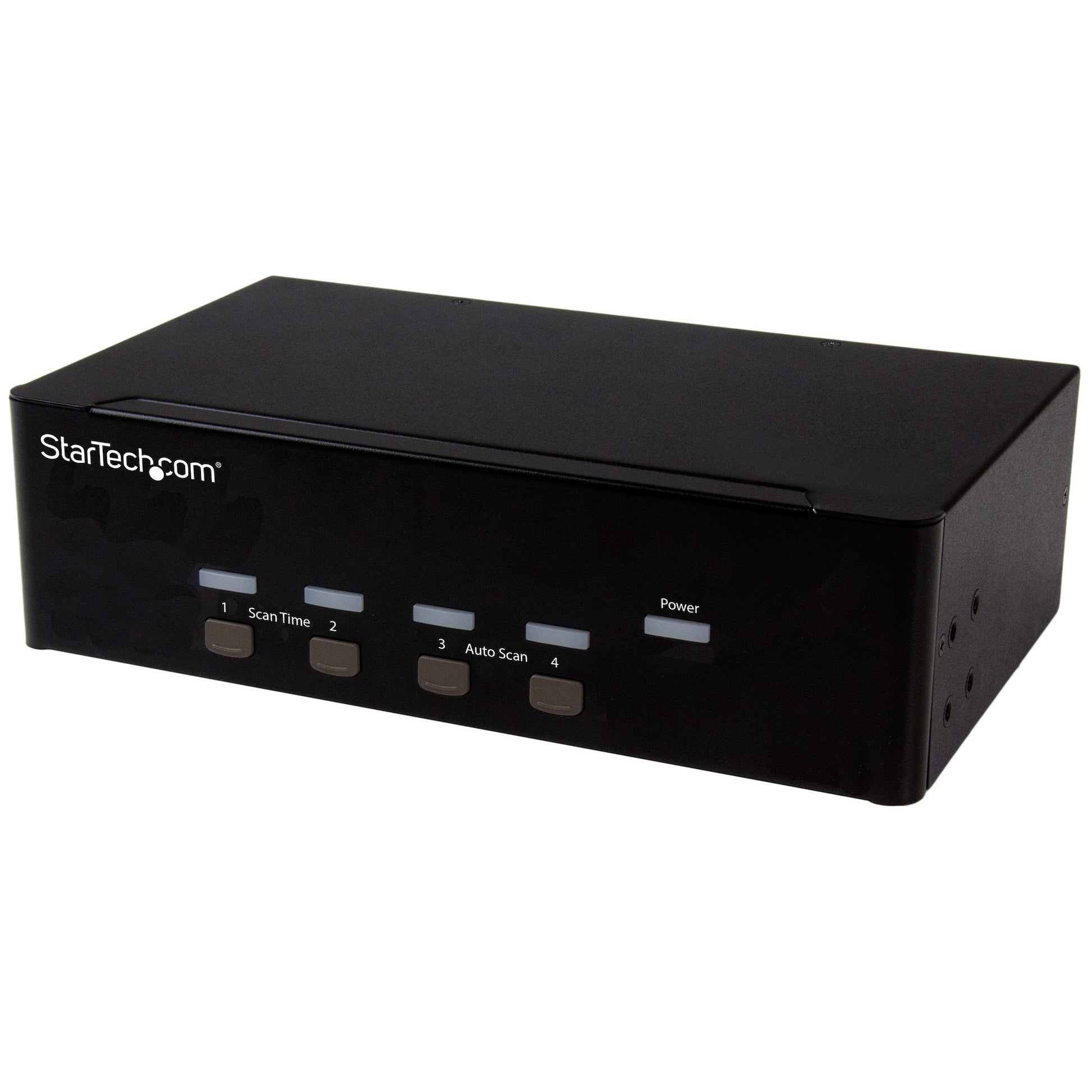

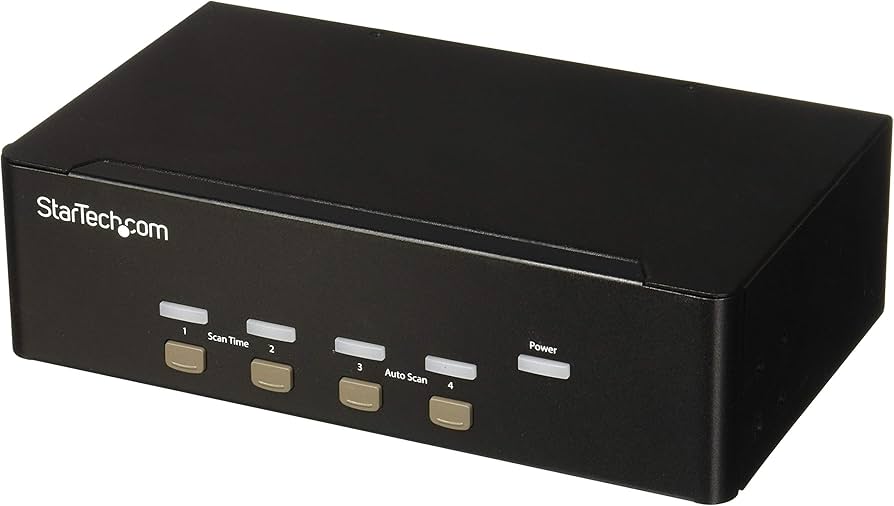

StarTech 4-Port Dual VGA USB KVM Switch with Audio Support

VENDOR: STARTECH Mfg Part#: SV431DVGAU2A UPC#: 065030860642
1 5
Photo is for illustration purposes only. Actual product may be different.
$300.00
$300.00
Sale Sold out
MSRP: $302.00
Shipping calculated at checkout.
  • Supports control of 4 computers with dual VGA video outputs
  • Dual-display support for up to 2 monitors at resolutions up to 1920 x 1200
  • USB 2.0 ports allow shared peripheral access such as flash drives
  • 3.5mm audio support for unified audio input/output
  • External wired design with compact footprint (5.3 x 5.1 x 2.4 inches)
  • TAA compliant and includes a 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Consolidate four dual-monitor systems to a single control station, reducing clutter and hardware costs
  • TAA compliance ensures suitability for federal or government procurement standards
  • Dual VGA and USB 2.0 connectivity maximizes productivity for environments relying on expanded visual outputs

Product Overview

Access four dual-video computers two shared USB peripherals from a single workstation - Compatible with dual VGA computers and VGA monitors televisions - 4-port VGA KVM - Dual VGA Video - USB 2.0 - KVM switch - dual display - 3.5mm audio support

Specifications

Product Overview
Product Type KVM Switch
Form Factor External
Enclosure Color Black
Number of Connected Computers 4
Monitor Support Dual VGA
Max. Monitors Supported 2
Max Supported Resolution 1920 x 1200
Power Requirements DC 12V @ 1.5A
Power Adapter Included Yes
LED Indicators Port status
Audio Support 3.5mm stereo audio input/output

Physical & Environmental
Width 5.3 in (135 mm)
Depth 5.1 in (130 mm)
Height 2.4 in (60 mm)
Weight 1.9 lb (0.86 kg)
Housing Material Steel
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -20°C to 60°C (-4°F to 140°F)
Operating Humidity 0% - 80% RH, Non-Condensing

Cloud Management & Licensing
Remote Management No
Cloud Management No
Management Interface Push-button or Hotkey switching
Software Included No

Interfaces
Console Keyboard/Mouse Interface 2 x USB Type-A (Keyboard & Mouse)
Console Video Interface 2 x VGA (DB-15)
Console Audio Interface 2 x 3.5mm stereo audio jack
Host Computer Interfaces 8 x VGA (DB-15), 4 x USB Type-B, 8 x 3.5mm audio jack
USB Hub Ports 2 x USB 2.0 Type-A
USB Specification USB 2.0
Video Bandwidth 300 MHz

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC
Warranty 2 Years

Advanced Security Features
Keyboard/Mouse Emulation Yes
Hotkey Security Yes
