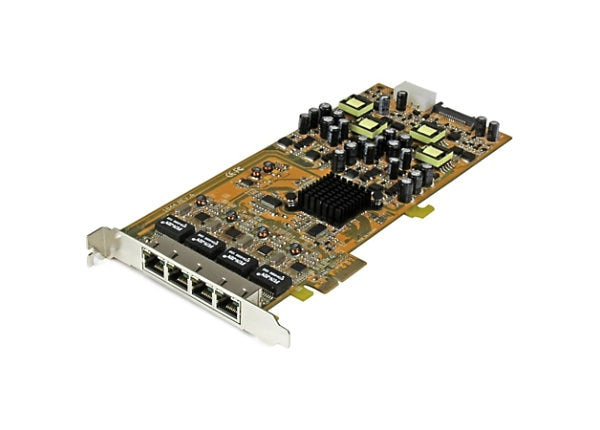

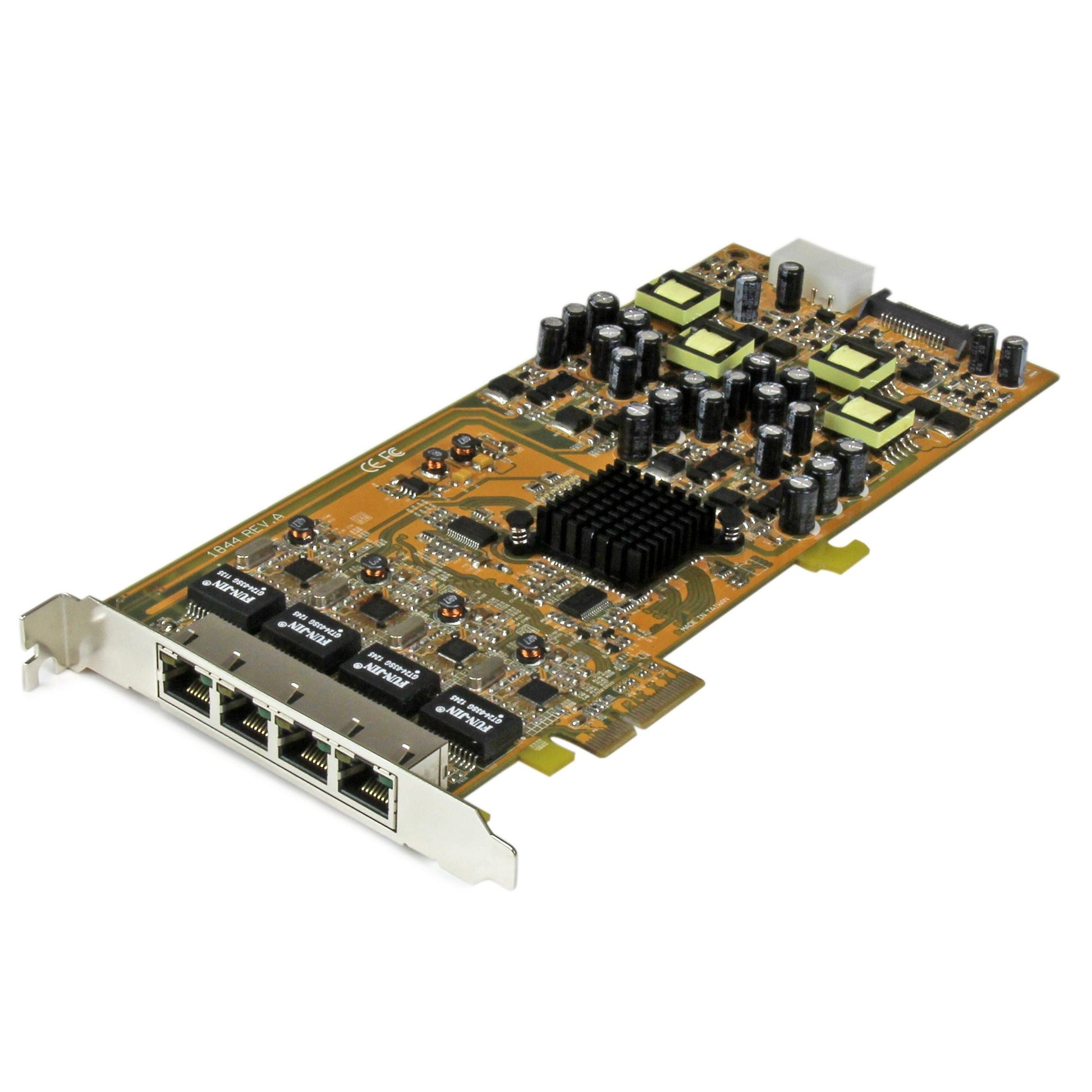

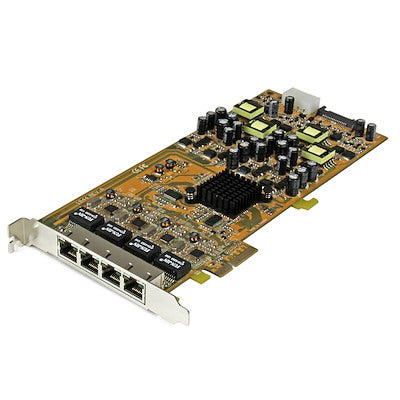

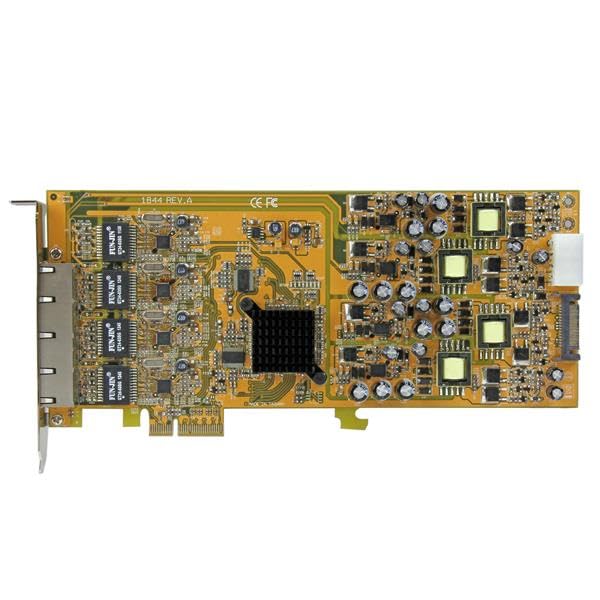

StarTech 4-Port Gigabit PoE PCIe Network Card - ST4000PEXPSE

VENDOR: STARTECH Mfg Part#: ST4000PEXPSE UPC#: 065030855150
1 5
Photo is for illustration purposes only. Actual product may be different.
$457.00
$457.00
Sale Sold out
Shipping calculated at checkout.
  • 4 Gigabit RJ-45 ports with PoE support via PCIe x4 interface
  • Data transfer rate of 1 Gbps per port for high-speed networking
  • Dual internal power connectors: 15-pin SATA and 4-pin LP4
  • Supports power consumption up to 25.5W per port
  • TAA and RoHS compliant with 2-year warranty
  • Physical dimensions of 0.7" x 9.6" x 4.7" in yellow enclosure

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides four PoE-enabled gigabit ports for both power and data transmission via a single cable, reducing clutter and simplifying deployment
  • High-performance PCIe x4 interface ensures reliable bandwidth for demanding enterprise or industrial networking applications
  • Compliant with TAA and RoHS, meeting procurement requirements for government and regulated sectors

Product Overview

Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer - 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - PCI Express GbE Quad Port NIC - PoE Card - 4 Port Network Card

Specifications

Product Overview
Product Type Network Card
Form Factor PCIe
Card Interface PCI Express x4
Enclosure Color Yellow
Weight 99 g
Power Consumption (Operational) 25.5 Watt
Typical Power Draw Per Port Up to 15.4W per port (IEEE 802.3af), up to 25.5W per port (IEEE 802.3at)
Warranty 2 Years Manufacturer Warranty

Physical & Environmental
Width 0.7 in (18 mm)
Depth 9.6 in (244 mm)
Height 4.7 in (119 mm)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Operating Humidity 20% to 80% RH, non-condensing
Storage Humidity 10% to 90% RH, non-condensing

Cloud Management & Licensing
Cloud Management
License Requirement

Interfaces
Interface Type PCI Express x4
Port Type RJ-45 (Ethernet)
Ports Quantity 4
Data Transfer Rate 1 Gbps
Data Link Protocol Gigabit Ethernet
Connectivity Technology Wired
External Ports 4 x RJ-45
Internal Power Ports 1 x SATA Power (15-pin), 1 x LP4 (4-pin Molex)
Connector Types PCI Express x4
Bus Type PCIe 2.0
PoE Output Yes
PoE Standard Support IEEE 802.3af / 802.3at (PoE / PoE+)

Compliance & Origin
TAA Compliant Yes
RoHS Compliance Yes
Certifications CE, FCC, RoHS, REACH
Country of Origin Taiwan
