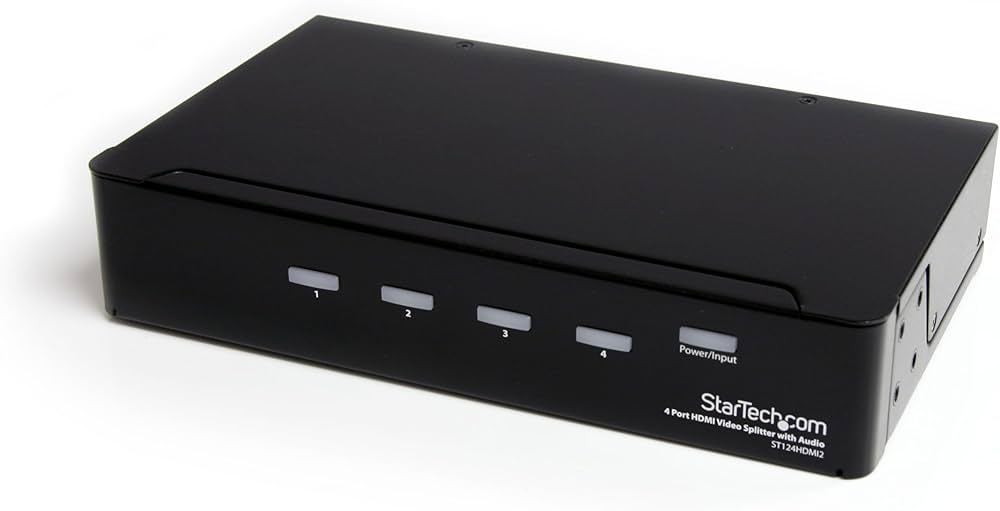

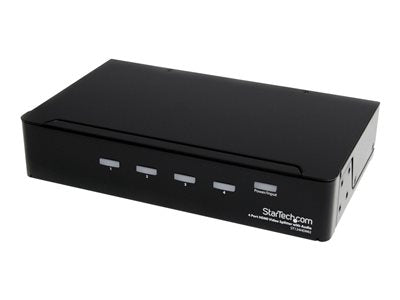

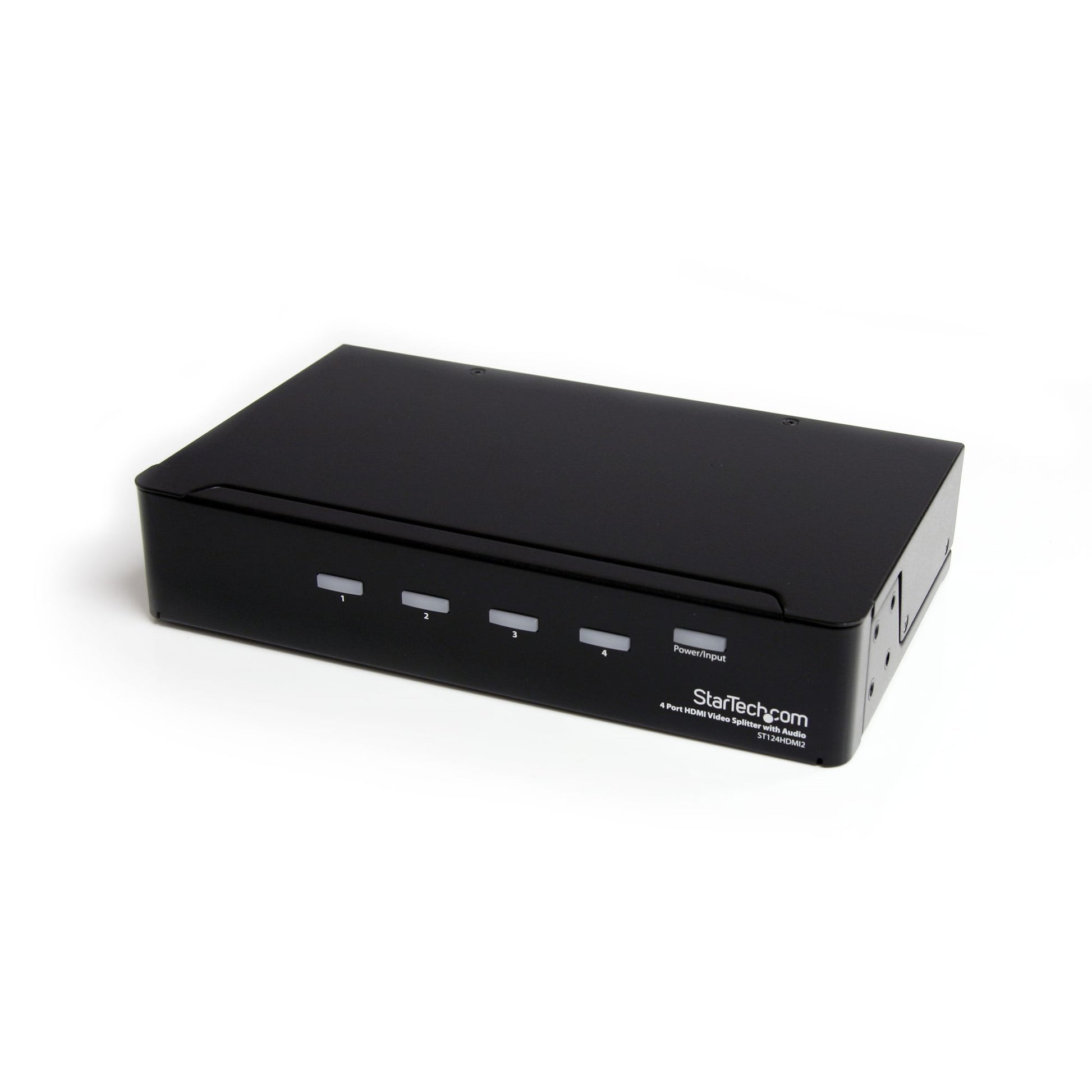

StarTech 4-Port High-Speed HDMI Video Splitter, ST124HDMI2

VENDOR: STARTECH Mfg Part#: ST124HDMI2 UPC#: 065030841696
1 5
Photo is for illustration purposes only. Actual product may be different.
$173.00
$173.00
Sale Sold out
MSRP: $186.00
Shipping calculated at checkout.
  • Distributes one HDMI source to four displays simultaneously
  • Supports multiple resolutions, including 1080p, WUXGA, SXGA, and UXGA
  • Audio output via HDMI or optional 3.5mm stereo jack
  • EDID support for optimized display performance
  • External form factor with black enclosure for seamless AV integration
  • Backed by a 2-year warranty and TAA compliant

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers reliable Full HD output to up to four displays, ideal for professional environments
  • Complies with TAA regulations, making it suitable for government and institutional applications
  • Supports long-distance HDMI cable runs up to 49 ft, reducing infrastructure limitations

Product Overview

Displays the same image with sound on 4 screens; Splitter / signal amplifier - EDID between your video source and displays native settings - Supports HDMI audio or 3.5mm stereo audio connection - Up to 49ft (15m) HDMI Cable - Full HD 1080p; TAA

Specifications

Product Overview
Device Type Splitter
Model ST124HDMI2
Form Factor External
Color Black
Power Source External power adapter (included)
Input Voltage 100–240V AC
Output Voltage 5V DC
Max Power Consumption 5W
Display Modes Supported 1080p, 720p, 480p, 480i, SVGA, SXGA, UXGA, WUXGA
HDCP Support Yes
EDID Management Yes

Wireless Features

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
RoHS Compliance Yes
Certifications CE, FCC, UL
UPC 065030841696

Advanced Security Features

Interfaces
Video Input 1 x HDMI (19 pin)
Video Output 4 x HDMI (19 pin)
Audio Output 1 x 3.5 mm stereo jack
Maximum HDMI Cable Length - Input 49 ft (15 m)
Maximum HDMI Cable Length - Output 49 ft (15 m)
HDMI Specification HDMI 1.3
Maximum Data Rate 6.75 Gbps
Supported Resolutions Up to 1920 x 1200 (WUXGA) / 1080p at 60Hz
Video Bandwidth 225 MHz

Physical & Environmental
Enclosure Material Steel
Width 5.3 in
Depth 8.7 in
Height 1.7 in
Weight 1.8 lb (0.82 kg)
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -10°C to 80°C (14°F to 176°F)
Humidity (Operating) 0% to 80% RH, non-condensing
