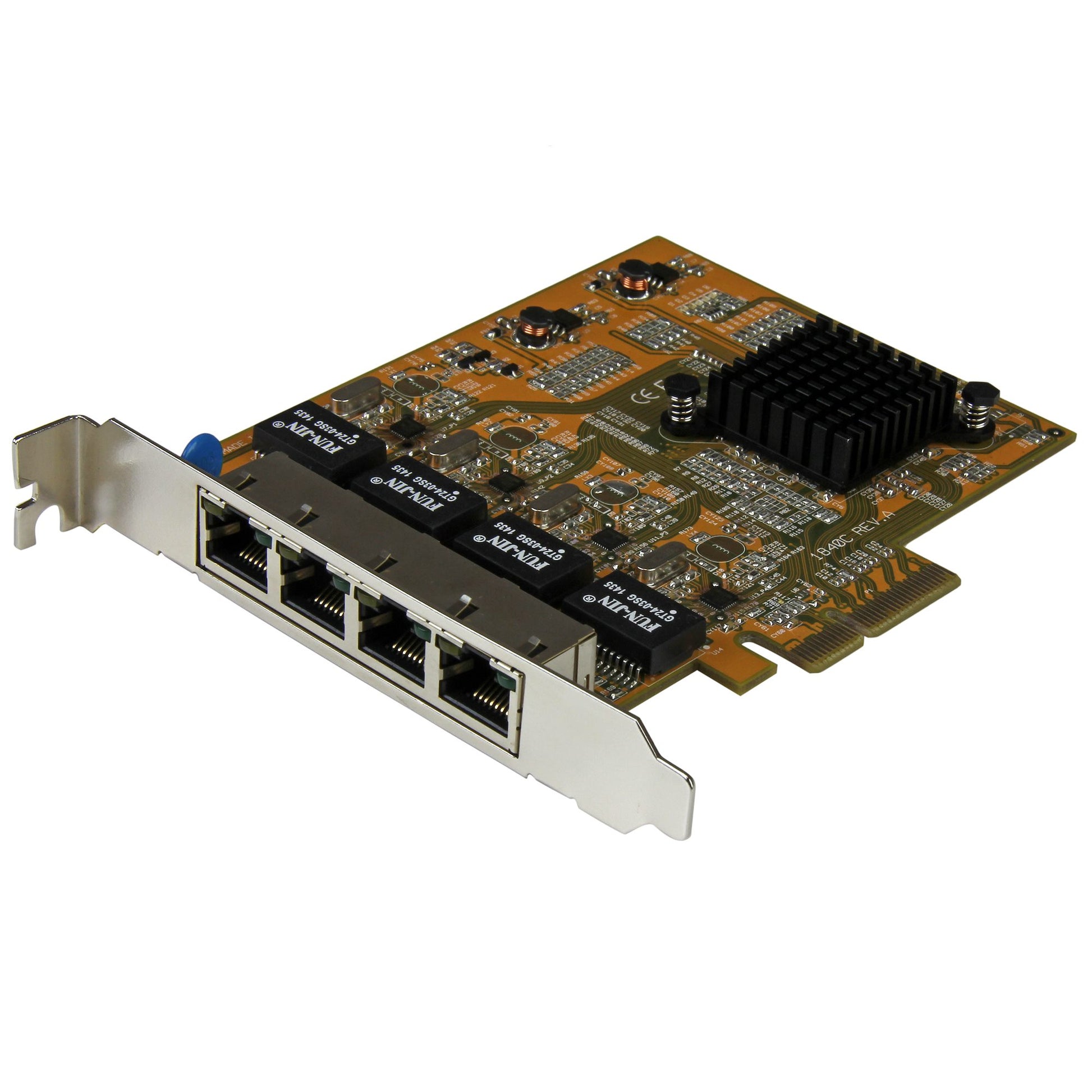

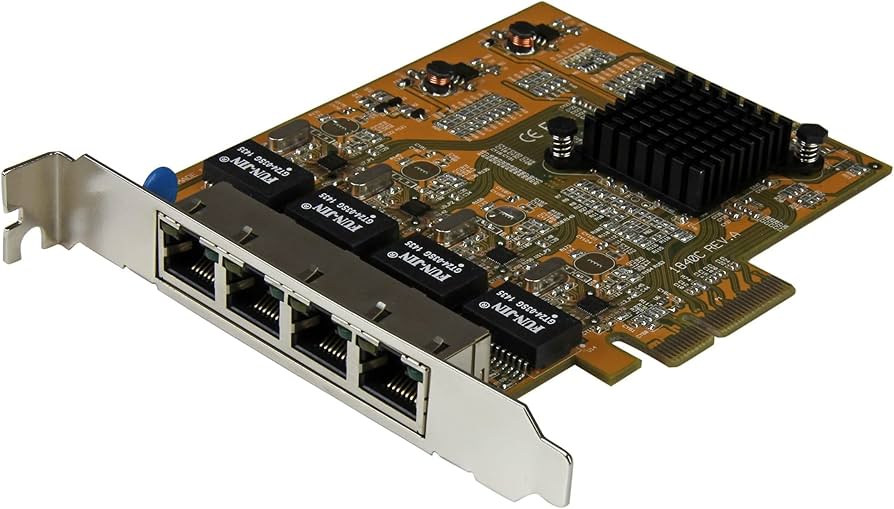

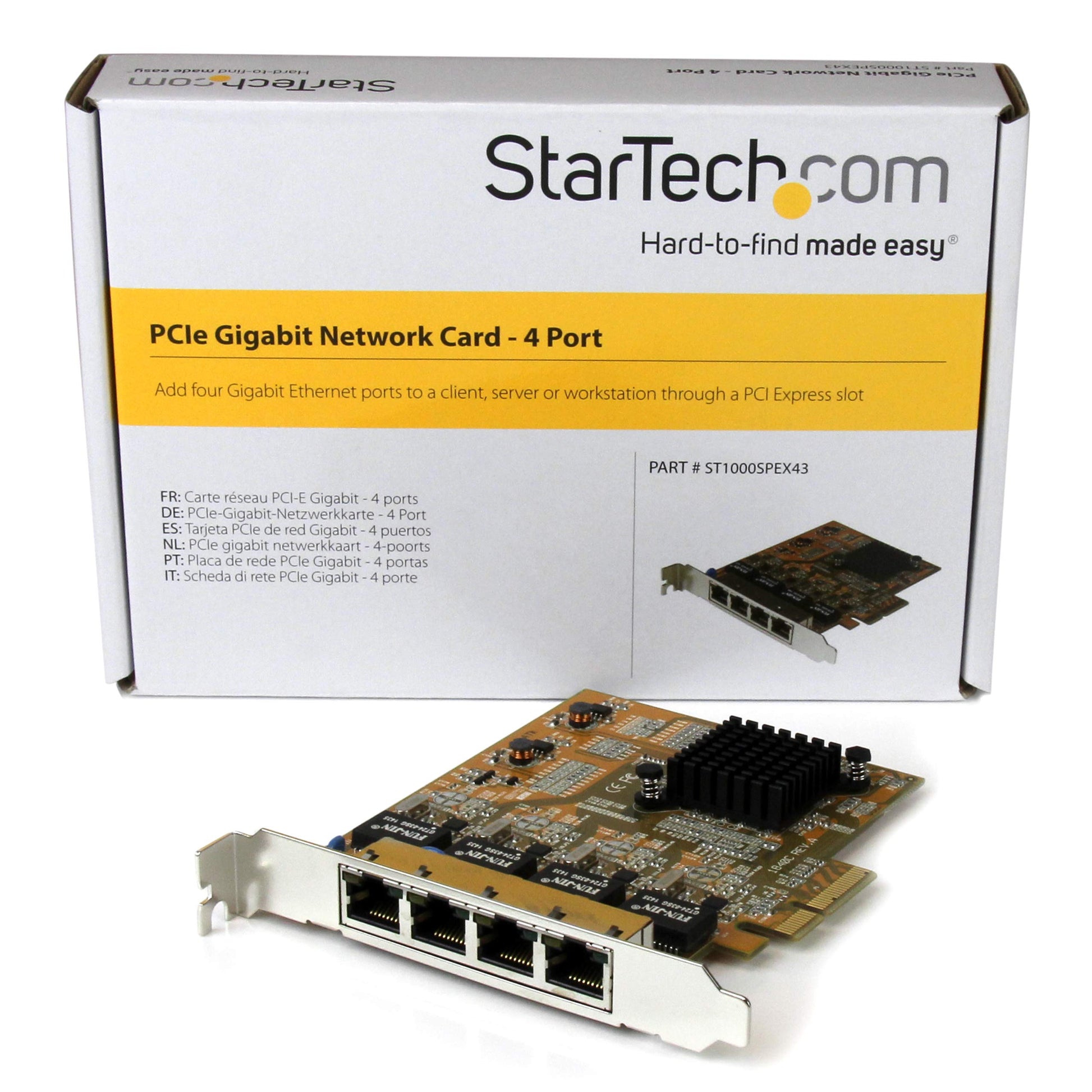

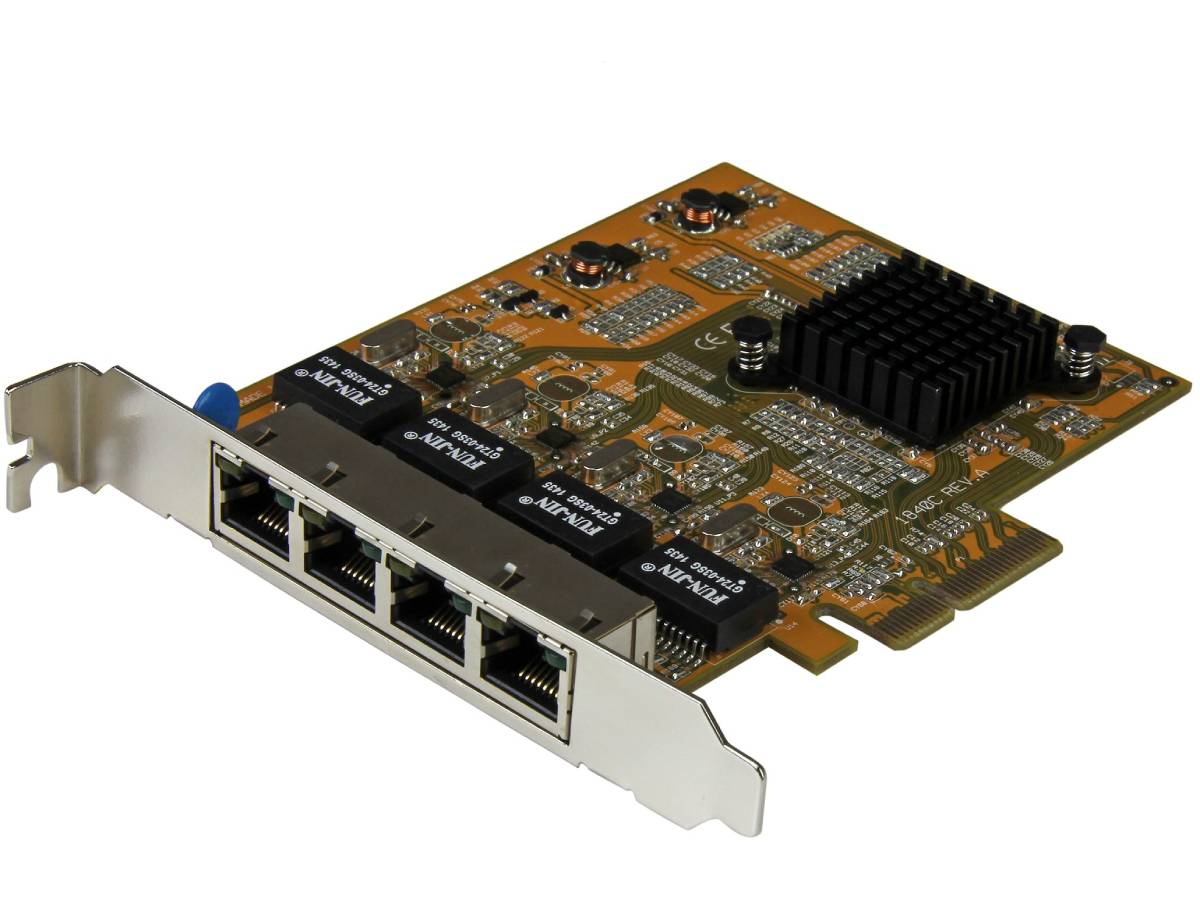

StarTech 4-Port PCIe Gigabit Network Adapter Card ST1000SPEX43

VENDOR: STARTECH Mfg Part#: ST1000SPEX43 UPC#: 065030862448
1 5
Photo is for illustration purposes only. Actual product may be different.
$235.00
$235.00
Sale Sold out
MSRP: $237.00
Shipping calculated at checkout.
  • 4 RJ-45 Gigabit Ethernet ports via single PCI Express x4 interface
  • Supports up to 2000 Mbps data transfer rate in full-duplex mode
  • Compliant with IEEE 802.3, 802.3u, and 802.3ab standards
  • External form factor with dimensions: 4.7 x 5.4 x 0.7 inches
  • TAA compliant and RoHS certified
  • Includes 2-year service and support warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Boosts network capacity by adding 4 independent Gigabit Ethernet ports to a single PCIe slot
  • Complies with IEEE, TAA, and RoHS standards, ensuring reliability and regulatory readiness for government and enterprise use
  • Supports high-speed data transmission (up to 2000 Mbps), enhancing performance in intensive multi-stream and virtualized environments

Product Overview

Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot - 4-Port PCI Express Gigabit network adapter card - Quad-port Gigabit NIC - Network card w/ 4x 10/100/1000 RJ45 ports - Full-Duplex Flow Control support

Specifications

Product Overview
Product Type Network Adapter
Form Factor Plug-in Card
Chipset Realtek RTL8111G
Bus Type PCI Express x4
Bracket Type Full-height and Low-profile brackets included
Compatibility PCI Express x4, x8, x16
Weight 90 g
Power Consumption 2.5 W (max)
Plug and Play Yes

Physical & Environmental
Dimensions (W x D x H) 4.7 in x 5.4 in x 0.7 in
Enclosure Color Yellow
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity Range (Operating) 10% to 90% RH (non-condensing)
Humidity Range (Storage) 5% to 95% RH (non-condensing)

Cloud Management & Licensing
Management Interface OS-based configuration and driver tools
Supported Operating Systems Windows, Linux, macOS

Interfaces
Interface Type Gigabit Ethernet
Port Count 4
Port Type RJ-45
Connector Type RJ-45 female
Data Transfer Rate per Port 1000 Mbps
Full Duplex Support Yes
Flow Control Support IEEE 802.3x Full Duplex
Auto-Negotiation Yes
Wake-on-LAN Yes
Jumbo Frame Support Yes (up to 9K)
VLAN Tagging IEEE 802.1Q

Compliance & Origin
Certifications CE, FCC, RoHS, REACH
RoHS Compliance Yes
TAA Compliant Yes
Country of Origin Taiwan
MTBF 148,980 hours

Advanced Security Features
MAC Address Filtering Yes
IEEE 802.1p QoS Yes
