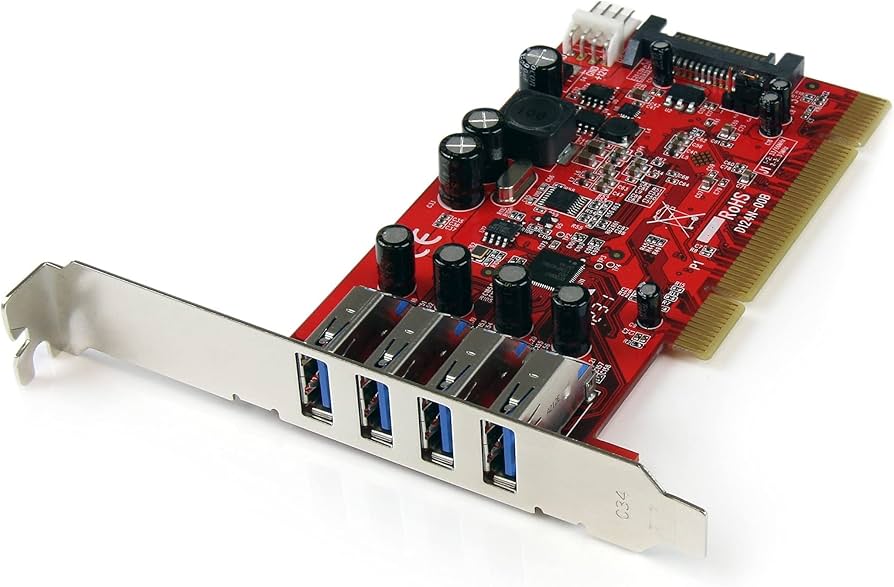

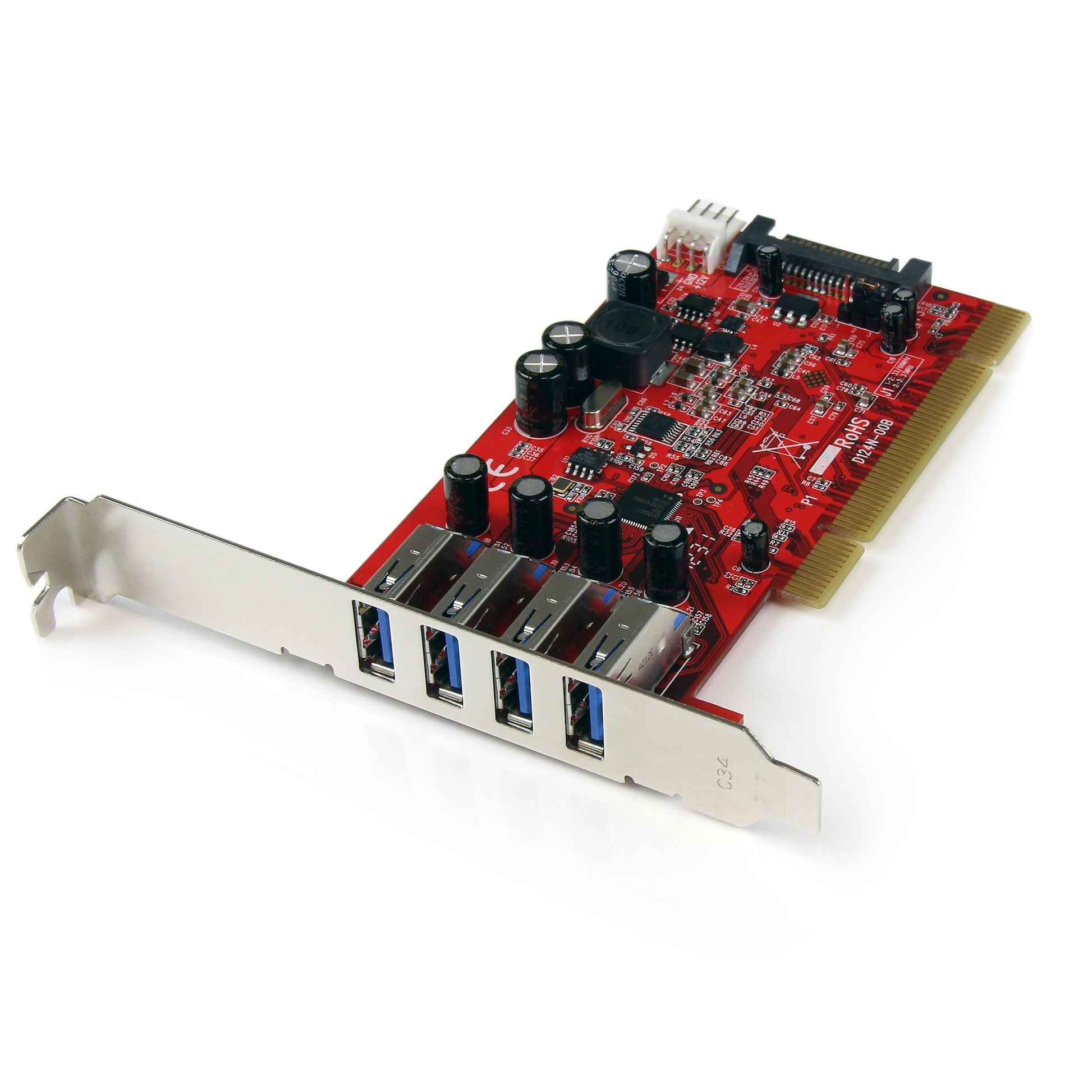

StarTech 4-Port USB 3.0 PCI Adapter Card w/ SATA Power

VENDOR: STARTECH Mfg Part#: PCIUSB3S4 UPC#: 065030849517
1 5
Photo is for illustration purposes only. Actual product may be different.
$101.00
$101.00
Sale Sold out
MSRP: $109.00
Shipping calculated at checkout.
  • PCI/PCI-X interface supporting 1.3Gbps max data rate (bus limited)
  • Four USB 3.0 Type-A ports with 5Gbps port capacity
  • Low/full profile bracket support for versatile installation
  • Optional SATA/SP4 power for enhanced peripheral compatibility
  • RoHS and TAA compliant design for regulatory alignment
  • Lifetime service and support coverage

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for upgrading legacy systems like Dell OptiPlex 7010 with USB 3.0 support without replacing entire machines
  • Saves costs by extending the functionality of existing hardware using standard PCI slots
  • Highly reliable with RoHS/TAA compliance and lifetime warranty for long-term business use

Product Overview

4-Port USB 3.0 PCI/PCI-X Card (USB 3.1 Gen 1/USB 3.2 Gen 1x1) - Achieve speeds up to PCI bus max (1.3Gbps) - Optional SATA/SP4 power - PCI 3.3V/5V 32-bit - Full/low profile brackets - For PCs with PCI slots like Dell OptiPlex 7010/HP Compaq dc7800

Specifications

Product Overview
Product Type Adapter Card
Form Factor Low-profile / Full-height (with brackets included)
Chipset VIA/VLI VL805
Bus Type PCI
PCI Specifications 32-bit PCI, 3.3V/5V compatible
Power Requirements Optional SATA/SP4 floppy power connector for high power USB devices
Enclosure Color Red
Bracket Type Standard and Low Profile
Warranty Lifetime

Wireless Features
Wi-Fi Support

Compliance & Origin
RoHS Yes
TAA Compliant Yes
Country of Origin Taiwan
Certifications CE, FCC, REACH
ISO Compliant Manufacturing ISO 9001

Advanced Security Features
Device Security

Interfaces
Host Interface PCI
Ports 4 x USB Type-A (USB 3.0 / USB 3.2 Gen 1 / USB 3.1 Gen 1)
Port Type USB Type-A (9-pin)
Data Transfer Rate Up to 5 Gbps per port (limited by PCI bus to ~1.3 Gbps aggregate)
Connectivity Technology Wired

Physical & Environmental
Width 0.8 in (20 mm)
Depth 5.2 in (132 mm)
Height 2.6 in (66 mm)
Operating Temperature 5°C to 50°C (41°F to 122°F)
Storage Temperature -25°C to 70°C (-13°F to 158°F)
Humidity 15% to 90% non-condensing
LED Indicators Power, Activity (per port)
MTBF 200,000 hours

Cloud Management & Licensing
Cloud Management
Software Included Drivers for Windows, Mac, Linux
OS Compatibility Windows 7/8/10/11, macOS 10.6+, Linux 3.5+

Additional Information
UPC 065030849517
Manufacturer Part Number PCIUSB3S4
Compatibility Compatible with standard PCI slots found in PCs like Dell OptiPlex 7010, HP Compaq dc7800
