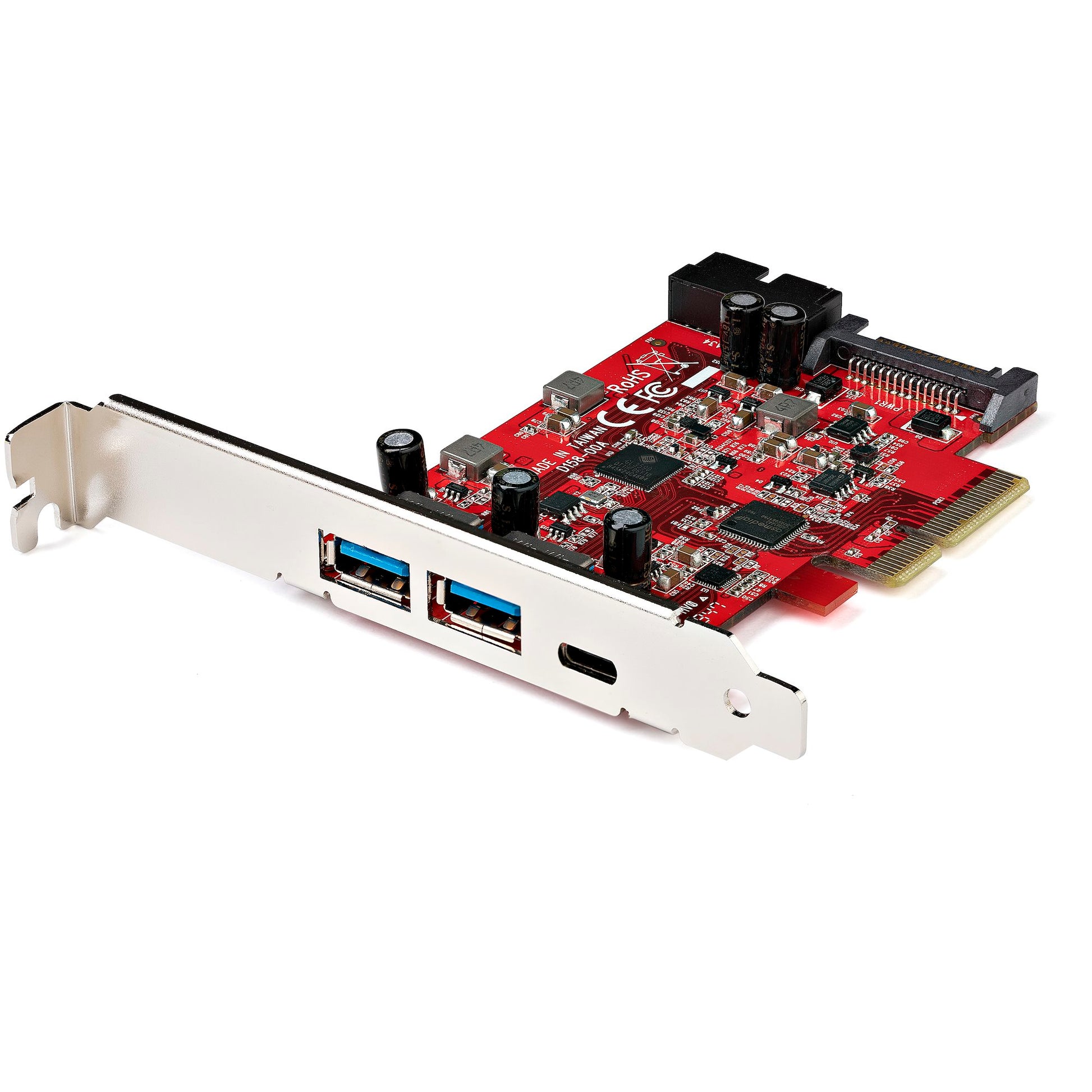

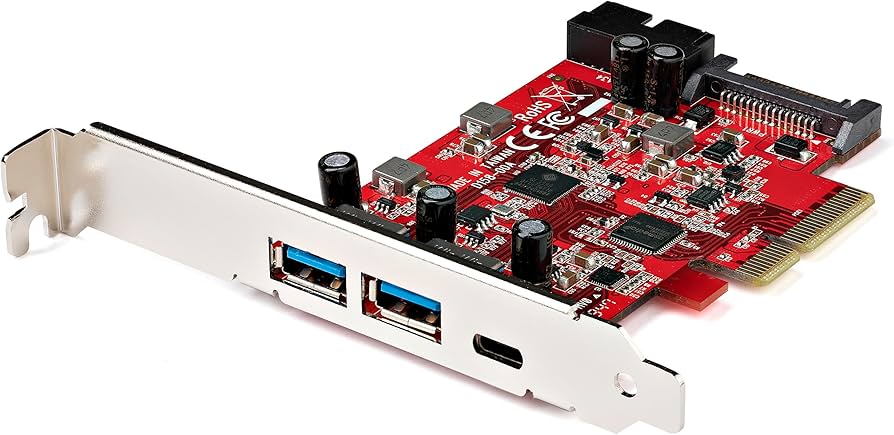

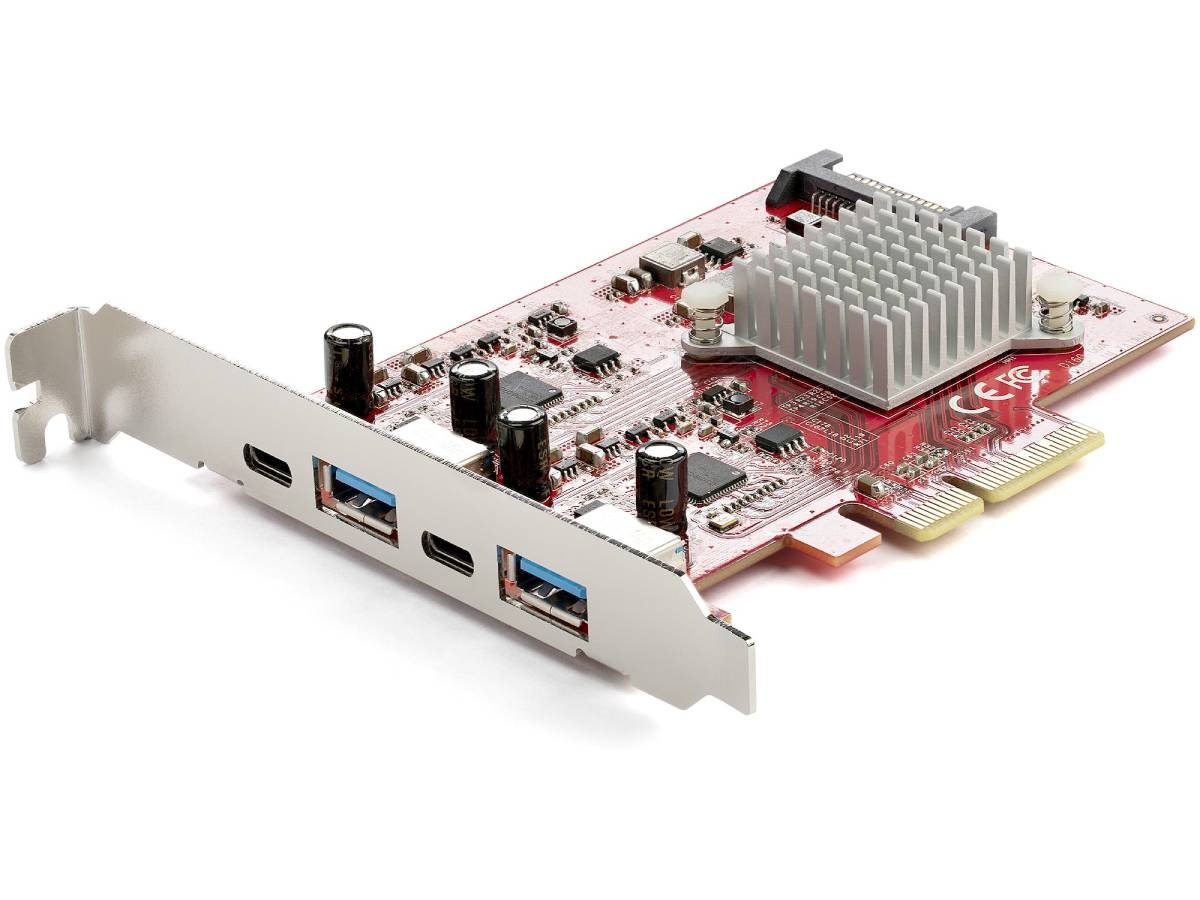

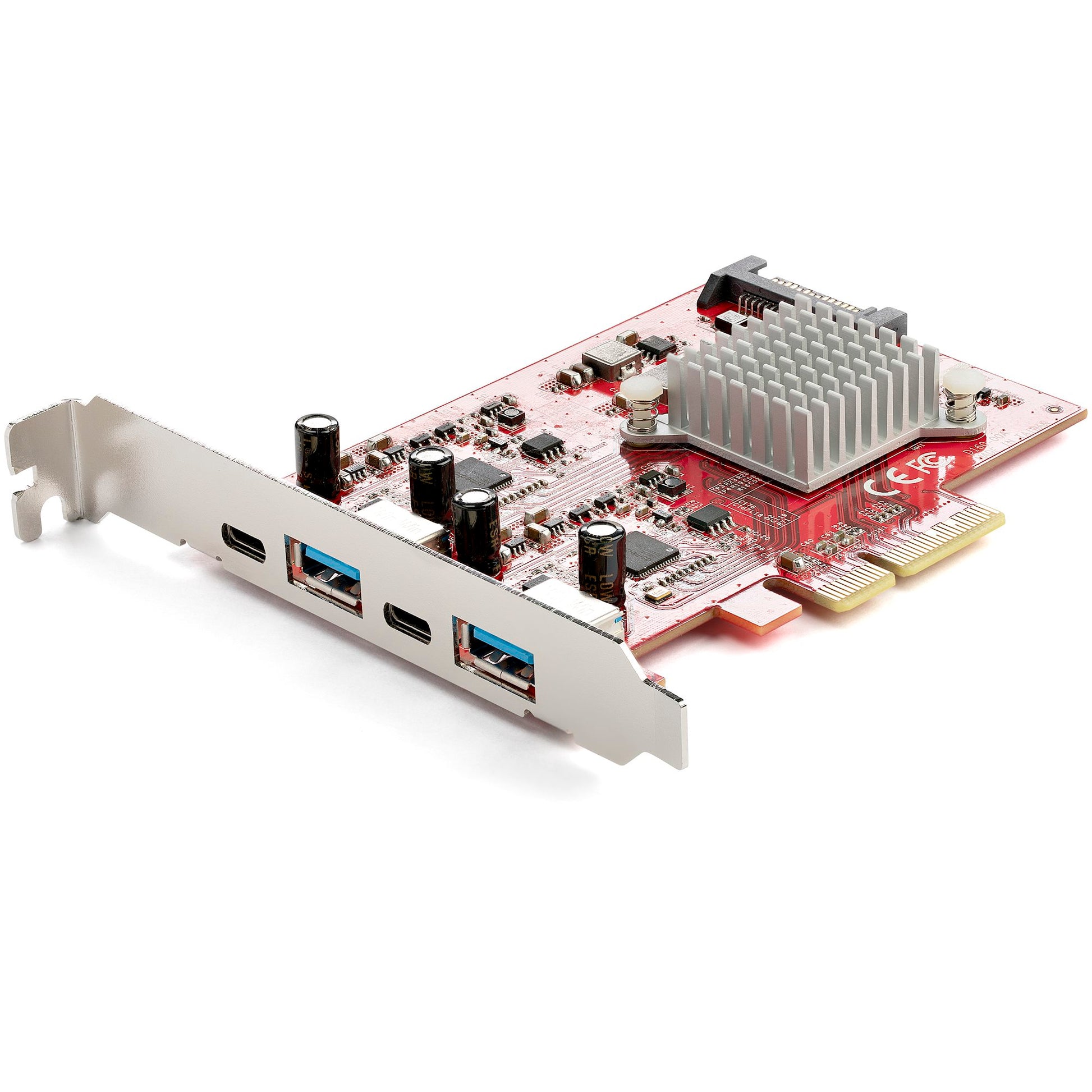

StarTech 4-Port USB 3.1 Gen 2 PCIe Card, 2x USB-C, 2x USB-A, 10Gbps

VENDOR: STARTECH Mfg Part#: PEXUSB312A2C2V UPC#: 065030887076
  • This StarTech 4-port USB PCIe expansion card delivers high-speed 10Gbps transfer via USB 3.1 Gen 2 connections. Equipped with two USB-C and two USB-A ports, it leverages dual ASM3142 controllers for optimized bandwidth and supports optional SATA power for stable high-performance device connections. Ideal for desktop users needing fast SSD/NVMe or USB peripheral access.
1 1
Photo is for illustration purposes only. Actual product may be different.
$136.68
$136.68
Sale Sold out
MSRP: $137.99
Shipping calculated at checkout.
  • 4 external USB 3.1 Gen 2 ports: 2x USB-A and 2x USB-C, each supporting 10Gbps
  • Dual ASM3142 controllers supporting a total bandwidth of up to 20Gbps
  • PCI Express 3.0 x4 interface for high-speed system integration
  • Optional 15-pin SATA power connector for additional device power
  • Full-profile plug-in module form factor with durable red enclosure
  • TAA compliant and manufactured in Taiwan with 2-year warranty
View full details

Key Benefits

Eye-Insights
  • Enables ultra-fast data transfer for USB 3.1 Gen 2 peripherals at up to 10Gbps per port
  • Supports both USB-A and USB-C devices, offering broad connectivity for legacy and newer hardware
  • Dual-controller architecture ensures optimal performance and reduced bottlenecks under heavy load

Product Overview

4 Port USB PCIe Card (USB 3.1 Gen 2) - 2x ASM3142 controllers up to 20Gbps total - PCI Express expansion card; 10Gbps 2x USB-A/2x USB-C - Multiple INs - For USB/USB Type-C devices/SSD/NVMe - Optional SATA power - PCI-e 3.0 x4 slot; Full profile

Specifications

Primary Information
Product Type PCIe Card
Enclosure Color Red
Form Factor Plug-In Module
Network / Interface Type PCI Express 3.0 x4
Networking / Ports Qty 4
Data Transfer Rate 10 Gbps
Data Link Protocol USB
Connectivity Technology Wired

UNSPSC Code
UNSPSC Code 43201404

Dimensions&Miscellaneous
Width 3.3 Inch
Depth 4.4 Inch
Height 0.9 Inch

Special Feature
COO TAIWAN
TAA compliance Yes

Expansion
Interfaces & Connections Connector Type(s) PCI Express x4;Internal Ports SATA Power (15 pin);External Ports USB 3.2 Gen 2x1 USB Type-A (9 pin, 10 Gbps),USB 3.2 Gen 2x1 USB Type-C (24 pin, 10 Gbps)

Service&Support
Service & Support Type 2 Years Warranty
