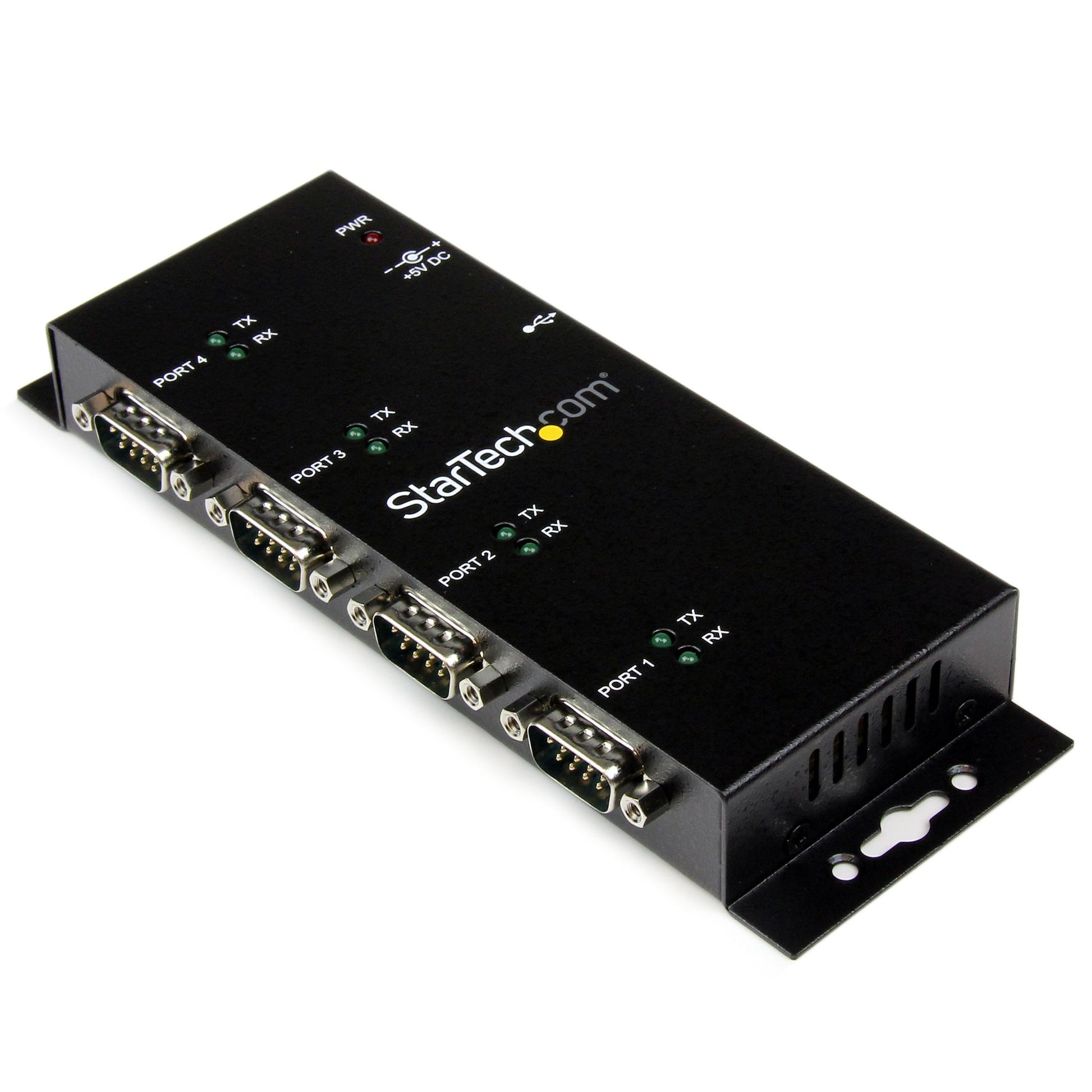

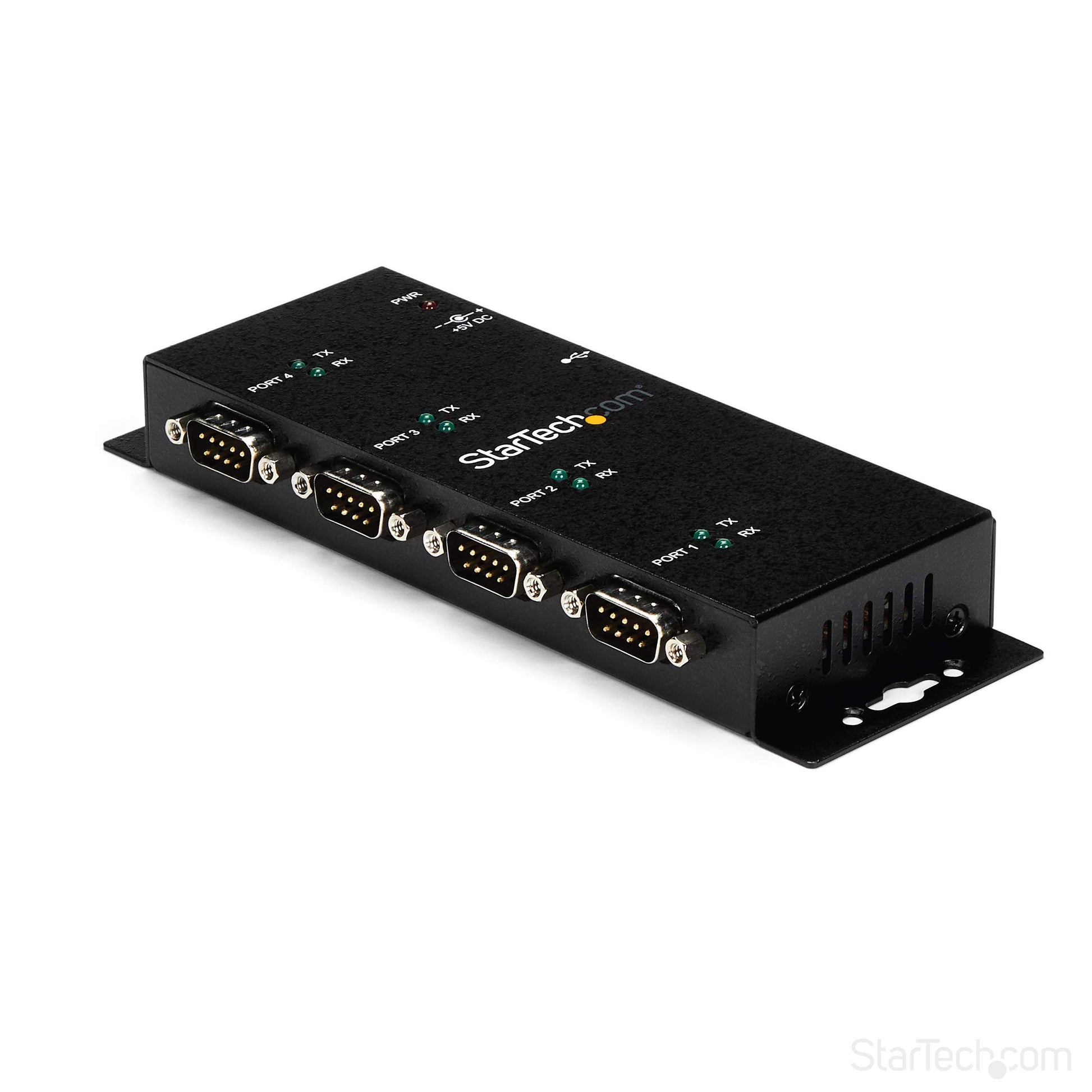

StarTech 4-Port USB to DB9 RS232 Serial Adapter Hub - ICUSB2324I

VENDOR: STARTECH Mfg Part#: ICUSB2324I UPC#: 065030848343
1 5
Photo is for illustration purposes only. Actual product may be different.
$168.00
$168.00
Sale Sold out
MSRP: $180.00
Shipping calculated at checkout.
  • 4 external DB9 RS232 ports via USB connection
  • Supports data transfer rates up to 921 Kbps
  • DIN rail-mountable enclosure for industrial applications
  • TAA compliant and RoHS certified
  • Wired connectivity with USB interface
  • Includes 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Adds four serial ports to any USB-equipped system, extending compatibility with legacy RS232 devices.
  • Industrial-grade design with DIN rail mount enables secured deployment in manufacturing or automation environments.
  • Reliable and compliant with TAA and RoHS standards, backed by a 2-year manufacturer warranty for peace of mind.

Product Overview

Add 4 DIN Rail-mountable RS232 Serial ports to any system through USB - 4 port usb serial adapter - 4 port usb to rs232 - USB to DB9 - USB to serial converter - USB to serial hub

Specifications

Product Overview
Product Type Adapter Hub
Form Factor External
Enclosure Color Black
Weight 263 g
Power Source Bus-powered or External Power Adapter

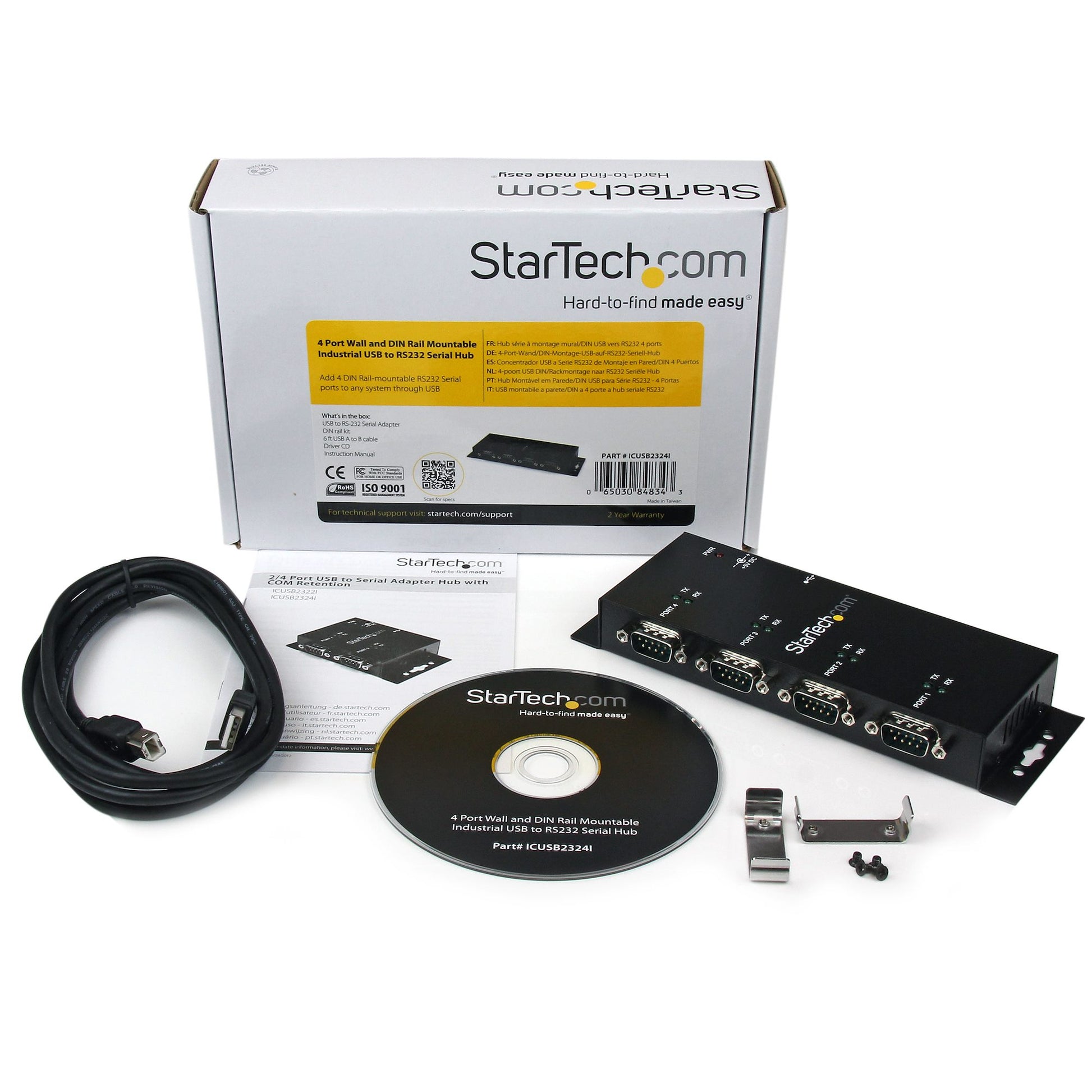

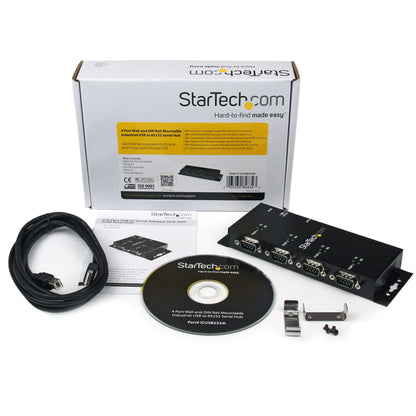

Included Accessories DIN Rail Mounting Kit, USB Cable
Product Series ICUSB
Compatible Operating Systems Windows, macOS, Linux
Chipset ID FTDI - FT4232HL

Wireless Features

Compliance & Origin
Country of Origin Taiwan
RoHS Compliant Yes
TAA Compliant Yes
Certifications CE, FCC, RoHS

Advanced Security Features

Interfaces
Interface Type RS-232
Ports Quantity 4
Connector Type DB-9 (9-pin D-Sub)
USB Interface USB 2.0 Type-B
Serial Protocol RS-232
Max Data Transfer Rate 921.6 Kbps
Connectivity Technology Wired
Baud Rate 300bps to 921.6Kbps
UART Support Yes
Serial Signal Support TXD, RXD, RTS, CTS, DSR, DTR, DCD, RI, GND

Physical & Environmental
Width 2.3 in
Depth 7 in
Height 0.9 in
Material Steel
Mounting Options DIN Rail, Wall Mountable
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Relative Humidity 5% to 95% (non-condensing)
Indicators Power, TX/RX LEDs per port
