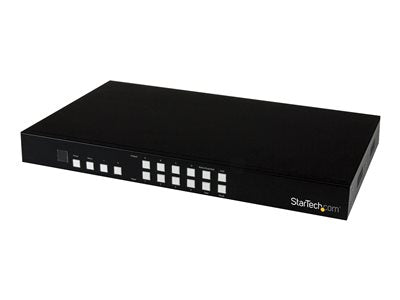

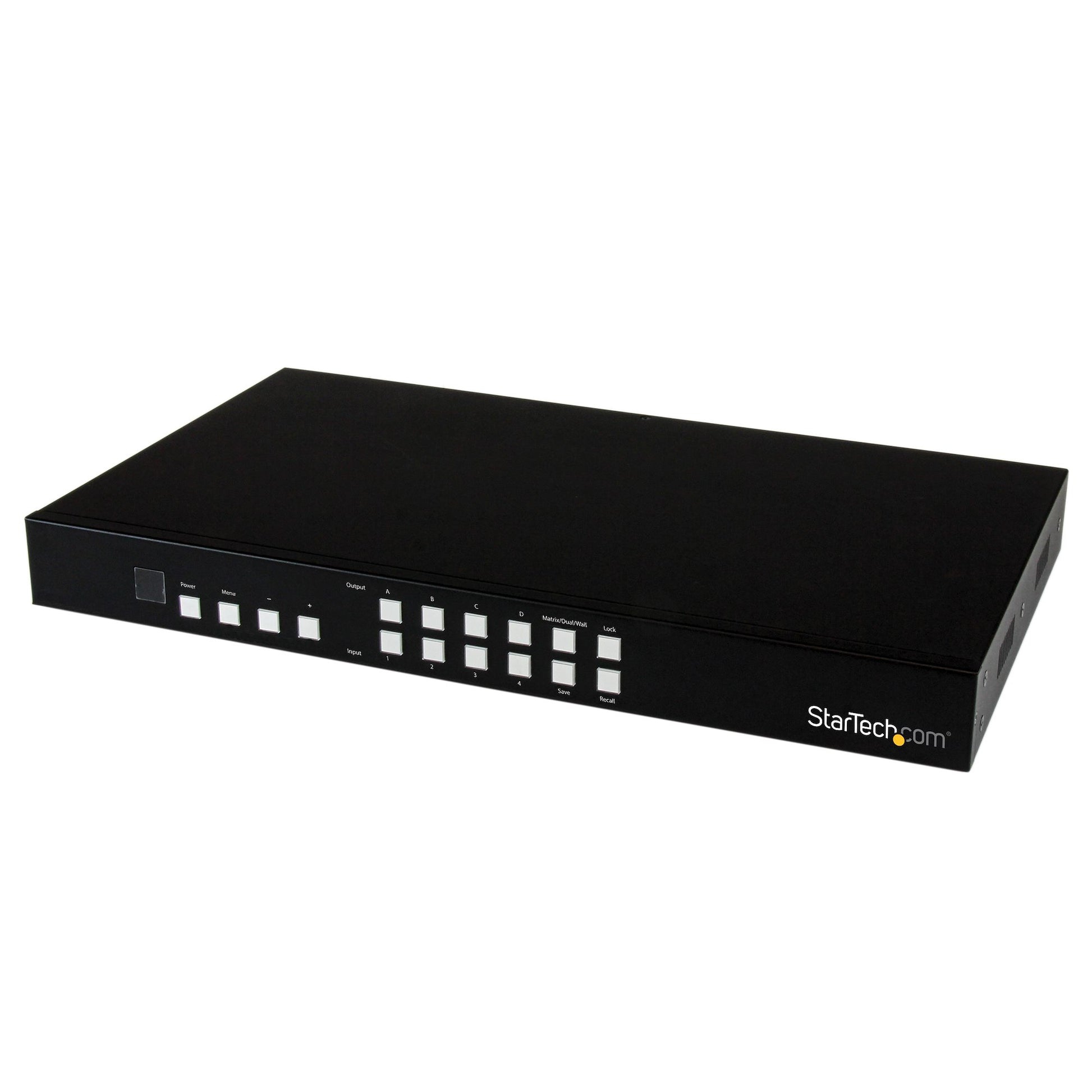

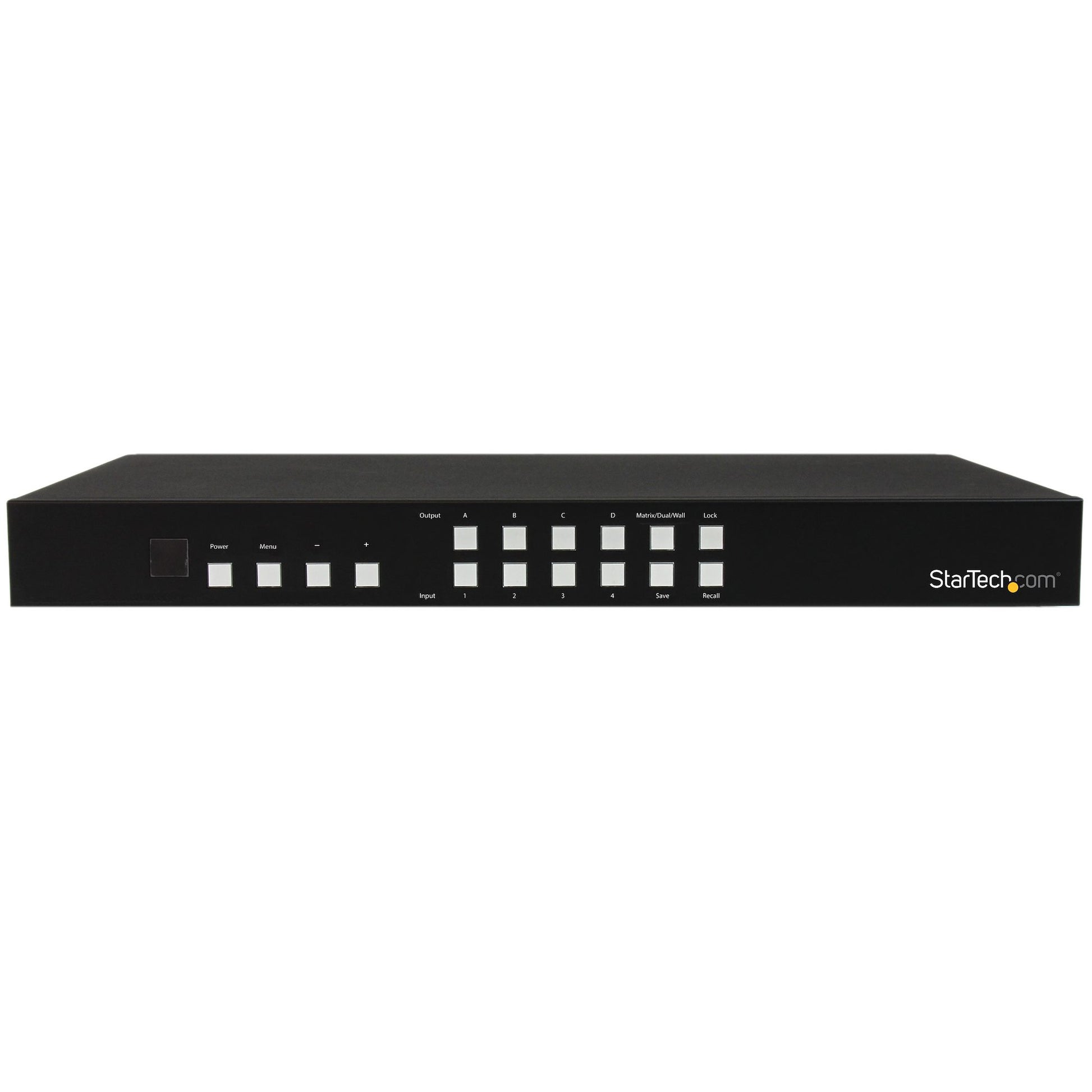

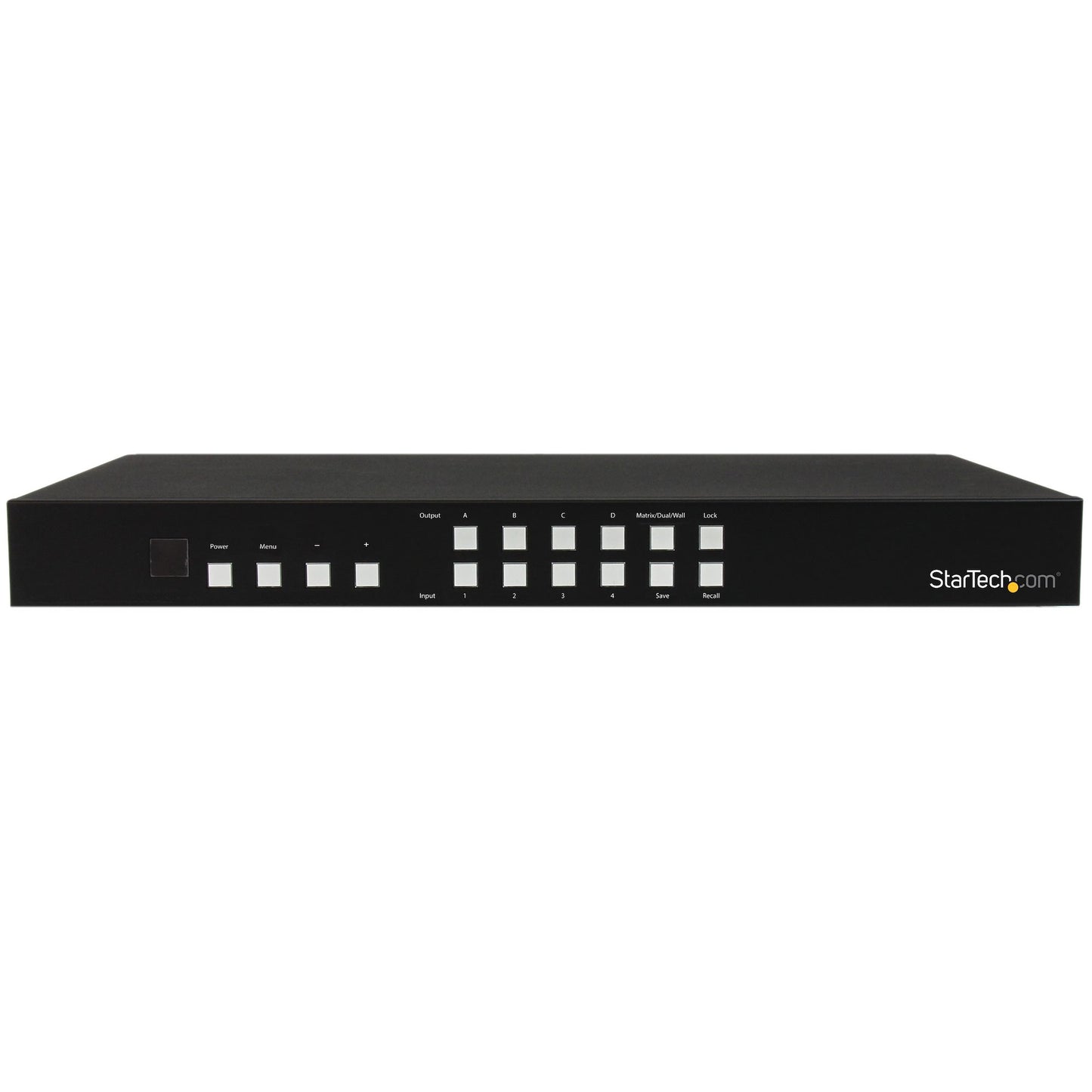

StarTech 4x4 HDMI Matrix Switch with PiP - VS424HDPIP

VENDOR: STARTECH Mfg Part#: VS424HDPIP UPC#: 065030858403
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,841.00
$1,841.00
Sale Sold out
Shipping calculated at checkout.
  • 4x HDMI inputs and 4x HDMI outputs support full matrix AV switching
  • Supports Matrix, Dual, Quad, and TV Wall PiP display modes
  • 36W operating power with 100-240V AC adapter included
  • External control interfaces include DB-9 RS232, RJ-45, and IrDA ports
  • TAA compliance suitable for government and enterprise applications
  • Operating temperature range from 0°C to 40°C for robust deployment

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports Picture-in-Picture and multi-view display modes for flexible AV presentation configurations.
  • Offers full 4x4 HDMI switching with serial, network, and IR control for comprehensive integration.
  • TAA-compliant and equipped with commercial-grade components, ensuring suitability for regulated industries and professional environments.

Product Overview

Share and switch four distinct HDMI audio/video sources between four HDMI displays, with optional Picture-and-Picture - HDMI Switch - HDMI Matrix Switch - HDMI Switcher - 4 way HDMI Splitter - HDMI Matrix with Picture and Picture - HDMI Matrix

Specifications

Product Overview
Product Type HDMI Matrix Switch
Model Number VS424HDPIP
Form Factor Rack-mountable or Desktop
Weight 6.2 lbs.
Power Supply Type External AC Adapter
Power Consumption (Operational) 36 Watt
Input Voltage 100 - 240V AC
Enclosure Color Black
Included Accessories 1 - 4x4 HDMI Matrix Switch
Warranty 2 Years

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes

Advanced Security Features
HDCP Compliance HDCP 1.4
EDID Management Yes

Interfaces
HDMI Input Ports 4 x HDMI (19 pin)
HDMI Output Ports 4 x HDMI (19 pin)
IR Control Port 1 x IrDA (Infrared, SIR/FIR)
RS-232 Serial Control Port 1 x DB-9 (9-pin, D-Sub)
RJ-45 Control Port 1 x RJ-45
Connectivity Technology Cable

Physical & Environmental
Width 9.8 inches
Depth 17.2 inches
Height 1.6 inches
Minimum Operating Temperature 0°C (32°F)
Maximum Operating Temperature 40°C (104°F)
Minimum Storage Temperature -20°C (-4°F)
Maximum Storage Temperature 60°C (140°F)

Cloud Management & Licensing
Remote Management Yes, via RS-232/RJ45 remote interface
Control Methods Front Panel, IR Remote, Serial, IP (Telnet/Web interface)

Additional Product Features
Matrix Modes Supported Matrix Mode (1x1), Dual Mode (2x1), Quad Mode (4x1), TV Wall Mode (1x4)
Video Resolution Support Up to 1920x1080 (1080p) @ 60Hz
Audio Support Yes, supports HDMI embedded multi-channel audio
Picture-in-Picture Support Yes
Signal Type HDMI Digital Video and Audio
Bandwidth 6.75 Gbps (2.25 Gbps per channel)
Cascadable Yes, for expanded configuration
