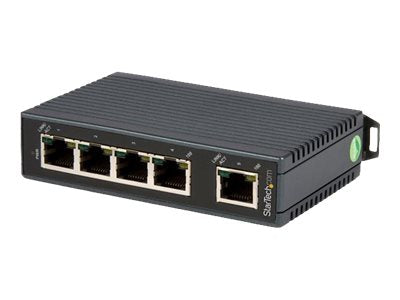

StarTech 5-Port Industrial 10/100 Ethernet Switch, DIN Mount, IP30, 12–48V DC

VENDOR: STARTECH Mfg Part#: IES5102 UPC#: 065030859745
1 5
Photo is for illustration purposes only. Actual product may be different.
$125.00
$125.00
Sale Sold out
MSRP: $135.00
Shipping calculated at checkout.
  • 5 RJ-45 Fast Ethernet ports (10/100 Mbps) with 200 Mbps total throughput
  • DIN rail mountable with a built-in bracket for industrial installation
  • Low power consumption of 2.12 watts with 12–48V DC wide-range input
  • Rugged IP30-rated black enclosure with -10°C to 60°C operating temperature
  • Compact design: 1" width, 2.8" depth, 4.3" height; weight: 150 g
  • TAA-compliant and includes a 2-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for industrial environments with wide operating temperature range and rugged IP30 enclosure
  • DIN rail mount support and compact form factor make it perfect for space-constrained installations
  • Reliable and efficient unmanaged network expansion with low power usage (2.12W) and wide DC input compatibility (12–48V)

Product Overview

Expand your network connectivity with this rugged unmanaged network switch - Fast 10/100Mbps Switch - DIN rail mountable w/ built-in bracket - IP30-rated - Wide range 12-48V DC terminal block - Energy-Efficient Ethernet - Wider operating temperature

Specifications

Product Overview
Product Type Unmanaged Industrial Ethernet Switch
Form Factor DIN Rail Mountable
Enclosure Rating IP30
Weight 150 g
Max Power Consumption 2.12 Watt
Power Input Range 12 to 48V DC
Output Voltage 12V DC
Mounting Type DIN Rail with Built-in Bracket
Warranty 2 Years

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC, UL, RoHS
Safety Standards EN 60950-1, IEC 60950-1

Advanced Security Features
Security Features None (Unmanaged)

Interfaces
Number of Ports 5
Port Type 10/100 RJ-45 Ethernet
Data Transfer Rate 200 Mbps (Full Duplex)
Auto MDI/MDI-X Yes
Auto-Negotiation Yes
Switching Capacity 1 Gbps
Jumbo Frame Support 2K bytes
MAC Address Table Size 1K entries
Forwarding Rate 148,800 pps per port
Store and Forward Yes

Physical & Environmental
Width 1 Inch (25.4 mm)
Depth 2.8 Inch (71.1 mm)
Height 4.3 Inch (109.2 mm)
Minimum Operating Temperature -10 °C
Maximum Operating Temperature 60 °C
Minimum Storage Temperature -25 °C
Maximum Storage Temperature 85 °C
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 5% to 95% RH (non-condensing)
Housing Material Metal
Color Black
Vibration Resistance IEC 60068-2-6
Shock Resistance IEC 60068-2-27
Free Fall Rating IEC 60068-2-32

Cloud Management & Licensing
Managed No (Unmanaged Switch)
Cloud Management No
