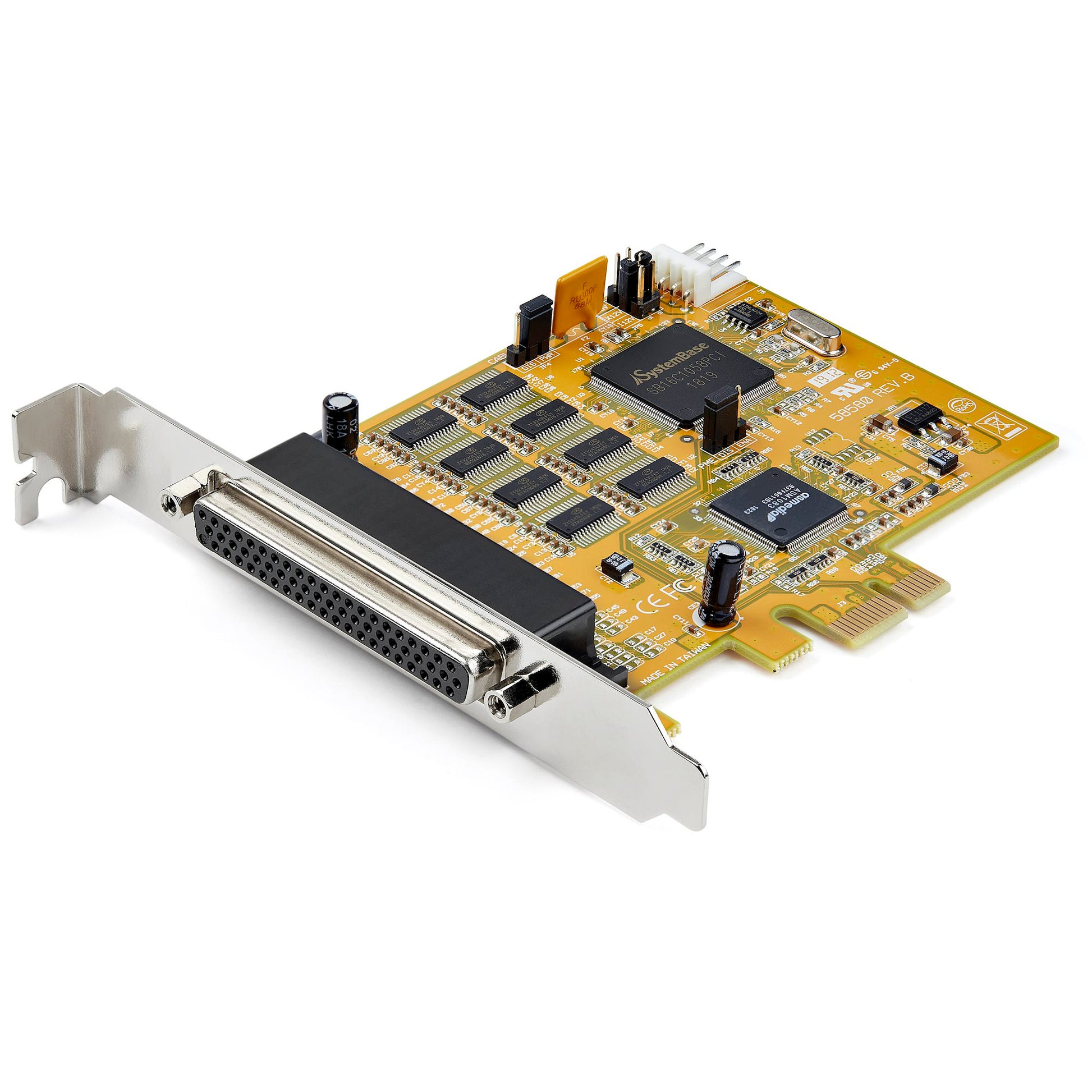

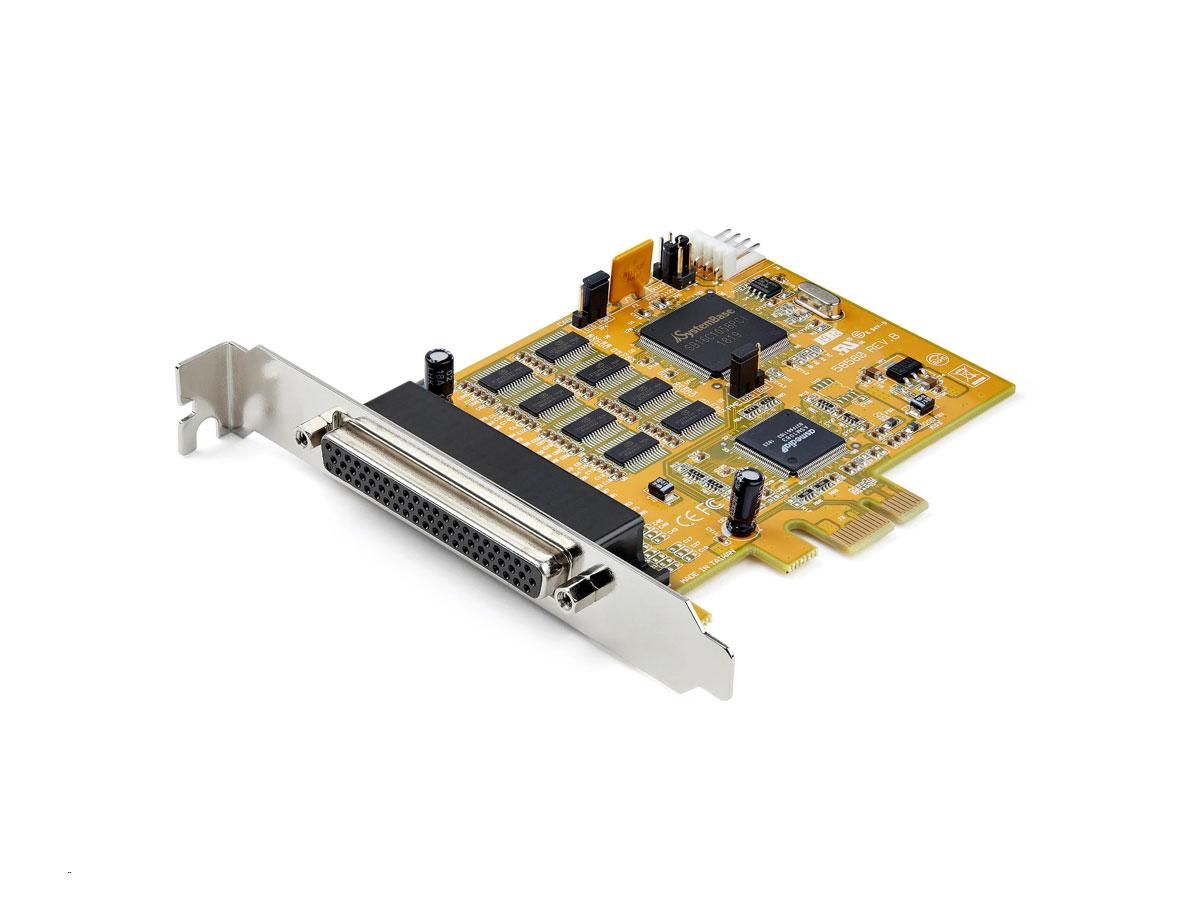

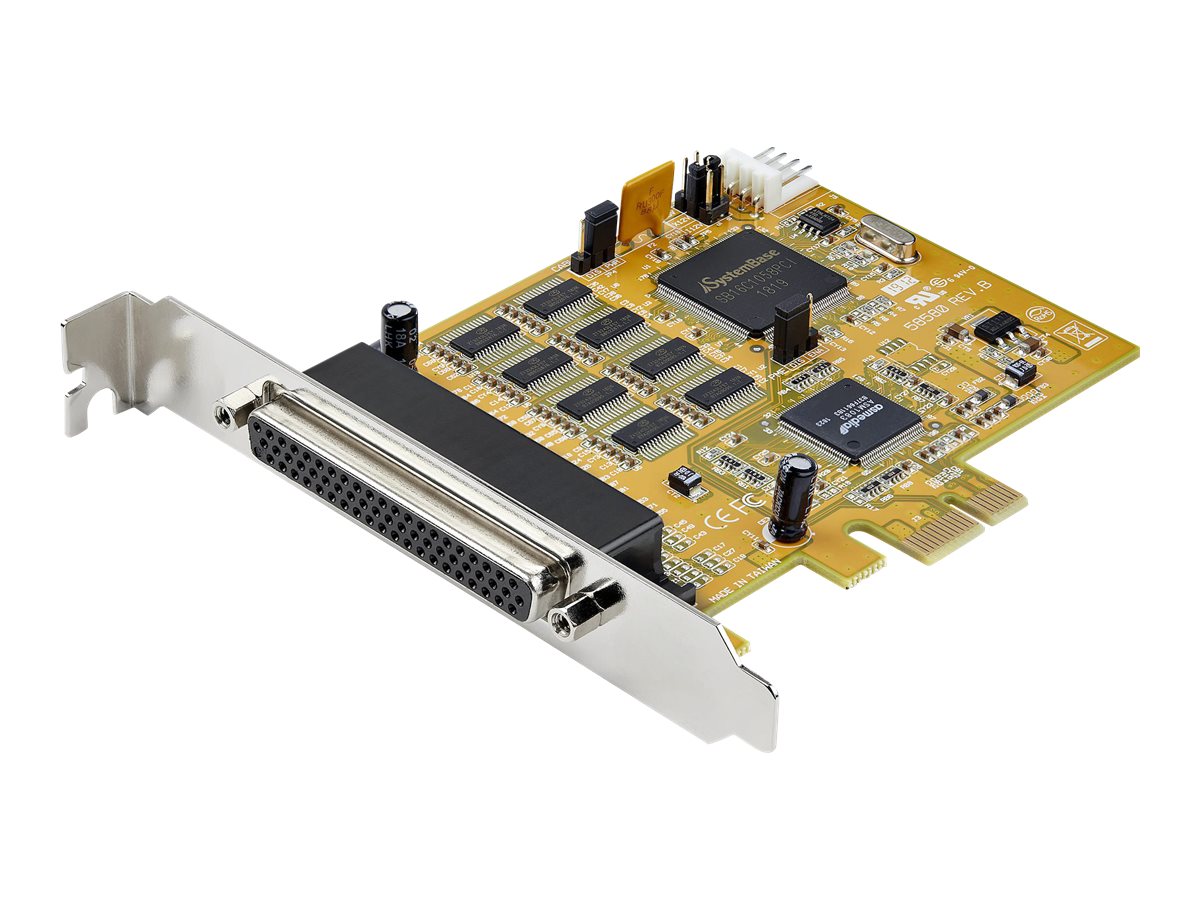

StarTech 8-Port PCIe RS232 Serial Adapter Card – 15kV ESD Protection

VENDOR: STARTECH Mfg Part#: PEX8S1050 UPC#: 065030888295
1 5
Photo is for illustration purposes only. Actual product may be different.
$295.00
$295.00
Sale Sold out
MSRP: $297.00
Shipping calculated at checkout.
  • 8 RS232 serial ports with 921.6 Kbps bi-directional speed per port
  • Systembase SB16C1058PCI UART with 256-byte FIFO for efficient data flow
  • PCI Express x1 interface for easy system integration
  • 15kV ESD protection on all ports for industrial-grade safety
  • Includes DB62 to DB9 breakout cable with Hex nuts for secure connections
  • Pin 9 supports 5V/12V/none configurations with 3A max output

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for users needing robust RS232 connectivity in industrial or legacy environments
  • Lifetime warranty and TAA compliance assure quality and long-term viability
  • Flexible voltage output and high-speed serial support enhance compatibility with specialized devices

Product Overview

8-Port PCI Express RS232 serial adapter card 16C1050 UART 15kV ESD - Bi-directional speed 921.6Kbps/port; 256byte FIFO - Expansion controller card; Pin 9 power 5v/12v/none, 3A max - DB62 to DB9 cable w/Hex nuts - Windows only; Systembase SB16C1058PCI

Specifications

Product Overview
Product Type Network Adapters
Model Name PEX8S1050
Card Type Serial Adapter Card
Form Factor Plug-in card (low-profile bracket included)
Chipset SystemBase SB16C1058PCI
Number of Ports 8
Controller Interface PCI Express x1
Data Bus PCIe 2.0
UART 16C1050 compatible
FIFO Size 256 bytes
Maximum Data Rate per Port 921.6 Kbps
Output Power on Pin 9 Selectable 5V/12V/None (3A max)
Power Requirements From PCIe slot
Operating System Support Windows only

Physical & Environmental
Height 4.7 in (12 cm)
Depth 4.1 in (10.4 cm)
Width 0.6 in (1.5 cm)
Product Weight 0.31 lb (0.14 kg)
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity 5% to 95% (non-condensing)

Interfaces
Interface Type PCI Express x1
Connector Type 1 x DB62 Female (breakout to 8 x DB9 Male)
External Ports 8 x DB9 Male (via DB62 breakout cable)
Included Cable 1 x DB62 to 8 x DB9 breakout cable with Hex nuts
Interface Standard RS-232
ESD Protection 15kV (Air) / 8kV (Contact) on all signal pins
Flow Control Software (XON/XOFF), Hardware (RTS/CTS, DSR/DTR)
Transmit Buffer 256 Bytes per port
Receive Buffer 256 Bytes per port

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Certifications CE, FCC, REACH
Warranty Lifetime Warranty
