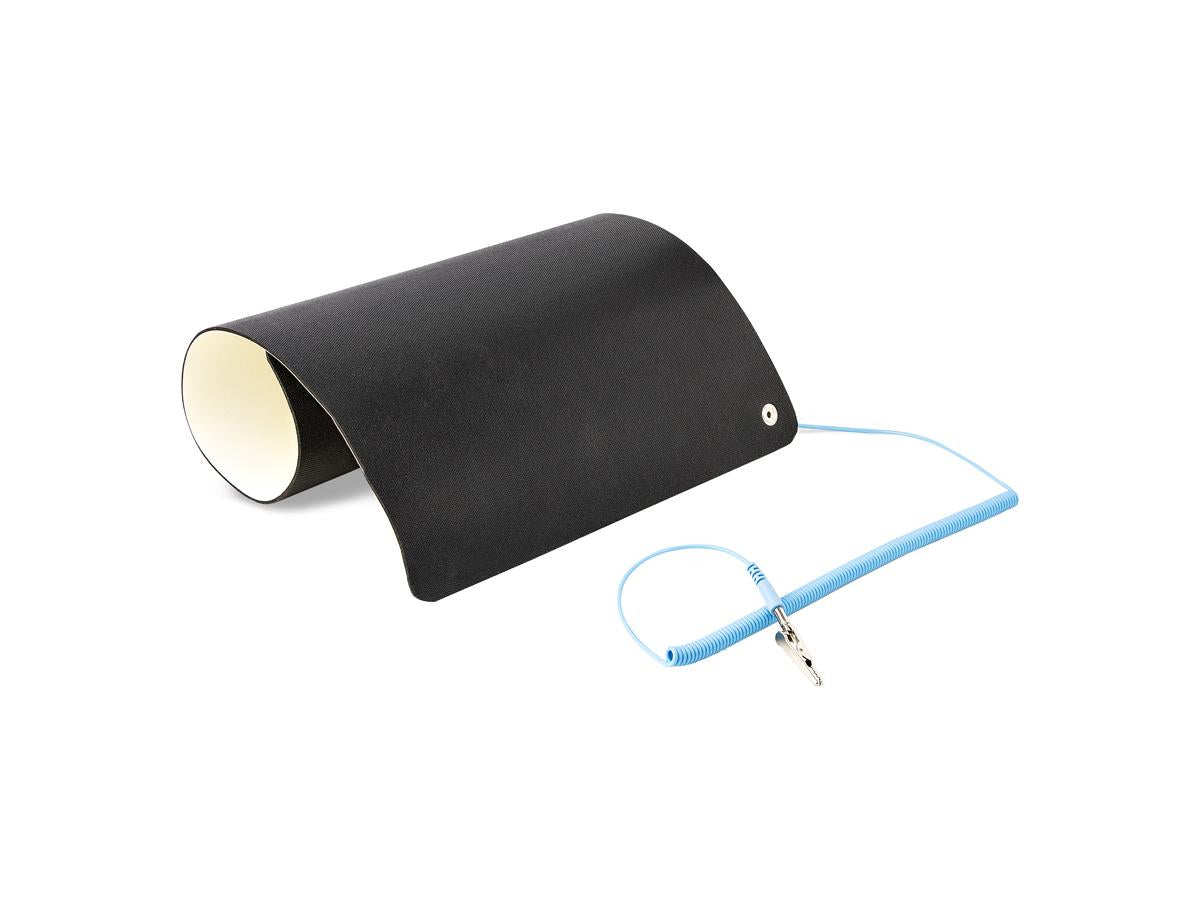

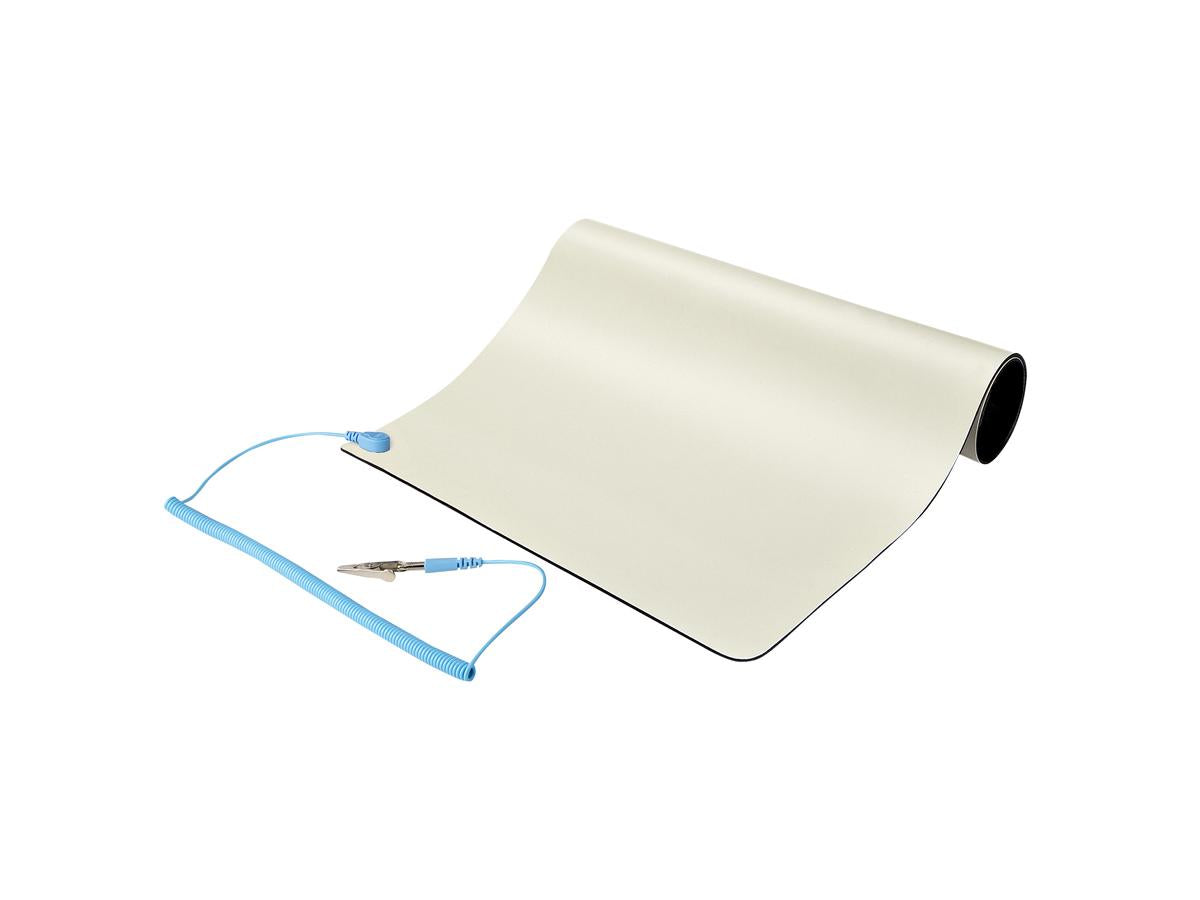

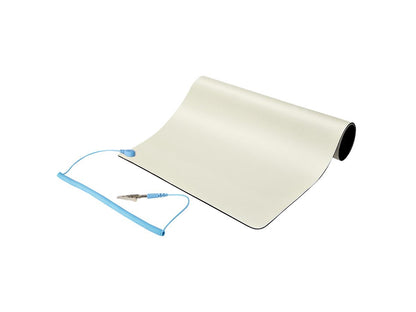

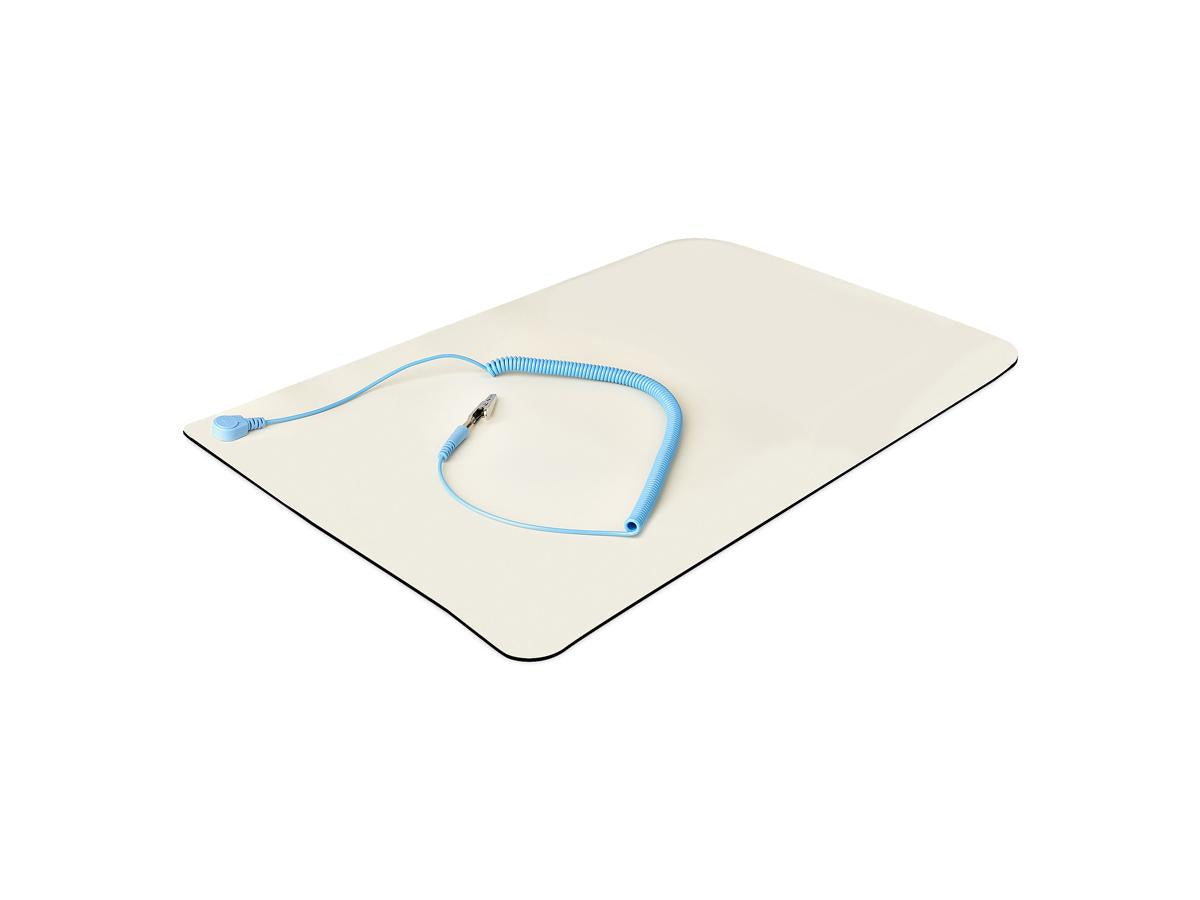

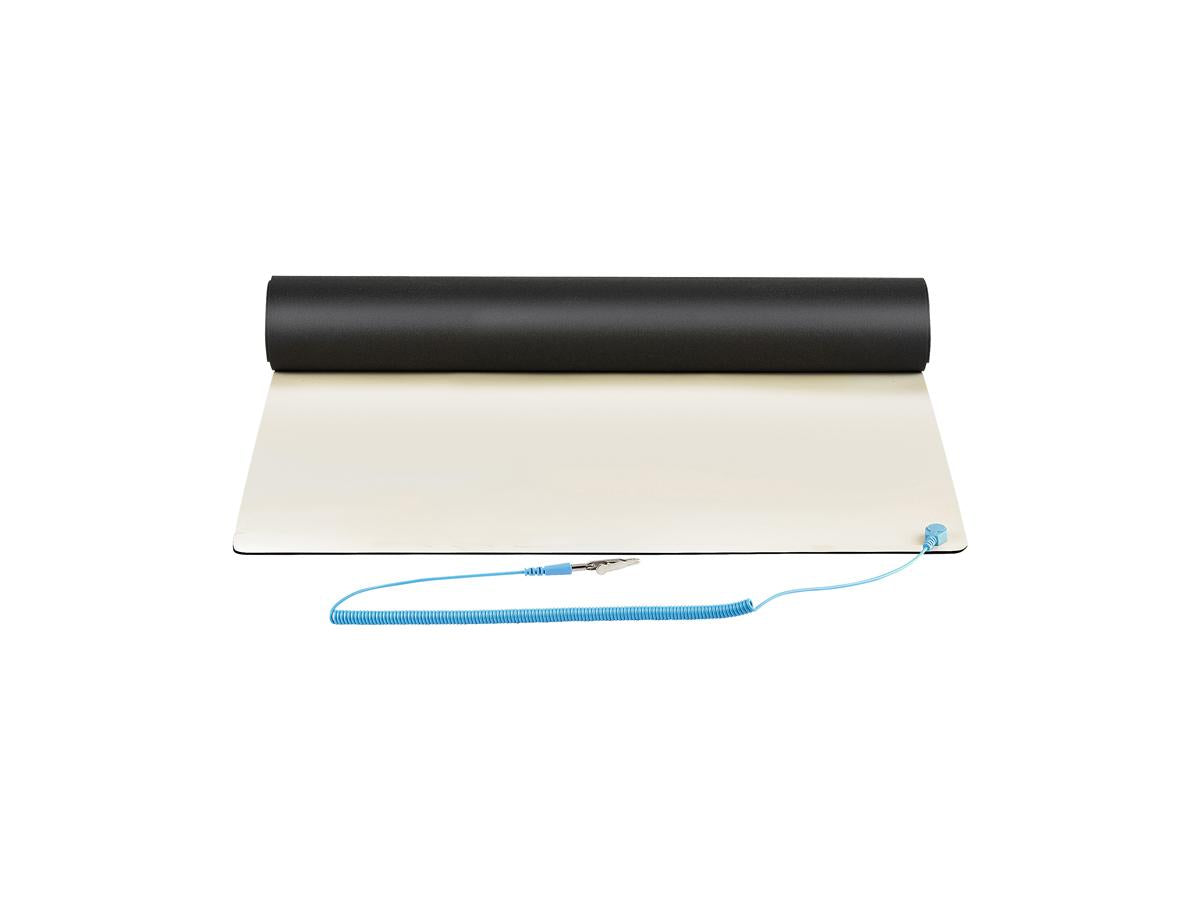

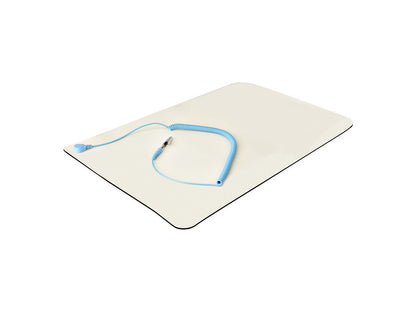

StarTech Anti-Static ESD Mat for Desk/Table, 11x18in Beige

VENDOR: STARTECH Mfg Part#: SM-ANTI-STATIC-MAT UPC#: 065030894708
1 5
Photo is for illustration purposes only. Actual product may be different.
$30.00
$30.00
Sale Sold out
MSRP: $38.00
Shipping calculated at checkout.
  • Complies with ANSI/ESD S4.1 standards for electrostatic discharge protection
  • Top layer made from anti-static PVC for durable and consistent grounding
  • Compact 11x18 inch (0.3m x 0.46m) size ideal for desks and workbenches
  • TAA compliant and manufactured in Taiwan for regulated procurement
  • 2-year manufacturer service and support for reliability assurance
  • Beige color for neutral compatibility with most workstation environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered with ANSI/ESD S4.1 compliance for high-performance electrostatic protection
  • Includes a 2-year support warranty, maximizing long-term value and performance assurance
  • TAA compliance and Taiwan manufacturing ensure suitability for government and enterprise procurement standards

Product Overview

The ESD mat helps prevent damage from an electrostatic discharge. The size of the ESD table mat is 11x18in - The electrical grounding mat complies with ANSI/ESD S4.1 - Use the ESD table mat for computer repair/assembly, server rooms, lab testing

Specifications

Product Overview
Product Type Anti-Static ESD Mat
Form Factor Tabletop / Desk Mat
Color Beige
Material Top Layer - Anti-Static PVC
Product Series SM Series
Manufacturer Part Number SM-ANTI-STATIC-MAT
Weight 0.45 kg
Power Requirements Grounded via included grounding wire
Warranty 2 Years

Interfaces
Grounding Connector Type 10 mm male snap
Grounding Cord Length 6 ft (1.8 m)

Advanced Security Features
ESD Protection Static dissipative top layer prevents electrostatic damage to components
Resistance to Ground 10^7 ohms (typical)
Discharge Time <0.1s from 5000V to <100V

Wireless Features
Wireless Capability

Physical & Environmental
Width 0.3 m (11.8 in)
Depth 0.46 m (18.1 in)
Height 0.002 m (2 mm)
Operating Temperature 15°C to 35°C
Storage Temperature 5°C to 50°C
Operating Humidity 20% to 80% RH (non-condensing)
Surface Resistance 10^6 to 10^9 ohms
Mat Type Two-layer ESD mat with grounding wire

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
Standards Compliance ANSI/ESD S4.1-2006
RoHS Compliant Yes
REACH Compliant Yes

Cloud Management & Licensing
Monitoring Software Support
