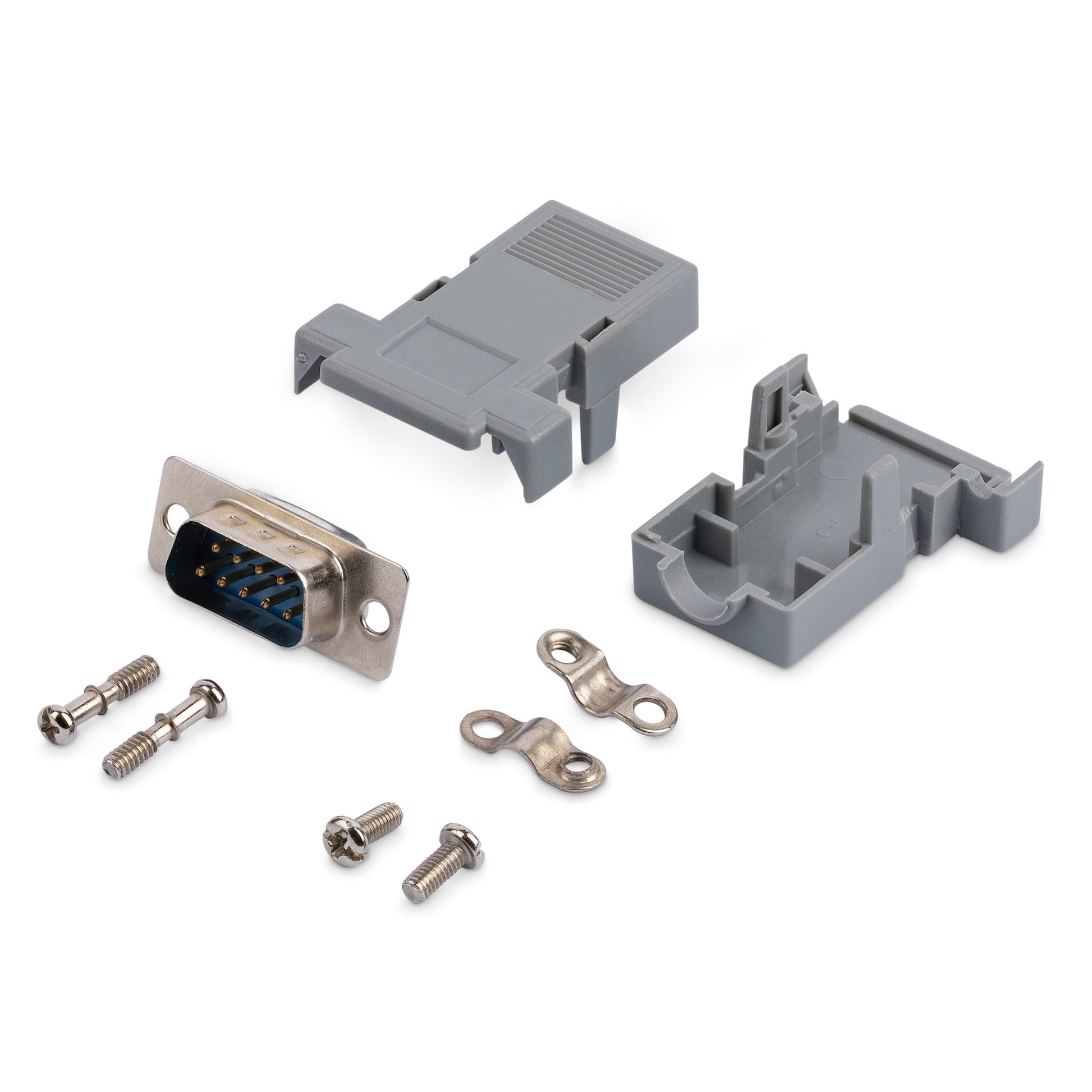

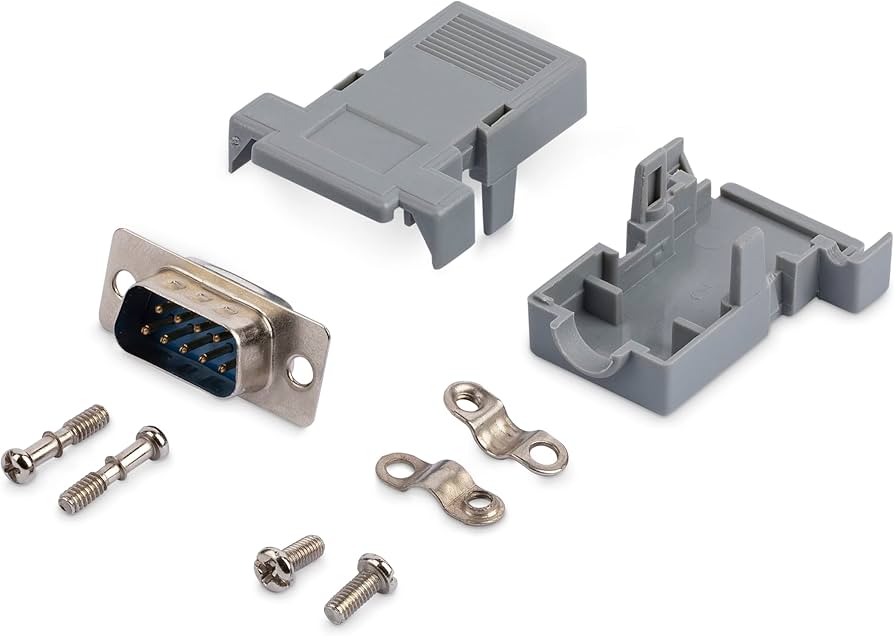

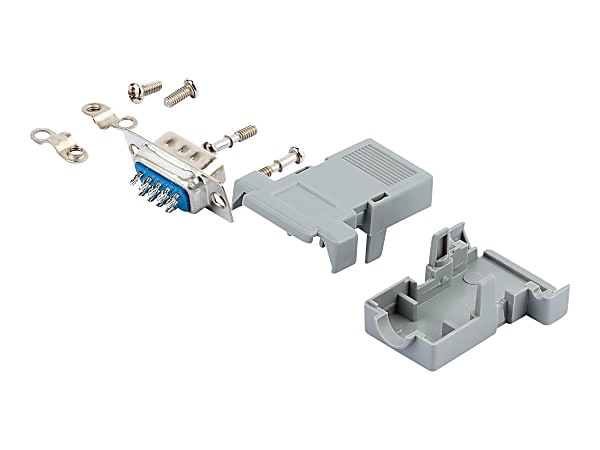

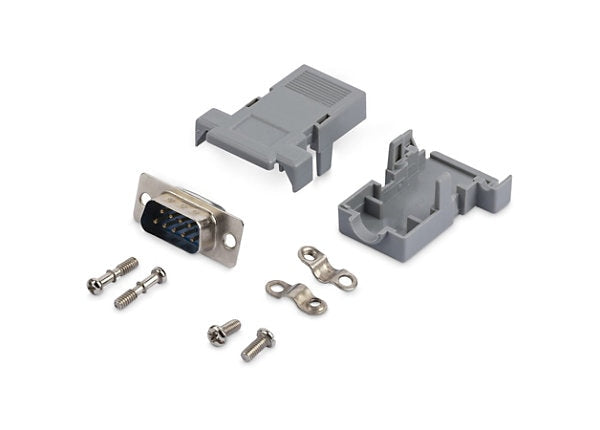

StarTech DB9 Male Solder D-SUB Connector with Plastic Backshell

VENDOR: STARTECH Mfg Part#: C9PSM UPC#: 065030775243
1 5
Photo is for illustration purposes only. Actual product may be different.
$7.00
$7.00
Sale Sold out
MSRP: $12.00
Shipping calculated at checkout.
  • Plastic DB9 male solder D-Sub connector with 9-pin configuration
  • Includes molded gray plastic backshell for cable strain relief
  • TAA compliant and manufactured in Taiwan
  • Compact size: 1.2" width, 1.6" depth, 0.6" height
  • Lifetime warranty coverage from manufacturer

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for custom serial cable installations requiring DB9 male connectors
  • Meets TAA compliance requirements, suitable for government purchases
  • Backed by a lifetime warranty for long-term reliability and reduced replacement costs

Product Overview

Assembled DB9 Male Solder D-SUB Connector with Plastic Backshell - C9PSM - Lifetime Warranty - Material: Plastic - Color: Gray - Connector Type(s): 1 - DB-9 (9 pin, D-Sub)

Specifications

Product Overview
Product Type D-SUB Connector
Connector Gender Male
Connector Style Solder
Form Factor Panel Mount with Backshell
Shell Material Plastic
Color Gray
Included Accessories Plastic Backshell
Warranty Lifetime Warranty

Physical & Environmental
Width 1.2 in (30.5 mm)
Depth 1.6 in (40.6 mm)
Height 0.6 in (15.2 mm)
Housing Material Plastic
Backshell Type Two Piece Snap-On Closure
Operating Temperature -55°C to 105°C
Flammability Rating UL94V-0

Cloud Management & Licensing
Cloud Management

Interfaces
Connector Type DB9 (9-pin D-Sub)
Number of Contacts 9
Contact Type Solder Cup
Contact Material Brass
Contact Plating Gold
Shell Plating Nickel
Mounting Type Cable Mount

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
REACH Compliant Yes
Certifications CE
Lead-Free Status Yes
