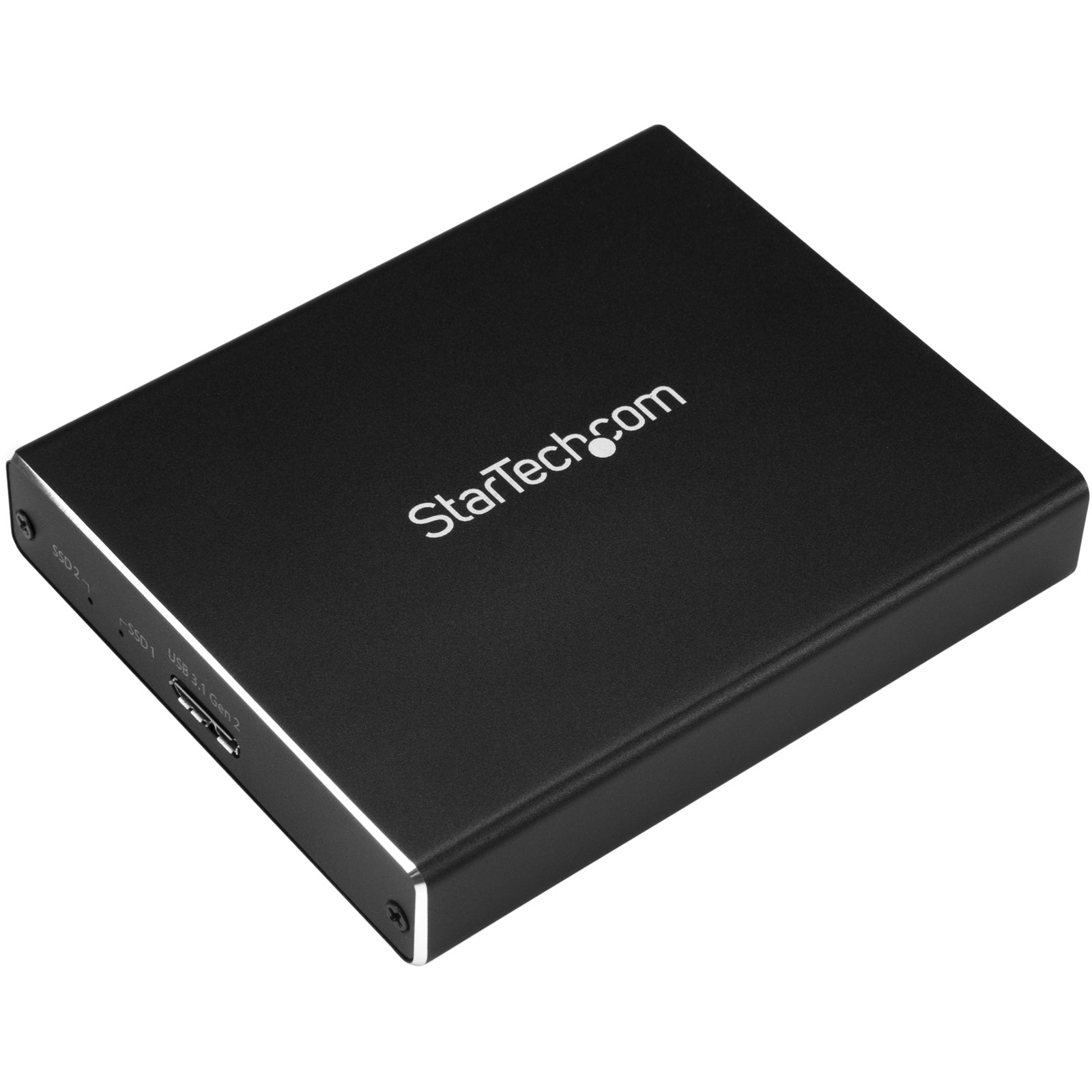

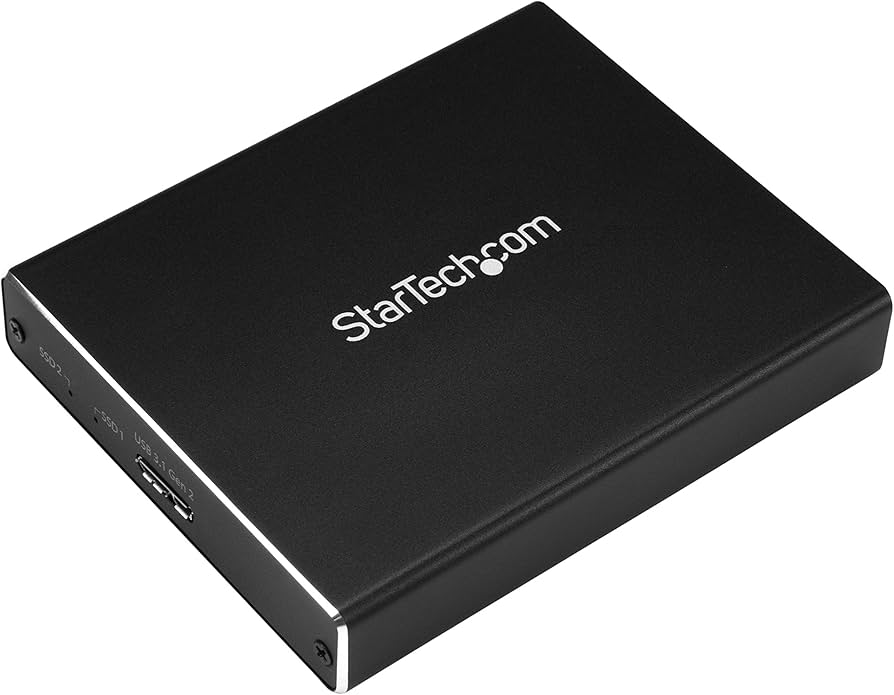

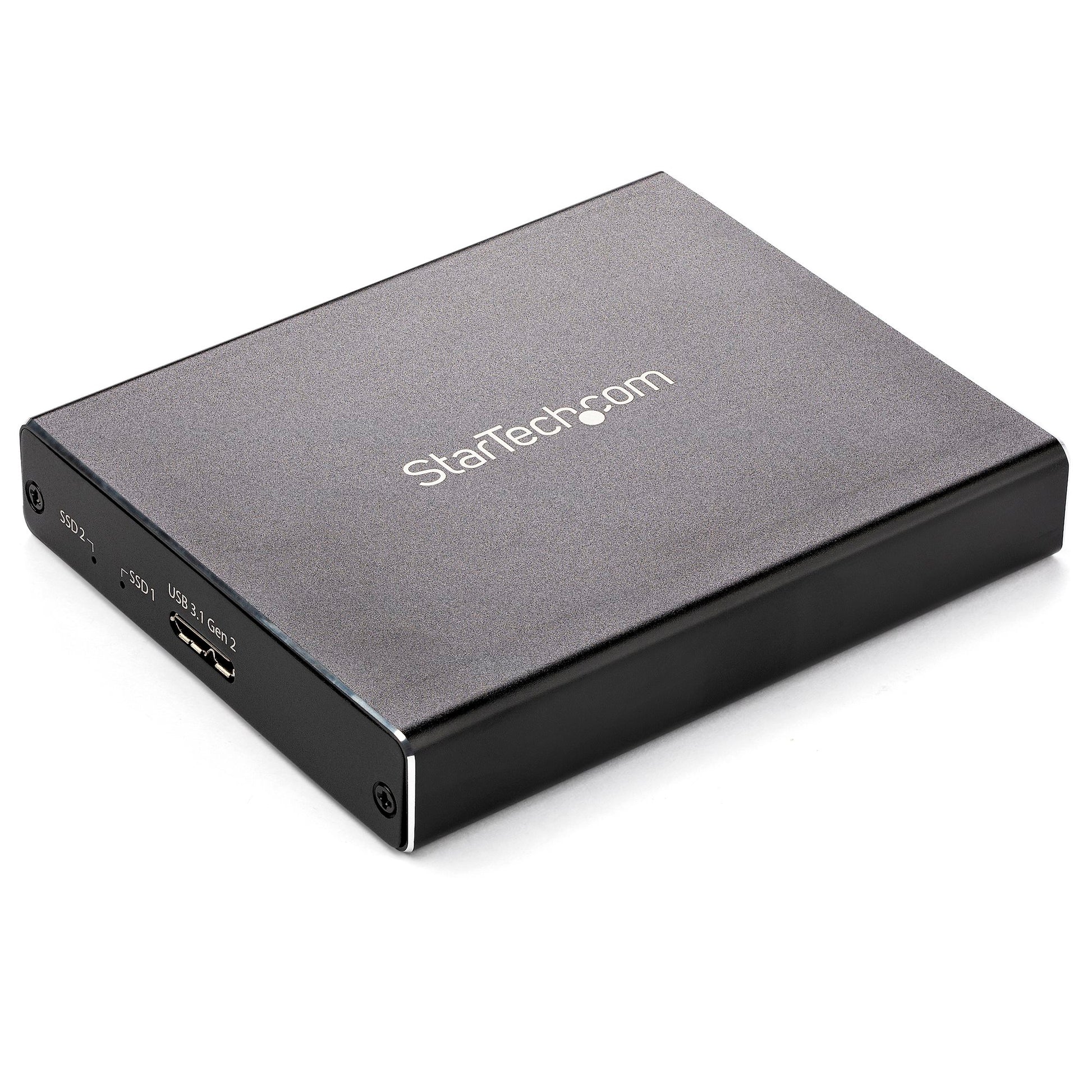

StarTech Dual M.2 SATA SSD Enclosure USB 3.1 Gen 2 RAID – SM22BU31C3R

VENDOR: STARTECH Mfg Part#: SM22BU31C3R UPC#: 065030870757
1 5
Photo is for illustration purposes only. Actual product may be different.
$86.00
$86.00
Sale Sold out
MSRP: $106.00
Shipping calculated at checkout.
  • Supports two M.2 SATA solid state drives

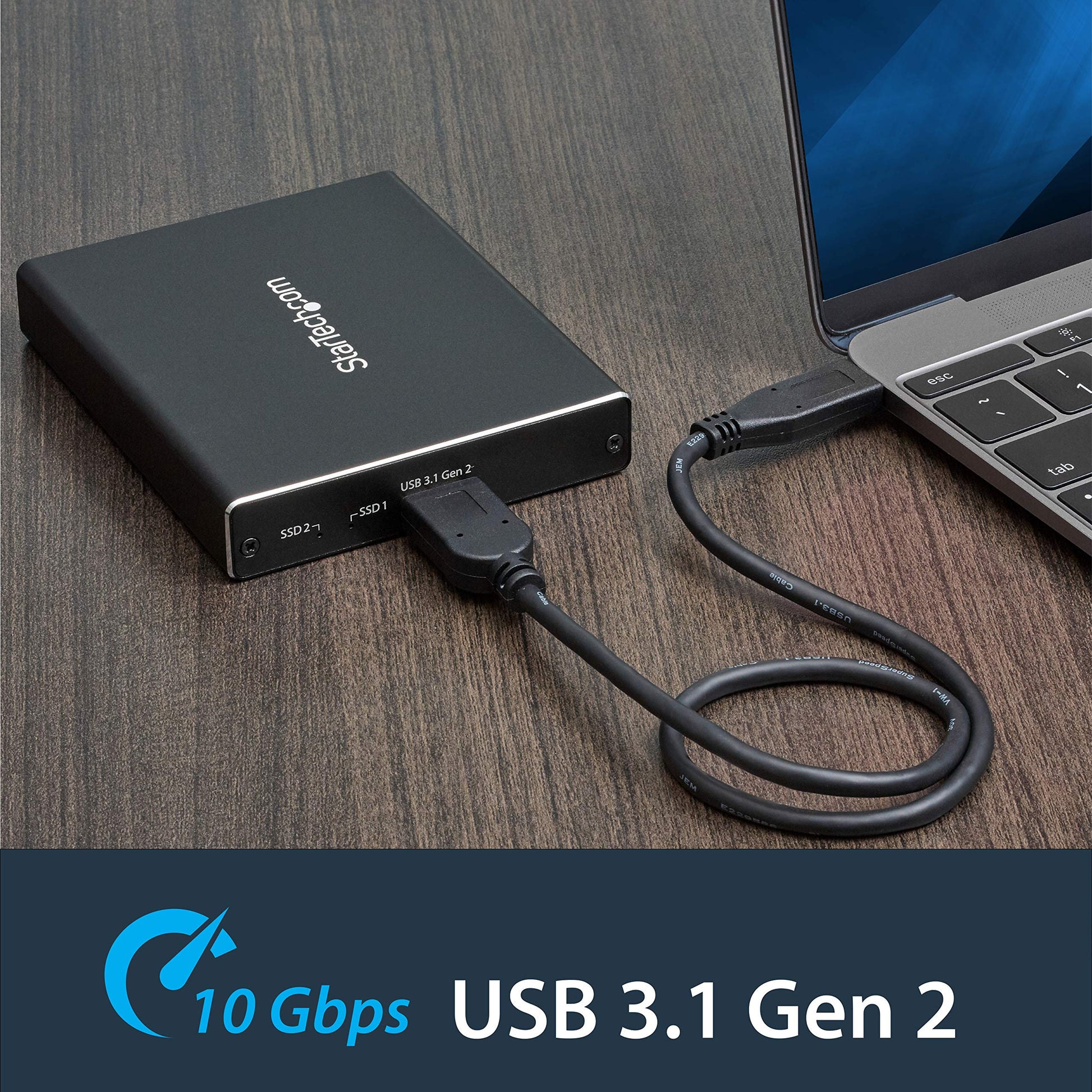

  • USB 3.1 Gen 2 interface provides up to 10 Gbps transfer speeds
  • Flexible RAID configuration support (level not specified)
  • AC adapter with 24W power output and 100–240V input range
  • Compact enclosure measuring 3.1 x 3.9 x 0.6 inches
  • TAA-compliant and backed by a 2-year warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high-speed data transfer via USB 3.1 Gen 2, ideal for demanding workflows
  • Versatile RAID support offers enhanced performance or data redundancy
  • TAA compliance and origin in Taiwan make it ideal for regulated enterprise or government deployments

Product Overview

Turn two M.2 SATA drives into ultra-fast portable storage with RAID for increased performance or redundancy - Dual M.2 SATA SSD Enclosure - USB 3.1 Gen 2 (10 Gbps) - For USB-C enabled host incl MacBook, Chromebook Pixel or Dell XPS or USB-A device

Specifications

Product Overview
Type Dual M.2 SATA SSD Enclosure
Form Factor External
Model SM22BU31C3R
Color Black
Power Requirements 100 – 240V AC, 24W included power adapter
Drive Support 2 x M.2 SATA SSDs (B or B+M Key)
Drive Type M.2 SATA
SSD Size Compatibility 2230, 2242, 2260, and 2280
RAID Modes Supported RAID 0, RAID 1, JBOD, Spanning (BIG)
Operating System Support Windows, macOS, Linux
Hot-Swap Support Yes
Tool-Less Installation Yes

Physical & Environmental
Width 3.1 inches (79 mm)
Depth 3.9 inches (100 mm)
Height 0.6 inches (16 mm)
Material Aluminum and Plastic
Enclosure Type Aluminum shell for passive cooling
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 65°C (14°F to 149°F)
Humidity 5% - 90% RH (non-condensing)

Cloud Management & Licensing
Cloud Management
Licensing Requirement No licensing required
Bundled Software

Interfaces
Host Interface USB 3.1 Gen 2 Type-C (10 Gbps)
Compatible USB Versions USB 3.1 Gen 2, backward compatible with USB 3.0/2.0
Data Transfer Rate Up to 10 Gbps
Drive Interface M.2 (NGFF) SATA
Number of Drive Bays 2
Connector Type USB-C (Female)
Included Cable 1 x USB-C to USB-C, 1 x USB-C to USB-A

Compliance & Origin
Country of Origin Taiwan
TAA Compliance Yes
Certifications CE, FCC, RoHS
Warranty 2 years

Advanced Security Features
Data Protection RAID 1 for redundancy
Encryption Support No hardware encryption
Drive Access Restriction No password or authentication feature
