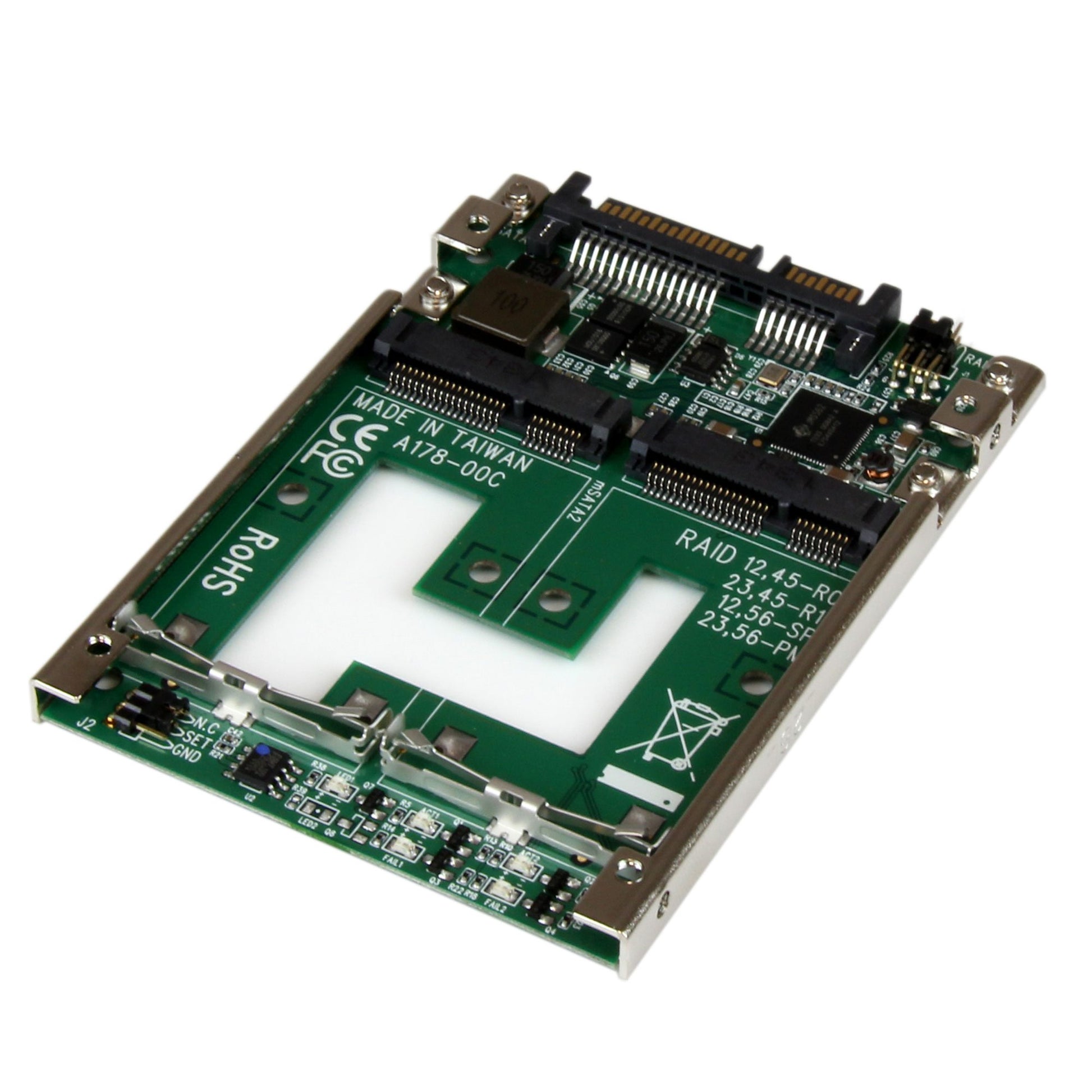

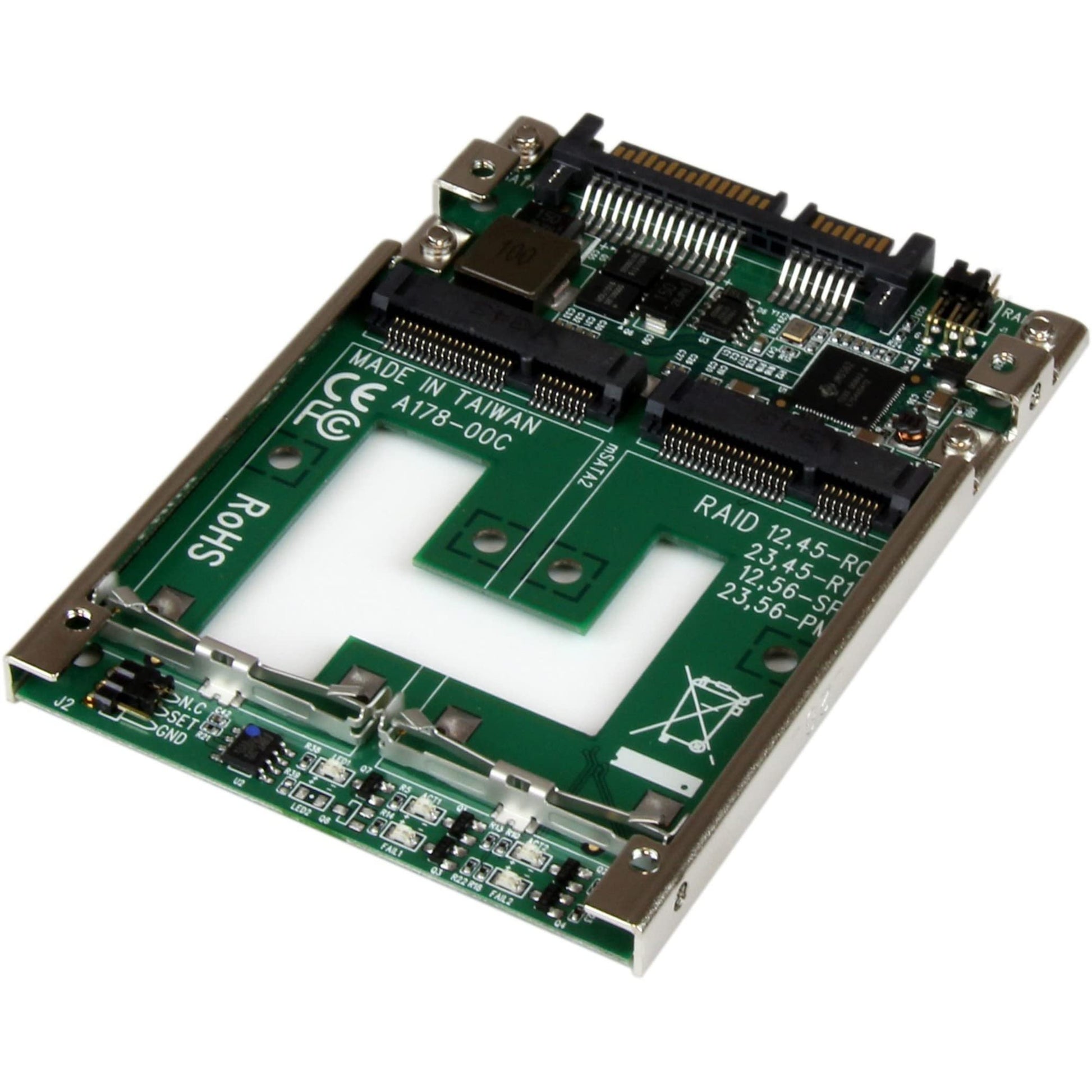

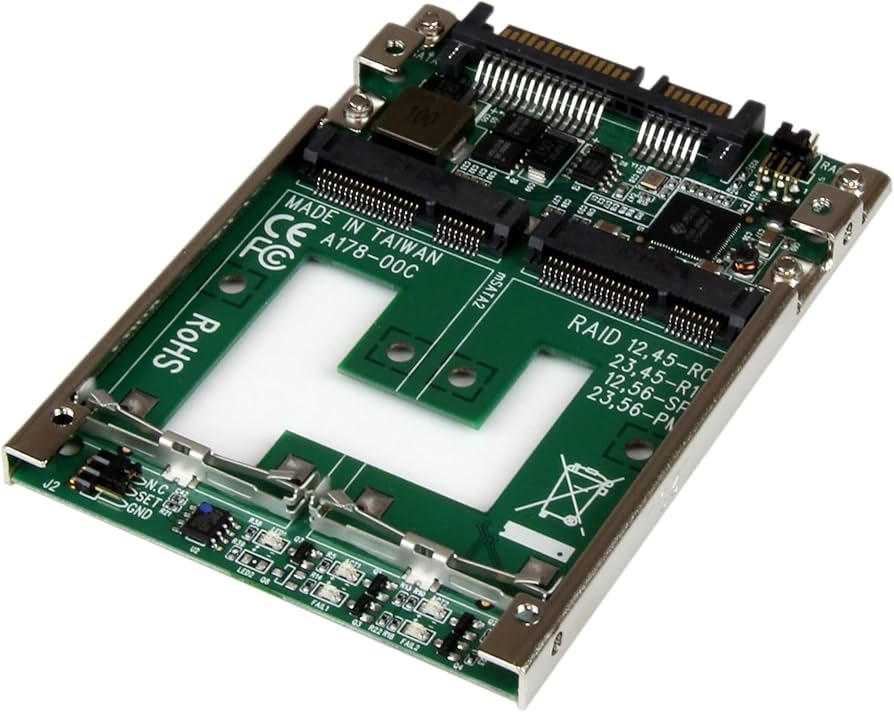

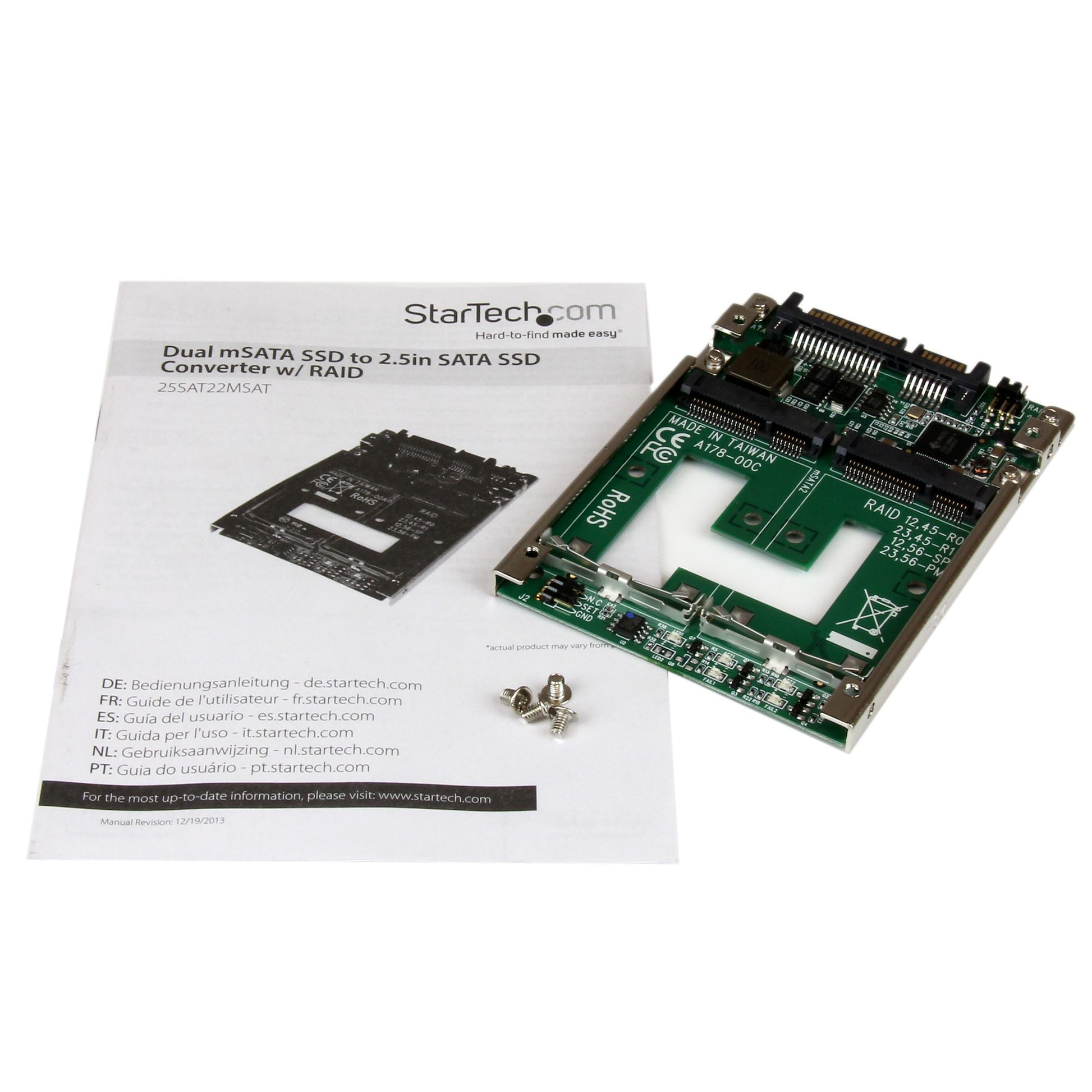

STARTECH Dual mSATA SSD to 2.5" SATA RAID Adapter, Model 25SAT22MSAT

VENDOR: STARTECH Mfg Part#: 25SAT22MSAT UPC#: 065030855617
1 5
Photo is for illustration purposes only. Actual product may be different.
$68.00
$68.00
Sale Sold out
MSRP: $73.00
Shipping calculated at checkout.
  • Supports RAID 0, RAID 1, and JBOD configurations for flexible storage management
  • Dual full-size mSATA SSD bays housed in a 2.5" 7mm SATA form factor
  • Up to 6 Gbps data transfer rate for high-speed data performance
  • TAA compliant and manufactured in Taiwan, suitable for government procurement
  • Included two-year warranty for added product assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Allows cost-effective RAID configuration using existing mSATA SSDs in standard 2.5” SATA bays
  • Boosts storage performance or redundancy options without increasing physical drive footprint
  • Ideal for IT professionals needing compact RAID-capable storage for government or enterprise systems

Product Overview

Build a RAID array with two mSATA SSDs that can be installed into a single 2.5in SATA bay - 2 SSD to 2.5IN HDD Converter - mSATA to SATA Adapter - SSD to SATA - 7mm mSATA Adapter - 2.5IN Mounting Bracket - Dual mSATA RAID SATA Adapter

Specifications

Product Overview
Product Type RAID Adapter Converter
Form Factor 2.5 inch drive form factor
Mounting Fits standard 2.5 inch SATA bay
Drive Compatibility Dual full-size mSATA SSDs
Drive Bay Height 7mm
RAID Support RAID 0, RAID 1, JBOD
Power Source Powered via SATA interface
Hot Swap Support No
Enclosure Type Aluminum and plastic

Physical & Environmental
Width 2.8 inch (70 mm)
Depth 3.8 inch (97 mm)
Height 0.3 inch (7 mm)
Product Weight 48 g (1.7 oz)
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity Operating: 10% ~ 90% RH; Storage: 5% ~ 95% RH
Material Aluminum and plastic construction
LED Indicators Power and drive activity

Cloud Management & Licensing
Software Required No (Hardware RAID Controller)
Cloud Management Not Supported
Licensing Requirements None

Interfaces
Host Interface SATA III (6 Gbps)
Drive Interface mSATA (Mini SATA)
Number of mSATA Ports 2
Data Transfer Rate Up to 6 Gbps
SATA Revision SATA III
Port Connector Type SATA Data + Power (Standard 22-Pin)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
CE Certified Yes
FCC Compliant Yes
REACH Compliant Yes
Warranty 2 Years
