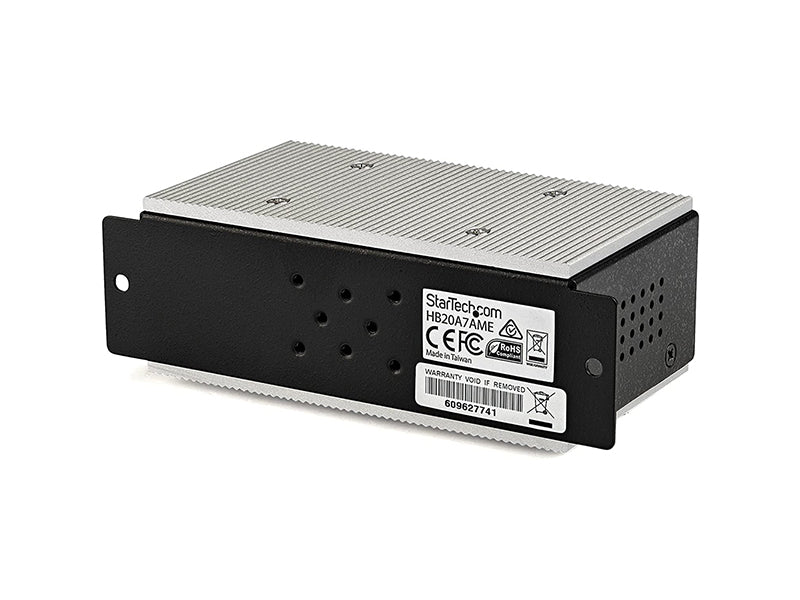

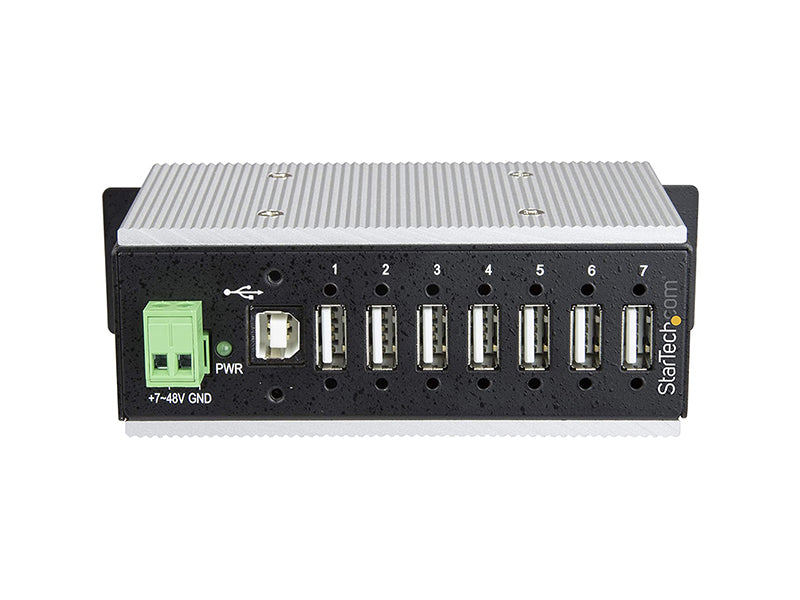

StarTech HB20A7AME Industrial 7-Port USB 2.0 Hub with Surge Protection

VENDOR: STARTECH Mfg Part#: HB20A7AME UPC#: 065030878616
  • Designed for harsh industrial settings, the StarTech HB20A7AME is a rugged 7-port USB 2.0 hub that ensures stable connectivity with wired, screw-lock Type-A ports. Featuring surge protection up to 350W and an extended operating temperature range (-40°F to 185°F), it’s ideal for demanding applications requiring reliable USB expansion. With DIN and surface mount options, it integrates seamlessly into industrial control panels or IT infrastructure.
  • Designed for harsh industrial settings, the StarTech HB20A7AME is a rugged 7-port USB 2.0 hub that ensures stable connectivity with wired, screw-lock Type-A ports. Featuring surge protection up to 350W and an extended operating temperature range (-40°F to 185°F), it’s ideal for demanding applications requiring reliable USB expansion. With DIN and surface mount options, it integrates seamlessly into industrial control panels or IT infrastructure.
  • Designed for harsh industrial settings, the StarTech HB20A7AME is a rugged 7-port USB 2.0 hub that ensures stable connectivity with wired, screw-lock Type-A ports. Featuring surge protection up to 350W and an extended operating temperature range (-40°F to 185°F), it’s ideal for demanding applications requiring reliable USB expansion. With DIN and surface mount options, it integrates seamlessly into industrial control panels or IT infrastructure.
  • Designed for harsh industrial settings, the StarTech HB20A7AME is a rugged 7-port USB 2.0 hub that ensures stable connectivity with wired, screw-lock Type-A ports. Featuring surge protection up to 350W and an extended operating temperature range (-40°F to 185°F), it’s ideal for demanding applications requiring reliable USB expansion. With DIN and surface mount options, it integrates seamlessly into industrial control panels or IT infrastructure.
1 4
Photo is for illustration purposes only. Actual product may be different.
$216.05
$216.05
Sale Sold out
MSRP: $217.99
Shipping calculated at checkout.
  • Industrial-grade 7-port USB 2.0 hub with screw-lock Type-A connectors
  • Operating temperature range: -40°F to 185°F with 15kV Air / 8kV Contact ESD protection
  • Surge protection up to 350W to protect connected devices
  • Supports wide input voltage range of 7–48V DC via terminal block
  • DIN and wall-mount compatible with rugged metal enclosure
  • 480 Mbps transfer rates over wired USB connections
View full details

Key Benefits

Eye-Insights
  • Ideal for harsh environments with extended temperature support and ESD/surge protection
  • Flexible installation with both DIN-rail and wall mount options included
  • Wide voltage input and screw-lock USB ports ensure secure, reliable performance in industrial applications

Product Overview

Industrial 7 port USB 2.0 hub w/USB Type-A screw lock ports 480Mbps - Rugged metal USB hub with 15kV Air/8kV Contact ESD - 350W surge protection - Ear/DIN mountable (bracket incl) - Operating temp -40F to 185F RH 5%-95% - 7 to 48V DC power terminal

Specifications

Primary Information
Features Perfect for Harsh Environments ; Connect More USB Devices ; Locate the Hub Where You Need It Most With versatile installation options, you can install the hub where its best
Network Device Type Hub
Model HB20A7AME
Form Factor Industrial Plastic
Connectivity Technology Wired
Data Transfer Rate 480 Mbps
Networking / Ports Qty 7
Power / Device Type DC Adapters
Power / Provided (W) 28 Watt
Power Consumption Operational 28 Watt
Power / Voltage Required 7 ~ 48 DC

Service&Support
Service & Support Type 2 Years Warranty

UNSPSC Code
UNSPSC Code 43222610

Network
Interfaces 1 - Terminal Block (3 Wire) 7 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - USB B (4 pin)

Dimensions&Miscellaneous
Depth 2.5 Inch
Width 5.2 Inch
Height 1.7 Inch
Enclosure Color Black & Silver
What's Included 1 - USB 2.0 hub 1 - 2 m [6.6 ft] USB-A to USB-B cable 1 - DIN rail kit 1 - instruction manual
Weight 0.4 Kg

Special Feature
COO TAIWAN
TAA compliance Yes
Min Operating Temperature 0 Celsius degree
Max Operating Temperature 50 Celsius degree
Min Storage Temperature -20 Celsius degree
Max Storage Temperature 70 Celsius degree

Interfaces / Ports
Interfaces 1 - Terminal Block (3 Wire) 7 - USB 2.0 Type-A (4 pin, 480Mbps) 1 - USB B (4 pin)
