StarTech HDMI Over CAT5e/CAT6 Extender with PoC - 165 ft

VENDOR: STARTECH Mfg Part#: ST121SHD50 UPC#: 065030851404
1 5

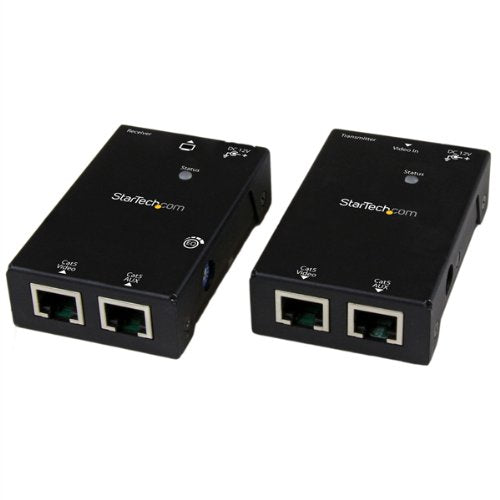

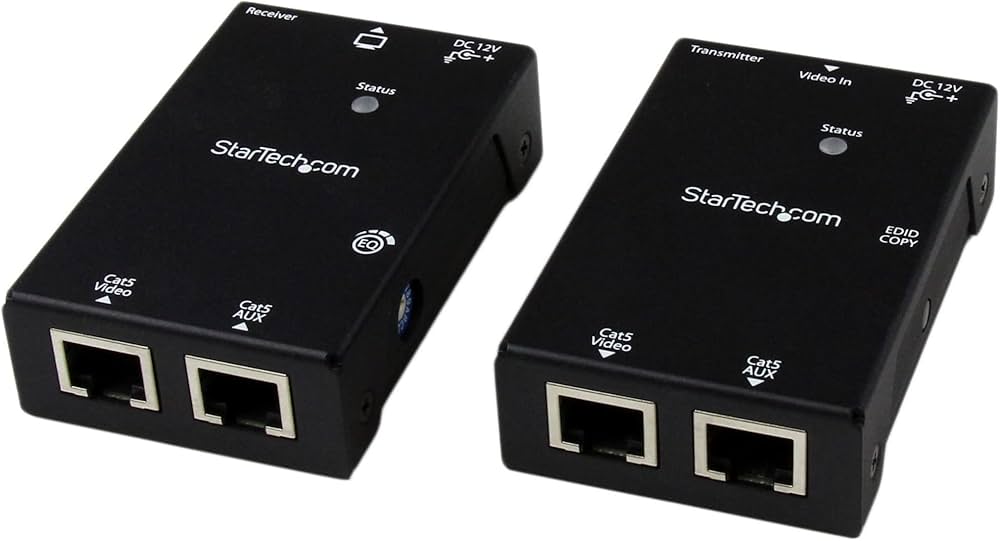

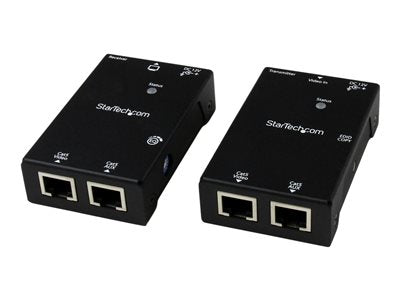

Photo is for illustration purposes only. Actual product may be different.
$166.00
$166.00
Sale Sold out
MSRP: $179.00
Shipping calculated at checkout.
  • Extends HDMI signal up to 165 ft (50 meters) over Cat5e or Cat6 Ethernet cable
  • Supports Full HD 1920x1080p resolution for high-definition output
  • Power Over Cable (PoC) functionality allows one power supply to drive both units
  • Durable aluminum construction in a compact black design (3.1" x 2" x 0.8")
  • No software or drivers required for simple plug-and-play setup
  • TAA compliant with a 2-year warranty for added procurement confidence

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Eliminates the need for additional power at the receiving end with Power Over Cable support
  • Offers a cost-effective HDMI extension solution with reliable 1080p signal clarity over long distances
  • Easy, driver-free installation reduces deployment time in commercial AV or IT environments

Product Overview

Extend HDMI up to 165ft (50m) over Cat5e/6 cabling w/ Power over Cable to Receiver - HDMI over Cat5e - HDMI Cat5e Extender - HDMI over Cat6 - HDMI extender over Cat5e - HDMI Ethernet Extender - HDMI over Dual Cat5e/6 Video/Audio Extender - 1920x1080p

Specifications

Product Overview
Type HDMI Over CAT5e/CAT6 Extender
Form Factor External module
Product Material Aluminum
Color Black
Power Consumption 12 VA
Power Over Cable (PoC) Yes
Warranty 2 Years
What's Included 1 x HDMI over CAT5e/6 UTP Transmitter, 1 x HDMI over CAT5e/6 Receiver, 1 x Power Adapter, Instruction Manual
Supported Resolutions 1920 x 1080 (1080p)
Maximum Transmission Distance 50 m (165 ft)

Physical & Environmental
Height 2 in
Width 3.1 in
Depth 0.8 in
Housing Color Black
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -10°C to 60°C (14°F to 140°F)
Operating Humidity 10% to 90% RH (non-condensing)
Storage Humidity 10% to 90% RH (non-condensing)

Cloud Management & Licensing
Software/Driver Requirement None - Plug and Play
Remote Management No

Interfaces
Video Input Interface 1 x HDMI (Transmitter)
Video Output Interface 1 x HDMI (Receiver)
Number of HDMI Ports 2
UTP Cable Interface 2 x RJ-45 (one on each unit)
Cabling Type Cat5e or Cat6 UTP
Transmission Technology HDBaseT-Like (uncompressed HDMI over Ethernet cable)
HDMI Version Supported HDMI 1.3
Data Transfer Rate Up to 6.75 Gbps

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
Certifications CE, FCC
RoHS Compliant Yes
REACH Compliant Yes

Advanced Security Features
HDCP Compliance HDCP 1.1
