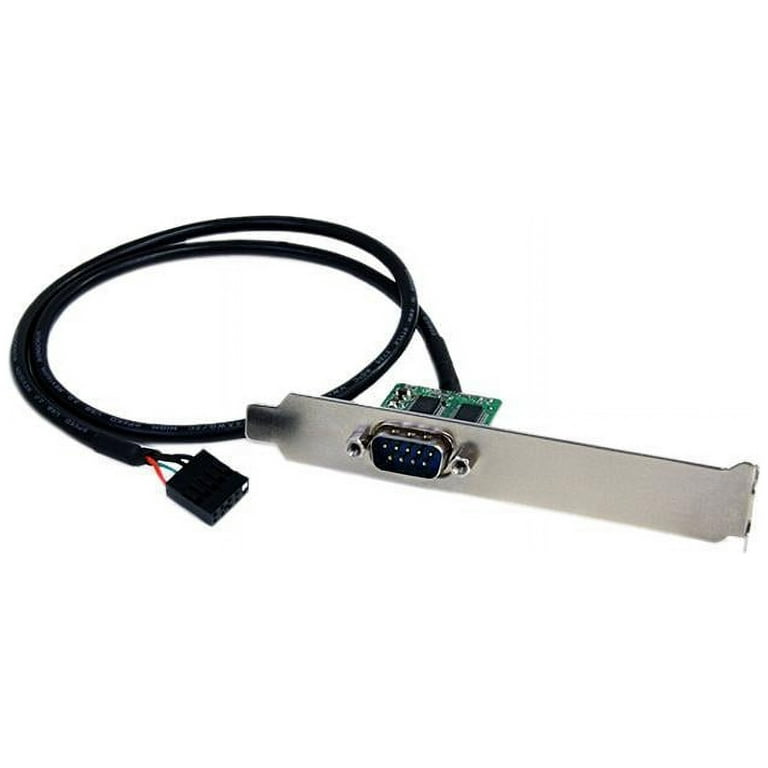

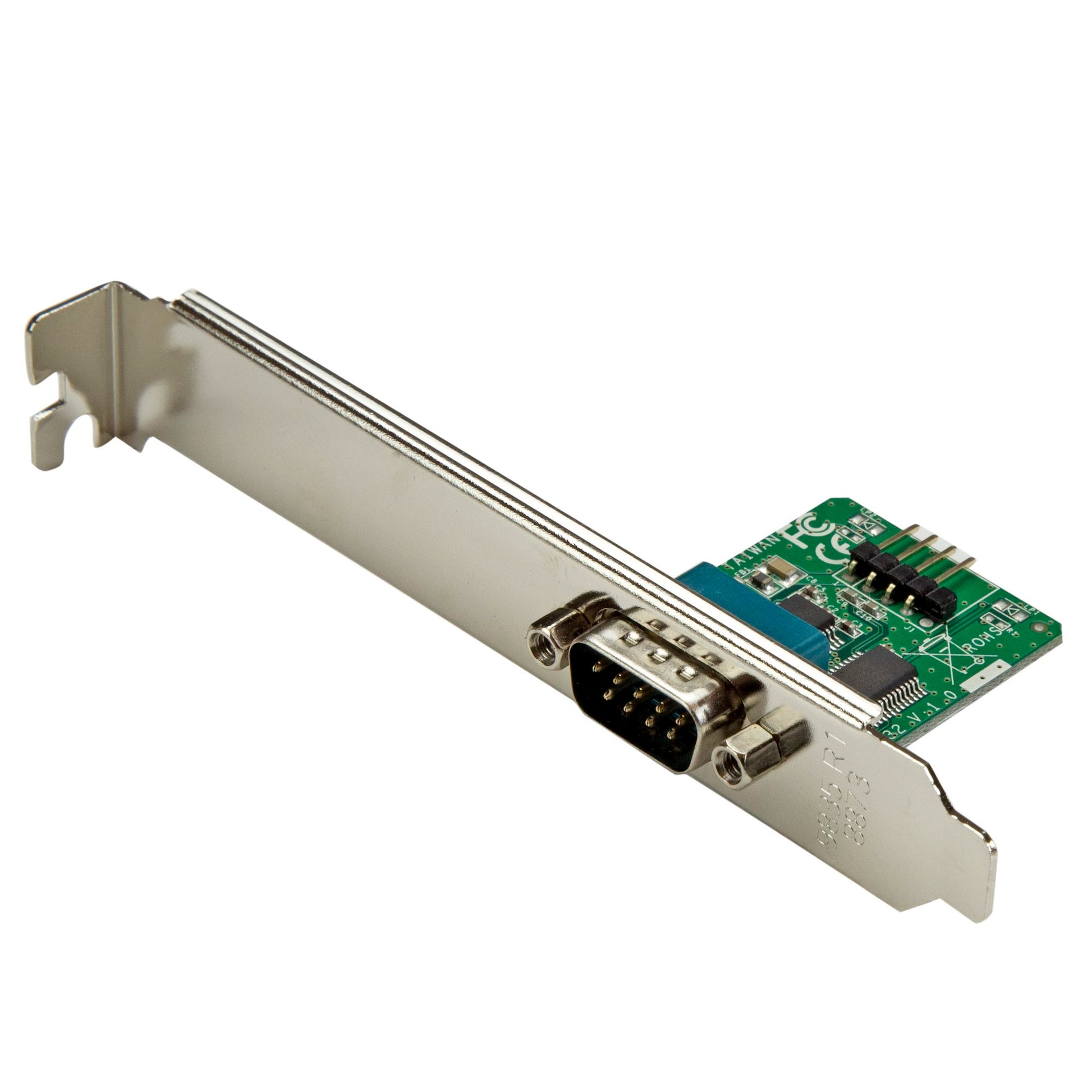

StarTech ICUSB232INT1 USB to RS232 Serial Adapter - DB9 Header

VENDOR: STARTECH Mfg Part#: ICUSB232INT1 UPC#: 065030840934
1 5
Photo is for illustration purposes only. Actual product may be different.
$51.00
$51.00
Sale Sold out
MSRP: $55.00
Shipping calculated at checkout.
  • External form factor ideal for internal chassis installation
  • 1 x DB-9 (9-pin D-Sub) RS-232 serial port
  • Data transfer rate of up to 115.2 Kbps
  • Wired USB-to-serial interface for stable connection
  • RoHS and TAA compliant for regulatory assurance
  • Includes a 2-year manufacturer support warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enables serial device integration in systems lacking external RS-232 ports via internal USB header.
  • RoHS and TAA compliance makes it suitable for government and enterprise IT deployments.
  • Compact size and internal mounting reduce clutter and enhance build customization.

Product Overview

Add an RS232 serial port to any system with an available USB motherboard header - USB to Serial - USB to RS232 - USB to DB9 - USB to serial Adapter - USB to serial port

Specifications

Product Overview
Product Type Adapter
Form Factor External
Enclosure Color Green
Weight 18 g
Power Source USB-powered
Mounting Type Internal motherboard header panel mountable

Wireless Features

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
CE Marking Yes
FCC Compliance Yes - Part 15 Class B
REACH Compliant Yes
Country of Origin Taiwan

Advanced Security Features

Interfaces
Interface Type RS-232
Data Link Protocol RS-232
Ports Quantity 1
Data Transfer Rate 115.2 Kbps
Connectivity Technology Wired
Connector Type 1 x DB-9 serial (male)
Connector 1 IDC 5-pin USB header (female)
USB Interface USB 2.0 (via motherboard header)

Physical & Environmental
Width 4.8 inch
Depth 1.8 inch
Height 0.5 inch
Product Dimensions (Metric) 122.0 mm x 45.7 mm x 12.7 mm
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -20°C to 85°C (-4°F to 185°F)
Humidity Range Operating 5% to 95% RH
Cable Length 30 cm
